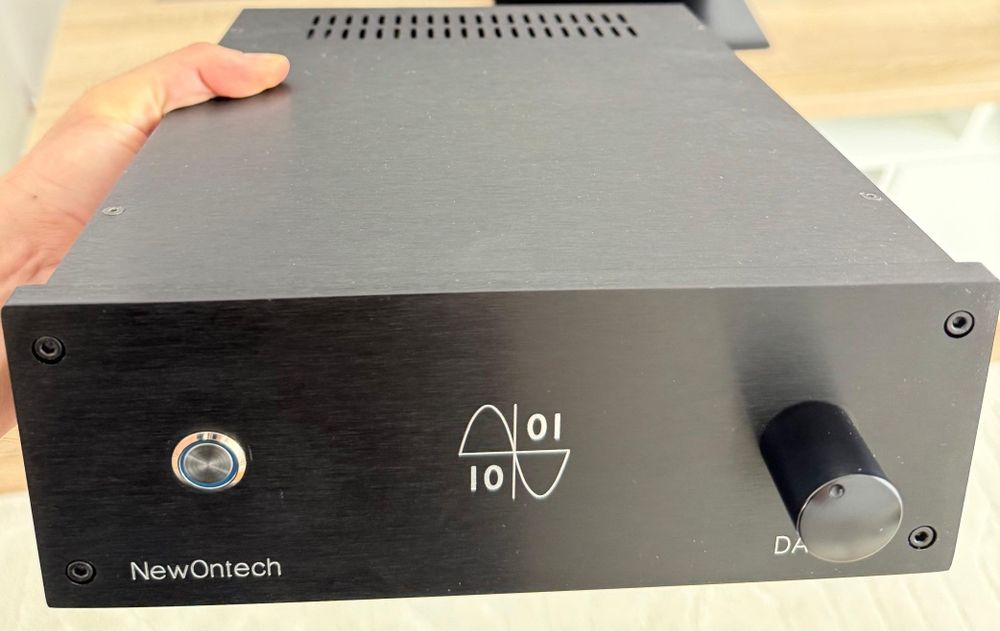

The NewOntech DAC 07 is a high-end digital-to-analog converter known for its robust power supply and detailed sound, featuring Burr-Brown chips, multiple digital inputs (USB, Coax, Optical, XLR), RCA & balanced XLR outputs, supporting up to 24/192kHz, and boasting low distortion (0.003% THD+N) and high dynamic range (>120dB) for an immersive audio experience.
Key Specifications:

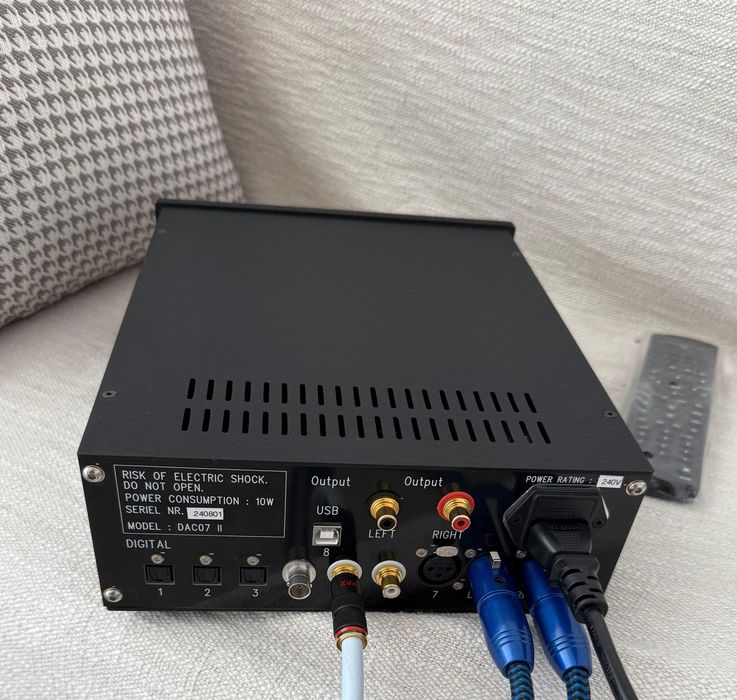

Digital Inputs: USB, 2x Coaxial RCA, 3x Optical (TOSLINK), 1x XLR.
Analog Outputs: Stereo RCA & Balanced XLR (Fixed Level).
Sample Rates: Up to 24-bit/192kHz (asynchronous USB).
Frequency Response: 20Hz - 20kHz (±0.3dB).
THD (Total Harmonic Distortion): 0.003% (THD+N).
Signal-to-Noise Ratio: >115dB.
Dynamic Range: >120dB.
Line Output Level: 2V RCA / 4V XLR.
Power: 10W consumption, hybrid power supply.
Dimensions (WHD): Approx. 200-240mm W x 80-90mm H x 260-290mm D.
Weight: Around 3.5 - 4 kg.
Core Features:
Uses high-quality components like Burr-Brown chips and discrete regulators.
Features a short signal path and advanced noise filtering for purity.
Supports both single-ended (RCA) and balanced (XLR) connections.
