Receiverul se prezinta in perfecta stare tehnica si estetica.

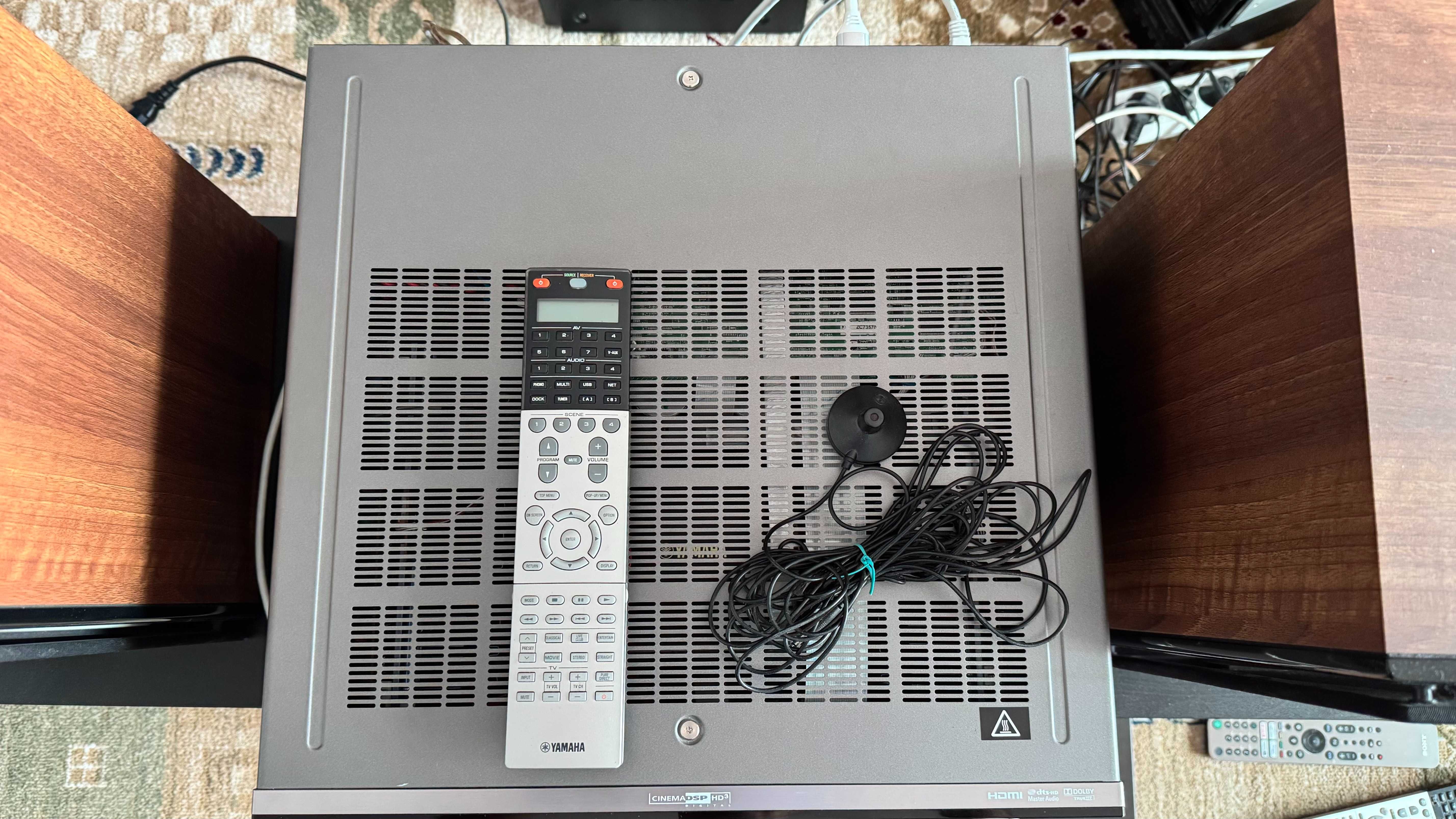

Accesorii:

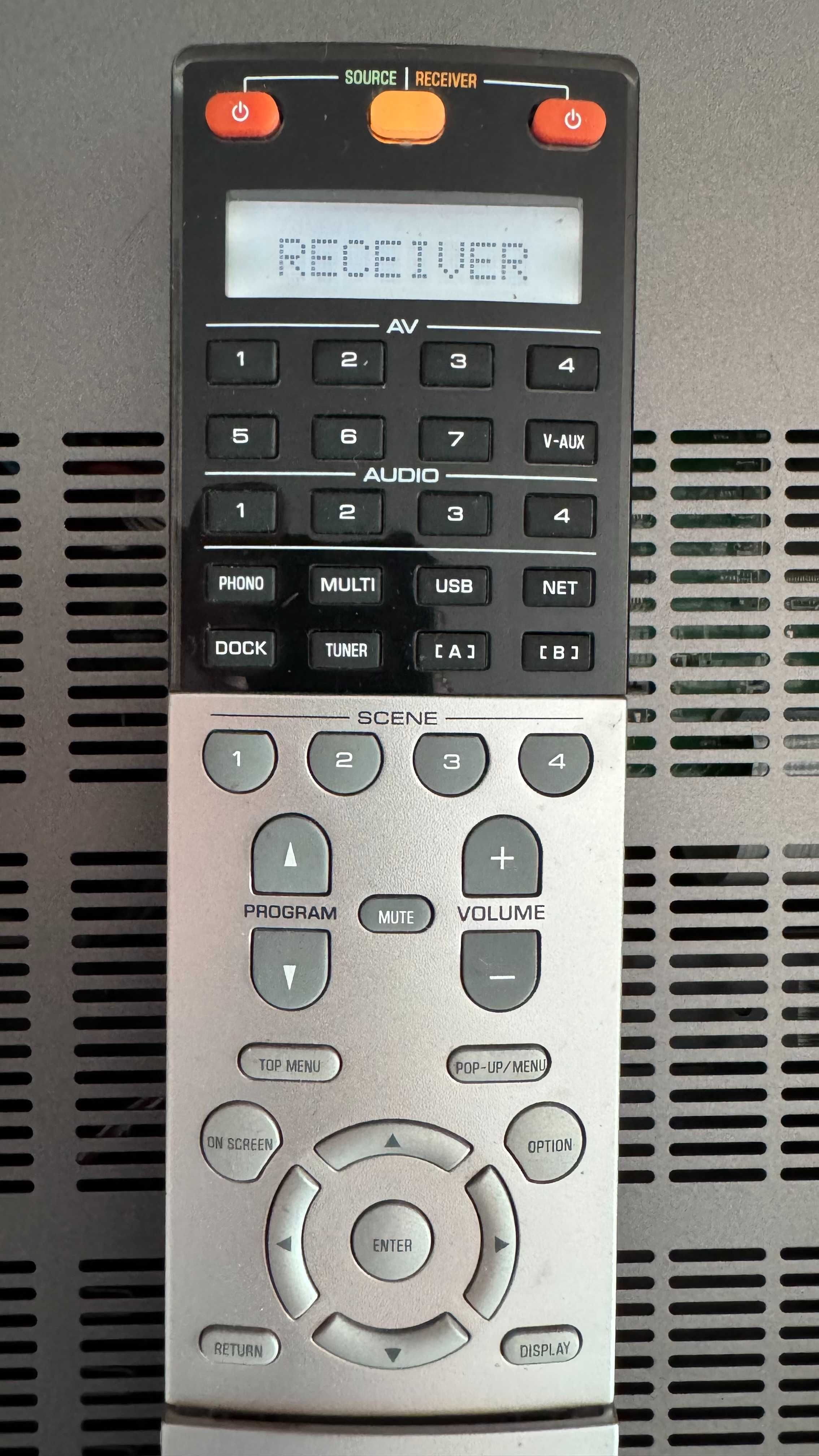

Telecomanda RAV415
Microfon calibrare.

Putere RMS
230W x 9 (4 ohms, 1 kHz, 0.9% THD, 1ch driven)
150W x 9 (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2ch driven)

Dimensiuni
435 x 192 x 467 mm

Greutate
19.9 kg

• HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High Resolution Audio
• Rigid bottom frame/double bottom construction
• Heat sink with anti-vibration and anti-thermal properties
• DAC on Pure Ground circuitry
• High speed thermal feedback power amplifier
• Ultra Low Jitter PLL circuitry helps optimise sound imaging
• Intelligent assignable amplifiers for Surround Back - Front Presence or Zone 2
• Phono input for vinyl playback

[ Video Features ] 4K Pass-Through and Upscaling Supports Latest High Resolution Video Formats
This AV receiver's HDMI input/output supports 4K video image pass-through. It also can perform 4K upscaling to boost a lower resolution image to super high-def resolution. This ensures compatibility with the latest super high resolution video formats.

HQV Vida Processor for High Resolution HD and SD Images
This AV receiver optimises the video signals they send to the TV by using the most advanced HQV (Hollywood Quality Video) Vida processor. Supporting both SD and HD sources, this processor employs powerful noise reduction functions that even improve low-quality sources. Additional resolution enhancement functions make SD content look like HD.

HDMI with 3D and Audio Return Channel
3D means the receiver can handle 3D signal data. The Audio Return Channel function enables data to be sent and received via the same HDMI cable, so you can hear the sound from the TV via a single HDMI cable, with no need for an extra optical cable.

Other Notable Video Features

• 4K / full HD 1080p video upscaling from analogue and HDMI input
• HDMI: 8 inputs (1 on front) and 2 outputs (assignable for zone)
• Analogue to analogue video upconversion
• Variable video adjustment functionality
- Auto noise reduction (mosquito, block and temporal noise) with customisation capability
- Auto resolution enhancement (detail and edge enhancement) with customisation capability
- Auto contrast enhancement
- Video signal control (Contrast, Brightness, Saturation)
- 6 preset memories

[ Advanced Features ] Network Functions

This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet Radio and operate your system via Web Browser Control. The AV Controller app (from iTunes App Store or Google play) lets you control various functions from your iPod, iPhone, iPad or Android phones.
AV Controller App for Easy, Convenient Operation

This AV Receiver lets you use the Yamaha AV Controller app that is downloadable from the iTunes App Store or Google play to control power on/off and volume, select input and DSP modes and operate other functions from an iPod, iPhone, iPad or Android phones. A tablet version is also available.
AirPlay Allows Streaming Music to AV receive

This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod touch, iPhone or iPad, as well as from iTunes on Macs or PCs. This makes it easy to enjoy music from your mobile devices or computer on your home theatre system. You can use view metadata such as song title, artist name as well as album art* via AV receiver's on-screen display.
*Some models don't support album art display.

USB Digital Connection for iPod, iPhone and iPad on the Front Panel
A USB port on the front panel allows convenient connection of an iPod/iPhone/iPad, which also charges when connected. Because the digital signal from the iPod/iPhone/iPad is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver’s remote control unit to operate the iPod/iPhone/iPad music playback functions.

YPAO-R.S.C. (Reflected Sound Control) Sound Optimisation with Speaker Angle Measurement
YPAO analyses room acoustics and performs speaker angle measurements, then calibrates audio parameters to achieve optimum sound at any of several listening positions. It employs Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalisation, which varies the CINEMA DSP parameters according to the reflected sounds.

HDMI CEC for Easy Operation
Another benefit of HDMI is the availability of CEC functionality. When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV, and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver’s remote unit to control player functions like Skip and Stop.
All connected devices must be HDMI CEC compatible. Some CEC compatible TVs/players may not work.

• HDMI front panel input for devices such as camcorders and digital cameras
• DLNA 1.5 certified
• Charging of iPod, iPhone and iPad via USB when AV Receiver is off
• New design YPAO microphone for more precise measurement
• Ability to store and choose between two speaker setting patterns
• Audio Delay for adjusting Lip-Sync (0-500 ms)
• Macro, Learning and preset capable remote unit
• Background Video feature (for tuner and Net)

[ Surround Realism ] CINEMA DSP HD3 Expands the Sound Field Vertically for More Thrilling and Realistic Surround Sound

Subwoofer Trim for Improved Sound Imaging
The Subwoofer Trim control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is “pushed” toward the subwoofer. Subwoofer Trim takes care of this by separating the low subwoofer frequencies cleanly, thus stabilising the front stage while providing a well-balanced enhanced bass sound.

Dialogue Lift and Dialogue Level Adjustment for natural dialogue and vocals
Dialogue Lift raises the sound of dialogue from the centre speaker to a position in the centre of the screen. Newly developed virtual dialogue lift achieves dialogue lift function even without the need for presence speakers. Dialogue Level Adjustment lets you control the volume of the vocal sound, so you hear movie dialogue and music vocals at the ideal level for clear, comfortable listening.

Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

Adaptive DRC (Dynamic Range Control)
Adaptive DRC automatically adjusts the dynamic range of the sound according to the volume level. This ensures that you hear clear dialog and vocals, and all sound effects at comfortable levels. There is no need to adjust the volume level as you listen; everything from whispers to big explosions will be heard clearly and comfortably at the same volume setting. It also tones down loud TV commercials, and is ideal for low-volume, late-night listening, when you do not want to disturb others.

Other Notable Surround Realism

• HD Audio decoding with CINEMA DSP HD3 (23 DSP programs)
• Virtual dialogue lift even without use of presence speakers
• Channel expandability with external amplifier (11-channel expandability, bi-amping)
• Adaptive DSP Level

[ Versatile Zone Control ] Multi-Zone HDMI Output Provides Different AV Sources in Two Rooms

This AV receiver makes it possible to set up multi-zone systems in a variety of configurations. The second HDMI output can be assigned to another zone for enjoying that HDMI source in a different room, while maintaining full-scale surround sound in the main room.

Other Notable Zone Control

• Zone 2/3/4 on/off and control on front panel
• Zone GUI (song/station select, album cover art display, Zone tone controls/Zone balance, short message)
• Zone 2/3 video assign (Component, S-Video, Composite)
• System Backup / Recovery function
• Zone mono, Zone volume, tone controls and balance
• Party mode

[ Eco-Friendly Design ] ECO mode lowers power consumption by 20%*
Yamaha’s new ECO mode reduces power consumption by about 20%. It can be set from the top of the GUI menu.
* Compared to power consumption when ECO mode is off (Yamaha measurement).

Selectable Auto Power Down
Auto Power Down lets you save energy by selecting to turn off the power after 2, 4, 8 or 12 hours.
Low Standby Power Consumption
Yamaha makes its receivers eco-friendly with a low standby power consumption of 0.3W in IR Standby mode (5.0W in HDMI Standby Through mode, 2.2W in Network Standby mode).
