For sale:

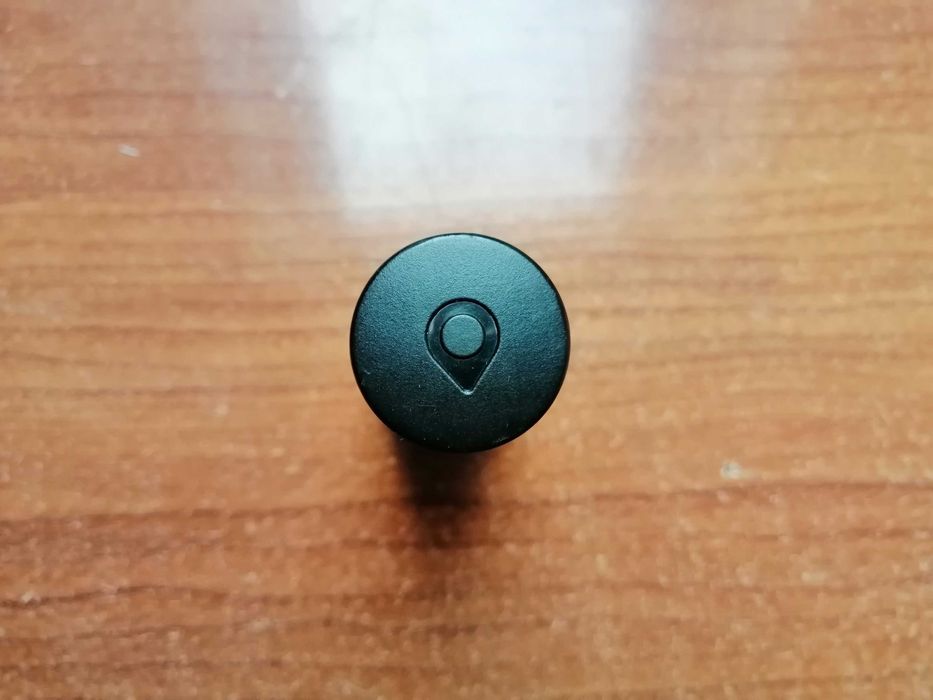

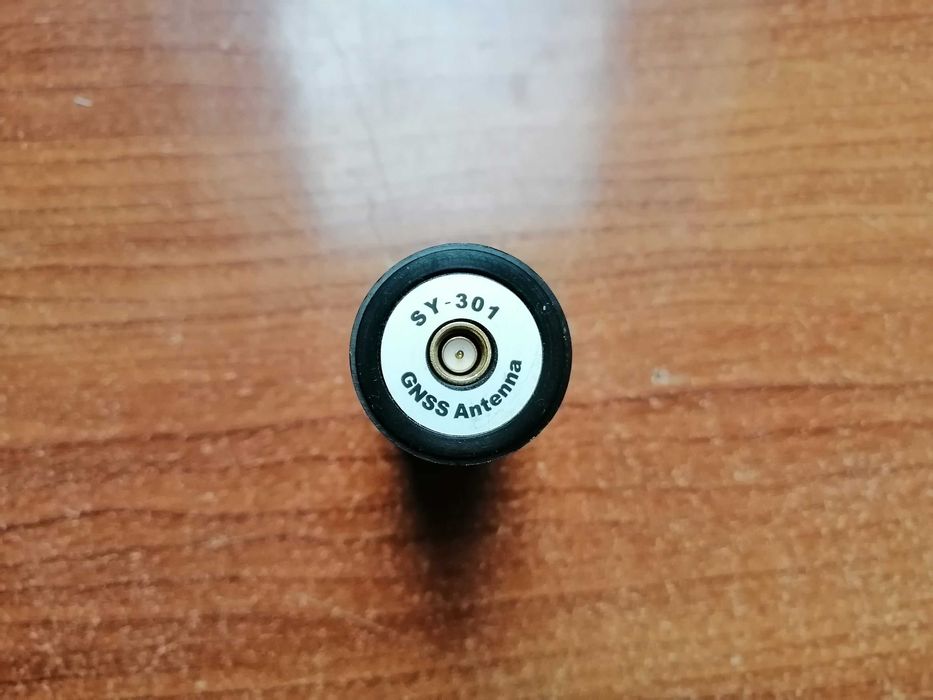

ArduSimple Lightweight Helical Multiband GPS GNSS Antenna
SKU: AS-ANT2B-HEL-L1L2-SMA-00

Compact and light dual band (L1/L2) helical antenna. Ideal for RTK rovers where weight and cost are critical.

Description:
External dual band L1/L2/E5b/B2I active helical GNSS antenna, with a weight below 18 grams, ideal for lightweight applications like drones.

Good to know:
– Compatible with all simpleRTK2B boards as well as any other multiband GNSS receiver in the market
– Helical antennas are ideal for GNSS reception in strange attitudes (not always facing the sky)
– Integrates a SMA-male termination, no cable is needed although you can use cable extenders
– Be aware that if you plan to use the Pixhawk connector in the simpleRTK2B board, the helical antenna will block it, so you will need a cable extender.
– This product is an alternative to Holybro HANT-8605A antenna

Includes:
– RTK dualband external helical GNSS antenna with SMA connector

Specifications:
2B Helical antenna
Antenna element

Supported positioning signal bands:
GPS: L1, L2
GLONASS: G1, G2
BeiDou: B1, B2
Galileo: E1, E5b
QZSS: L1, L2
SBAS: WAAS, EGNOS, MSAS and GAGAN
Polarization: RHCP
Peak gain: 2dBi
Axial Ratio - zenith: 3dB
Azimuth Coverage: 360 degrees
Impedance: 50 ohm

Electrical:
Supply voltage: 3-16V
Typical supply current - 3V: 35mA
Average LNA gain: 33dB
Maximum Noise Figure: 1.5dB
Maximum VSWR: 2
Mechanical:
Maximum length: 56mm
Weight: 18g
Mounting style: direct on SMA connector
Connector: SMA male
Environmental:
Operating Temperature: -40 to +85°C
Storage Temperature: -40 to +85°C
IP Rating: IP67
RoHS: Yes

and

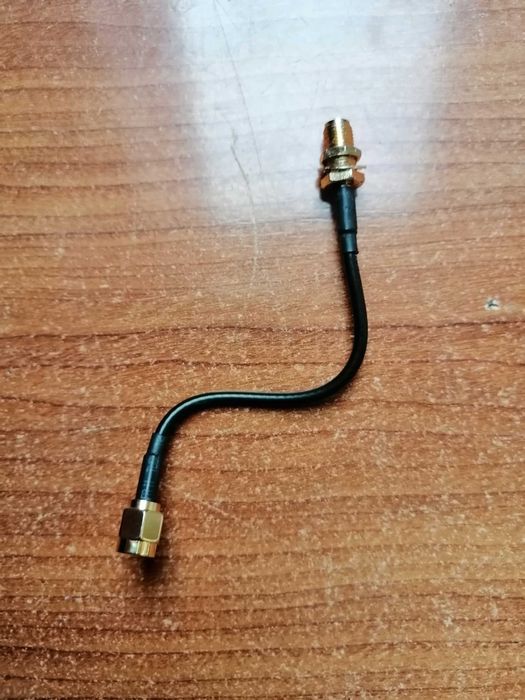

ArduSimple SMA antenna RF cable extender (0.1m)
SKU: AS-CAB-SMAF

Description:
Low loss antenna extender for SMA connectors, in many possible lengths: 0.1, 1, 2.5, 5 and 20 meters.

ArduSimple’s extenders are using high quality RG58 RF cable. To make a comparison, these extenders need 5 meters to have the same loss as a 2.5 meter low quality RF174 RF cable.

Recommended maximum length:
– For GPS/GNSS antenna: 20 meters
– For XBee LR radio: 2.5m

Good to know:
– Compatible with both GPS/GNSS antenna & XBee LR radio.

Includes:
– 1 x Low loss antenna extender for SMA connectors (0.1m, 0.5m, 1m, 2.5m, 5m or 20m).

Specifications:
SMA antenna RF cable extender:

Cable quality: RG58 (except 0.1m and 0.5m cable which are RG174)
Connector A: SMA male
Connector B: SMA female

For more details and clarifications, please contact me.
