2 BUCATI
Acest monitor compact, usor, complet A8S 4K 8.9 “HDMI si 3G-SDI monitor de la Lilliput este proiectat pentru a prelua aproape orice productie. Ecranul LCD de 8.9” 1920 x 1200 oferă luminozitate de 350 cd / m², contrast 800: 1 raport si unghiul de vizualizare de 170 °. Intrarea sa HDMI 1.4 este compatibila cu DSLR-uri, camere mirrorless si camere video profesionale si poate introduce 30 fps DCI și UHD 4K video. Dispune de o iesire HDMI bucla pentru afisaje suplimentare. Lilliput A8S are, de asemenea, o intrare 3G-SDI si o iesire bucla
Panel Type IPS-Type LCD
Display Size 8.9″ / 22.6 cm
Screen Resolution 1920 x 1200
Aspect Ratio 16:10
Viewing Angle Horizontal: 170°
Vertical: 170°
Maximum Brightness 350 cd/m2
Contrast Ratio 800:1
Bit Depth / Color Support 8-Bit (16.7 Million Colors)
Pixels Per Inch (ppi) 254 ppi
Real-Time LUT Monitoring SDR
Image Controls False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan

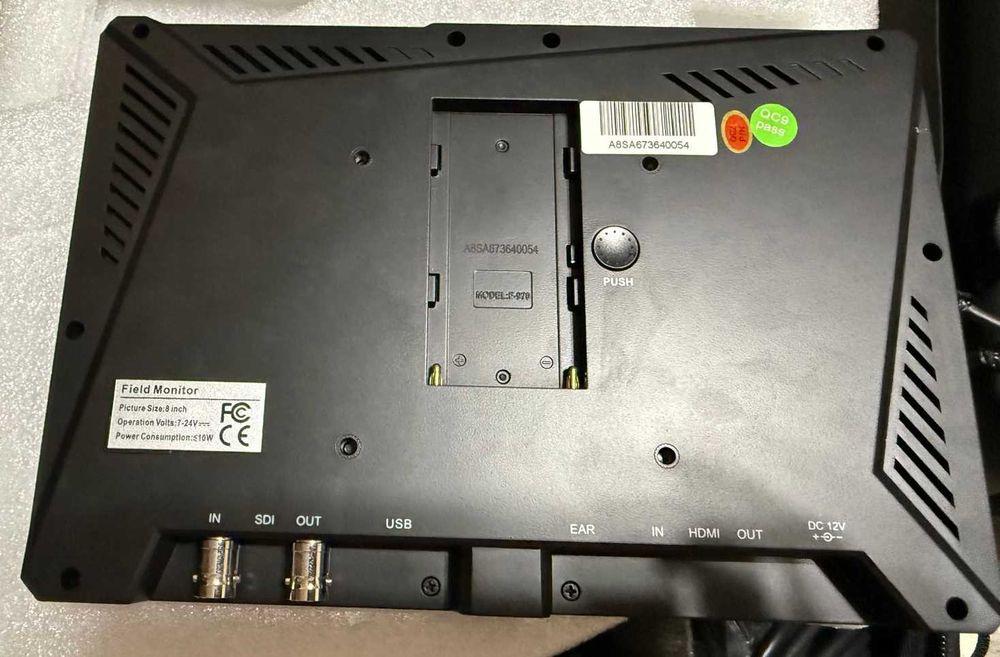

I/O

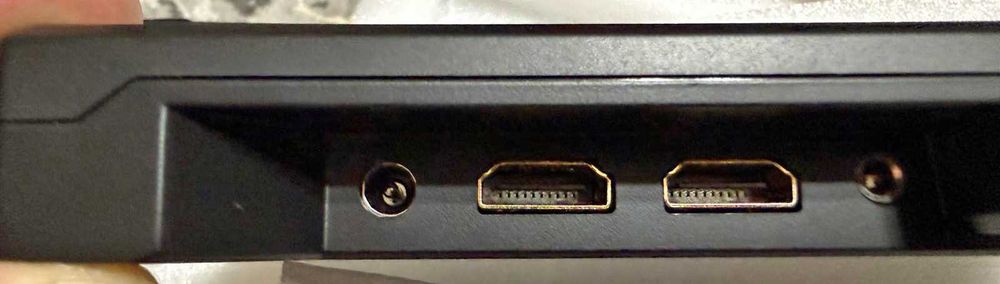

Video 1 x HDMI Type A (HDMI 1.4) Input
1 x HDMI Type A (HDMI 1.4) Output

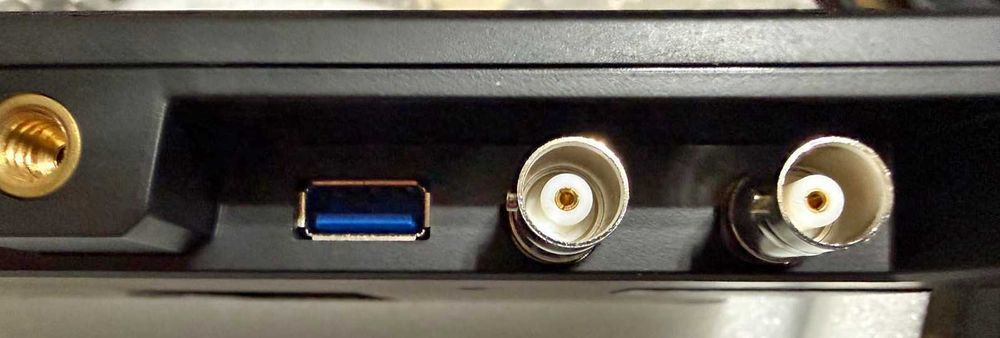

1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output
Audio 1 x 3.5 mm Headphone Output
Built-In Speaker 1
Power 1 x Barrel Input
Other I/O 1 x USB 2.0 (USB Type-A)
Card Slot None
Format Support
Video Format HDMI
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/25/24/23.98
Power
DC Input Power 7 to 24 VDC at 1 A
Battery Type 1 x L-Series
Power Consumption 10 W (Maximum)
Mounting
Mounting-Hole Pattern 75 x 75 mm
Mounting 1 x 1/4″-20 Female
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature 14 to 140°F / -10 to 60°C
General
Dimensions (W x H x D) 8.86 x 6.1 x 0.91″ / 22.5 x 15.5 x 2.3 cm
Weight 18.87 oz / 535 g
Warranty Length Limited 1-Year Warranty
Packaging Info
Package Weight 3.3 lb
Box Dimensions (LxWxH) 12.7 x 12.6 x 11.6″
