Panel Technology PVA TFT
Active Screen Area (W x H) [mm] 885.2 x 497.6
Screen Size [inch/cm] 40/101.6
Pixel Pitch [mm x mm] 0.648 x 0.648
Viewing Angle 170° horizontal / 170° vertical (typ. at contrast ratio 10:1)
Screen Aspect Ratio 16:9
Contrast Ratio (typ.) 1000:1
Brightness (typ.) [cd/m²] 450
Colour Temperature up to 10.000
Response Time (typ.) [ms] 8 (grey-to-grey), 16 (6 white / black; 10 black / white)
Colours [Mio.] 16.77
Horizontal Frequency [kHz] 31.5 - 91.1 (analog and digital)
Vertical Frequency [Hz] 50.0 - 85.0
Optimum Resolution 1360 x 768 at 60 Hz
Native Resolution 1366 x 768 at 60 Hz
Other Resolutions 1600 x 1200; 1280 x 1024; 1280 x 768; 1024 x 768; 832 x 624; 800 x 600; 720 x 400; 640 x 480

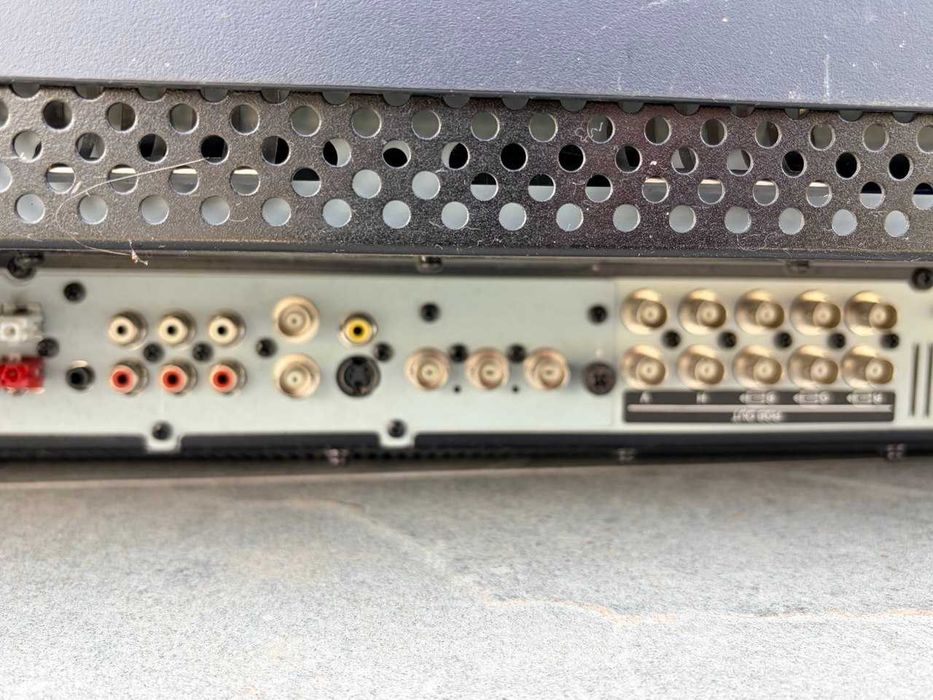

Video Input Analog: 1 x D-sub 15 pin; 5 x BNC, Component, Composite (via BNC and Cinch); 1 x S-Video; Digital: 1 x DVI-D
(with HDCP)
Video Output Analog: 5 x BNC, Composite (via BNC)
Audio Input 2 x Cinch; 1 x 3.5 mm Head-jack
Audio Output 1 x Cinch
Plug & Play DDC2B/2Bi
Safety and Ergonomics CE; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA; CCC; PSB; VCCI (Class II); RoHS
Power Requirements on Mode [W] 230
Power Management VESA DPMS
Power Supply 100-120 V/220-240 V; 2.6 A/1.1 A; integrated power supply
Ambient Temperature (operating) [°C] +5 to +40
Ambient Humidity (operating) [%] 20 to 80
VESA Mounting Interface 600 x 200 (FDMI); 16 holes / 100 mm spacing
Dimensions (W x H x D) [mm] With stand: 981.8 x 611.1 x 330; Without stand: 981.8 x 579.8 x 140
Bezel Width [mm] 46.6 (left and right); 39.3 top/bottom
Weight [kg] With stand: 29.0; Without stand: 27.5
Specials 10-bit Gamma Correction; AutoBright Technology (Signal Input); CableComp; Colour Temperature Mode;
Innovative Backlight System; NaViSet® and NaViSet® Administrator compatible; OmniColor™: sRGB Support
and 6-axis-colour-control; OSM menu; Picture-in-Picture Mode; Picture-over-Picture Mode; Power-Off timer;
Power-On Delay; Rapid Response Technology; Scheduler Function (with RTC); Self diagnostics; Temperature
Sensor; TileMatrix (5 x 5); Touch Panel ready; Vacation Switch; Video Detect
Video ready (no tuner) NTSC; PAL, SECAM
Video Modes 480i; 480p; 576i; 576p; 2 x720p (50 and 60 Hz); 2 x 1080i (50 and 60 Hz)
