4G LTE M.2 WWAN card pentru Lenovo ThinkPad X280 T480 T480S T580 P52S X380 Yoga T490 P53S X390 Yoga T490S X390 P43S

LTE Cat6 cellular module

LTE DL 300Mbps/UL 50Mbps

Support LTE Band 1/3/5/7/8/20/28

From factor: M.2

FIBOCOM L830-EB series are M.2 form factor LTE wireless communication modules which support LTE-FDD/WCDMA. The highest speed can reach Cat6 300Mbps DL and 50Mbps UL. L830-EB can cover multi-countries network, including EMEA, Taiwan, and etc. L830-EB can be widely used in consumer electronics(Laptop/Tablet), gateway industry.

FIBOCOM L830-EB Specifications and Feature:

LTE Cat6 cellular module

Form factor: M.2

Chipset/Platform: Intel XMM7262

Laptop/Tablet SKU With GNSS

Gateway SKU Without GNSS

Support 4G LTE FDD Band 1/3/5/7/8/20/28

Support 3G WCDMA/UMTS Band 1/5/8

CSFB Support

GNSS Support

* Operating Voltage: DC 3.135~4.4V, Typical 3.3V

* Operating Temperature: - 30~+65 C

* AT Command Set: 3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands

* TX Power: FDD LTE:23dBm WCDMA:23.58Bm

* RX Sensitivity：FDD LTE:-98dBm~102dBm WCDMA:~-220dBm

* Data Rates:
- FDD LTE: 300Mbps DL, 50Mbps UL
- UMTS: 384Kbps DL, 384Kbps UL

* Interfaces:
- USIM Card: 1.8V/3.0V
- USB 2.0
- EINT
- System Indicator
- Clock

* Drivers: Linux, Win 10

* Approvals: Laptop/Tablet SKU:GCF,CE,RoHS,HF,CB,NCC,etc.Total 18 certs for global shipment

* Gateway SKU 1: NCC, Anatel(TBD),RoHS,HF

* Gateway SKU 2: GCF,CE,RoHS,HF,FCC,Vodafone

* Dimensions: 90*42*2.3mm

* List of supported Lenovo ThinkPad models by Fibocom L830-EB:

- ThinkPad X280 (machine types: 20KE ... 20KF)
- ThinkPad X380 Yoga (machine types: 20LH ... 20LJ)
- ThinkPad S1 4th Gen (machine types: 20LK ... 20LL)
- ThinkPad P52s (machine types: 20LB ... 20LC)
- ThinkPad T580 (machine types: 20L9 ... 20LA)
- ThinkPad T480s (machine types: 20L7 ... 20L8)
- ThinkPad T480 (machine types: 20L5 ... 20L6)
- ThinkPad L580 (machine types: 20LW ... 20LX)
- ThinkPad L480 (machine types: 20LS ... 20LT)

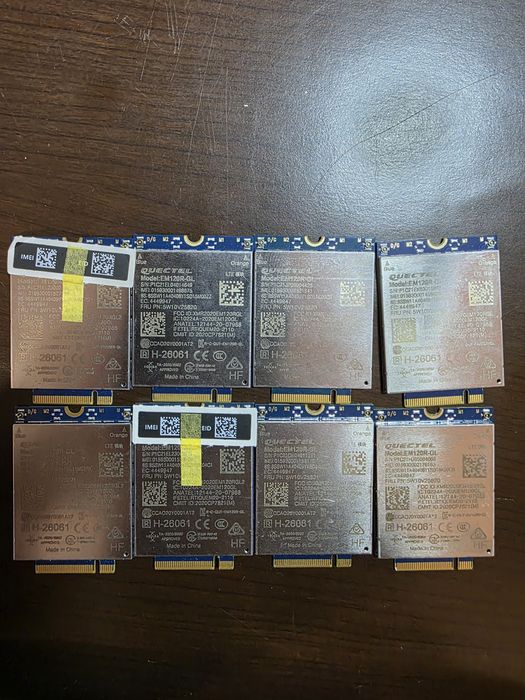

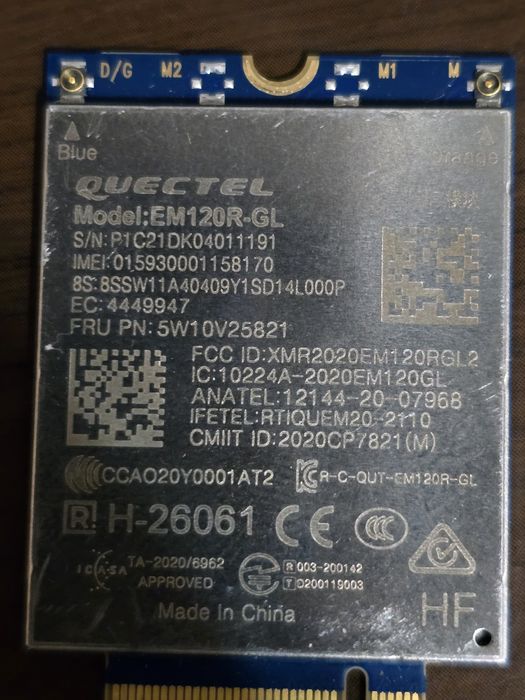

Quectel EM-120R-GL - 100 lei

Module WWAN 5G Lenovo

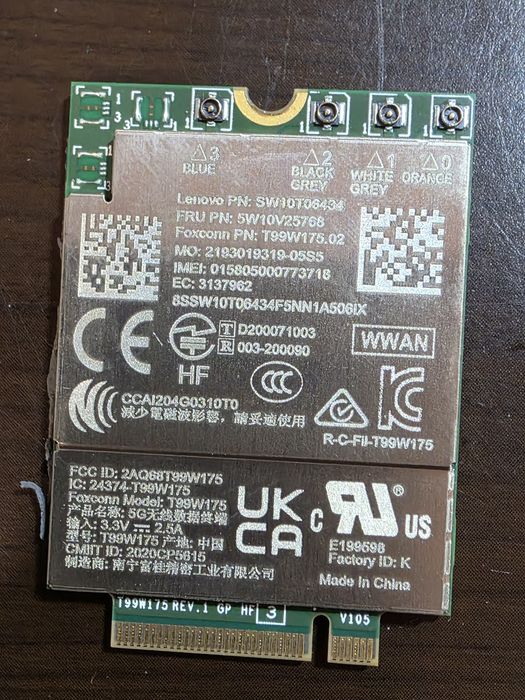

Foxconn T99W175 - 150 lei

Foxconn T77W968.05 - 150 lei

Preț fix. Nu sunt interesat de "oferte"

Accept test
