Modemul WIFI este perfect functional!

Merge in orice retea!

A fost testat in reteaua Vodafone!

Pozele sunt 100% reale!

Pentru mai multe detalii va astept intrebarile!

The HUAWEI E5180s-22 is a high-performance LTE Cube that provides wired and wireless access for users.

The E5180s-22 supports the following frequency bands:

LTE

FDD：2600/2100/1800/900/800MHz

TDD：2600MHz

DC-HSPA+/HSPA+/HSPA/UMTS：2100/900MHz

EDGE/GPRS/GSM：1900/1800/900/850MHz

The E5180s-22 supports the following network modes:

LTE（Long Term Evolution）

DC-HSPA+（Dual Carrier High Speed Packet Access Plus）

HSPA+（High Speed Packet Access Plus）

HSUPA（High Speed Uplink Packet Access）

HSDPA（High Speed Downlink Packet Access）

UMTS（Universal Mobile Telecommunications System）

EDGE（Enhanced Data Rates for Global Evolution）

GPRS（General Packet Radio Service）

GSM（Global System for Mobile Communications）

The E5180s-22 supports the following service functions:

Data service

Voice service

Short Message Service (SMS)

Security Features

Management and maintenance functions

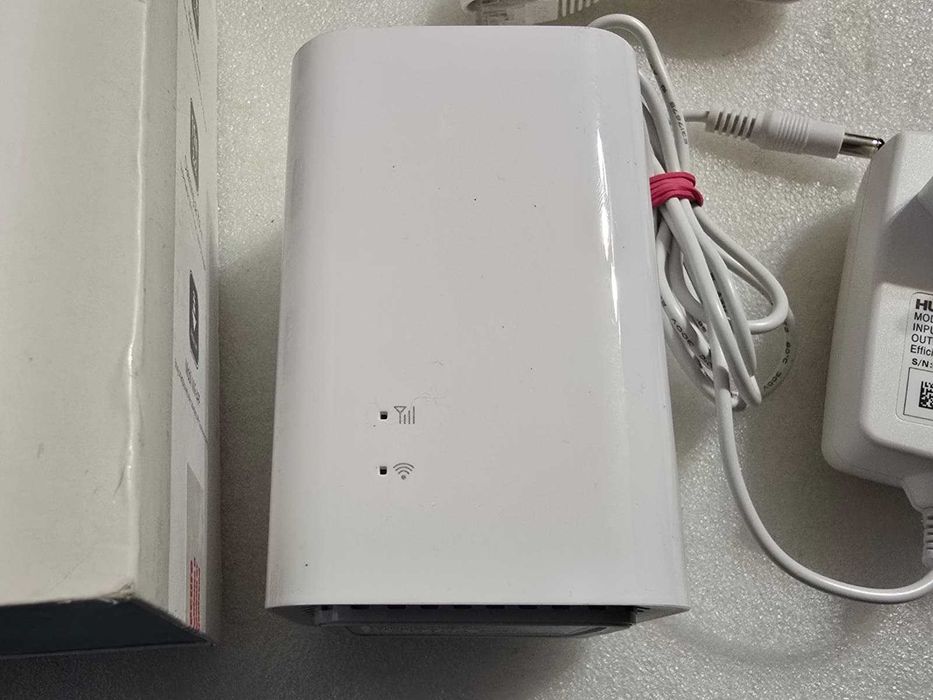

Figure 1 Appearance of the E5180s-22

The E5180s-22 has the following features:

Supports the wireless LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM access mode.

LTE FDD downlink packet data services with a maximum rate of 150 Mbit/s (theoretical value)

LTE FDD uplink packet data services with a maximum rate of 50 Mbit/s (theoretical value)

LTE TDD downlink packet data services with a maximum rate of 112 Mbit/s (theoretical value)

LTE TDD uplink packet data services with a maximum rate of 10 Mbit/s (theoretical value)

DC-HSPA+ downlink packet data services with a maximum rate of 43.2 Mbit/s (theoretical value)

HSPA+ downlink packet data services with a maximum rate of 21.6 Mbit/s (theoretical value)

HSPA downlink packet data services with a maximum rate of 14.4 Mbit/s (theoretical value)

HSPA uplink packet data services with a maximum rate of 5.76 Mbit/s (theoretical value)

Supports UMTS packet data services with a maximum rate of 384 kbit/s (theoretical value).

Supports UMTS circuit data services with a maximum rate of 64 kbit/s (theoretical value).

Supports EDGE packet data services with a maximum rate of 236.8 kbit/s (theoretical value).

Supports GPRS packet data services with a maximum rate of 85.6 kbit/s (theoretical value).

Supports IEEE802.11b/g/n.

Supports Wi-Fi.

Supports the LAN interface (RJ45).

Supports the telephone interface (RJ11).

Supports mobile Wi-Fi application clients.

Supports the DHCP server and NAT function.

IPv6/IPv4 dual stack;

Supports Windows XP SP3, Windows Vista SP1/SP2, Windows 7, Windows 8,

Windows 8.1, Mac OS X 10.7, 10.8, and 10.9 latest versions;

Hardware specifications of the E5180s-22

Table 1 lists the hardware specifications of the E5180s-22.

Project

Description

Technical Specifications

WAN：
LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM

LAN: IEEE 802.3/802.3u

WLAN: IEEE 802.11b/g/n

Operating frequency band

LTE：
FDD 2600/2100/1800/900/800MHz
TDD 2600MHz

DC-HSPA+/HSPA+/HSPA/UMTS: 2100/900MHz

EDGE/GPRS/GSM: 1900/1800/900/850MHz

WLAN: 2400MHz～2500MHz

Memory capacity

512MB NAND Flash，256MB DDR SDRAM

External Interfaces

1 power interface

1 TEL interface (RJ11)

1 LAN interface (RJ45)

1 micro SIM card port

Button

1 power button

1 RESET button

LED indicator

1 signal indicator

1 Wi-Fi indicator

1 group of decorative lamps

Maximum Transmit Power

LTE: Complies with the definition of power level 3

UMTS: Complies with the definition of power level 3

WLAN
802.11b：16dBm
802.11g：16dBm
802.11n：13dBm

Receiver sensitivity

LTE: Complies with 3GPP requirements

UMTS: Complies with 3GPP requirements

WLAN
802.11b：-76dBm（11Mbit/s）
802.11g：-65dBm（54Mbit/s）
802.11n：-64dBm（65Mbit/s）

Maximum power consumption

6 W

Power supply

AC：100V～240V
DC：12V/1A

Dimensions (L x W x H)

Dimensions (L x W x H)

Weights

Approx. 250g

Temperature

Operating temperature: 0°C to +40°C
Storage temperature: -20°C to +70°C

Humidity

5% to 95% (non-condensing)

Politici comerciale

 Vă rog să citiți cu atenție descrierea și caracteristicile produsului! Nu îmi asum răspunderea pentru situațiile în care cumpărătorul achiziționează un produs și, după ce intră în posesia lui, își dă seama că nu (i) se potrivește sau că îi trebuia altceva.
 În București, predarea se face în cartierul Rahova și nu se percepe nici o taxă (ca și puncte de reper ar fi liceul Dimitrie Bolintineanu pe Calea Rahovei nr. 311 sau stația tramvaiului 32 - Petre Ispirescu);
 În țară, produsul poate fi expediat atât prin Poșta Română – Coletărie cât și prin curier rapid, în acest caz cumpărătorul suportând și costurile aferente transportului;
 Plata se va face ramburs. Toate costurile (Ramburs + Taxe transport) se plătesc în momentul în care ridicați coletul. Costurile de transport prin Poșta Română - Coletărie, încep de la 17 RON și variază în funcție de greutatea coletului și de valoarea rambursului, iar coletul ajunge la destinație în maxim 3 – 4 zile lucrătoare;

Vă mulțumesc!
