Specificatii:

INPUT / OUTPUT

Total iesiri Audio analog 2 x XLR Program
Total intari Audio 2 x XLR, 2 x RCA
Total Intrari Video 8
Total Iesiri Video 6
Iesire SDI Aux 1 x SDI (10-bit SD/HD/Ultra HD switchable)
Reference Input Tri-Sync sau Black Burst
Video Input Re-sync Pe toate cele 8 intrari
Intrari SDI Video 4 x 10-bit SD/HD/Ultra HD 4K switchable 2 channel embedded audio
Iesiri SDI Audio 2 Ch embedded into SDI output on all outputs
Iesire SDI Program 1 x 10-bit HD/Ultra HD 4K switchable
Iesire Down Converted
SDI Program 1 x 10-bit (From Ultra HD 4K to HD)
Quantity of Multi Views 1
Iesiri Multi View 1 x HD-SDI si 1 x HDMI
Computer Interface 1 x USB 2.0 port
Ethernet Conexiuni control pannel accepta 10/100/1000 BaseT
Intrari Video HDMI 4 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio

SDI Rates 270Mb, 1.5G, 3G, 6G
Iesire HDMI Program 1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable
Timecode Nu

STANDARDE
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080i50, 1080i59.94

Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97
Compatibilitate SDI SMPTE 259M, SMPTE 292M, SMPTE 424M
Video Sampling 4:2:2
Color Precision 10-bit
Color Space REC 601, REC 709
Rezolutii intrare HDMI pentru PC-uri
720 x 480i 59.97Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz and 1920 x 1080 59.94Hz, 1920 x 1080 50Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz

Conversie Colorspace Timp real bazat pe hardware la iesire

MEDIA PLAYER
Media players 2
Media Pool Still
Image Capacity 20 cu fill si key
Media Pool Still
Image Format PNG, TGA, BMP, GIF, JPEG si TIFF
Canale Fill si key pentru fiecare media-player

DISPLAY
Rezolutia minima a monitorului 1366 x 768

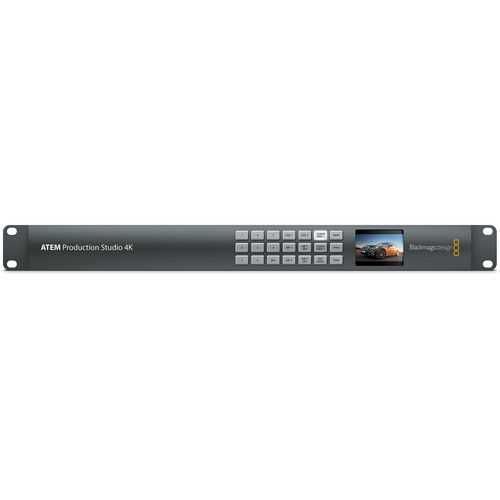

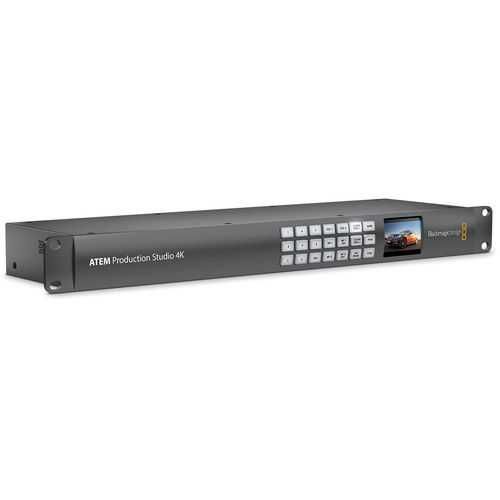

Front panel Monitor LCD incorporat pentru video si 42 butoane LED pentru Aux switching

PROCESARE
Delay la procesare 1 linie
Audio Mixer 10 input x 2 channel mixer, Selectable On/Off/Audio-Follow-Video, Level and Peak metering, Master gain control. Iesiri analog pentru monitorizare

Conversie de la 4K la HD Da, program x 1

GENERAL
Upstream Keyers 1 cu Chroma/Linear/Luma key
Downstream Keyers 2
Chroma Keyers 1
Talkback Support Nu
Mix Minus Support Nu
Linear/Luma Keyers 3
Transition Keyer (Stinger/DVE) Nu
Numar Total de Layere 4
Generatori de textura (pattern) 3
Generatori de culori 2
Routable Windows 8
Tally Rosu pentru program si verde pentru indicarea previzualizarii
Windows Source Labels Da
Dimensiuni 48.26 cm x 14.7 cm x 4.4 cm
Greutate 1.7 kg
Consum 60 W
Alimentare 1 x incarcator international AC. 110-240 V AC

Software Control Panel Inclus ATEM Software Control Panel inclus pentru Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan si Windows 8.1 64-bit sau Windows 10 64-bit. Update-uri de Software De la computer Mac OS X sau Windows prin conxiunea USB 2.0 Include ATEM Setup Utility

Sisteme de operare macOS 10.12 Sierra, macOS 10.13 High Sierra sau mai recent; Windows 8.1 64-bit sau Windows 10 64-bit
