Dimensions
48 x 22 x 9,8 cm
Details
Rated Output/Impedance
Stereo Out: +4dB, UNBAL
EFX Send: +4dB, UNBAL
Headphone Out: 80mW/33Ω
Input Sensitivity/Impedance
Mic, DJ Mic: -55dB/600Ω, UNBAL
Line: -18dB/47kΩ, UNBAL
Phono: -50dB/47kΩ, UNBAL
EFX Return: -10dB/10kΩ, UNBAL
T.H.D(20Hz-20kHz): 0.04%
Frequency Response
Mic, Line, EFX Send(+1/-3dB): 20Hz-20kHz
Phono(10kHz/100Hz): 13.6/+13.1dB
Graphic Equalizer: ±12dB (60, 150, 400, 1k, 3k, 6k, 12kHz)
ATT(CH): -15dB
Buss Noise: -70dB
Crosstalk: -60dB

- GENERAL
Power Source: AC 110V-240V, 50/60Hz
Power Consumption: 9.8W
Weight: 5kg
5 STEREO CHANNEL, DJ MIC INPUT AND
STEREO OUTPUT
Any sound source of microphones, turntable, electric
organ and compact disk can be to this channel input.
Stereo outputs of left and right are provided for
convenient use.
INPUTS AND OUTPUTS MONITORING
Use can monitor the input and output signals by
headphone and monitor output with selector switch very
conveniently.
CROSS FADER
User can change the sound source by the cross fader.
Hard left selects the output of channel 1, hard right
selects the output of channel 2, at center both channels
are live in equal position.
EFFECT SEND AND RETURN, DIGITAL ECHO
For the convenient use of effect equipment, effect send
and return terminals are provided. To make natural and
wide effect of echo sound, this disco mixer employs
digital echo IC. You can adjust the time interval and
echo level, and the select switchs are provided to make
echo effect from each channel.

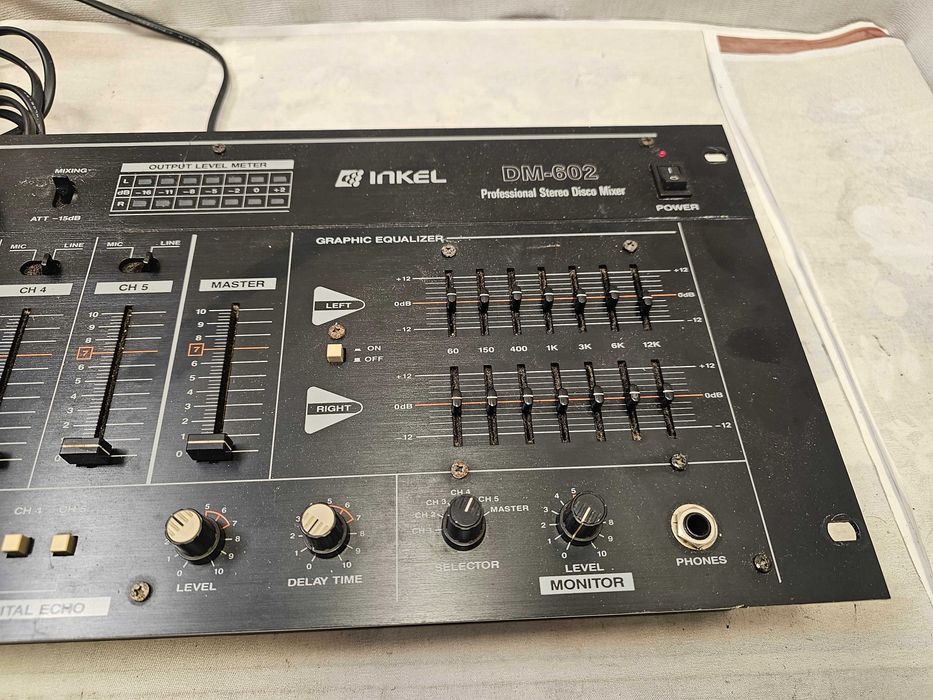

7 BAND GRAPHIC EQUALIZER
This unit includes stereo 7 band graphic equalizer.
