Postat 22 decembrie 2025
MediaCento VX Transmitter 1x8 VGA
19 lei
Firma
Stare: Utilizat
Descriere
Vand MediaCento VX Transmitter 1x8 VGA .
Use ordinary CATx cable instead of expensive VGA cable to extend high-quality multimedia.
Broadcasts high-quality VGA plus audio and serial signals over standard UTP cabling.
Features an icon-based GUI for easily managing the system.
Supports VGA resolutions up to 1920 x 1200 (or 1920 x 1080).
Extends video up to 300 m (long range receiver) or more than 600m with cascadable receivers.
Long-range receivers feature advanced skew compensation, sharpness, and brightness controls.
Local video and audio ports for plugging in a monitor and speakers at the source.
Enables independently turning on/off of video and audio ports.
Automatically detects and indicates signal from the video source.
EDID copy function for optimal PC-to-screen performance.
3.5-mm stereo jacks for audio and speaker connections.
For serial device extensions, transmits RS-232 (TX/GND) signals.

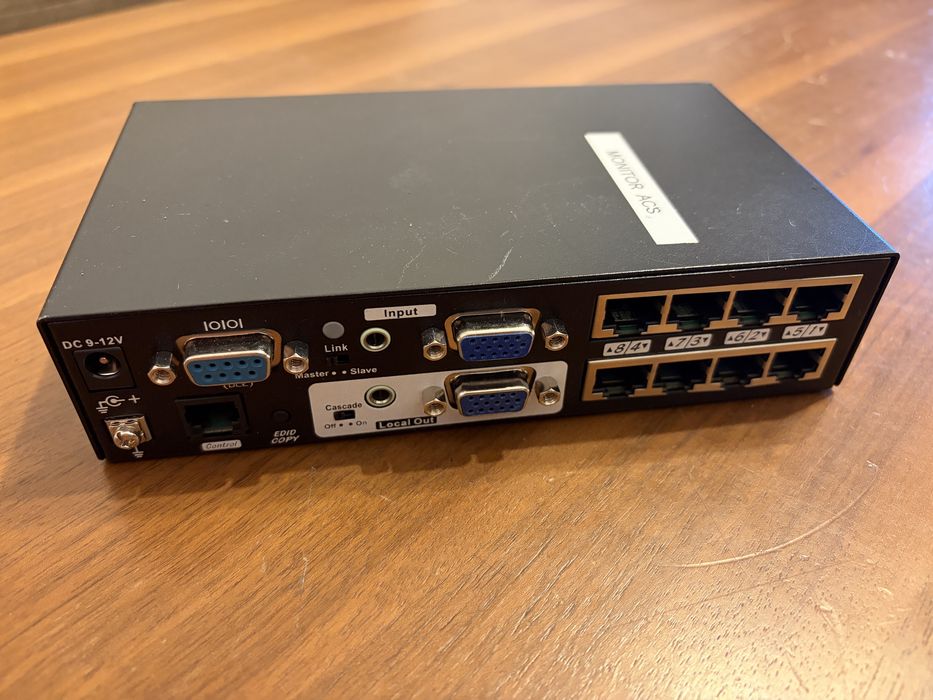

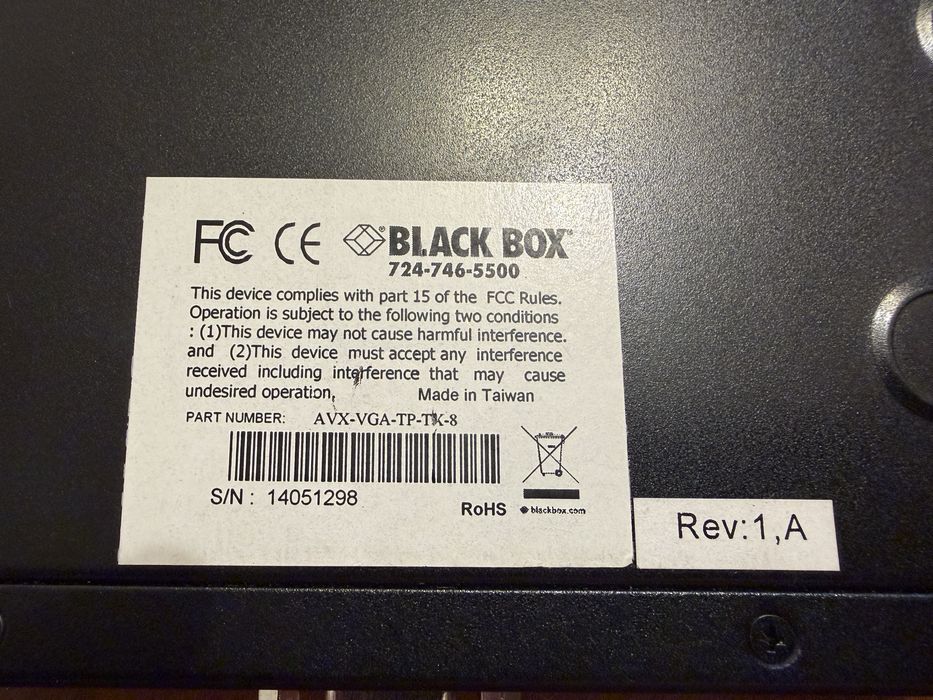

8-Port Transmitter AVX-VGA-TP-TX-8:
User Controls — (1) EDID copy button; (1) master/slave switch; (1) cascade on/off switch
Connectors —
Video input: (1) HD15 F (VGA);
Audio input: (1) 3.5-mm jack (stereo);
Serial input: (1) DB9 F (RS-232 TX/GND signals);
Local video output:/cascade: (1) HD15 F (VGA);
Local audio input: (1) 3.5-mm jack (stereo);
System configuration: (1) RJ-11 (connects to a host’s serial port via included control cable and RJ-11/DB9 converter);
Interconnect: (8) RJ-45;
Power: (1) 2.1-mm barrel jack;
Ground: (1) ground connector
Indicators — (2) LEDs: (1) Power/Source Input, (1) Link
Size — 4.1H x 17.1W x 10.2D cm (1.6"H x 6.75"W x 4"D)
Weight — 0.7 kg (1.6 lb.)
* NU am alimentator la el . se poate folosi unul compatibil
Se pot ridica din Bucuresti ,zona Bucur Obor . NU trimit in tara.
Use ordinary CATx cable instead of expensive VGA cable to extend high-quality multimedia.
Broadcasts high-quality VGA plus audio and serial signals over standard UTP cabling.
Features an icon-based GUI for easily managing the system.
Supports VGA resolutions up to 1920 x 1200 (or 1920 x 1080).
Extends video up to 300 m (long range receiver) or more than 600m with cascadable receivers.
Long-range receivers feature advanced skew compensation, sharpness, and brightness controls.
Local video and audio ports for plugging in a monitor and speakers at the source.
Enables independently turning on/off of video and audio ports.
Automatically detects and indicates signal from the video source.
EDID copy function for optimal PC-to-screen performance.
3.5-mm stereo jacks for audio and speaker connections.
For serial device extensions, transmits RS-232 (TX/GND) signals.
8-Port Transmitter AVX-VGA-TP-TX-8:
User Controls — (1) EDID copy button; (1) master/slave switch; (1) cascade on/off switch
Connectors —
Video input: (1) HD15 F (VGA);
Audio input: (1) 3.5-mm jack (stereo);
Serial input: (1) DB9 F (RS-232 TX/GND signals);
Local video output:/cascade: (1) HD15 F (VGA);
Local audio input: (1) 3.5-mm jack (stereo);
System configuration: (1) RJ-11 (connects to a host’s serial port via included control cable and RJ-11/DB9 converter);
Interconnect: (8) RJ-45;
Power: (1) 2.1-mm barrel jack;
Ground: (1) ground connector
Indicators — (2) LEDs: (1) Power/Source Input, (1) Link
Size — 4.1H x 17.1W x 10.2D cm (1.6"H x 6.75"W x 4"D)
Weight — 0.7 kg (1.6 lb.)
* NU am alimentator la el . se poate folosi unul compatibil
Se pot ridica din Bucuresti ,zona Bucur Obor . NU trimit in tara.
