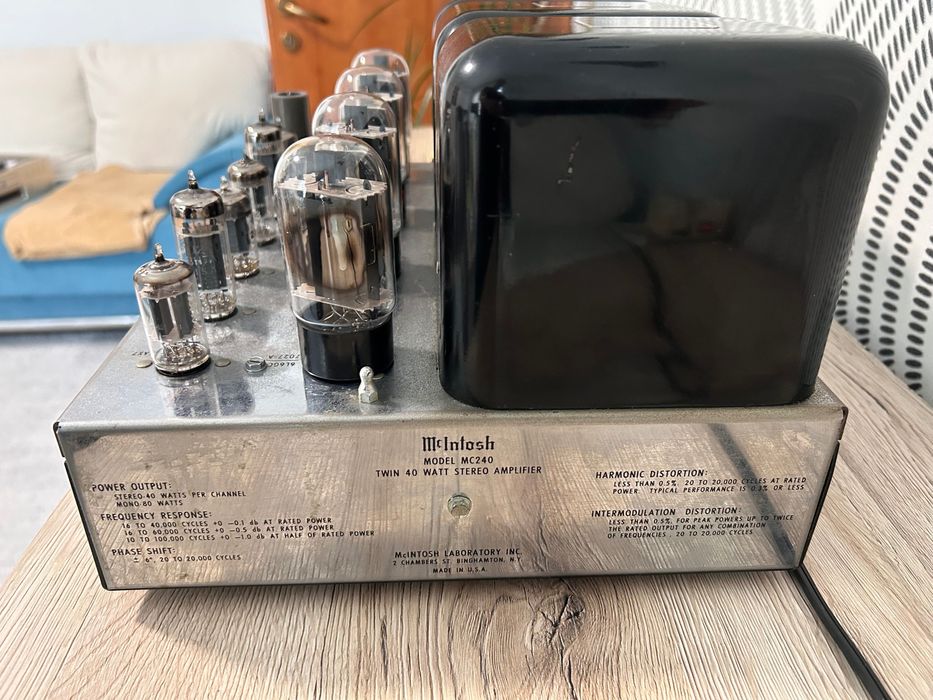

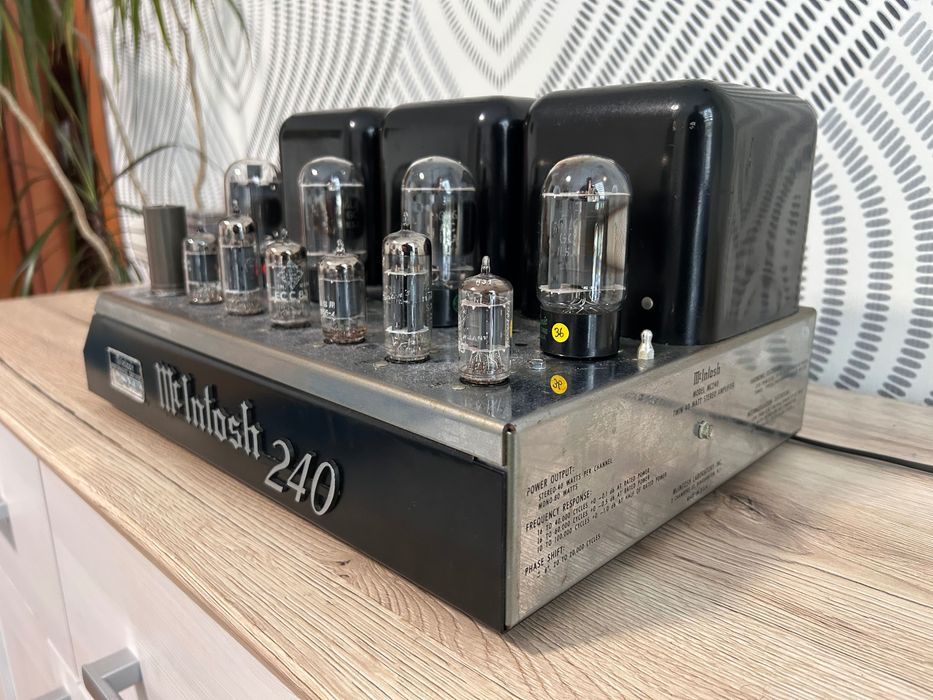

De vanzare un super-rar McIntosh MC240, made in USA, amplificator de putere, este model final al seriei (1969), in stare excelenta de functionare.

Adevaratul sound McIntosh pe lampi! Va astept la o auditie!

Vine echipat cu:

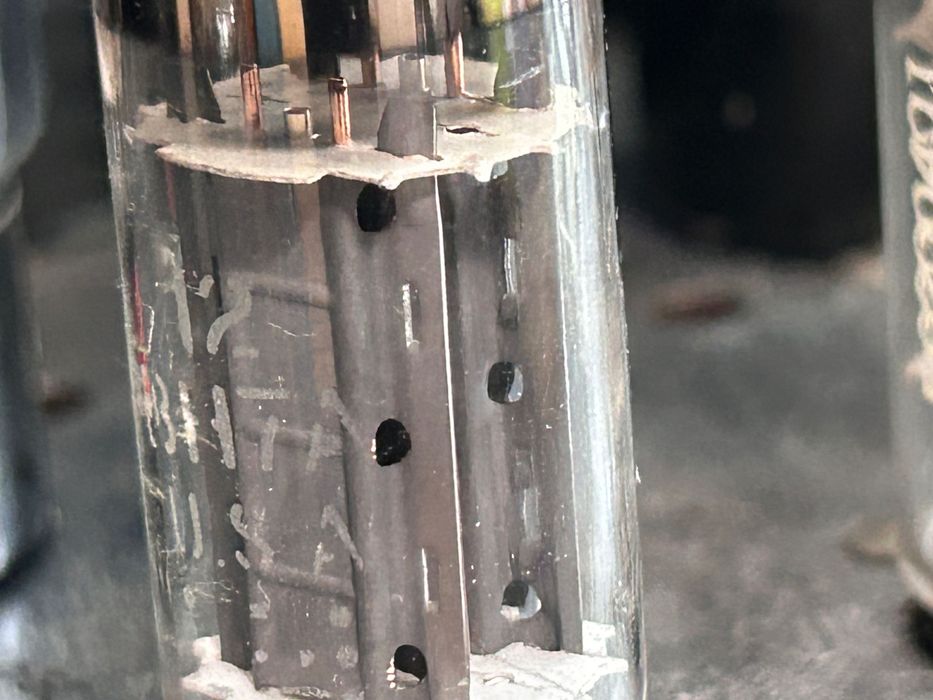

4 lampi 6L6GC de la General Electric in stare excelenta
3 lampi 12AX7 / ECC83 Telefunken NOS (1 x voltage amplifier, 2x cathode follower drive)

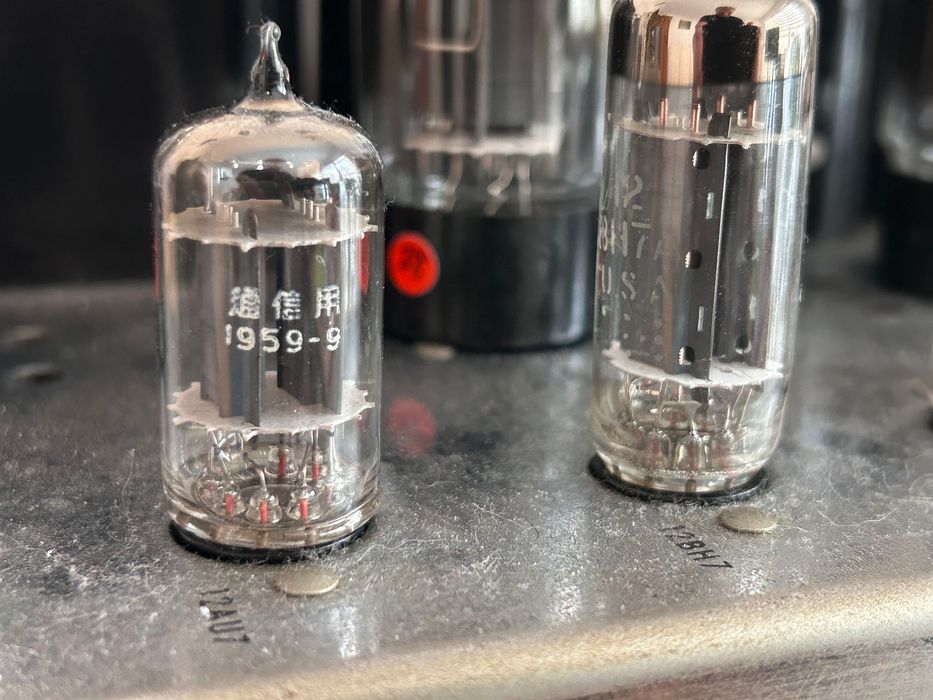

2 lampi phase inverter 12AU7 / ECC82 de la NEC Japan
2 lampi drive amplifier 12BH7 General Electric

plus transformator extern multi voltage IN, multi voltage OUT, 230V - 120V de 1kWh putere.
Amplificatorul poate fi selectat cu 2 intrari de tensiune 117V/125V.
Transformatorul oferit de mine (Misumi Swallow Electric Japan) are intrari si de 220V si de 240V plus iesiri separate si de 100 si 120V, in fct de tensiunea din zona dvs va puteti parametriza o tensiune foarte apropiata de specificatii,

NU FAC SCHIMBURI!

ELECTRICAL SPECIFICATIONS
Power Output:
Stereo or twin amplifier—40 watts continuous per channel
Monophonic—80 watts continuous

Harmonic Distortion: Less than 0.5% at rated output or less, 20 cycles through 20,000 cycles. Typical performance is 0.3% or less at 20 cycles and 20,000 cycles at full power. Typical performance in the mid frequencies is 0.1% or less at full power.

Intermodulation Distortion: Less than 0.5% for any combination of frequencies from 20 cycles through 20,000 cycles if instantaneous peak power is below twice the rated power.

Phase Shift: Less than +6° 20 cycles through 20,000 cycles

Frequency Range:
At rated output:
+0, -0.1 db 16 cycles through 40,000 cycles
+0, -0.5 db 16 cycles through 60,000 cycles
At one-half rated output:
+0, -1 db 10 cycles through 100,000 cycles

Noise and Hum: 90 db or more below rated output

Output Impedance:
Stereo or Twin Amp:
(Isolated from ground) 4 ohms, 8 ohms, 16 ohms
(Center tap internally grounded) 600 ohms
(One side internally grounded) 125 ohms

Mono:
(Isolated from ground) 2 ohms, 4 ohms, 8 ohms, 16 ohms, 32 ohms
(Center tap internally grounded) 300 ohms
(One side internally grounded) 62 ohms Output

Voltage:
Stereo or Twin Amp:
(Isolated from ground) 25 volts
(Center tap internally grounded) 140 volts
(One side internally grounded) 70.7 volts

Mono:
(Isolated from ground) 25 volts
(Center tap internally grounded) 140 volts
(One side internally grounded) 70.7 volts

Internal Impedance: Less than 10% of rated load impedance

Input:
Input impedance—250,000 ohms
Input sensitivity—0.5 volts to 30 volts through gain control with input switch in MONO or TWIN AMP position.
With the switch in the STEREO position, sensitivity is 2.0 volts through a balance control.

Power Requirements:
105 volts to 130 volts at 50/60 cycles:
145 watts at zero signal output:
270 watts at rated output.

The power transformer is tapped for 117 volts and 125 volts.

Tube Complement:
Voltage Amplifier—One 12AX7 (drives both amps)
Phase Inverter—Two 12AU7
Drive Amplitier—Two 12BH7
Cathode Follower Drive— Two 12AX7
Output— Four 6L6GC or 7027A

MECHANICAL SPECIFICATIONS
Dimensions: Chassis dimensions: 17 1/4" long x 10 3/4" wide x 8" high.
Weight: Chassis only—56 pounds.
Finish: Chromium and Black

Accessories Supplied:
Owners Manual
