Stare buna de functionare si aspect!

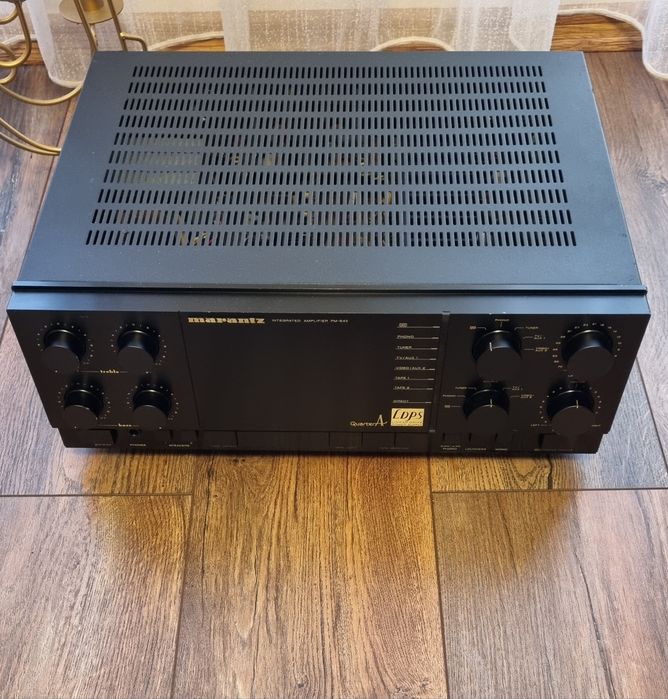

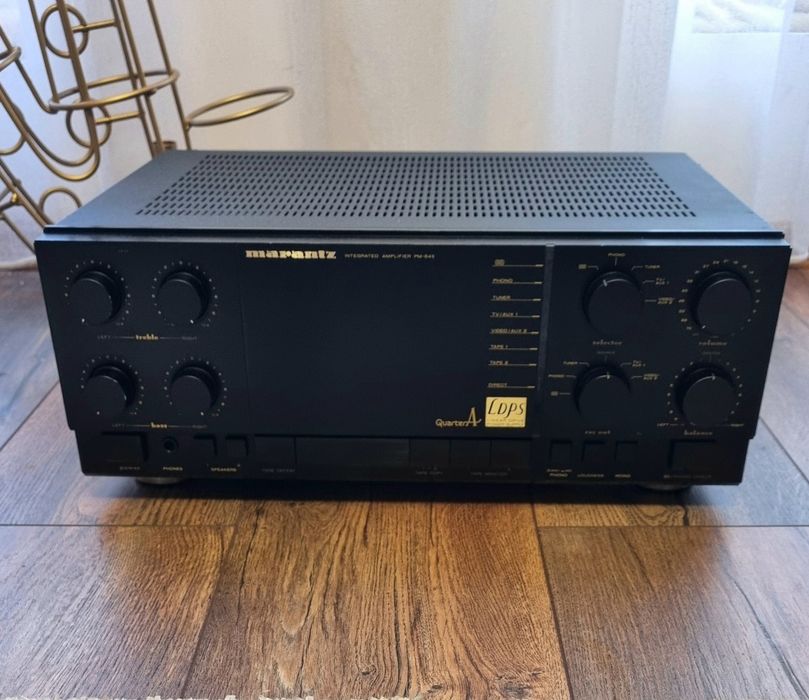

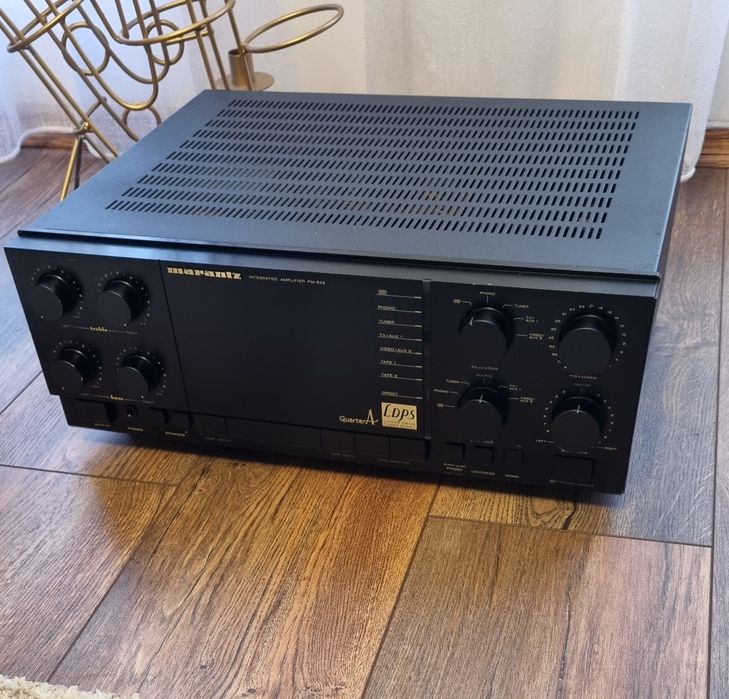

Manufacturer: Marantz
Model: PM-64 II
Type: Integrated amplifier
Year of manufacture: 1986 - 1990
Power consumption: 260 W
Dimensions (WxHxD): 416 x 146 x 334 mm
Weight: 12,5 kg
Original price approx.: 1'100 DM, 1986

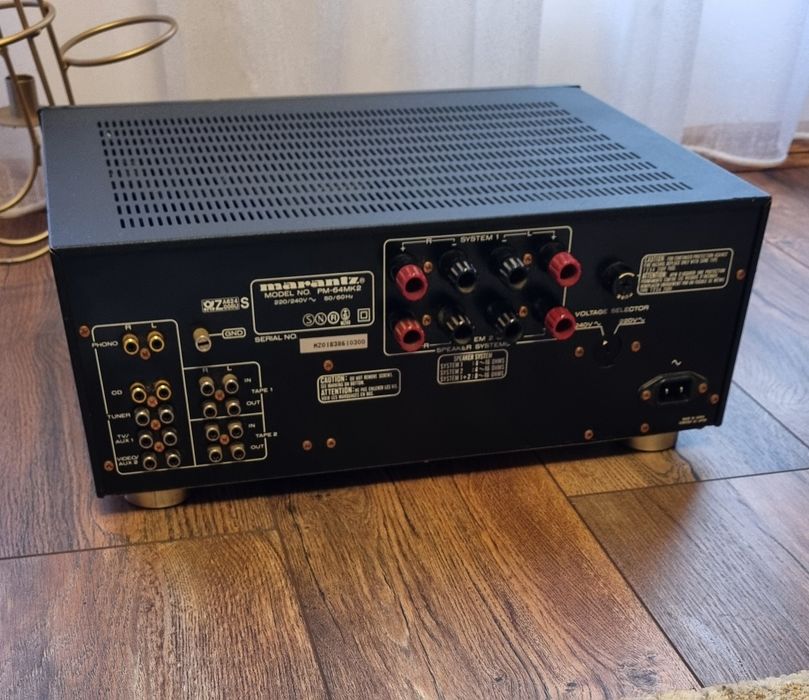

Connections

Inputs:
Phono magn:
IEC/RIAA characteristics: ± 0.5 dB.
Signal-to-noise ratio: 86 dB
Impedance: 2.5 mV/47 kOhm
Phono dyn. impedance: 25 µV/100 Ohm
CD Impedance: 150 mV/20 kOhm AUX Impedance: 150 mV/20 kOhm TV impedance: 150 mV/20 kOhm

Video Impedance: 150 mV/20 kOhm
Outputs:
Tape Rec 1, 2:
Headphones
Loudspeaker A+B

Specifications

Continuous power (Class AB):
into 8 ohms (FTC): 100 watts
into 4 Ohm (FTC): 105 Watt into 8 Ohm (DIN): 115 Watt into 4 ohms (DIN): 160 watts into 8 Ohm (IHF): 146 Watt into 4 Ohm (IHF): 225 Watt into 2 ohms (IHF): 300 watts

Total harmonic distortion (8 ohms): 0.02
Intermodulation: 0.02
Attenuation factor: 100
Signal-to-noise ratio: 96 dB
Frequency response: 10 Hz-70 kHz ± 1 dB
