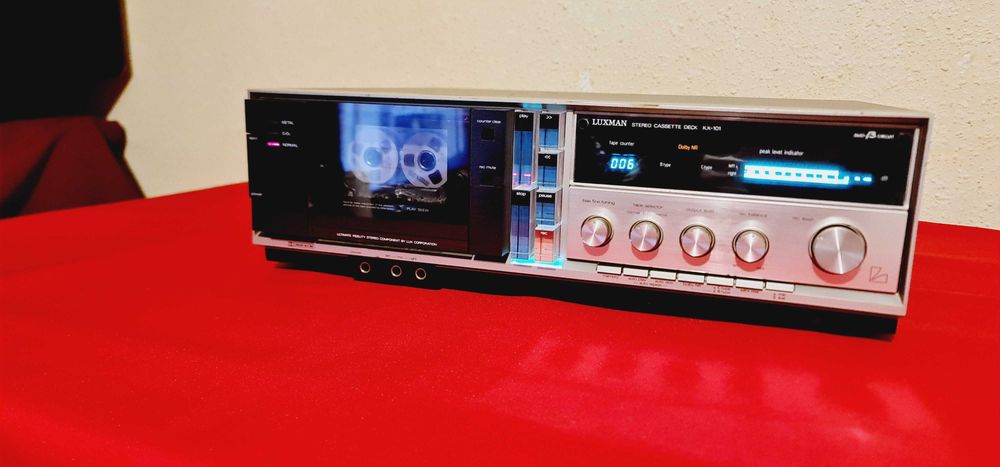

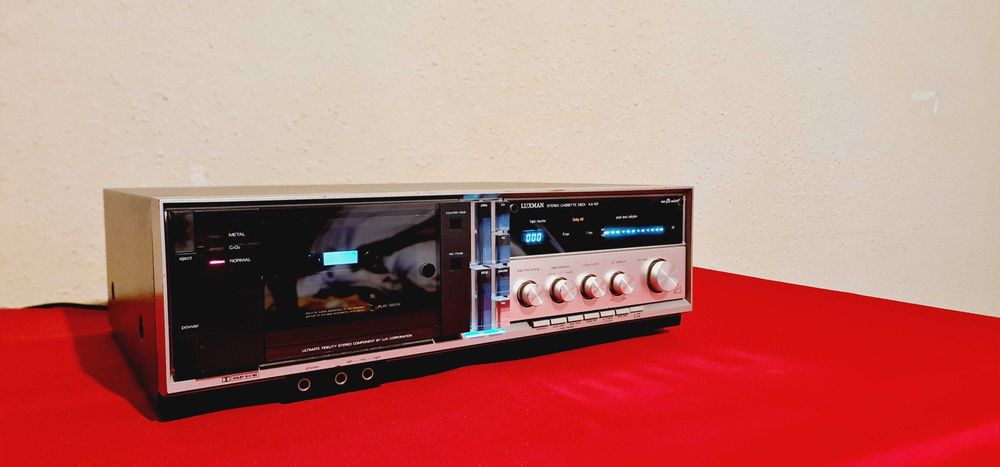

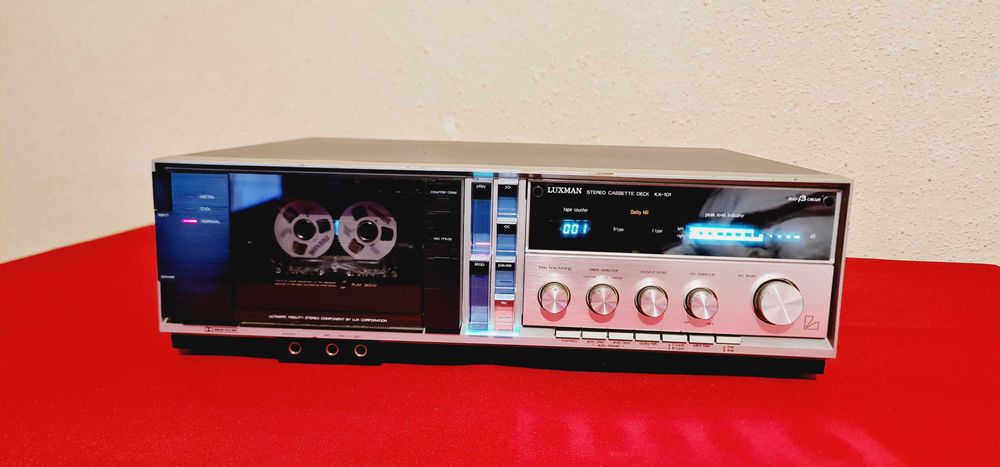

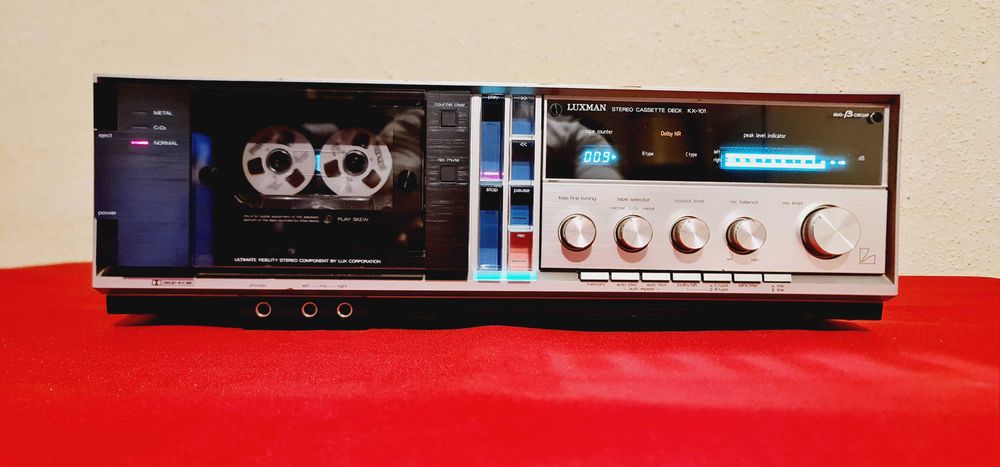

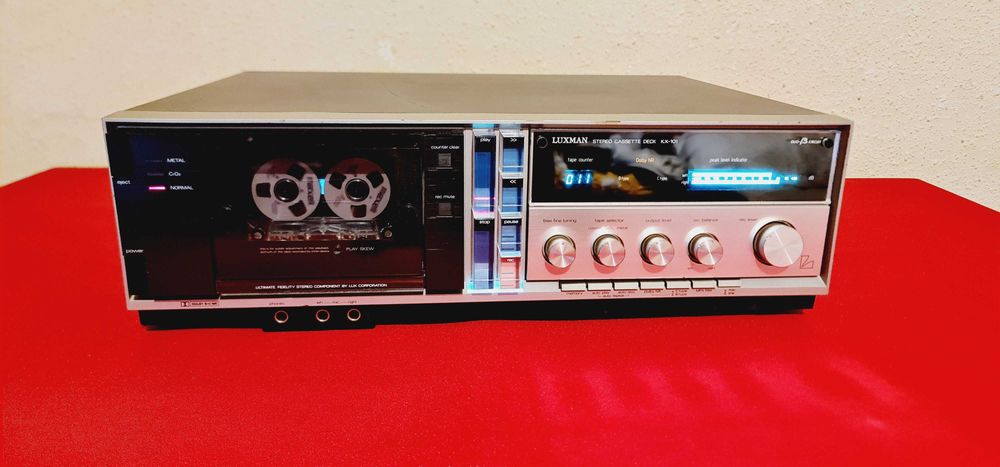

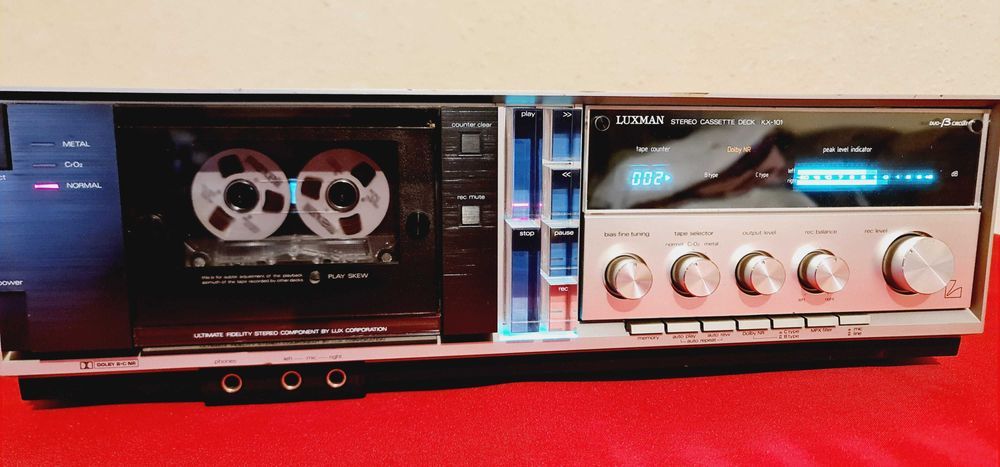

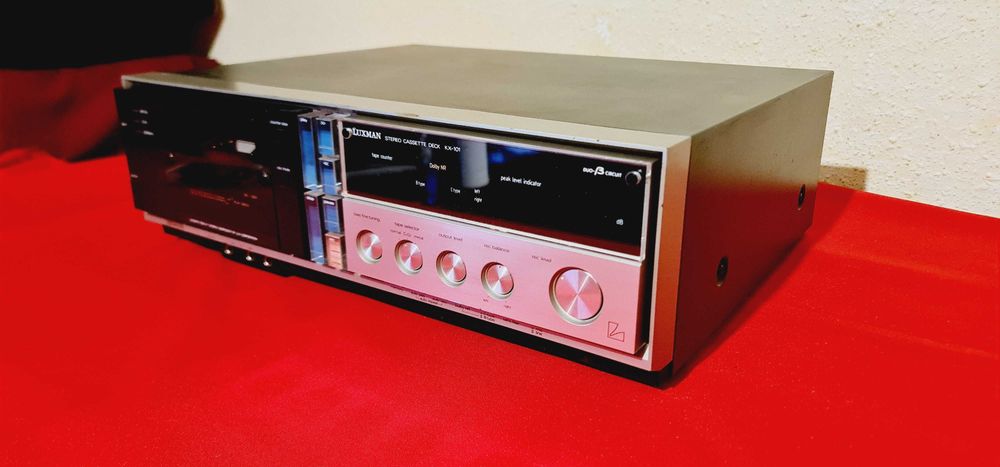

Luxman KX-101 front motorizat Made in Japan
Categorie: Tape Deck
Brand: Luxman KX-101
Stare: Produs utilizat
Vand un Deck Luxman KX-101 front motorizat Made in Japan in stare buna de functionare ,estetic arata bine ,se expediaza cu verificare colet plata romburs la ridicare coletului

General

Manufacturer: Luxman
Model: KX-101
Type: Cassette Tape Deck
Years of manufacture: 1982 - 1984
Made in: Japan
Color: Silver / Black
Remote control: yes, system bus
Power consumption: 26 W
Dimensions: 453 x 147 x 365 mm (WxHxD)
Weight: 8 kg
Original price approx.: 500 US-$, 1'200 DM

Connections

Number of inputs: 2
Line In: 100 mV, 47 kOhm
DIN In:
Microphone: 0.25 mV
Number of outputs:
Line Out: 580 mV
DIN Out:
Headphone (6.3mm jack):

Specifications:

Audio heads: 2
1x Sendust recording and playback
1x ferrite erase head
Motor: 1
Tape speed: 4.75 cm / s
Synchronization fluctuation: 0.04 % (WMRS)
Tape types:
Normal: Type I
Cr02: Type II
Metal: Type IV
Frequency response:
Normal Type I: 20 Hz - 17 kHz
Cr02 Type II: 20 Hz - 18 kHz
Metal Type IV: 20 Hz - 20 kHz
Distortion factor: 0.7
Signal to Noise Ratio:
Normal:
Without Dolby: > 58 dB
With Dolby B: > 65 dB
With Dolby C: > 72 dB
Chrome:
Without Dolby: > 58 dB
With Dolby B: > 65 dB
With Dolby C: > 73 dB
Metal:
Without Dolby: > 58 dB
With Dolby B: > 65 dB
With Dolby C: > 73 dB
Crosstalk attenuation:
Auto-Reverse: no
Dolby: B, C

Special Features:

Servo operated front panel on the right (When the receiver is switched on, the front panel retracts to reveal the controls).
Touch key operation
Dolby B + C
Fine adjustment of the premagnetization
Timer-controlled recording and playback
Remote control via system bus with Luxman RX-103
