Video demo produs real youtu.be/qiZF_p36PGc
(impreuna cu un Luxman L-550A clasa A setat ca power-amp):

Pret negociabil!

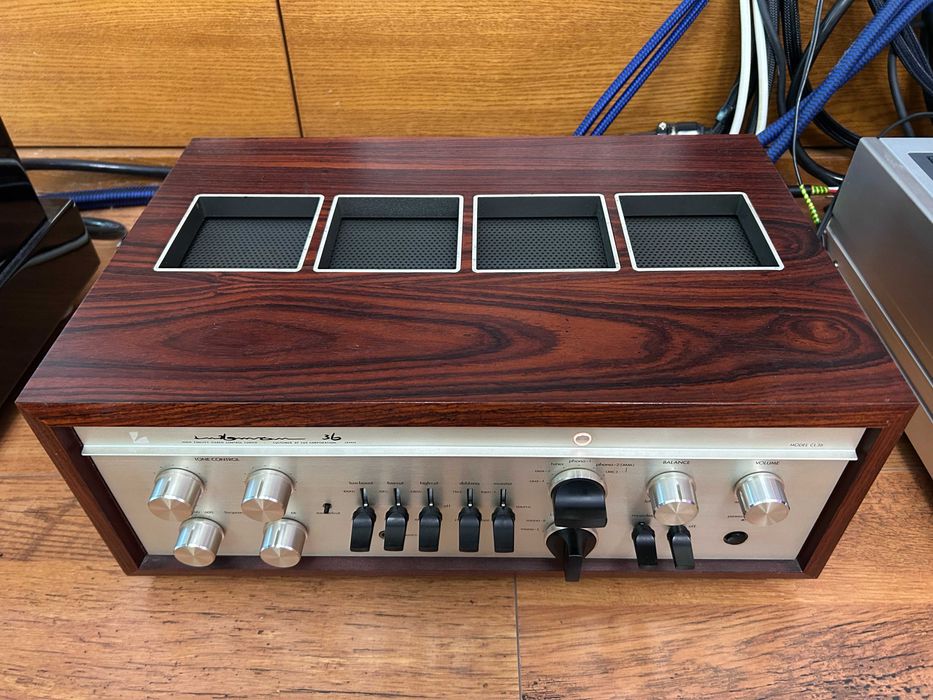

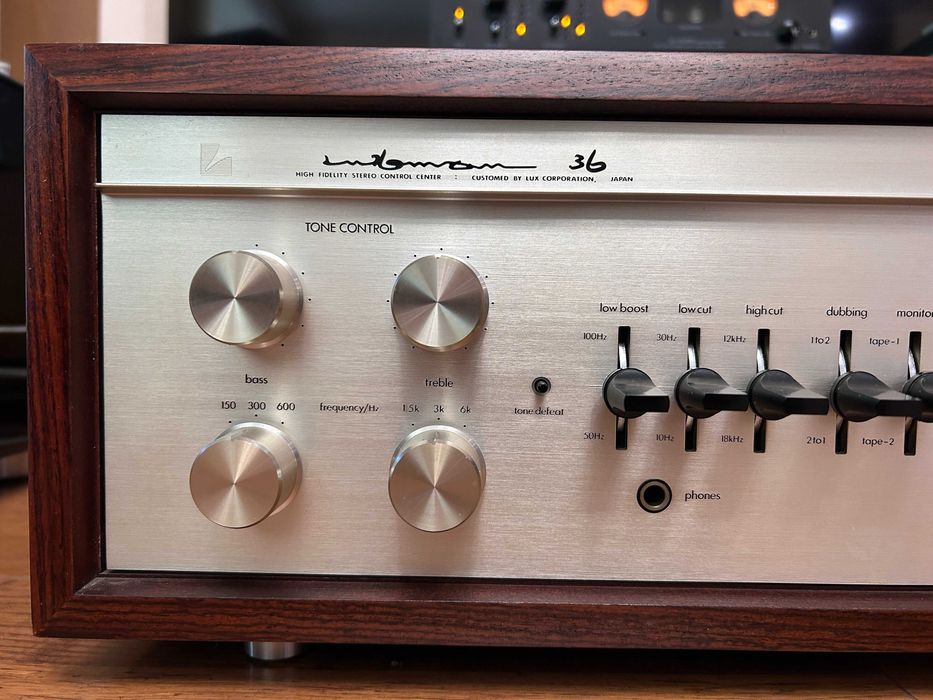

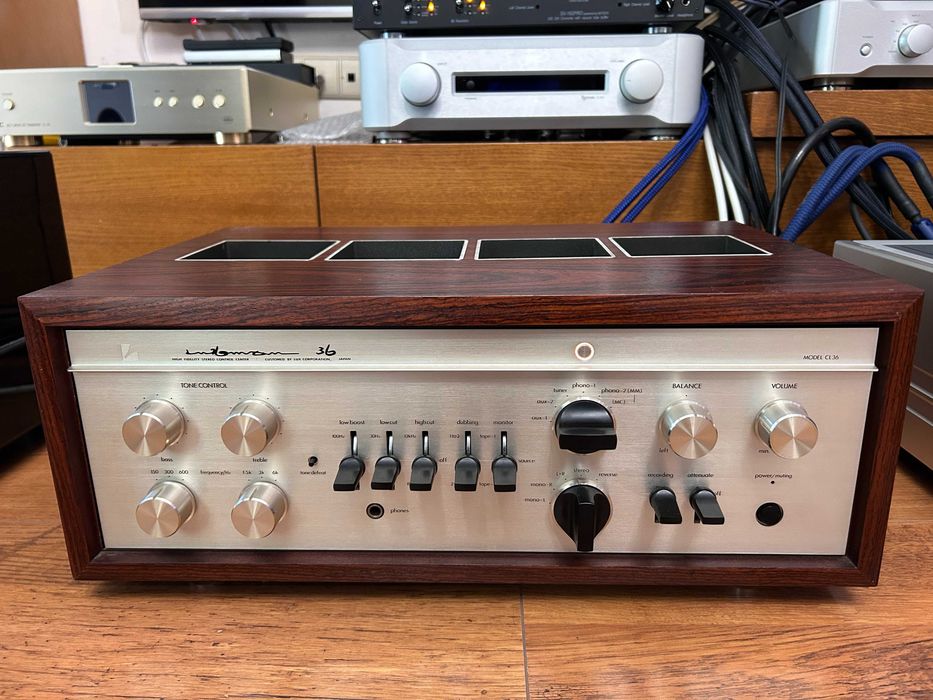

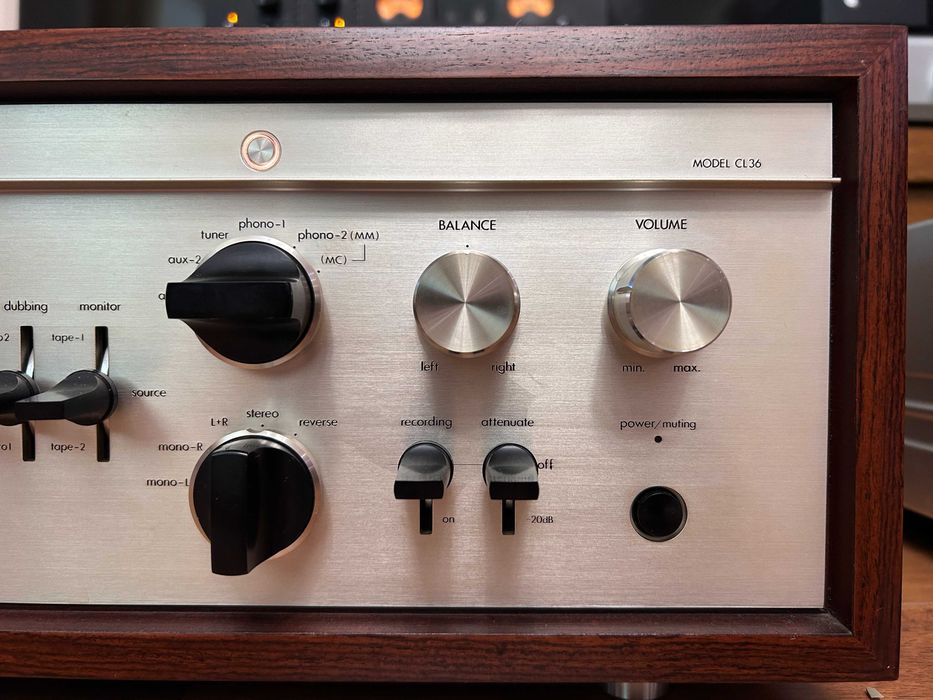

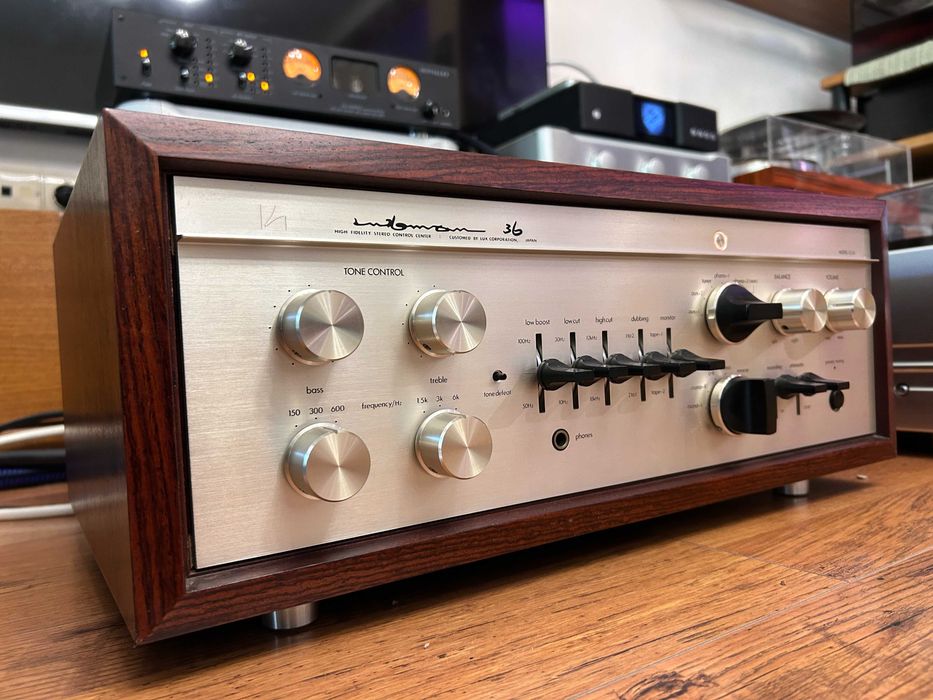

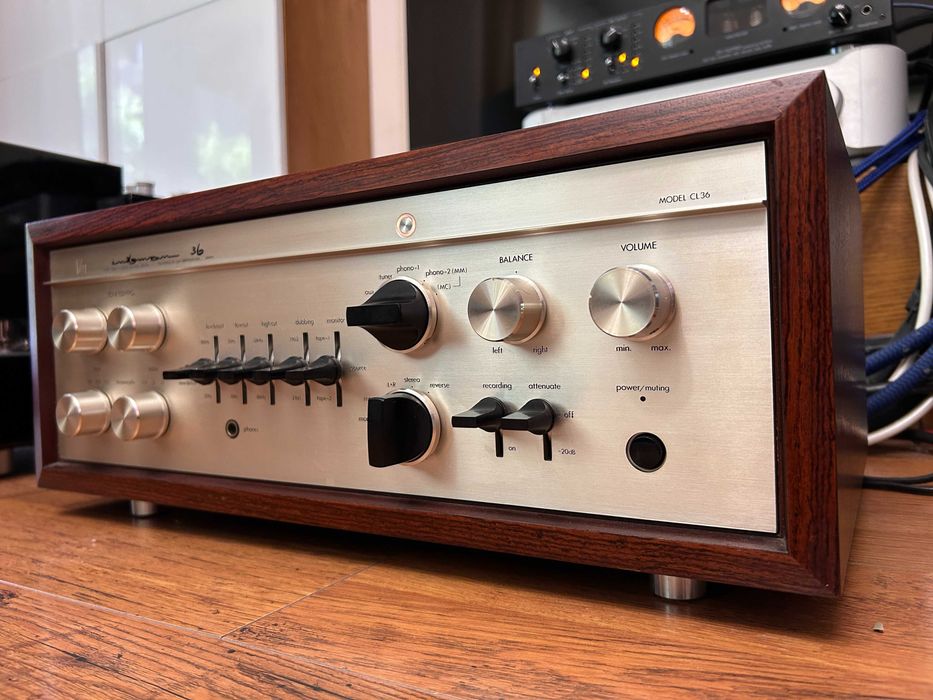

Un rar si excelent conservat exemplar al acestui preamplificator de referinta pe lampi de la Luxman din anii 1978.
Sunet exceptional, imposibil de reprodus cu generatiile moderne de pre-uri chiar si pe lampi.
Zona de bass inclusiv reglajele de low-boost selectiv (pe 50 sau 100Hz) iti va permite sa scoti untul din boxele tale pe care nu le credeai capabile sa sune atat de jos/plin fara distorsiuni/artefacte... aici presupun ca detii si un amp de putere pe masura. La mine diferenta dintre pre-ul din integratul Luxman L-550A din 2006 si acest CL-36 este majora, in favoarea CL-36.

Intrarea Phono insa este deliciul suprem, desi am avut ocazia sa ascult doar doze MM pe el, daca veti gasi si transformatorul SUT dedicat (Luxman Type 8030) pentru doze MC probabil va fi end-game.
Functioneaza cu nu mai putin de 11 lampi, 7xECC83/12AX3 + 4xECC82/12AU7, toate originale, de la Matsushita, in stare excelenta.

Versiune exclusiva pentru piata locala japoneza, alimentare la 100V cu transformator 230V-100V tot japonez de calitate, Nissyo putere 150W, inclus in pret.

Cutia de lemn originala este intr-o stare exceptionala dupa 40 ani,
NU SCHIMB!

Preluare personala cu testare/auditie sau in mod exceptional livrare in Bucuresti in zona iesirii de pe A1 (detalii doar telefonic).

audio-database.com/LUXMAN/amp/cl36-e.html

Type Tube type stereo control amplifier
Output voltage Pre-out : 2 V rated, 20 V maximum (distortion rate 0.1% or less)
Output impedance Pre out : 600 Ω
Rec out : 600 Ω
Total harmonic distortion factor
(20 Hz to 20 kHz) Phono1, 2 : 0.03% or less (Rec out, 2 V)
Tuner, Aux1, 2, Monitor1, 2 : 0.03% or less (Pre out, 2 V)
Frequency characteristic Phono1, 2 : 20 Hz to 20 kHz ± 0.2 dB
Tuner, Aux1, 2, Monitor1, 2 : 10 Hz to 50 kHz -1dB
Input Sensitivity (Output 1 v) Phono1:2.6mV
Phono2 : 2.6 mV (With Socket for MC Type Booster Transformer)
Tuner, Aux1, 2, Monitor1, 2 : 170 mv
Input impedance Phono1 : 33k Ω, 50k Ω, 100k Ω (with changeover switch)
Phono2 : 50k Ω
Tuner : 50k Ω
Aux1, 2, Monitor1, 2 : 100k Ω
Signal-to-noise ratio (IHF-A corrected
Input short) Phono1, 2 : 80 dB or more
Tuner, Aux1, 2, Monitor1, 2 : 95 dB or more
Maximum allowable input Phono : 350 mV or more (1 kHz, RMS)
Channel separation Phono : 60 dB or more
Aux : 65 dB or more
Tone control LUX System NF Type with Bending Point Frequency Switching (Capable of Defeat)
Low-pass curve point : 150 Hz, 300 Hz, 600 Hz
High-frequency bending point : 1.5 kHz, 3 kHz, 6 kHz
Attachment Acoustic equalizer
(frequency : 75 Hz to 150 Hz, attenuation : 0 dB to -12dB)
Low-boost switch (50 hz, off, 100 hz)
Low-cut filter (10 hz, off, 30 hz)
High Cut Filter (12 khz, off, 18 khz)
Monitor switches (tape-1, source, tape-2)
Tape dubbing switch (1to2, source, 2to1)
Recording switch
Attenuator (-20dB)
Input impedance selector switch for Phono1
Socket for MC Type Booster Transformer (Phono-2)
Input Level Set for Tuner
Vacuum tube used 12AX7/ECC83 : 7 pieces
12AU7/ECC82 : 4 pieces
Power supply voltage 100 VAC, 50Hz/60Hz
Power consumption 75W (Electrical Appliance and Material Control Law)
External dimensions Width 440x Height 162x Depth 278 mm
Weight 12.0kg
Sold Separately Wood Cabinet W-38/36 (¥ 15,000)
