Kit Interfata Scanmatik 2 PRO - J2534 PassThru SM2-PRO -PCMFlash
2 400 lei
Firma
Stare: Noua
Livrare cu verificare
Descriere

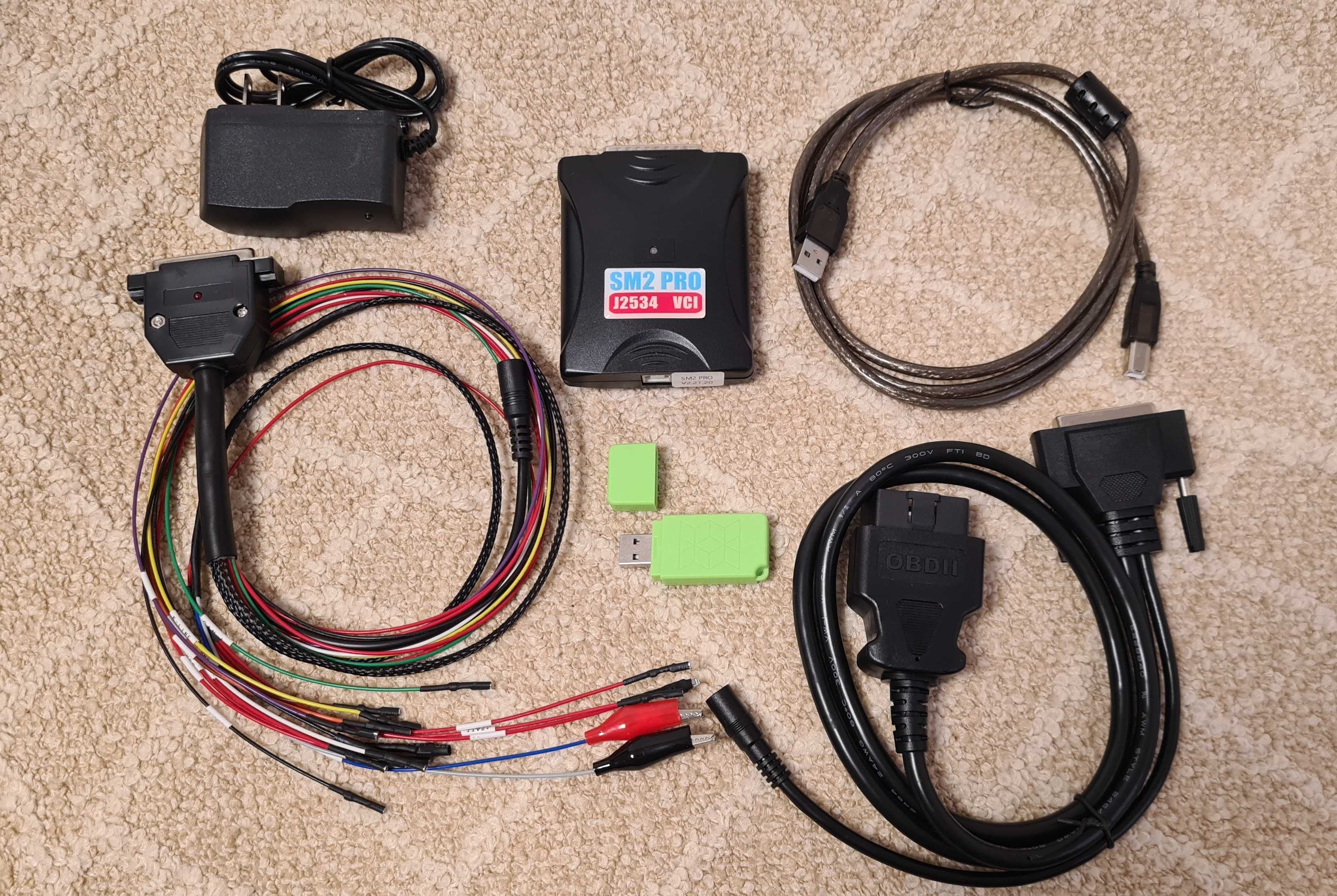

Interfata este aftermarket , copie 1:1 , calitate A+ . Include se asemenea cablul de bench + dongle USB PCMFlash.
Dongle USB functioneaza cu softul original PCMFlash, se pot cumpara module pe original daca se doreste.
Am inclus standard si softul full PCMFlash versiune 1.20 cu toate cele 67 de module activate.
Scanmatik 2 PRO is a professional multibrand scanner designed for diagnostics of electronic control systems of American, European, Japanese and Russian vehicles. It can be used as a J2534 device with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.
New features of Scanmatik 2 PRO:
Galvanic isolation of the USB port (with power);
Redesigned protection of K-lines and CAN buses on a new element base;
Increased speed of work via Bluetooth by about 20%;
Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
Load-Dump power surge protection (when the generator is switched off on a running engine).
The widest support of J2534-1/2 standards:
Supply of programming voltage (5-24V) to the OBD connector pins: 6, 8, 11, 12, 13, 14;
AUX programming voltage output (via an additional cable).
For full support of peripheral units on GM (GDS2) and VAZ/Renault cars:
An additional CAN bus on pins 12-13 running in 12H-13L or 12L-13H configuration.
Description
The device works with a personal computer, tablet or smartphone. The software for Windows and Android are included in the package. When installing the driver (included) works with third-party software made for SAE J2534 and RP1210 standards. To connect to the adapter both USB and Bluetooth interfaces can be used (built into the Scanmatik 2 PRO adapter). The kit includes the full current version of the program (all currently available software modules): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.
SM2-PRO Adapter Specifications
Interfaces for communication with PC (Tablet, Smartphone) - USB or Bluetooth;
Power supply voltage: 5... 36V from the vehicle network or USB (galvanic isolation with power supply);
Current consumption, not more than 350mA;
Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
Load-Dump power surge protection (when the generator is switched off on a running engine).
Supported data buses:
13 x ISO-9141/ISO-14230 (K-LINE);
1 x J1850VPW;
1 x J1850PWM;
4 x CAN;
1 x Single Wire CAN.
Built-in multiplexer for switching diagnostic lines;
The widest support of J2534-1/2 standards;
Programming voltage supply (5-24V) to the OBD2 connector pins: 6, 8, 11, 12, 13, 14;
AUX programming voltage output (via an additional cable);
Bluetooth range, not less than: 10m (Class 2);
Adapter dimensions (L x W x H), not more than: 970×750×220mm;
Weight of the device in the basic configuration, not more than: 1 kg.
SM2 PRO Supports 67 Modules to open protocols:
Activate Licenses
1,2,3,4,5,6,7,**********12,13,14,15,16,17,*********21,22,23,24,25,26,27,*********32,33,34,35,36,38,40,42,43,45,46,47,*********53,54,55,56,57,*********61,62,63,64,65,66,67,*********71,72,73,74
Above total 67 modules, support thousands of car brands, read and write ECU and GearBox ,power upgrade tool,clone ECU to read and write. Best chip tuning tools !
What is difference between SM2 PRO J2534 VCI And BENCH , FLASH ,OBD?
Different SN number
BENCH ,FLASH,OBD . All SN number is A55259.
Actually they are the same hardware, just a different case,you also can check the PCB board of them.
SM2 PRO J2534 VCI SN: A78370. it is different as others in the market.
Different hardware version
BENCH ,FLASH,OBD hardware version is 2.21.2 . from 03.2019 year. it is old !
SM2 PRO J2534 VCI hardware version is 2.21.20 from April 14, 2022 . it is very new version . It's already updated 16 versions vs others hardware. and it was added many new functions and more stable .
What are SM2 PRO Advantages：
Our hardware support all J2534 protocol software
dont need register and active device. you can work it directly . and more pay attention to protecting personal privacy .
when you update your device by mistake. it will not be locked. you just come back to correct driver version to work.
support newest cars and do online programming (with online account) .for example GDS software work with 2021 year GM Buick ENVISION, 2021 year CADILLAC XT5 .we have tested online programming and working perfect!!!
SM2 PRO J2534 VCI Functions:
Read and write ECU data
ECU clone
ECU parameter adjustment
ECU maintenance engineering
Chip tuning
Read ECU maps
Checksum correction
Stage1-3, gearbox tuning , LC, sportdisplay , immo off, dtc off ,vmax ,swirl off
Read flash and ep files
Powertrain adjustment
Support online update
VR files supply
Pinout comewith
Helpdesk and tuner account
OBD2 reading
Cover-free wielding-free no disassembly data reading, greatly reduce the risk of destroying the ECU, bench mode.
Cover-opening data reading, boot mode
200 Newly-added Bosch MED/EDC17 Read/Write Protocols Without Opening the Cover.
VAG Simos 12.1, 12.2
VAG Simos PCR2.1
FCA GPEC2, GPEC2A, GPEC4, GPEC4LM
Hyundai/KIA SIM2K-240, SIM2K-241,SIM2K-250, SIM2K-251, SIM2K-260, SIM2K-305, MT86
Ford/LR SID208 Flash read
Scania EMS S8 BAM. Just 3 point PCB connection into VIA holes. Can be connected without removing gel.
PSA SID208
MB SID307, SID310
Renault SID307, SID309, SID310
Porsche SDI21.x
Mitsubishi E6T83XXX, E6T32xxx
Isuzu Transtron SH72544R
Isuzu Transtron L4.3
Hino EDC7UC31
Hyundai, Greatwall DCM6.2AP
What program does it support:
1.Chrysler flash application
2.GM gds2 / SPS- Ford FDRs, Forscan
3.Hino DX2
4.Honda HDS
5.Land Rover Jaguar SDD
6.Nissan consult 3+- ODIS
7.Renault clip
8.Toyota Lexus Techstream
9.Volvo Vida- Mer-cedes Benz xentry / Das
Pass thru
10.Cummins insite
11.Cummins calterm ll
12.Caterpillar et- JCB service master4
13.Volvo premium tech tool
14.WABCO toolbox
15.Eaton air conditioning system diagnostic
software
16.Detroit dddl
17.Allison transmission diagnostic software
18.Noregon jpro truck diagnostic software
19.Other original software
It cannot support CAN FD
Dongle USB functioneaza cu softul original PCMFlash, se pot cumpara module pe original daca se doreste.
Am inclus standard si softul full PCMFlash versiune 1.20 cu toate cele 67 de module activate.
Scanmatik 2 PRO is a professional multibrand scanner designed for diagnostics of electronic control systems of American, European, Japanese and Russian vehicles. It can be used as a J2534 device with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.
New features of Scanmatik 2 PRO:
Galvanic isolation of the USB port (with power);
Redesigned protection of K-lines and CAN buses on a new element base;
Increased speed of work via Bluetooth by about 20%;
Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
Load-Dump power surge protection (when the generator is switched off on a running engine).
The widest support of J2534-1/2 standards:
Supply of programming voltage (5-24V) to the OBD connector pins: 6, 8, 11, 12, 13, 14;
AUX programming voltage output (via an additional cable).
For full support of peripheral units on GM (GDS2) and VAZ/Renault cars:
An additional CAN bus on pins 12-13 running in 12H-13L or 12L-13H configuration.
Description
The device works with a personal computer, tablet or smartphone. The software for Windows and Android are included in the package. When installing the driver (included) works with third-party software made for SAE J2534 and RP1210 standards. To connect to the adapter both USB and Bluetooth interfaces can be used (built into the Scanmatik 2 PRO adapter). The kit includes the full current version of the program (all currently available software modules): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.
SM2-PRO Adapter Specifications
Interfaces for communication with PC (Tablet, Smartphone) - USB or Bluetooth;
Power supply voltage: 5... 36V from the vehicle network or USB (galvanic isolation with power supply);
Current consumption, not more than 350mA;
Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
Load-Dump power surge protection (when the generator is switched off on a running engine).
Supported data buses:
13 x ISO-9141/ISO-14230 (K-LINE);
1 x J1850VPW;
1 x J1850PWM;
4 x CAN;
1 x Single Wire CAN.
Built-in multiplexer for switching diagnostic lines;
The widest support of J2534-1/2 standards;
Programming voltage supply (5-24V) to the OBD2 connector pins: 6, 8, 11, 12, 13, 14;
AUX programming voltage output (via an additional cable);
Bluetooth range, not less than: 10m (Class 2);
Adapter dimensions (L x W x H), not more than: 970×750×220mm;
Weight of the device in the basic configuration, not more than: 1 kg.
SM2 PRO Supports 67 Modules to open protocols:
Activate Licenses
1,2,3,4,5,6,7,**********12,13,14,15,16,17,*********21,22,23,24,25,26,27,*********32,33,34,35,36,38,40,42,43,45,46,47,*********53,54,55,56,57,*********61,62,63,64,65,66,67,*********71,72,73,74
Above total 67 modules, support thousands of car brands, read and write ECU and GearBox ,power upgrade tool,clone ECU to read and write. Best chip tuning tools !
What is difference between SM2 PRO J2534 VCI And BENCH , FLASH ,OBD?
Different SN number
BENCH ,FLASH,OBD . All SN number is A55259.
Actually they are the same hardware, just a different case,you also can check the PCB board of them.
SM2 PRO J2534 VCI SN: A78370. it is different as others in the market.
Different hardware version
BENCH ,FLASH,OBD hardware version is 2.21.2 . from 03.2019 year. it is old !
SM2 PRO J2534 VCI hardware version is 2.21.20 from April 14, 2022 . it is very new version . It's already updated 16 versions vs others hardware. and it was added many new functions and more stable .
What are SM2 PRO Advantages：
Our hardware support all J2534 protocol software
dont need register and active device. you can work it directly . and more pay attention to protecting personal privacy .
when you update your device by mistake. it will not be locked. you just come back to correct driver version to work.
support newest cars and do online programming (with online account) .for example GDS software work with 2021 year GM Buick ENVISION, 2021 year CADILLAC XT5 .we have tested online programming and working perfect!!!
SM2 PRO J2534 VCI Functions:
Read and write ECU data
ECU clone
ECU parameter adjustment
ECU maintenance engineering
Chip tuning
Read ECU maps
Checksum correction
Stage1-3, gearbox tuning , LC, sportdisplay , immo off, dtc off ,vmax ,swirl off
Read flash and ep files
Powertrain adjustment
Support online update
VR files supply
Pinout comewith
Helpdesk and tuner account
OBD2 reading
Cover-free wielding-free no disassembly data reading, greatly reduce the risk of destroying the ECU, bench mode.
Cover-opening data reading, boot mode
200 Newly-added Bosch MED/EDC17 Read/Write Protocols Without Opening the Cover.
VAG Simos 12.1, 12.2
VAG Simos PCR2.1
FCA GPEC2, GPEC2A, GPEC4, GPEC4LM
Hyundai/KIA SIM2K-240, SIM2K-241,SIM2K-250, SIM2K-251, SIM2K-260, SIM2K-305, MT86
Ford/LR SID208 Flash read
Scania EMS S8 BAM. Just 3 point PCB connection into VIA holes. Can be connected without removing gel.
PSA SID208
MB SID307, SID310
Renault SID307, SID309, SID310
Porsche SDI21.x
Mitsubishi E6T83XXX, E6T32xxx
Isuzu Transtron SH72544R
Isuzu Transtron L4.3
Hino EDC7UC31
Hyundai, Greatwall DCM6.2AP
What program does it support:
1.Chrysler flash application
2.GM gds2 / SPS- Ford FDRs, Forscan
3.Hino DX2
4.Honda HDS
5.Land Rover Jaguar SDD
6.Nissan consult 3+- ODIS
7.Renault clip
8.Toyota Lexus Techstream
9.Volvo Vida- Mer-cedes Benz xentry / Das
Pass thru
10.Cummins insite
11.Cummins calterm ll
12.Caterpillar et- JCB service master4
13.Volvo premium tech tool
14.WABCO toolbox
15.Eaton air conditioning system diagnostic
software
16.Detroit dddl
17.Allison transmission diagnostic software
18.Noregon jpro truck diagnostic software
19.Other original software
It cannot support CAN FD
