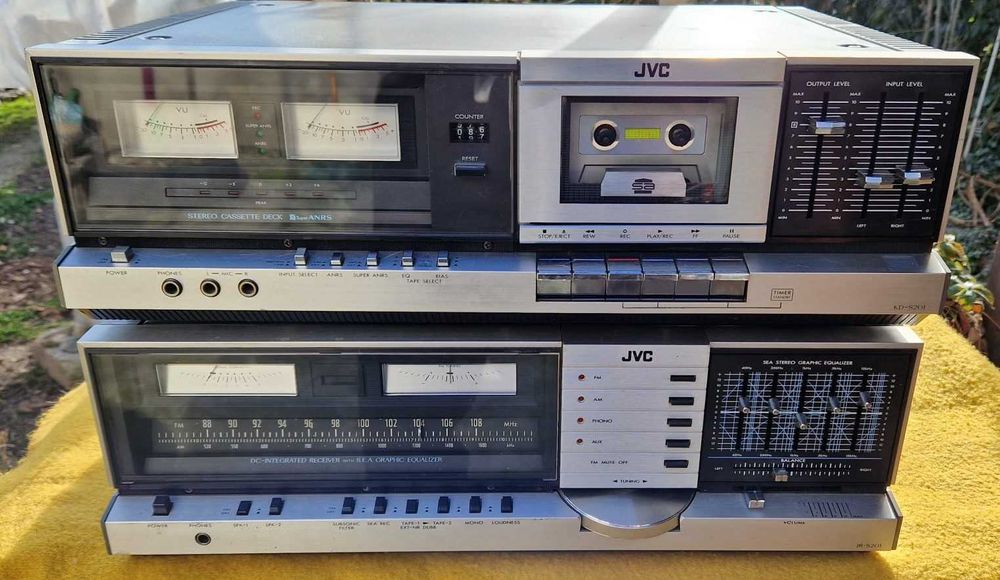

JVC KD-S201
Stereo Cassette Deck (1978)
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: frequency controlled DC servo
Tape Type: type I, FeCr, CrO2
Noise Reduction: ANRS
Frequency Response: 30Hz to 16kHz (Cr02 tape)
Signal to Noise Ratio: 61dB (ANRS)
Wow and Flutter: 0.06%
Total Harmonic Distortion: 0.5%
Input: 80mV (line), 0.2mV (mic)
Output: 0.5V (line)
Dimensions: 500 x 167 x 359mm
Weight: 9.3kgDC
jvc jrs 201 Integrated Receiver (1978)
Tuning range: FM, MW
Power output: 35 watts per channel into 8Ω (stereo)
Frequency response: 5Hz to 40kHz
Total harmonic distortion: 0.01%
Damping factor: 70
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 75dB (MM), 95dB (line)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 166 x 500 x 378mm
Weight: 10.6kg
