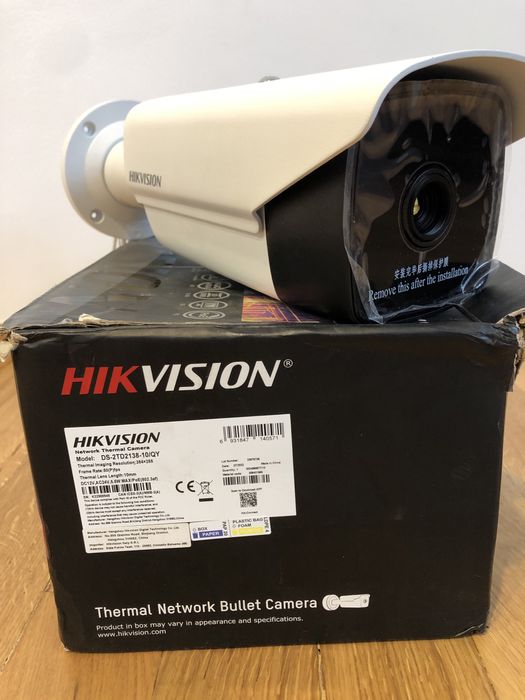

Vand camera termica HIKVISION DS-2TD2138-10/QY Thermal Network Bullet Camera

Produsul este NOU, nefolosit

Vine in ambalajul original, cu toate accesoriile

Product Data:

Thermal Module

Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution384 × 288
Pixel Pitch12 μm
Spectral Range8 μm to 14 μm
NETD 35 mK (25°C, F1.0)
Focal Length9.7 mm
IFOV1.24 mrad
Field Of View26.0° × 20.0° (H × V)
Min. Focusing Distance1.2 m
ApertureF1.0
Digital Zoom2×, 4×, 8×
Image Effect
Target ColorationYes. Supported in white hot and black hot mode.
Smart Function
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range-20°C to 150°C (-4°F to 302°F)
Temperature Accuracy± 8°C (± 14.4°F)
Video And Audio
Main Stream25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
Sub-Stream25 fps (704 × 576, 640 × 512, 352 × 288)
Third Stream25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
Video Compression
Main Stream: H.265/H.264

Sub-Stream: H.265/H.264/MJPEG

Third Stream: H.265/H.264/MJPEG

Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SRTP, SFTP，SSL
APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
Simultaneous Live ViewUp to 20 channels
ClientiVMS-4200, Hik-Connect
Web Browser
Live view (plug-in allowed): Internet Explorer 11

Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 +

Local service: Chrome 57.0 +, Firefox 52.0 +

Network StorageMicroSD/SDHC/SDXC card (up to 256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
Interface
Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
Alarm Input2, alarm input (0 to 5 VDC)
Alarm Output2, alarm output (alarm response actions configurable)
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input
1, 3.5 mm Mic in/Line in interface

Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Audio OutputLinear level, impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M self-adaptive Ethernet interface

1, RS-485 interface (half duplex)

General
Web Client Language
32 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Power Supply
24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block

PoE (802.3af, class 3)

Power Consumption
24 VAC ± 25%: 0.13 A to 0.22 A, Max. 5 W

12 VDC ± 25%: 0.37 A to 0.61 A, Max. 5 W

PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, Max. 5.5 W

Working Temperature/Humidity
Temperature: -40 °C to 65 °C (-40 °F to 149 °F)

Humidity: 90% or less

Protection Level
IP67 Standard

TVS 6000V lightning protection, surge protection, voltage transient protection

IK10-rated housing

Dimensions351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")
WeightApprox. 1.77 kg (3.90 lb)
