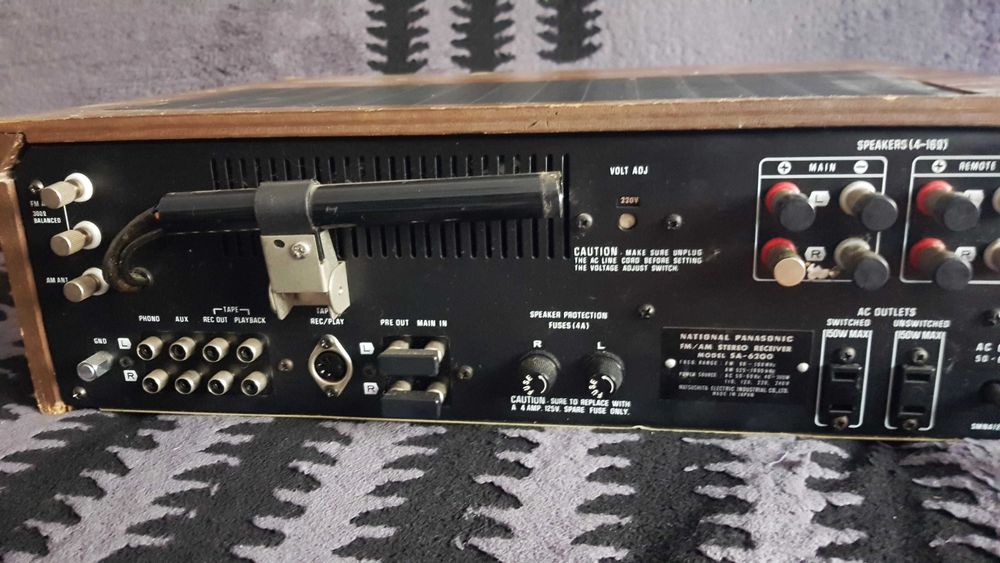

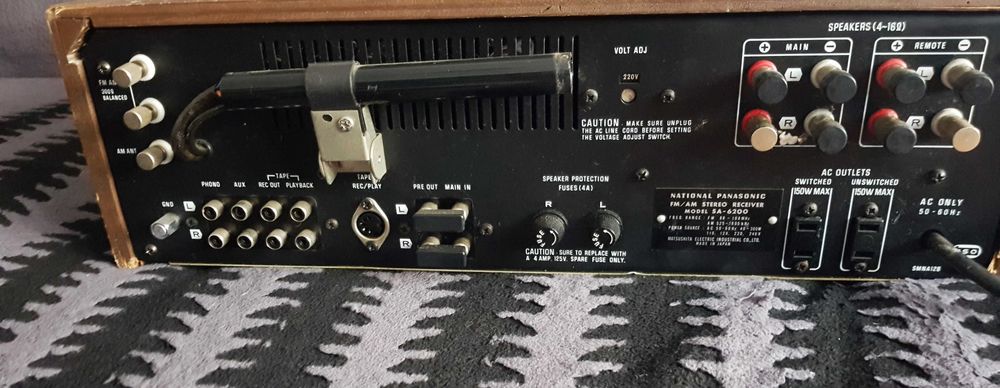

stereo receiver Hi-Fi vintage National Panasonic SA-6200 . An fabricatie 1973 .Made in Japan. Dupa acest model s-a fabricat si TECHNICS SA-6200, are aceleasi caracteristici.

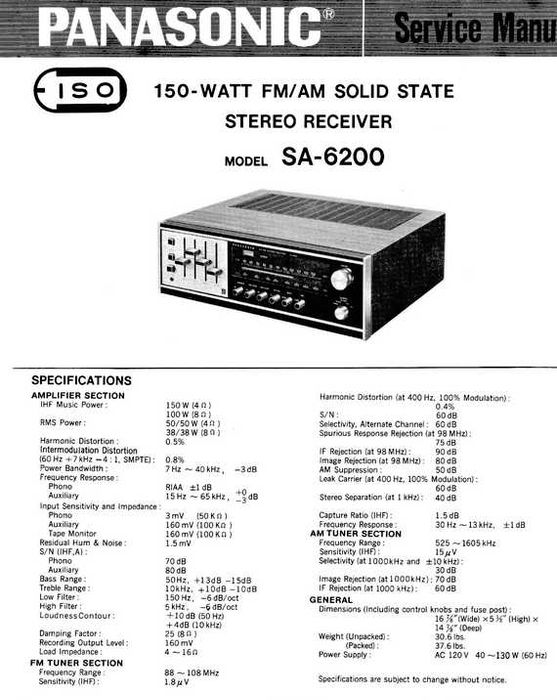

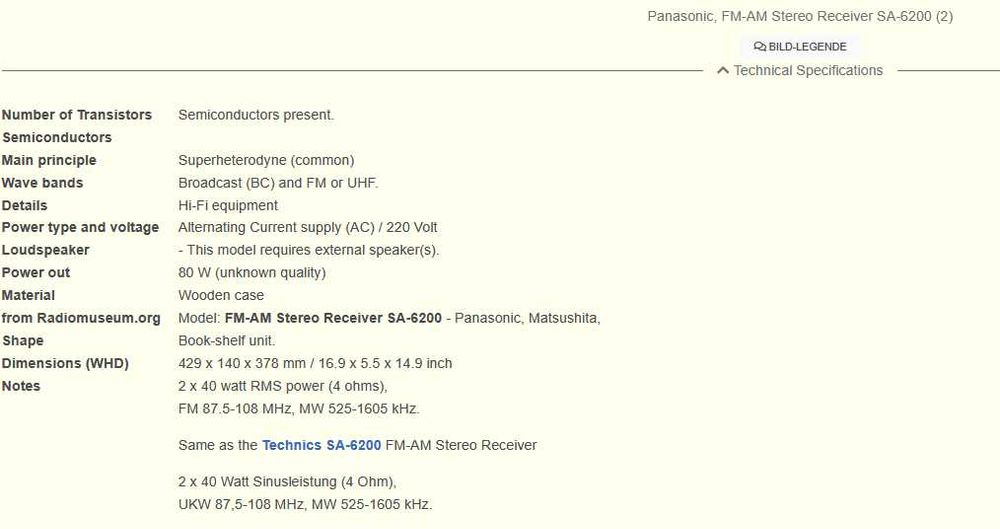

Detaliile tehnice le gasiti si in galeria de poze.

Years of manufacture: 1973
Made in: JAPAN
Remote control: no
Dimensions: 429 x 149 x 388 mm (WxHxD)
Weight: 13.6 kg
Original price approx.: 1'595 DM

Connections:
Number of inputs:
Phono: 3 mV / 50 kOhm
Aux: 160 mV / 100 kOhm Tape Play: 160 mV / 100 kOhm Tape Play DIN:
Antenna (75/300 Ohm)
Number of outputs:
Tape Rec: 160 mV
Tape Rec DIN: 60 mV
Headphones (6.3mm jack)
2 pairs of loudspeakers

Technical Data:
Amplifier:
Continuous power : 8 Ohm: 2x 38 W / 4 Ohm: 2x 50 W
Dynamic power: 8 Ohm: 100 W /4 Ohm: 150 W
THD / Total harmonic distortion: 0.5
Attenuation factor: 25
Frequency response: 7 - 40'000 Hz, - 3 dB
Signal to noise ratio:
Signal-to-noise ratio: (at rated power)
Phono: 70 dB

Aux: 80 dB
Stereo channel separation:
Tone control:
Bass: 50 Hz, + 13 dB, - 15 dB
Treble: 10 kHz, ± 10 dB

Loudness: yes, + 10 dB at 50 Hz, + 4 dB at 10 kHz
High Filter: yes, 5 kHz, - 6 dB / octave
Low Filter (Subsonic): yes, 150 Hz, - 6 dB / octave
Mute:

Tuner:
Reception: UKW(FM)/MW
Frequencies:
FM: 88 - 108 MHz
MW: 530 - 1605 KHz
Input sensitivity:
FM: 1.8 µV
MW: 15 µV
Frequency response:
FM: 20 - 15,000 Hz
Distortion factor:
FM:
Mono: 0.4 %
Stereo: 0.6
Signal-to-noise ratio:
Signal-to-noise ratio:
FM:
Mono: 60 dB
Stereo: 54 dB
Channel separation: 40 dB
selectivity:
FM: 80 dB
MW: 22 dB
Equal wave selection:
FM: 1.5 dB
Spurious wave selection: 60 dB
Image frequency attenuation:
FM: 80 dB

IF attenuation:
VHF: 90 dB
AM suppression: 50 dB

Special Features:
Tone control / volume with sliders
FM muting
Tape dubbing

-> Am mai multe scule audio din aceasta categorie, pt.detalii consultati lista mea de anunturi accesand contul meu.

NU FAC SCHIMBURI .

-> Specificatii livrare :
Livrarea in tara se face prin curierat rapid pe raspunderea cumparatorului, cu FAN COURIER si optiunea "Verificare colet" , costul fiind achitat de catre cumparator . Ambalare corespunzatoare, folie cu bule, carton gros .

* Deoarece este o vanzare a unui produs second-hand aceasta achiziție se face prin excluderea oricarei garanții .Produsul vandut nu se schimba/returneaza/rascumpara .Cumparatorul este de acord cu acest lucru. Continuarea cumpararii/achiziției/ofertei implica acceptarea conditiilor enumerate mai sus.
