Sunetfabulos, constructie premium la pret mic. Fara reparatii,etc.

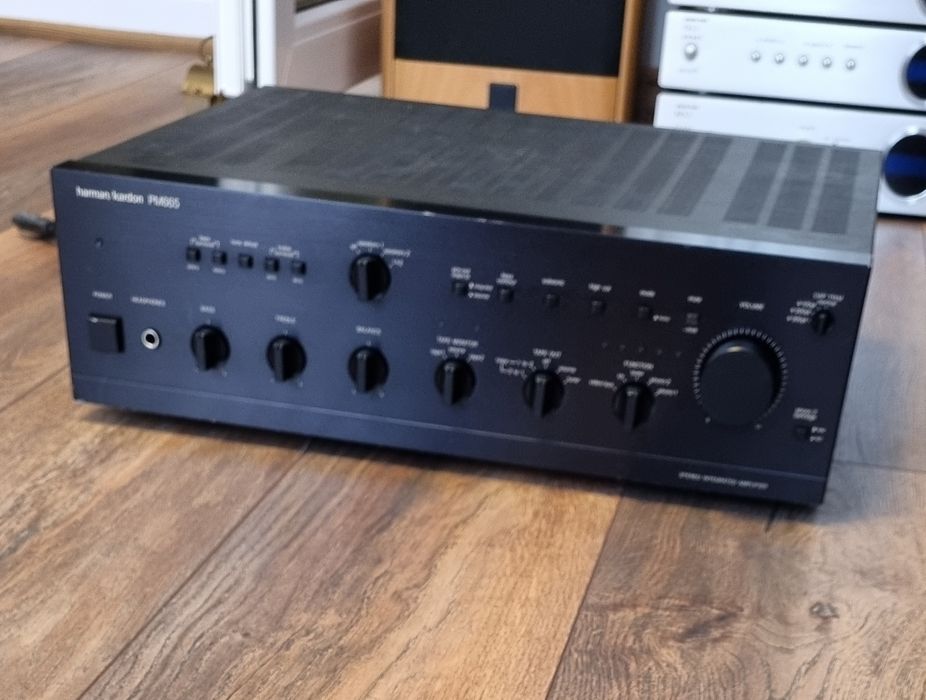

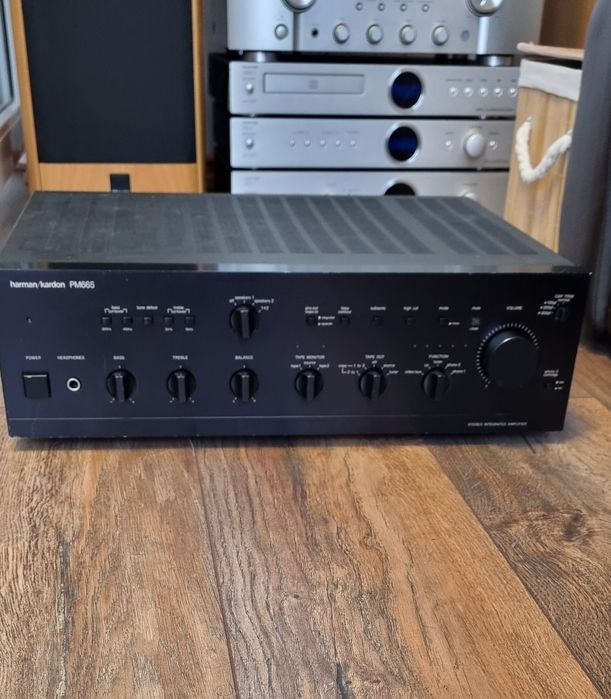

Harman/kardon Model: PM665
Years of manufacture: 1988 - early 90s

Color: black, champagne
Type: analog
Remote control: -
Power consumption: max. 600W
Dimensions: 443 x 134 x 398 mm
Weight: 16,3 kg
Original price approx.: 1800 DM

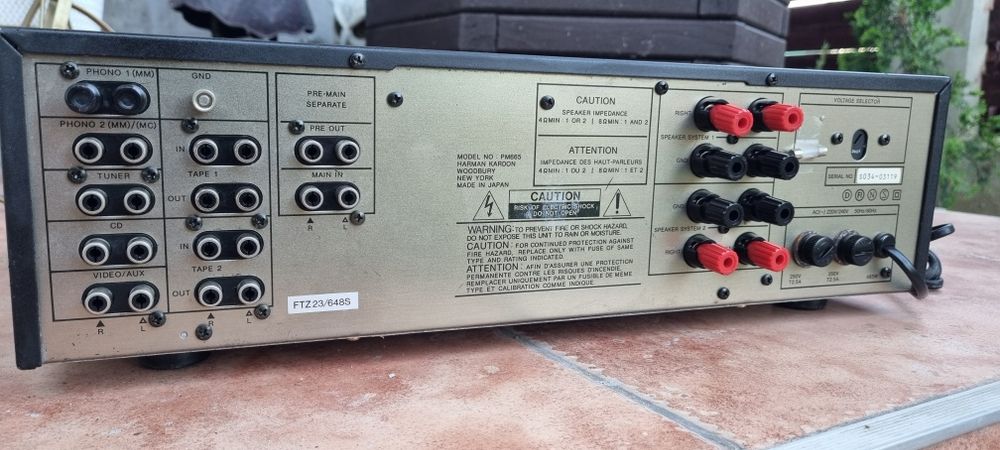

Connections

Number of inputs:
Phono MM: 2.2 mV / 47 kOhm, 125-425 pF.
phono MC: 120 uV / 56 Ohm Video, CD: 135 mV / 22 kOhm Main In: 0.8 V / 22 kOhm Tape1 In Tape2 In

Tuner
AUX
A/V
Number of outputs:
Tape1 Out
Tape2 Out
Specifications

Sine Continuous Power (FTC) [20Hz - 20kHz, 2 channel operation]
8 ohms: 150 W per channel 0.08% THD into 8 ohms.
4 Ohm: 150 W per channel 0.08% THD into 4 Ohm
Dynamic power
High Voltage/High Current Mode: (per channel)
8 Ohm: 200 W (IHF 1kHz signal pulse)
4 Ohm: 340 W (IHF 1kHz signal pulse)
2 Ohm: 500 W (IHF 1kHz signal pulse)
High Current Mode: (per channel)
4 Ohm: 200 W (IHF 1kHz signal pulse)
2 Ohm: 340 W (IHF 1kHz signal pulse)
Total negative feedback: 12dB
Total harmonic distortion:
Attenuation factor: 65
Power bandwidth at half output power into 8 ohms:
10 - 100,000 Hz
Frequency response:
0.2 - 150,000 Hz (1 W, +0/-3 dB).
Signal-to-noise ratio:
Phono MM: 80 dB
phono MC: 76 dB Video, CD: 98 dB

Main-In: 110 dB
Stereo channel separation:
Tone control:
Bass: Cut-off frequency selectable (200/400 Hz).
Treble: Cutoff frequency selectable (2/6 kHz).
Loudness: +10dB 50Hz (phase shift [300Hz - 20kHz] 5° )
Subsonic: 15Hz, 6db/octave
Treble filter: 6kHz, 6db/octave
Mute: -20dB
Direct/Line-Straight (deactivates the tone control)
Special Features

High instantaneous current capability (HCC) +-80A

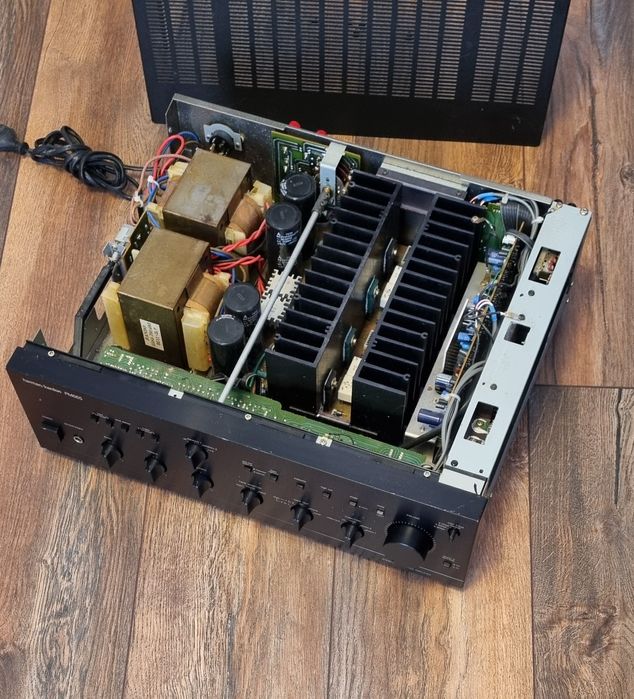

Two completely separate power supplies and power transformers
Can also switch picture signals (composite)
