ECHIPAMENTE NOI . DISTRIBUITOR AUTORIZAT PE ROMANIA
SE OFERA FACTURA - GARANTIE 2 ANI
SE POT FOLOSI CA BAZA SAU ROVER IMU+ LASER + AR + CAMERA RTK NTRIP , AU SENZOR DE INCLINARE 60 grade

Aceste RECEPTOARE GINTEC G50 GNSS CU 1408 CANALE si cu baterie interna de 5V receptioneaza 6 constelatii de sateliti si anume GPS,GLONASS,BEIDOU,GALILEO,QZSS si IRNSS si ceea ce il face sa prinda 60 de sateliti si sa se fixeze pe o medie de PESTE 33 sateliti

- PRET 3500 EURO

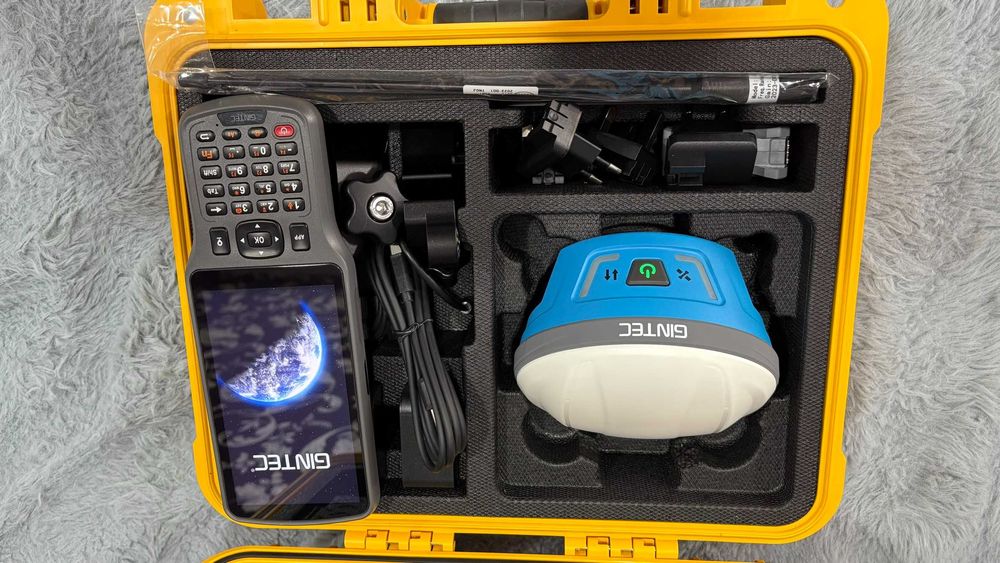

FIECARE SISTEM contine:

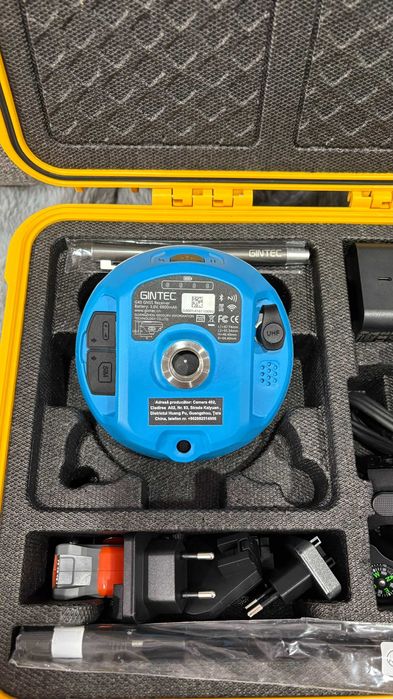

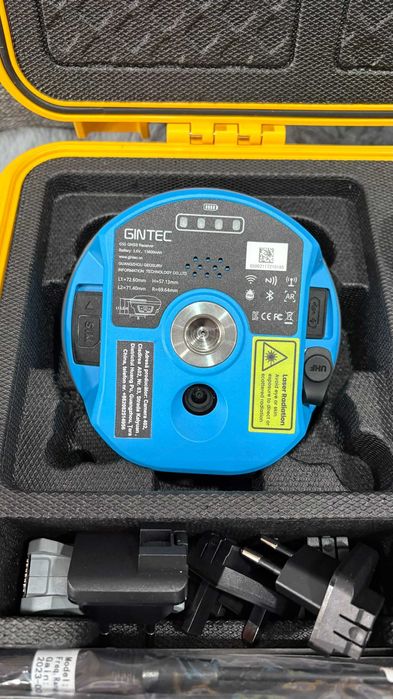

-receptor GINTEC G50 Gps, Glonass, Gallileo , Beidou . 1408 CANALE CU LASER + SENZOR DE INCLINARE 120 grade + 2 X CAMERE AR
- 1 acumulator INTERN NOU + incarcator

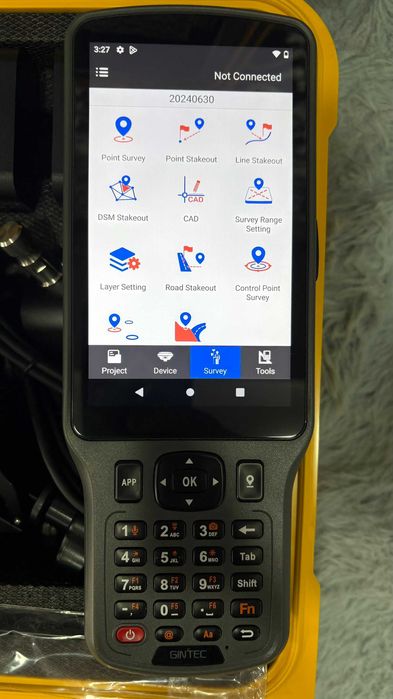

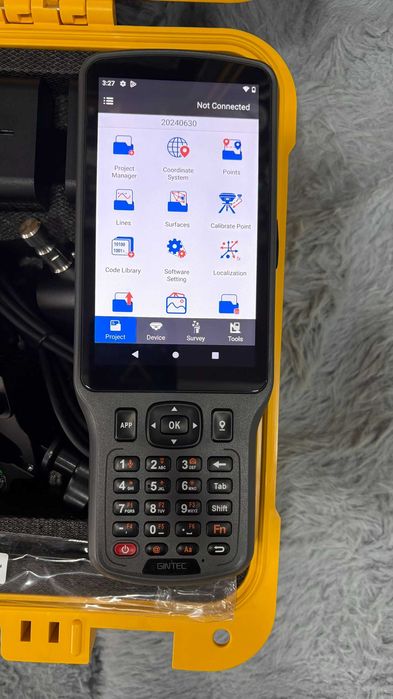

-controler P3 cu ANDROID, diagonala 5,5 inch (SOFT SurVPRO - TRANSDAT - STEREO70 instalat si cu BLUETOOTH , WIFI si modem GSM 4G intern SIM , 1 acumulator intern + incarcator
-suport pt. controler;

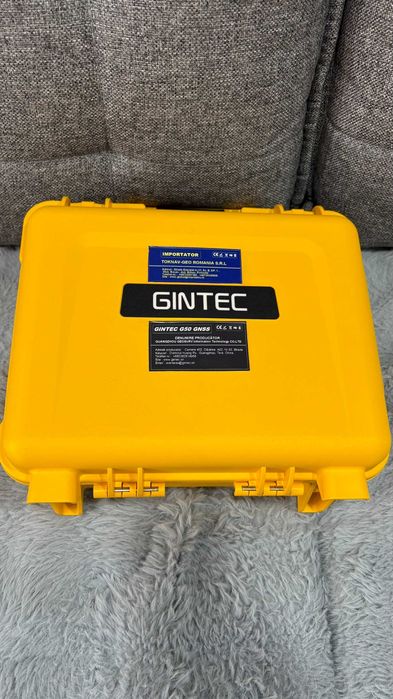

-geanta de plastic cu burete pt. transport;

- Garantie 2 ani de zile, service postgarantie

Configuration Detailed Indicators

Measurement Performance Signal Tracking 1408 Channels
GPS: L1C/A, L2P(Y), L2C,L5
GLONASS: L1,L2
BDS: B1L,B2L,B3L,B1C,B2a,B2b*
GALILEO: E1,E5a,E5b,E6*
QZSS: L1,L2C,L5,L6*

GNSS Features Positioning output rate: 1Hz～20Hz
Initialization time: 5s
Initialization reliability: ＞99.99%
Positioning precision Static GNSS Surveying Horizontal: ±（2.5mm+0.5ppm）
Vertical: ±（5mm+0.5ppm）
Real-Time Kinematic Surveying Horizontal: ±（8mm+1ppm）
Vertical: ±（15mm+1ppm）
Inertial sensing system IMU Support
Tilt Angle 0°～1200°
Tilt compensation accuracy 10 mm + 0.7 mm/°tilt(1.8m pole)
User interaction Operating system Linux
Buttons One button operation
Indicators Two indicate lights
Web UI Support to access Web UI via Wi-Fi and USB
Voice guide Support for multiple languages:
Chinese, English
Hardware Performance Dimension 152mm*152mm*92mm
Weight 900g
Material Magnesium aluminum alloy shell
Temperature Operating: –25 °C~+65 °C
Storage: –35 °C~+80 °C
Humidity 100% Non-condensing
Protection IP68
Shock Withstand 2 meters pole drop
Power and Battery Power Supply 6-28V DC, overvoltage protection
Battery Internal Li-on, 6900mAh, 7.2V
Communications I/O port Type-C port（Charging and data transmission）
1 radio antenna interface
Micro SIM card slot
Wireless modem Built-in radio, 1W, typically work range: 6KM
Frequency Range: 410-470MHz
Communication Protocol: SOUTH, TrimTalk, Hi-target, TrimMark III, Satel, Geotalk
4G LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: 850/900/1800/1900MHz
Bluetooth V5.0, BLE
WiFi 802.11 b/g standard
WIFI data link To work as the datalink that receiver can broadcast and receive differential data via WIFI
Data storage/ Transmission Data Storage 4GB internal storage,
Changeable record interval, up to 20Hz raw data collection
Data Transmission USB data transmission, supporting FTP/HTTP data download
Data Format Differential data format: CMR, sCMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
GPS output data format: NMEA 0183, PJK plane coordinates, Binary code
Network model support: VRS, FKP, MAC, fully support NTRIP protocol

- ASIGUR INSTRUIRE GRATUITA pentru incepatori
