Vand Gimbal profesional TAROT 5D pe 3 axe ideal pentru drone cu 6 sau 8 rotoare.

Pachetul contine:

1x Tarot Gimbal 5D 3-axis
1x Tarot ZYX-GS Gimbal Stabilization System
1x Tarot ZYX-GS RISC Infrared Remote gimbal Shutter

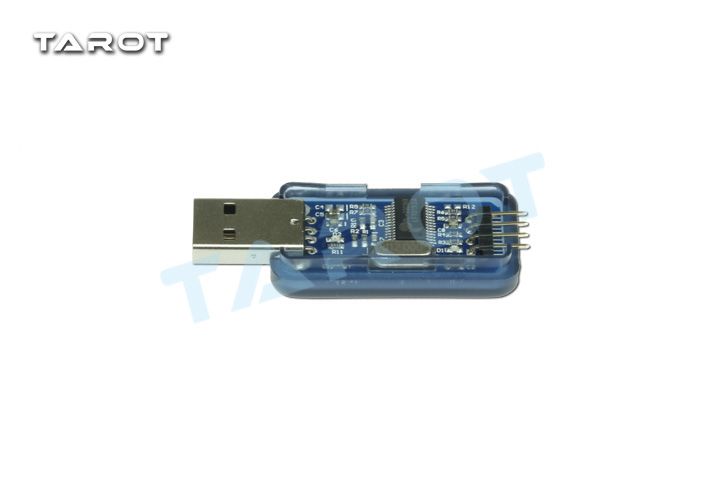

2x Tarot ZYX USB PC Link

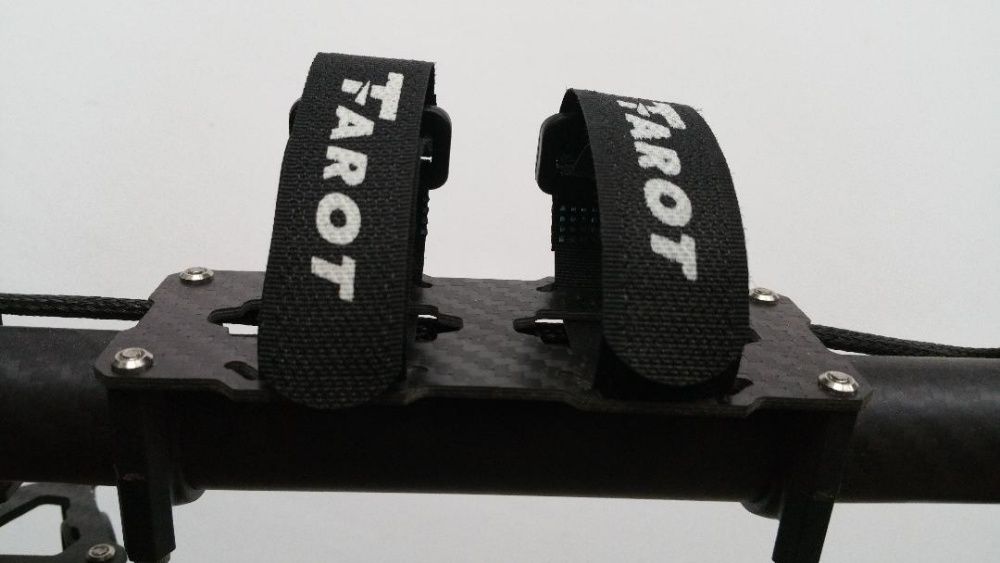

2x Tarot support baterie din fibra de carbon 2-6S Lipo + 2 curele cu arici Tarot pt prindere acumulator.
1x UBEC Henge 4A-6Â input: 7V-25V 2-6 Lipo, output: 5V sau 6V.

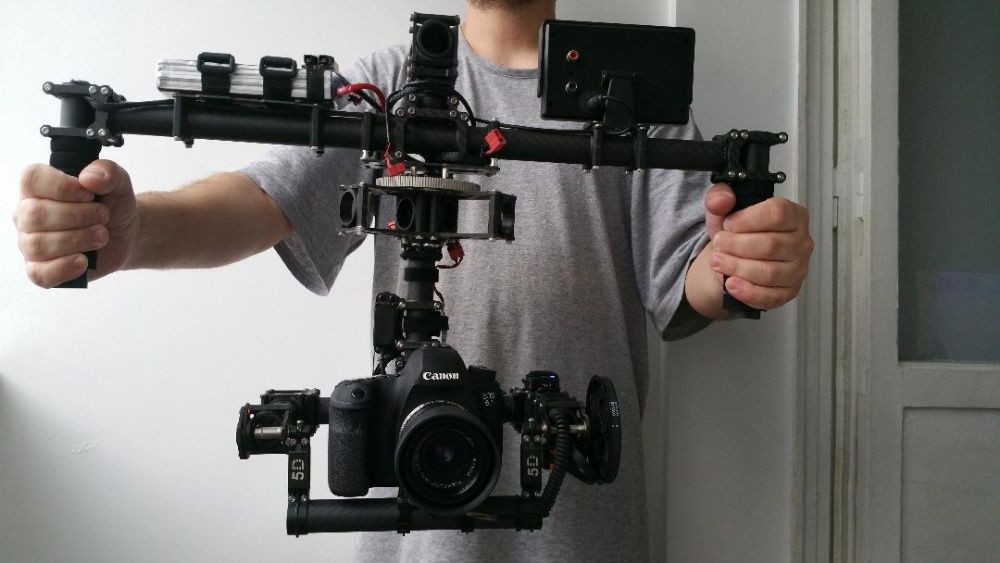

Gimbalul nu a fost niciodata folosit pe o drona. L-am achizitionat acum 3-4 ani pentru a face din el un gimbal de mana, dar nu am reusit sa-i atasez un joystick functional pt. a-l putea controla, el fiind controlabil doar din radiocomanda. (ultima poza este cu ce am vrut sa fac din el). Pachetul este aproape complet pentru a fi montat pe drona. Mai multe detalii gasiti pe: https://www.tarot-rc.com/gimbal.html. Tot acolo se gaseste si software-ul pentru configurare la sectiunea Download.

Mai jos voi scrie specificatiile pentru fiecare componenta de mai sus in ordinea afisata:

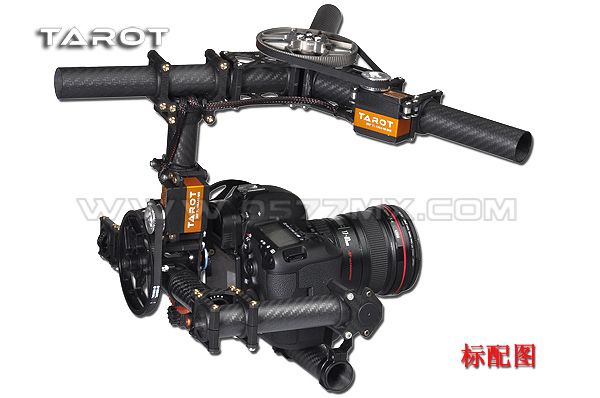

Tarot Gimbal 5D 3-axis:

Gimbalul este aplicabil pentru majoritatea DSLR-urilor ex: CANON 5D Mark II / 5D Mark III, SONY 900, NIKON D800E / D700 / D800.
Este confectionat din fibra de carbon de 25mm TORAY 3K.
Axa de Panoramare poate face o rotație de 360 de grade.
Toate componentele sunt mate pentru a evita reflexia soarelui.
Greutatea totală: 1035g.

O sa adaug specificatiile in engleza asa cum sunt ele afisate pe site-ul producatorului.

• Dual carbon fiber plate structure of pan/ roll joint
• Adjusting 25MM servo mount position to adjust the tightness of belt
• Roll axis 130 T synchronization wheel has self-locking design
• Tilt/ roll axis unit apply full CNC metal holder
• Tilt axis unit utilizes damper to provide resistance, which reduces the vibration
• Tilt axis transmission system uses large-size flange bearing to support
• 25MM roll damper utilizes high-intensity metal frame, dual damper provides more resistance
• 360° coreless digital servo applies 32T servo synchronization wheel
• 360 degree ultra-high speed coil-less servo, 1520µs bandwidth with 12Bits 4096 high resolution,
low-inertia coreless motor design and high-intensity full metal gear applied
• Metal tilt axis supporting arm makes structure much stronger
• Use 25MM tube as camera mount, and camera bottom plate is fix by 2 sets of screw
• Pan axis synchronization wheel is ultra-rigid alloy material CNC processed
• M3 screw nut has unique self-locking design
• 25MM boom clamp is FR-PA material applied.

Tarot ZYX-GS Gimbal Stabilization System

1. 3-axis stabilization. Pan, tilt and roll stabilization.
2. Adjustable gains and 3D attitude display on PC software.
3. Two control mode: attitude locking mode and attitude following
mode (FPV).
4. Support stick rate mode and position mode.
5. Sensor technology: 3-axis MEMS gyro and accelerometer.
6. Supported gimbal: servo gimbal/Tarot motor-drive gimbal.
7. Supported servo type: 1520/960/760 digital servo only.
8. Supported receiver type: conventional/
S-BUS/DSM2/DSMJ/DSMX receiver.
9. Size: 38*29*13mm/27*27*9mm
10. Weight: 26g.
11. Supported RC: PPM/PCM/2.4G.
12. Operating supply: DC3.5V~9V. (suggest 6V as most gimbal
servos work only for 4.8~6V.)
13. Operating current: 60mA.
14. Operating temperature: -15oC~65oC.
15. Max angular rate: 2000 o /sec.
16. Max acceleration: 16g.
17. Update rate: 800Hz.
18. Control range: -45~45 (roll), -180~180 (pan), -135~90 (tilt).
Note: - The USB link not support Windows 8
- The stabilization of pan axis may not work properly with some 3-axis gimbals other than Tarot own 3-axis gimbals (TL100AAA & TL100ABB) due to compatibility.

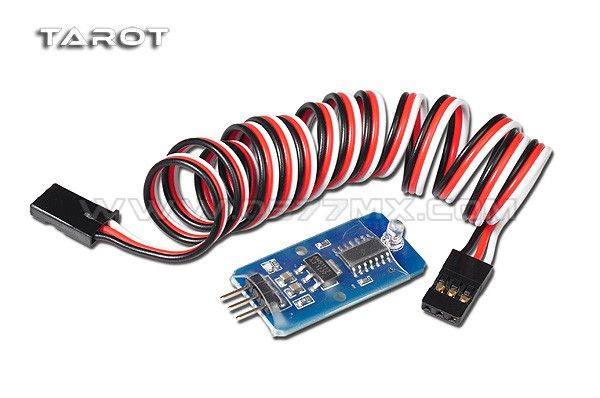

Tarot ZYX-GS RISC Infrared Remote gimbal Shutter

Support camera types:
•SONY:a230/a330/a450/a500/a550/a580/a33/a55/a65/a77/a99/a700/a900/NEX-5C /NEX-5N /NEX-7K/NEX-5R/NEX-6L
• Canon digital camera: EOS 60D, 600D, 550D, 500D, 450D, 400D, 350D, 300D, 5D II, 7D, S70/60, Pro90IS, Pro1, S1 IS
• Canon old type camera: EOS 10/30/33/100/50/55/Kiss III/KissIIIL/300v/300x/3000vQD, EOS IX!AELPH, SURERSHOT.
