Stare perfectă de funcționare

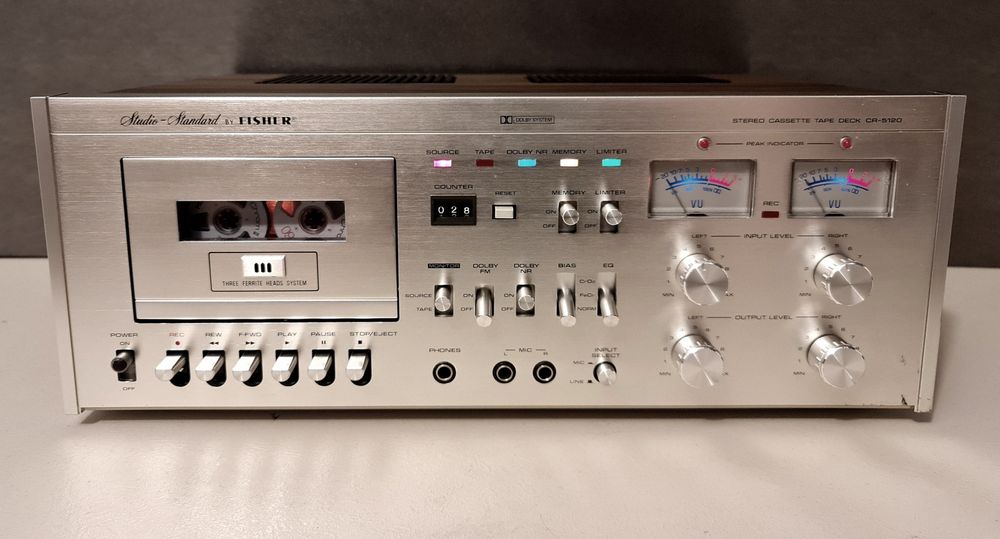

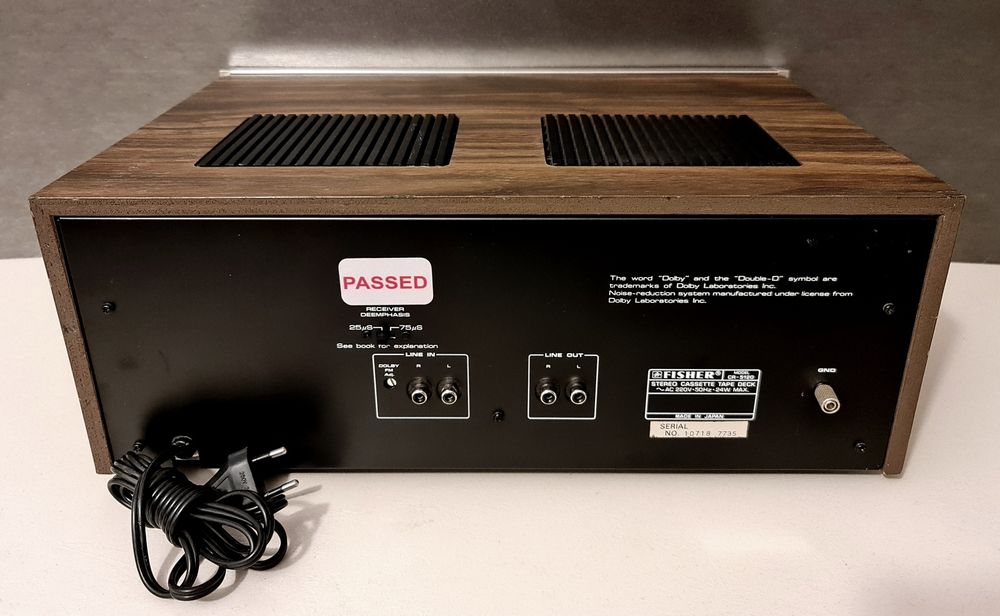

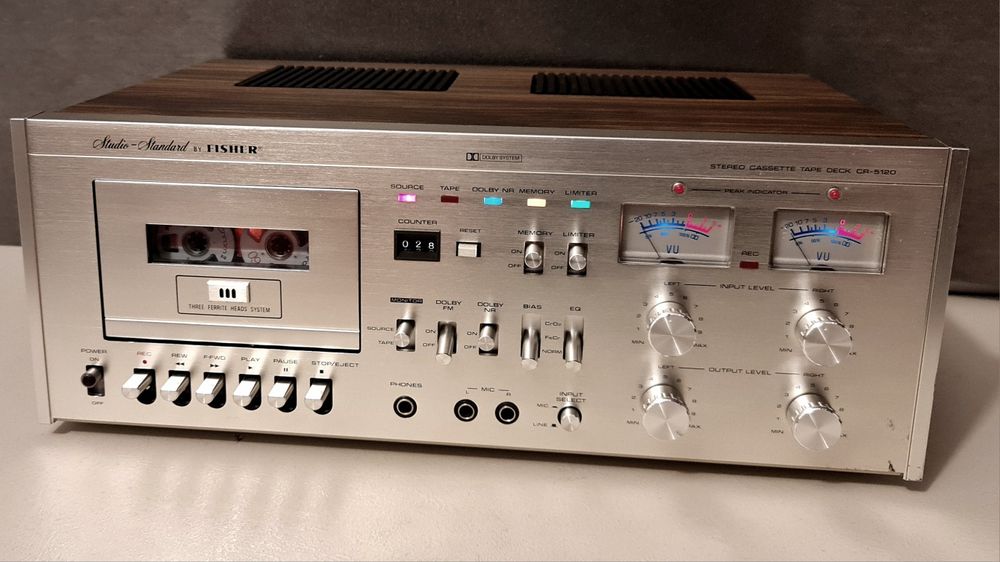

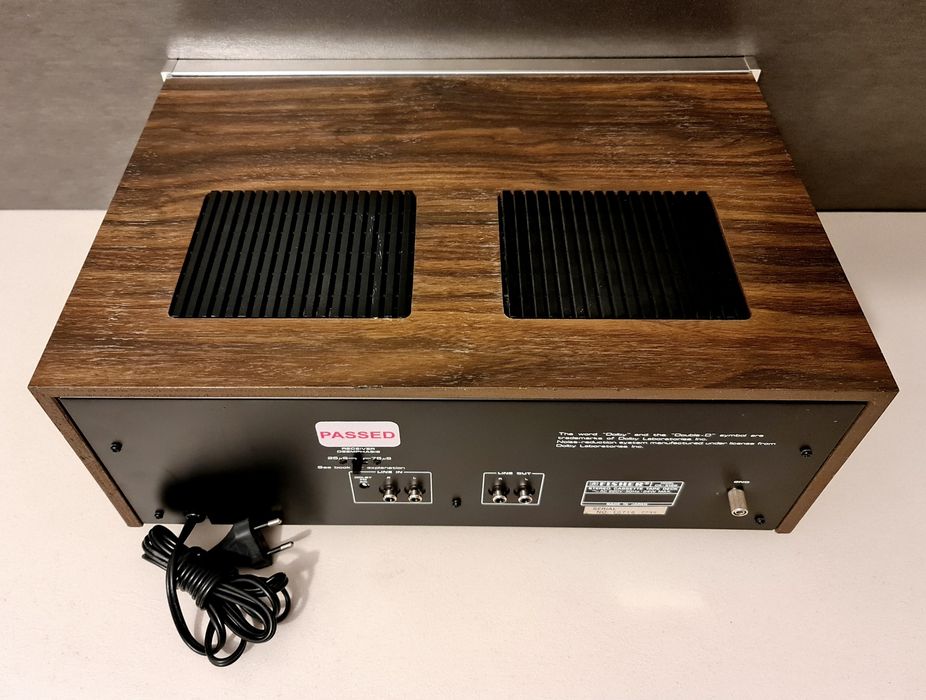

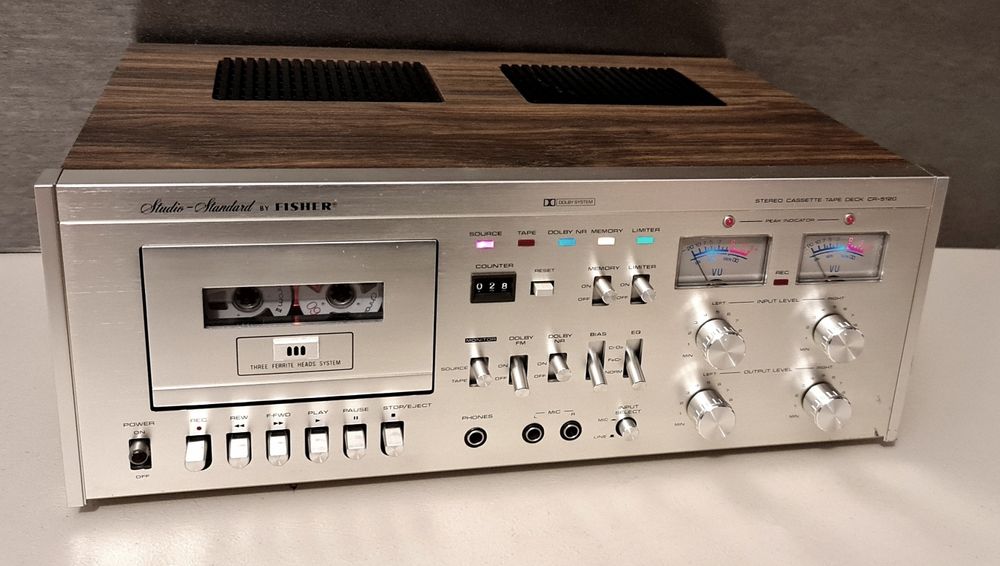

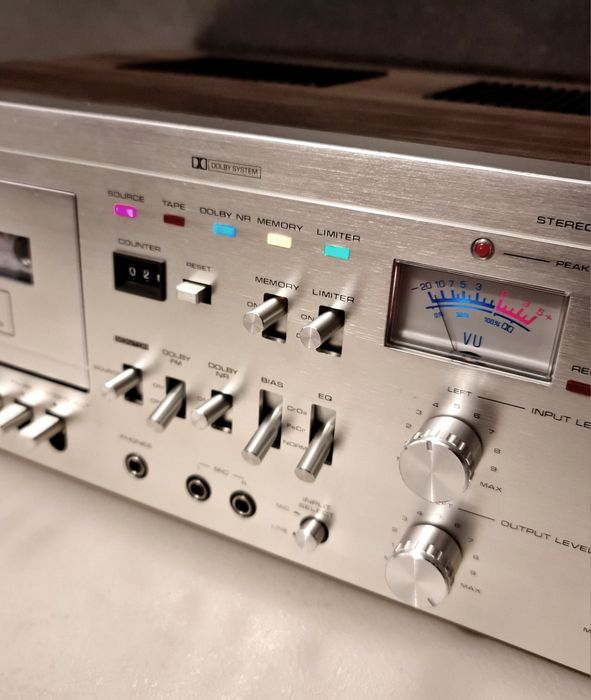

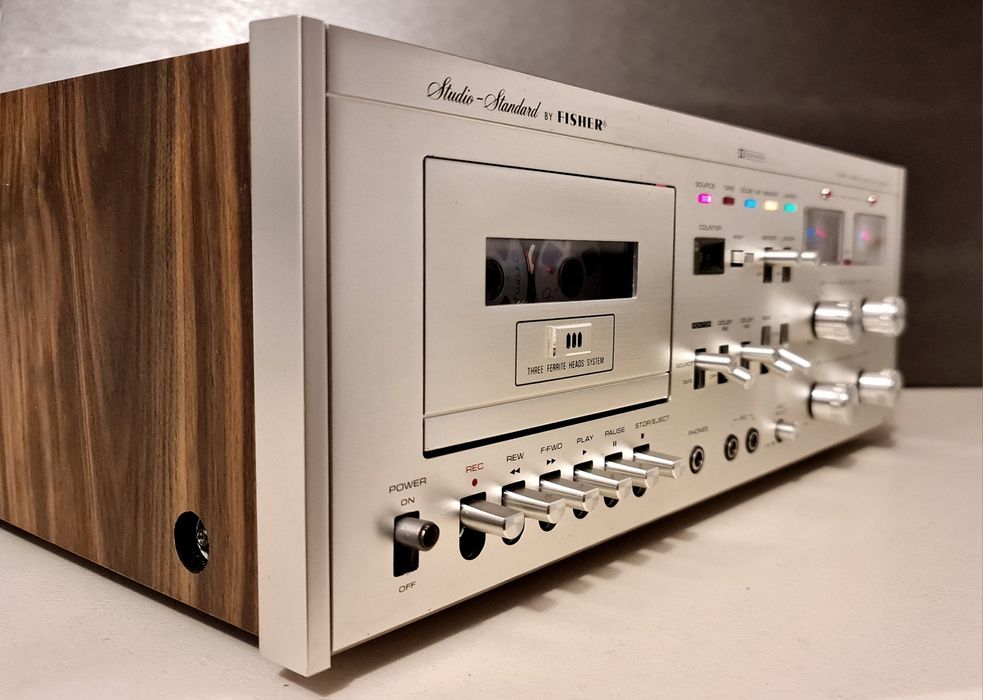

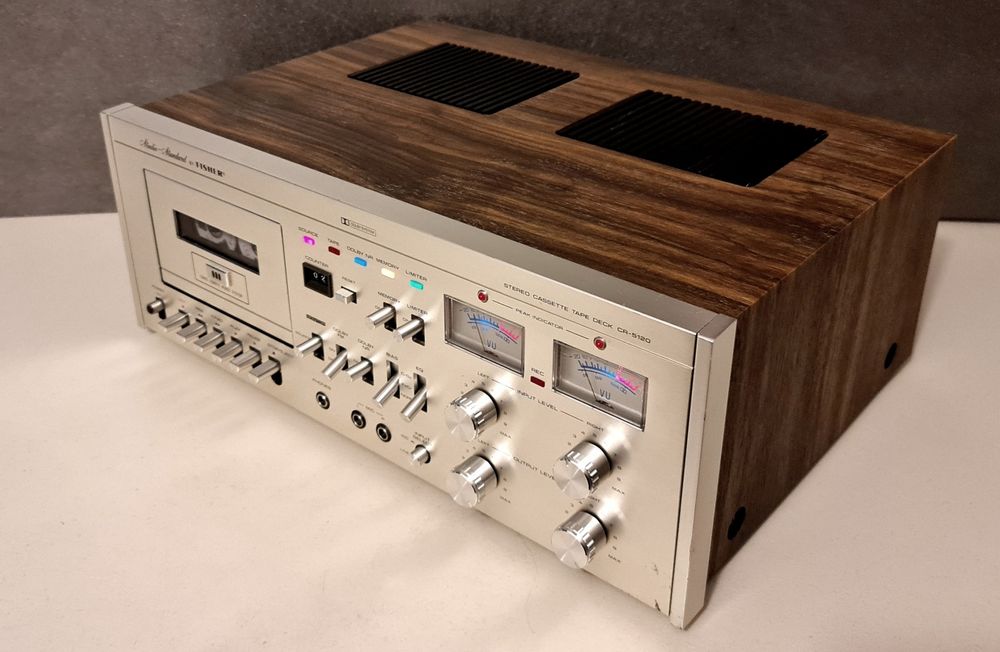

Foto reale

General:

3 glass ferrite heads
2 motors
Years of manufacture: 1977 - 1979
Made in: Japan
Color: Strato silver
Power consumption: 40 W
Dimensions: 435 x 170 x 300 mm (WxHxD)
Weight: 9,5 kg
Original price approx.: 1'000 DM

Connections:
Number of inputs:
Line In 1, 2: 70 mV, 100 kOhm
Line In DIN: 20 kOhm

Microphone 1, 2 (2 x 6.3 mm jack): 0.25 mV, 2.4 kOhm
Number of outputs:
Line Out: 410 mV, 0.47 kOhm
Headphones adjustable (6.3 mm jack): 100 mV, 8 Ohm

Technical Data:
Track system: 4 track, 2 channel stereo
Speed: 4,75 cm/ s
Synchronisation fluctuation: 0.08 % WRMS
Tape types: LN+LH, CrO2, FeCr (I, II, III)
Frequency response ± 3 dB:
Type I: 30 - 16'000 Hz
Type II: 30 - 17'000 Hz Type III: 30 - 17'000 Hz

Signal-to-noise ratio:
> 61 dB (Dolby off)
Dolby on: Improvement up to 10 dB above 5,000 Hz.
Distortion factor: 1
Rewind time (C 60): 60 s
Cancellation attenuation: better 70 dB
Premagnetization: 100 khz
Dolby NR: yes
Dolby FM: yes

Special features:
Memory
Limiter
Pre-magnetization and equalization adjustable
Timer
