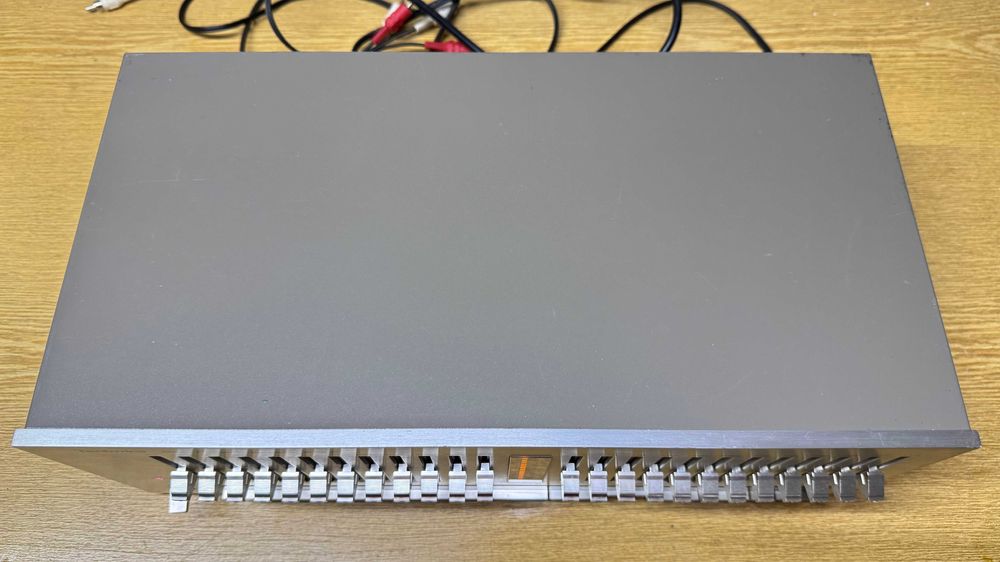

Egalizatorul se prezinta in perfecta stare tehnica si estetica cu exceptia unor usoare urme, zgarieturi pe capac, foto4, 7.

Specifications

Adjustable frequency bands: 16 Hz, 31.5 Hz, 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz, 32 kHz.
Control range: ± 12 dB, ± 3 dB (stepless)
Frequency response: 5 - 100'000 Hz (-1 dB)
Nominal distortion: 0.01 % ( 20Hz - 20 kHz )
S/N ratio: 100 dB ( 110 dB, IHF, A )
Gain: +- 1 dB
Channel symmetry 250 Hz - 6300 Hz: +- 0.5 dB
Channel separation 1 kHz: 55 dB
Frequency response control: 2x 12

Connections

Number of inputs:
Input signal switch : 1 V, 47 kOhm, 6 V max.
Number of outputs:
Output : 1 V, 600 Ohm, 6 V max.

General

Power consumption: 15 W
Dimensions: 430 x 153 x 244 mm (WxHxD)
Weight: 6 kg
