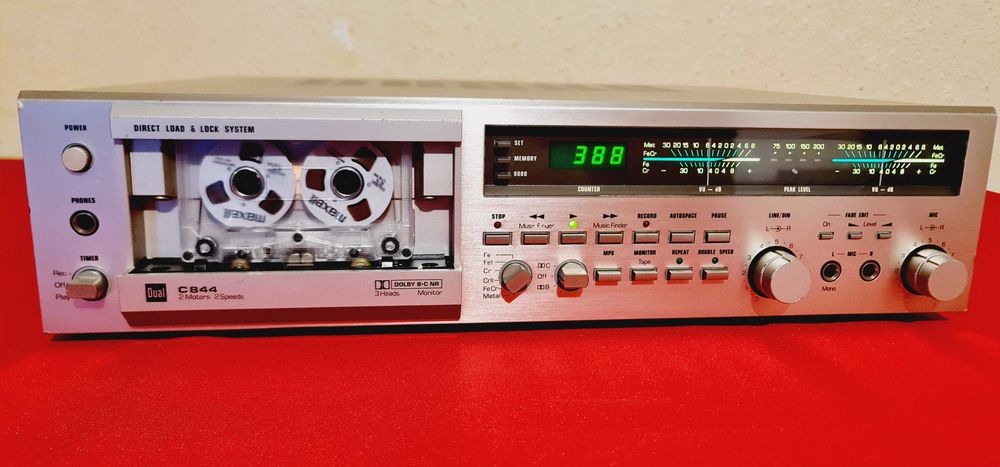

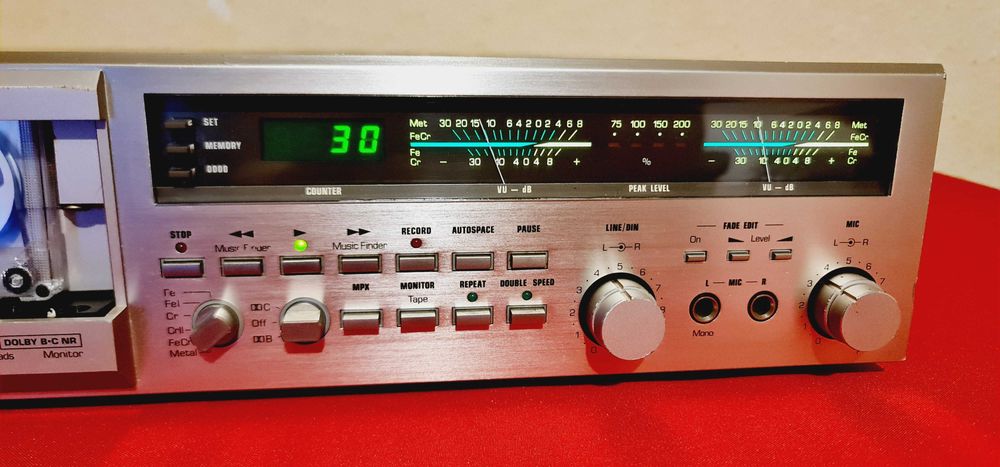

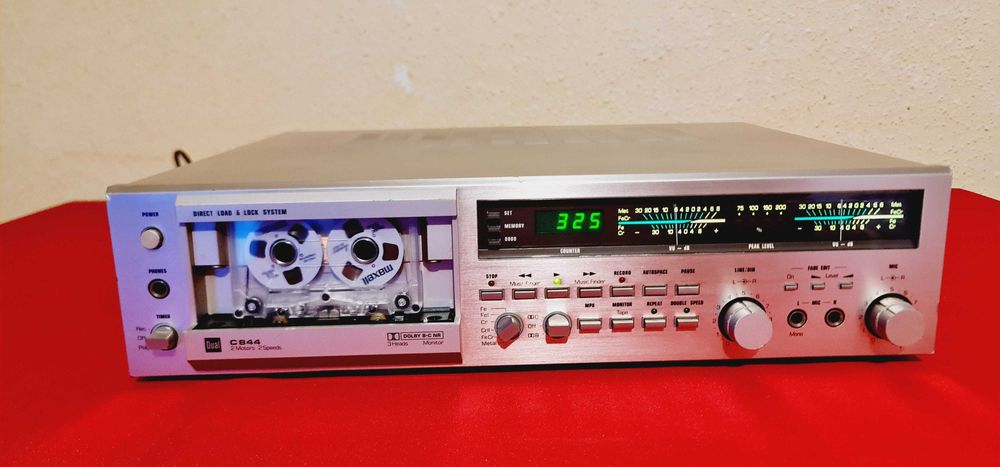

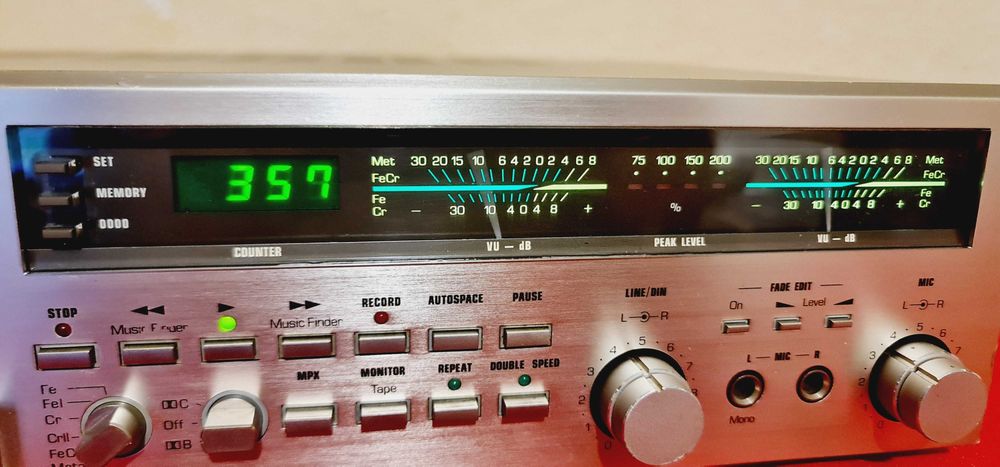

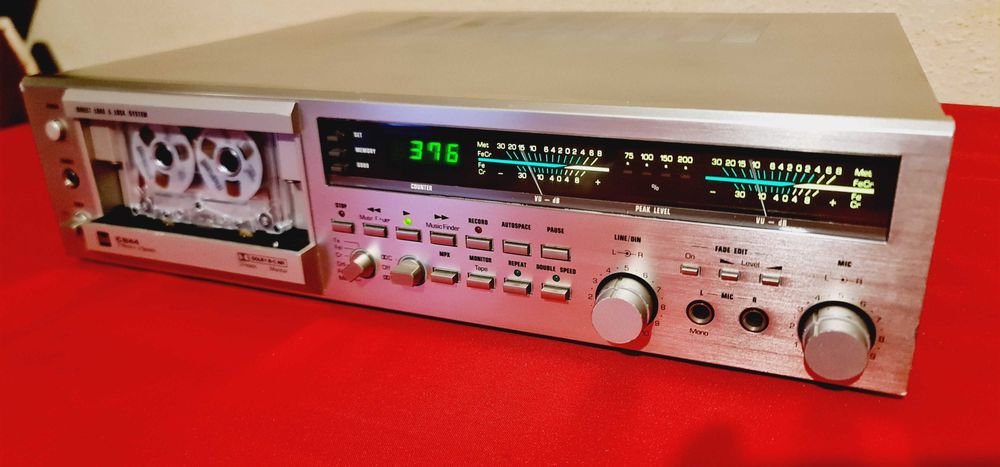

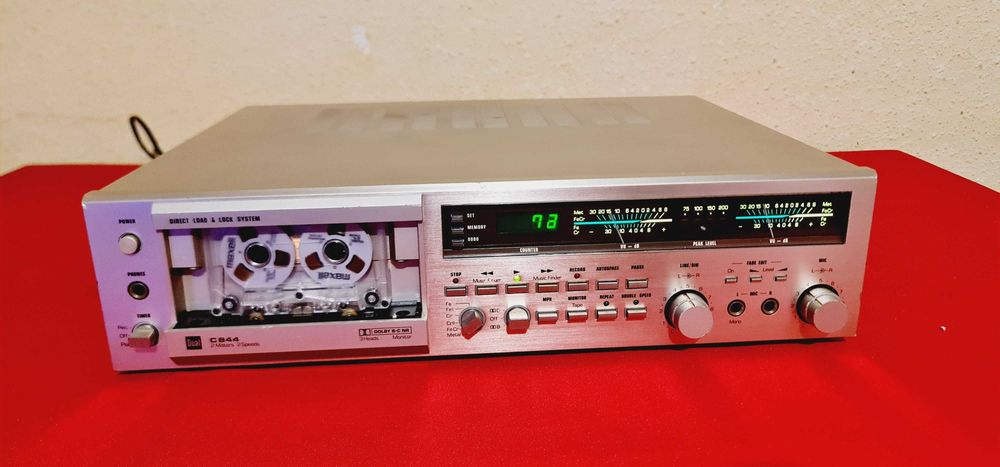

Dual C 844 Made in Japan 3 head
Categorie: Tape Deck
Brand: Dual
Stare: Produs in stare buna
Vand un Deck Dual C 844 Made in Japan 3 head ,stare perfecta de functionare ,redare ,inregistrare ,se expediaza cu verificare colet ,plata ramburs ,la ridicarea coletului

General

Manufacturer: Dual
Model: C 844
Type: Cassette Tape Deck

Years of manufacture: 1981 - 1984
Made in: Japan
Color: Champagne
Remote control: yes
Power consumption:
Dimensions (WxHxD): 440 x 112 x 355 mm.
Weight: 9 kg
Original price approx.: 1'198 DM

Connections

Number of inputs:
Line In: 40 mV, 580 kOhm
Line In DIN: 0.5 mV, 6.3 kOhm

Microphone: 0.25 mV, 2 kOhm
Number of outputs:
Line Out: 0 - 580 mV, 2 kOhm
Line Out DIN: 0 - 580 mV, 5.5 kOhm
Headphones (6.3mm jack): 4 - 2'000 Ohm

Technical Data:

Audio heads: 3
1x combination head for recording and playback
1x ferrite erase head
Motors: 2
2 tape speeds: 4.75 cm / s and 9.5 cm / s
Synchronization fluctuations: 0.03 %
Tape types:
Normal: Type I
Cr02: Type II
FeCr: Type III
Metal: Type IV
Frequency Response:
Normal Type I: 20 Hz - 16 kHz
Cr02 Type II: 20 Hz - 17 kHz
Metal Type IV: 20 Hz - 20 kHz
Distortion factor: 2.0
Signal-to-noise ratio:
Without Dolby: 58 dB
With Dolby: 67 dB
Crosstalk attenuation:
Auto-Reverse: no
Dolby: yes
Cancellation attenuation: > 70 dB
Premagnetization frequency: 100 kHz
Rewind time C-60 cassette: 65 seconds

Special features:

3-head
tape memory
Headphone jacks adjustable
2 microphone jacks: 6.3 mm jack
