Anutul este valabil, pretul este fix.
Pozele sunt reale a produsului si se vinde conform acestora si descrierii.
Comenzile se fac prin trimitere mesaj cu datele de livrare aici sau prin sms la numarul de telefon afisat, costurile transport 35lei! Primiți coletul, verificați produsul și apoi efectuați plata.
Gasiti produse asemanatoare in anunturi.

Se vinde doar amplificatorul! Atentie!

Manufacturer: Denon
Model: DRA-435 R
Type: Receiver
Years of manufacture: 1991 - 1993
Made in: Japan
Colors: Champagne, Black
Remote control: yes
Power consumption: 150 W
Dimensions: 434 x 120 x 312 mm (WxHxD)
Weight: 6.7 kg
Original price approx.: 698 DM

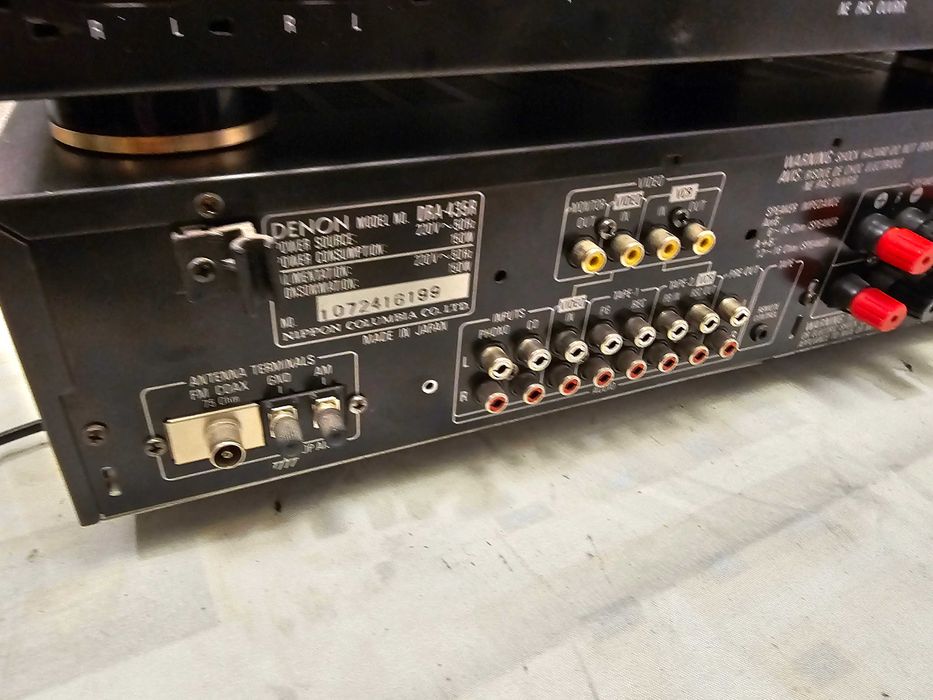

Connections

Number of inputs: 5

Phono MM: 2.5 mV / 47 kOhm

CD: 150 mV / 29 kOhm
Video: 150 mV / 29 kOhm
Tape 1: 150 mV / 29 kOhm
Tape2/VCR: 150 mV / 29 kOhm
Number of outputs:
Video out/Monitor: 1 Vpp / 75 ohms.
Headphones:
2 speaker pairs (A, B or A+B switchable).

Technical Data

Amplifier

Rated power
8 Ohm:
4 ohms: 2 x 80 watts (4 ohms, DIN 1 kHz, 1% distortion).
Peak power
8 Ohm:
4 Ohm: 2 x 120 Watt
2 Ohm: 2 x 140 Watt

Distortion factor: 0.03% (nominal power - 3 dB, 8 Ohm)

Attenuation factor:
Power bandwidth: 10 Hz - 40 kHz (8 ohms, 0.05% distortion).
Frequency response: 20 Hz - 50 kHz
Output impedance: 0.1 Ohm (1 kHz)
Preamplifier output level: 1V (100 kOhm)
Signal-to-noise ratio:
Tone control:
Bass: 100 Hz +/- 10 dB

Treble: 10 kHz +/- 10 dB

Loudness: low 50 Hz + 10 dB, high 10 kHz + 5 dB (With setting VARIABLE LOUDNESS "10")
High Filter:
Low Filter (Subsonic):
Mute:
Direct/Line-Straight:

Tuner

Reception:
Frequencies:
FM: 87.5 - 108 MHz

MW: 522 - 1611 kHz

Frequency response: 30 Hz - 15 kHz (+ 0.2 / -1.5 dB)
Usable sensitivity:
VHF: 0.8 µV

MW: 18 µV

Input sensitivity at 50 dB signal-to-noise ratio (75 Ohm IHF):
Mono: 1.7 µV

Stereo: 23 µV

Distortion factor: Mono: 0.4% / Stereo: 0.5%
Noise voltage ratio:
FM: Mono: 82 dB / Stereo: 78 dB

MW: 55 dB

Channel separation: 40 dB (1kHz)
Selectivity: 60 dB (+/- 300kHz)
Co-wave selection: 1.5 dB
Spurious wave selection:
IF attenuation: 65 dB
IF attenuation:
AM suppression:
Output level:
RDS: no
Station memory: 24 AM/FM stations

Special Features

Loudness circuit with variable characteristics
Bass equalizer
Preamplifier outputs
Motor-driven, remote-controllable volume control
