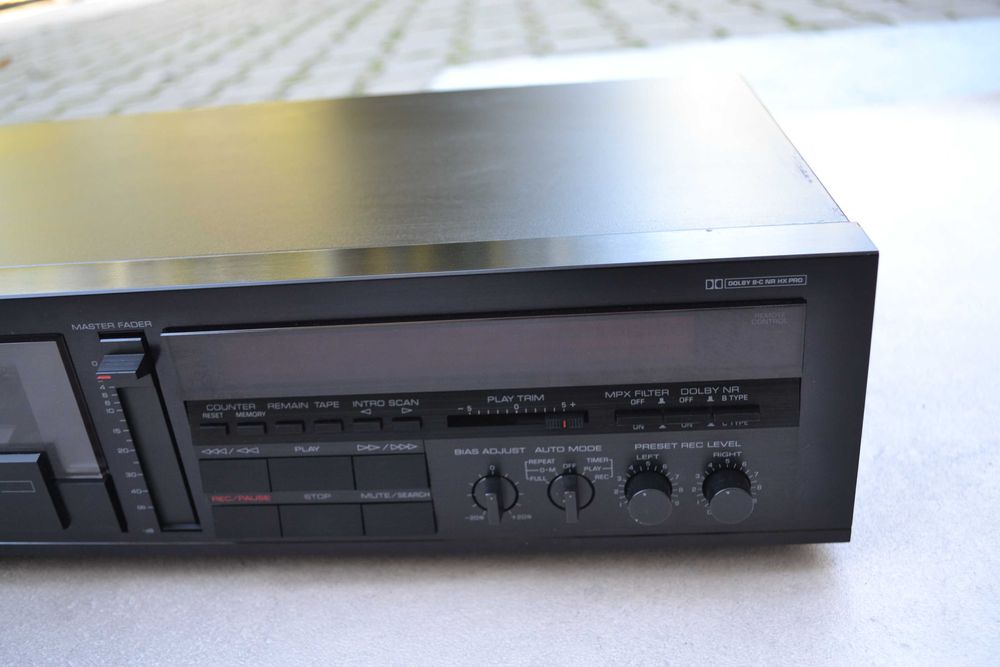

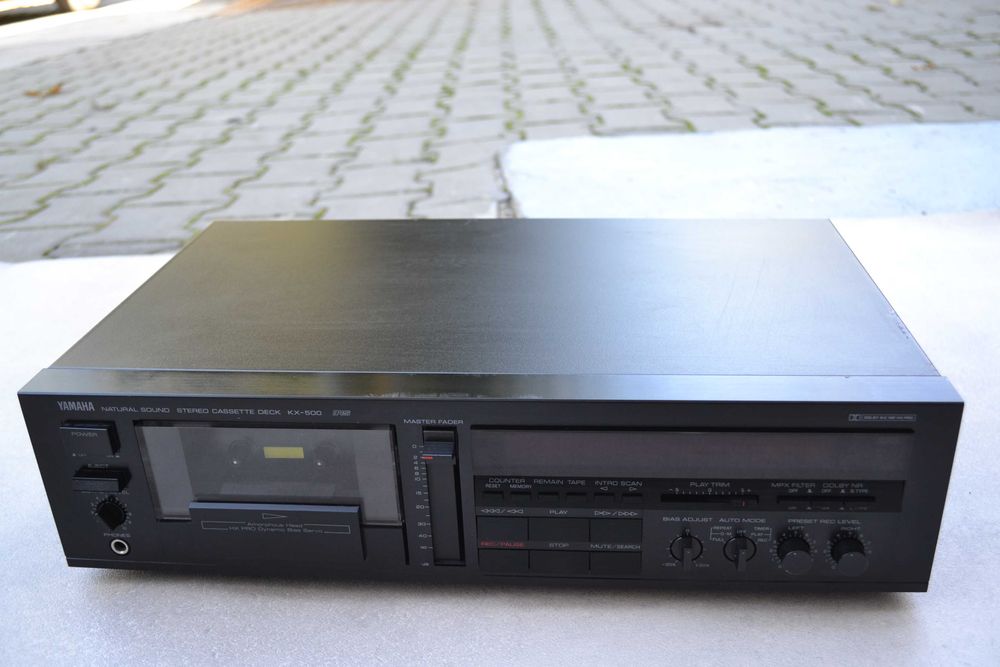

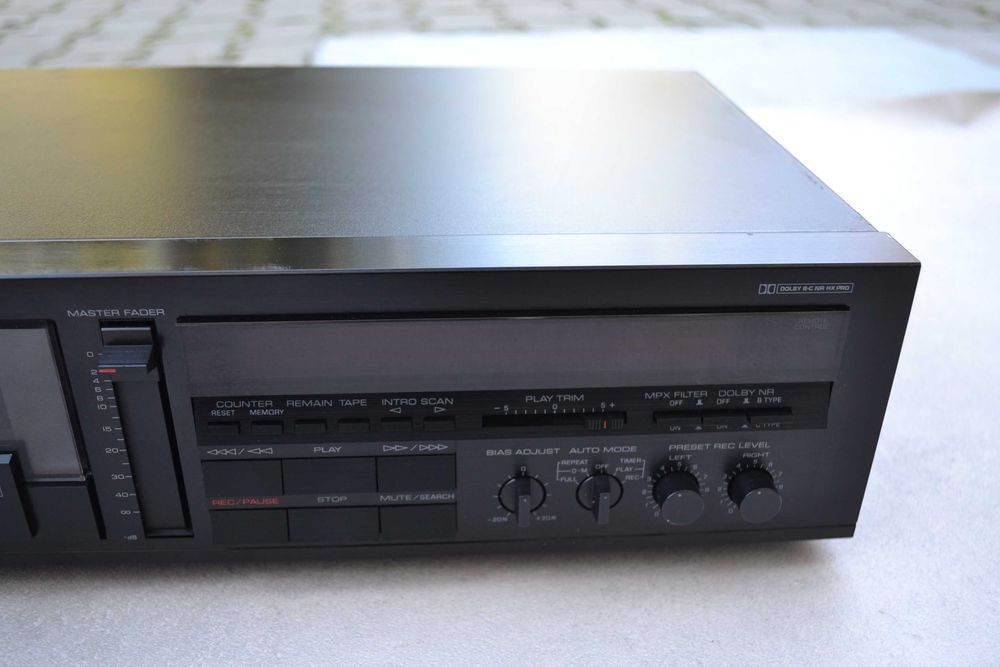

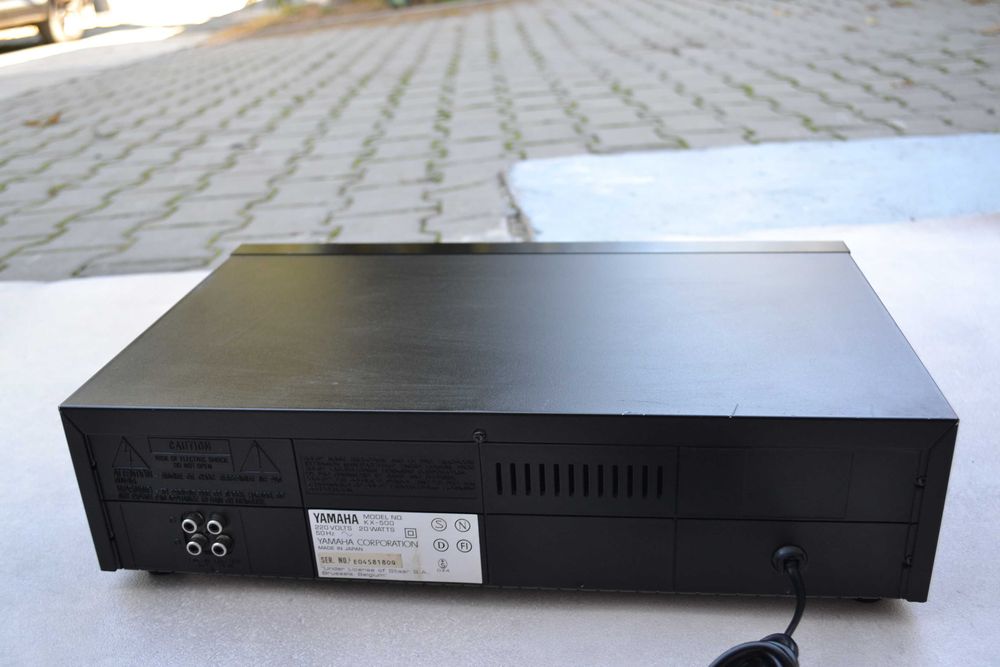

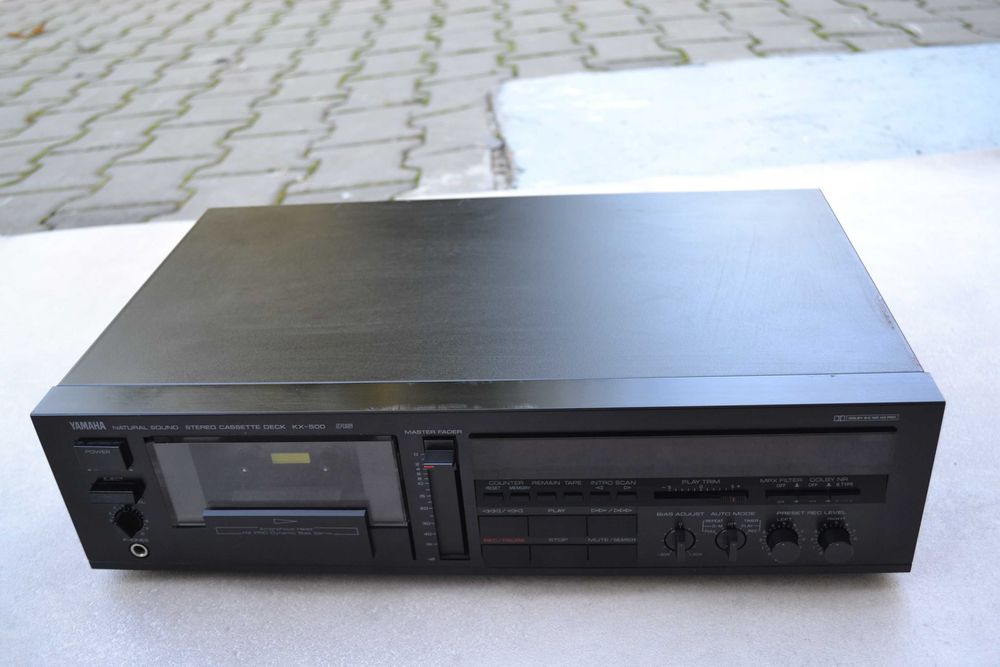

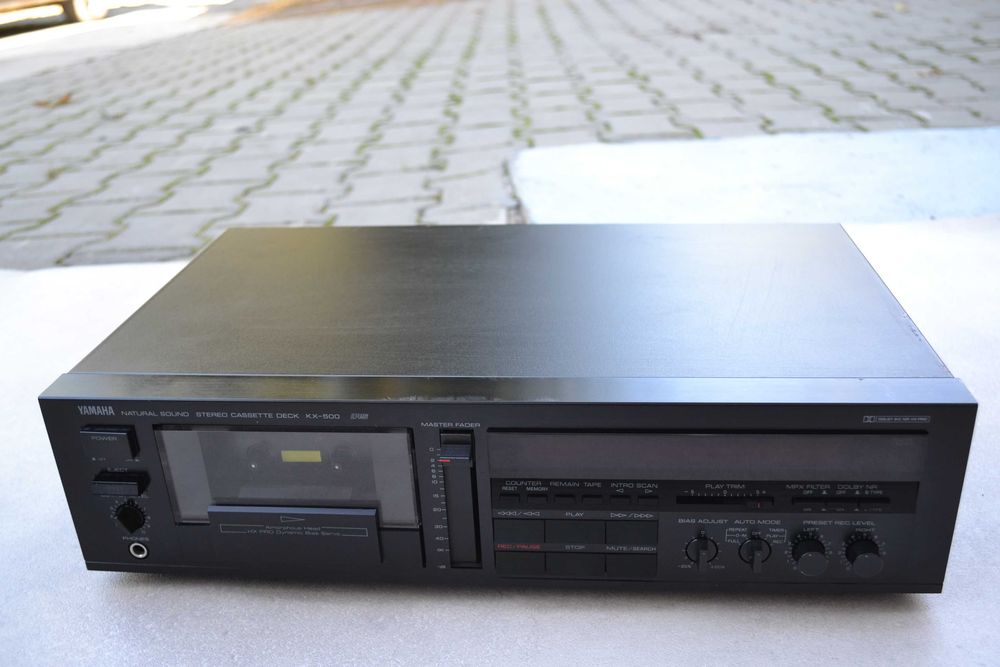

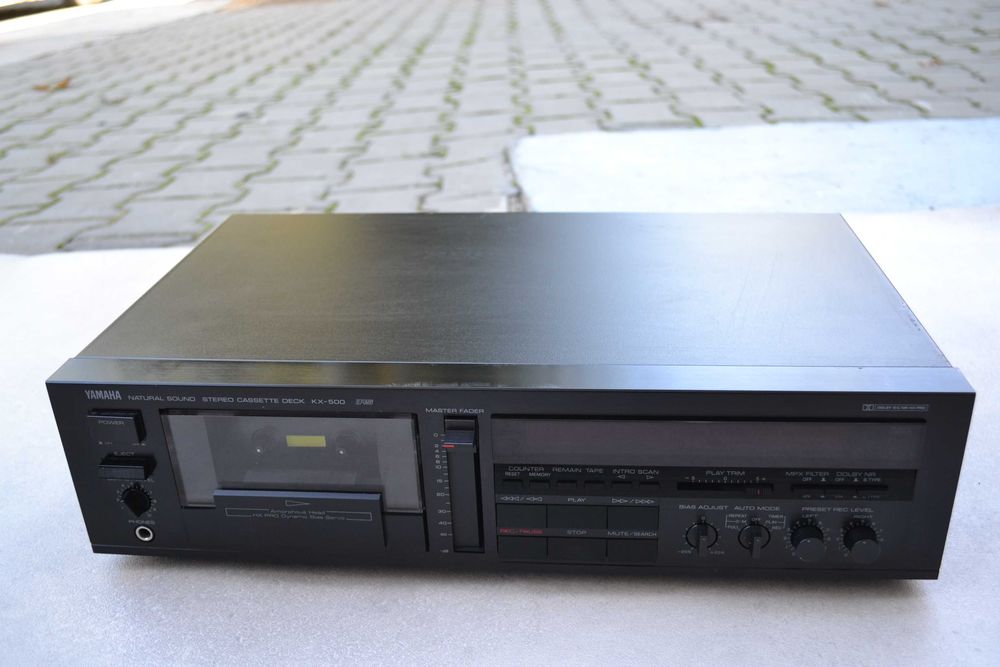

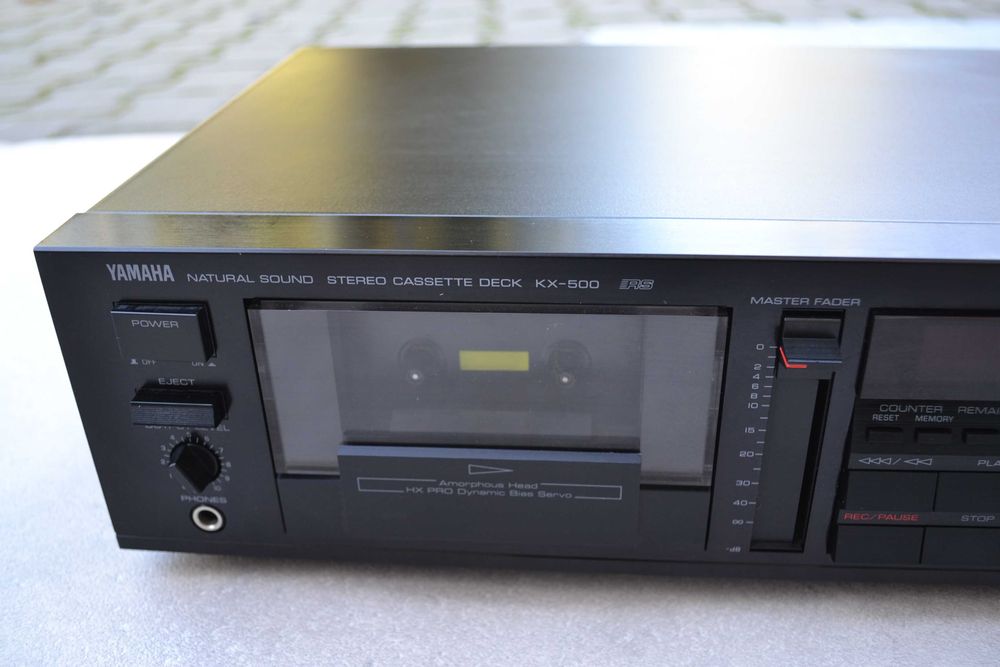

Deck Yamaha KX 500: made in Japan, iesire casti, dolby B, C, HX PRO, bias servo, afisaj, amorphous head, output level, play trim, master fader, poze reale.

General:

Manufacturer: Yamaha
Model: KX-500
Type: Single
Years of manufacture: 1988-1990
Made in: Japan
Color: silver, black
Remote control: optional (RS-K 5)
Power consumption: 20 watts
Dimensions: 435 mm × 117 mm × 273 mm (W × H × D)
Weight: 4.5 kg
Original price approx.: 700 DM, (remote control approx. 50 DM)

Connections:

Number of inputs:
Line
Number of outputs:
Line
Headphone

Technical data:

Sound heads: 2
Motors: 2+1
Synchronisation fluctuations: ±0.05 %/ 0.08 % WRMS/ DIN
Band types: Type I, II, IV
Frequency response:
Type I: 20-17,000 Hz ±3 dB
Type II: 20-19,000 Hz ±3 dB
Type IV: 20-20,000 Hz ±3 dB
Distortion factor: 1 %
Signalrauschabstand: >60 dB
Auto-Reverse: no
Title search: yes, 9 titles programmable (title programming only possible with optional FB)
Dolby: B, C
MPX filter: switchable
Fader: yes
Pitch control: no
CD synchro recording: no
