perfect functional
se face proba si video

General

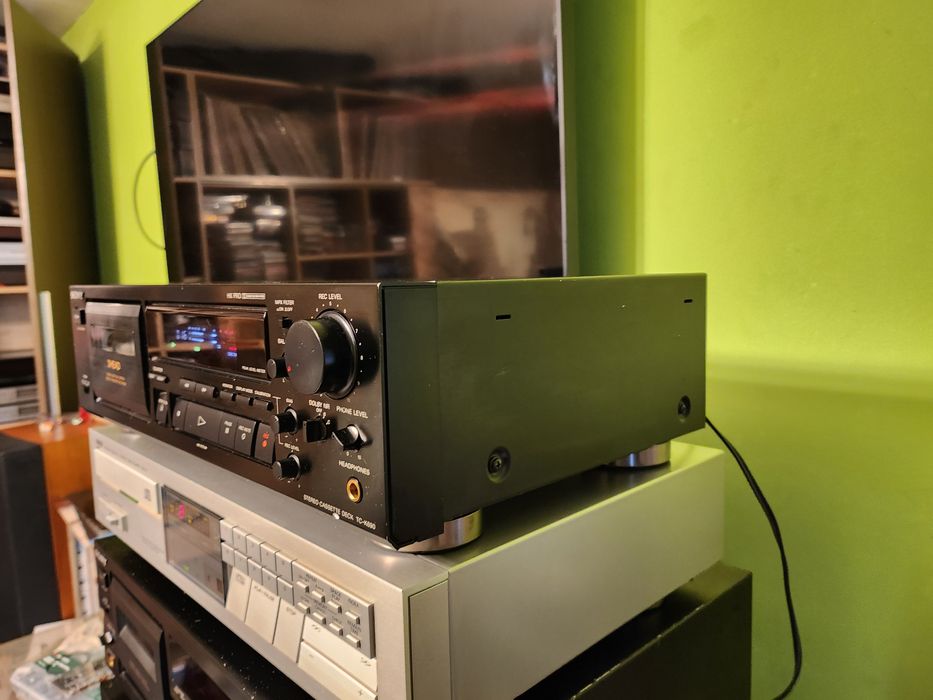

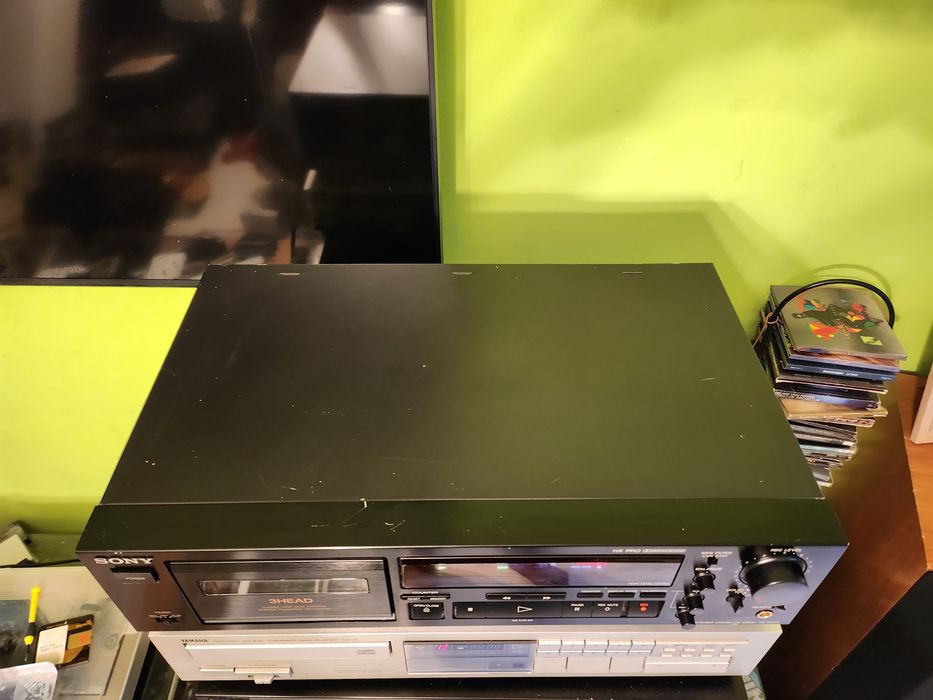

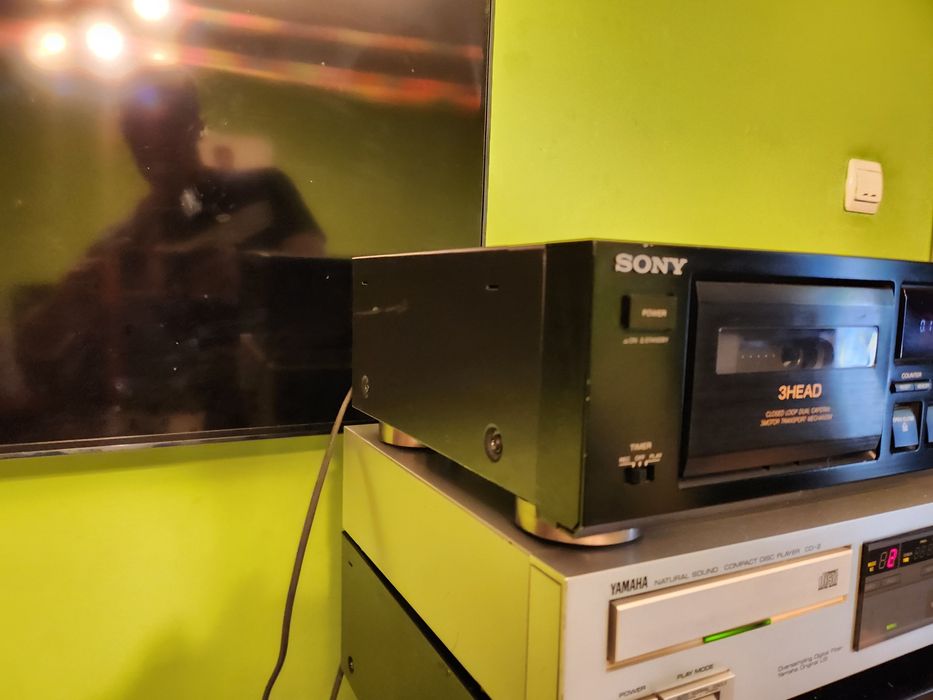

Manufacturer: Sony
Model: TC-K 690
Type: Cassette Tape Deck
Years of manufacture: 1992 - 1994
Made in: Japan
Color: Black
Remote control: optional, RM-J701
Power consumption: 19 W
Dimensions: 430 x 123 x 300 mm (WxHxD)
Weight: 4.9 kg
Original price approx.: 650 DM

Connections

Number of inputs:
1 x Cinch
Number of outputs:
1 x Cinch
1 X headphone

Technical Data

Sound heads: 3
Motors: 3
Synchronization fluctuations: +- 0,05% W.RMS
Band types: all
Frequency response: 20 Hz - 20 kHz (Metal)
Distortion factor: 0.4% Type I
Signal-to-noise ratio:
57dB (Type I)
59dB (Type II) 60dB (Type IV)

Auto Reverse:
Title search: yes
Dolby: B + C + HX Pro
MPX filter: yes
Faders:
Pitch Control:
CD Synchro Recording:

Special Features

3 sound heads: recording, playback and erasing head
Electronically controlled 3-motor drive
Closed loop dual capstan
Pre-magnetization current and recording level calibration for optimum recording quality with any tape type
Ceramic cassette holder for stable tape running
Dolby B and C HX-Pro noise reduction
Rear tape control.
Motorised cassette compartment, opens and closes at the touch of a button
Display can be switched off
Title jump function (Multi-AMS) and memory-controlled playback start
Timer-controlled recording and playback when a separate timer is connected
Digital linear counter
