( Stare excelenta , servisat complet ) - Stare Perfecta de Functionare,sunet f f bun -

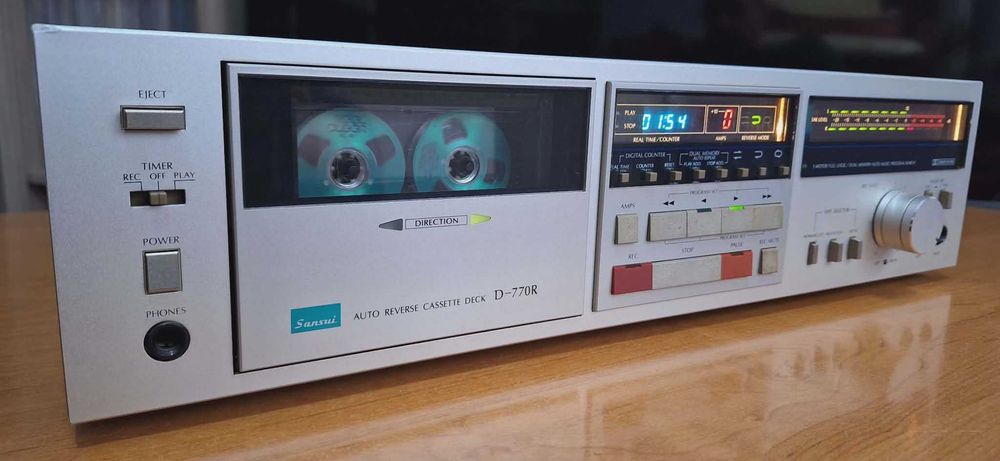

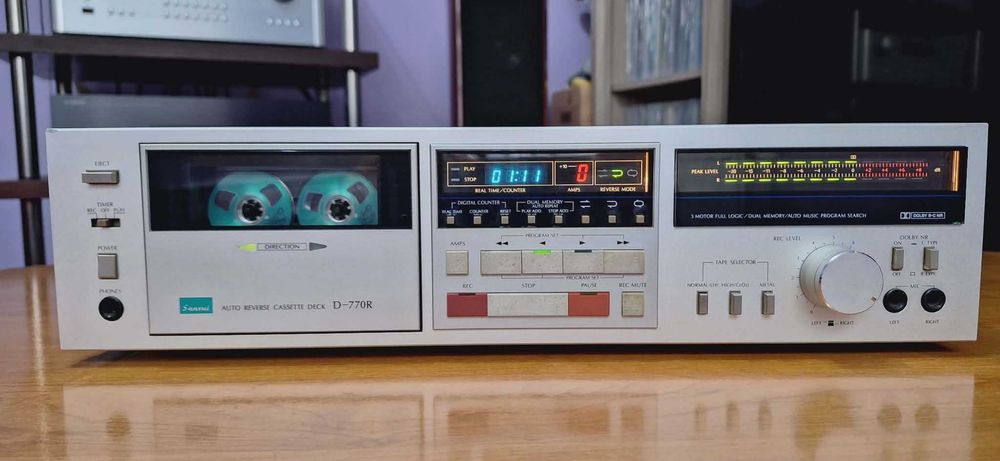

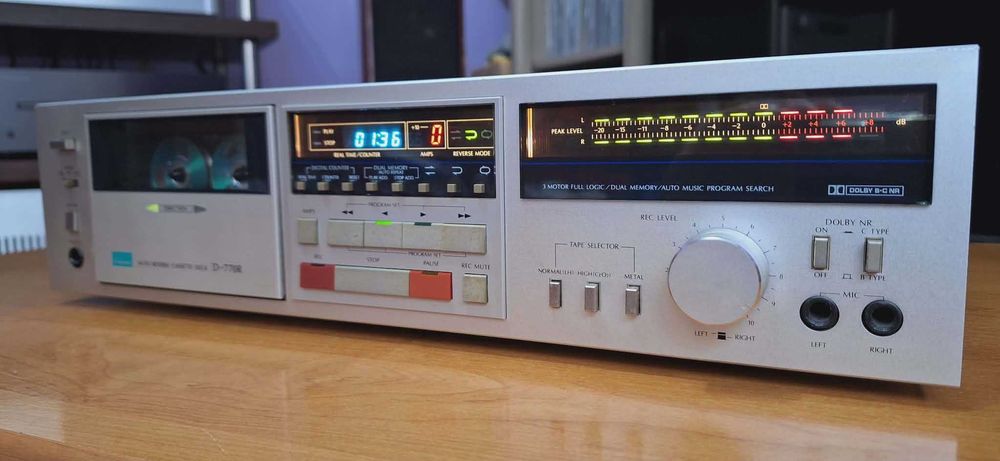

Sansui D-770R Auto-Reverse

General
Manufacturer: Sansui
Model: D-770 R
Type: Auto-Reverse Cassette Tape Deck
Years of manufacture: 1982 - 1984
Made in: Japan
Colors: Silver, Black
Remote control:
Power consumption: 32 W
Dimensions: 430 x 111 x 324 mm (WxHxD)
Weight: 6.6 kg
Original price approx.: 1'398 DM

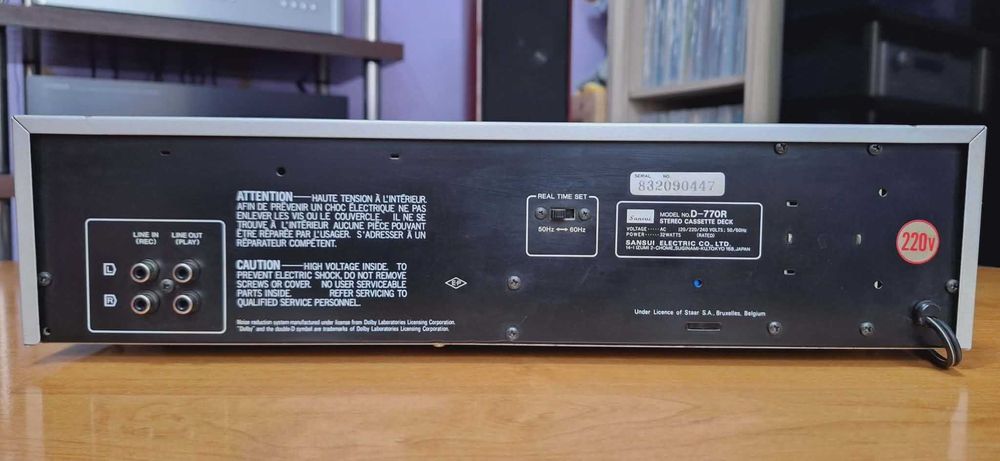

Connections

Number of inputs:
Line In: 70 mV / 47 kOhm
Microphone: 0.4 mV / 200-5,000 Ohm
Number of outputs:
Line Out: adjustable 0-350 mV
Headphone: 100 mV

Technical Data

Tone heads: 3 (ferrite erase head)
motors: 3
Synchronous fluctuations: 0.035 % (WRMS)
Tape types: Normal I, Chrome II, Metal IV
Frequency response:
Normal I: 20-19,000 Hz
Chrome II: 20-20,000 Hz
Metal IV: 20-23,000 Hz

Distortion Ratio:
Signal-to-noise ratio:
without Dolby: > 61 dB
with Dolby B: > 71 dB
with Dolby C: > 81 dB
Auto Reverse:
Title search:
Dolby: B, C
MPX filter: switchable
Fader: Rec mute
Pitch control: no
CD synchro recording:

Special Features

Auto reverse
Electronic real-time counter
Bias setting
Possibility timer operation
