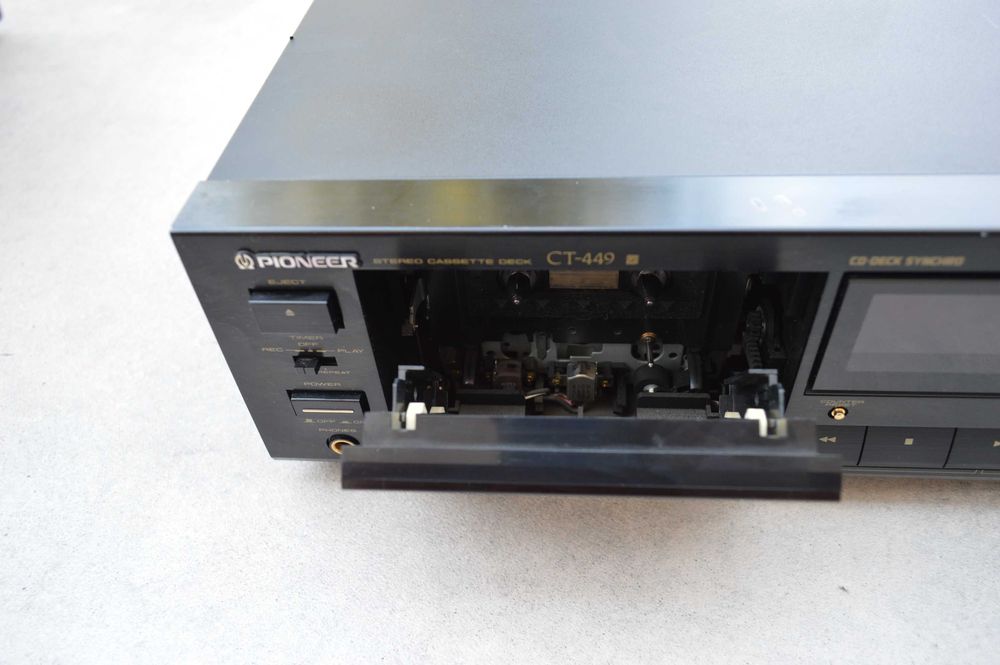

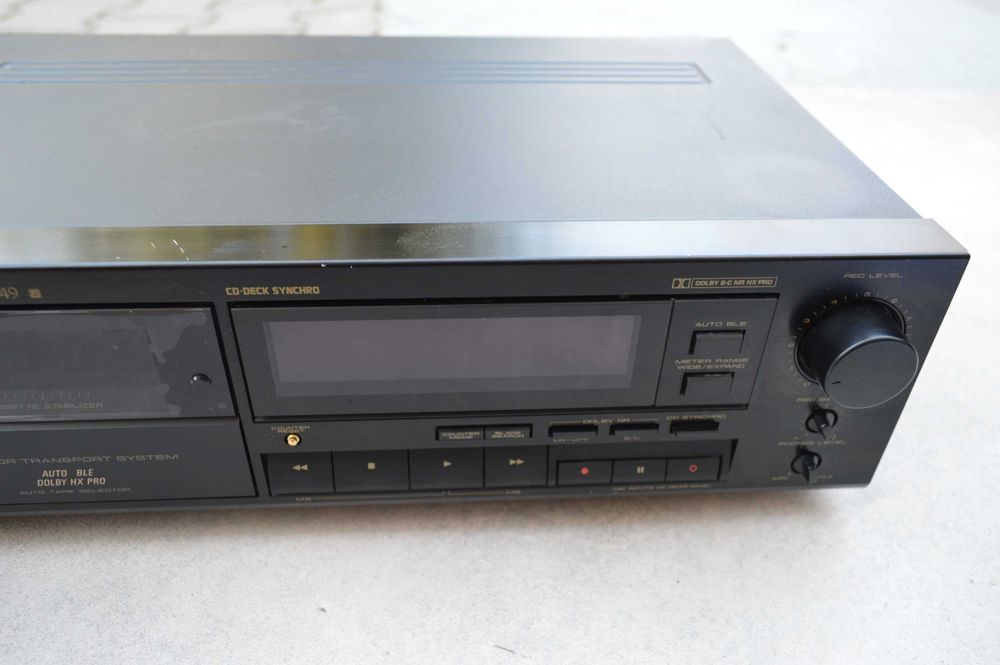

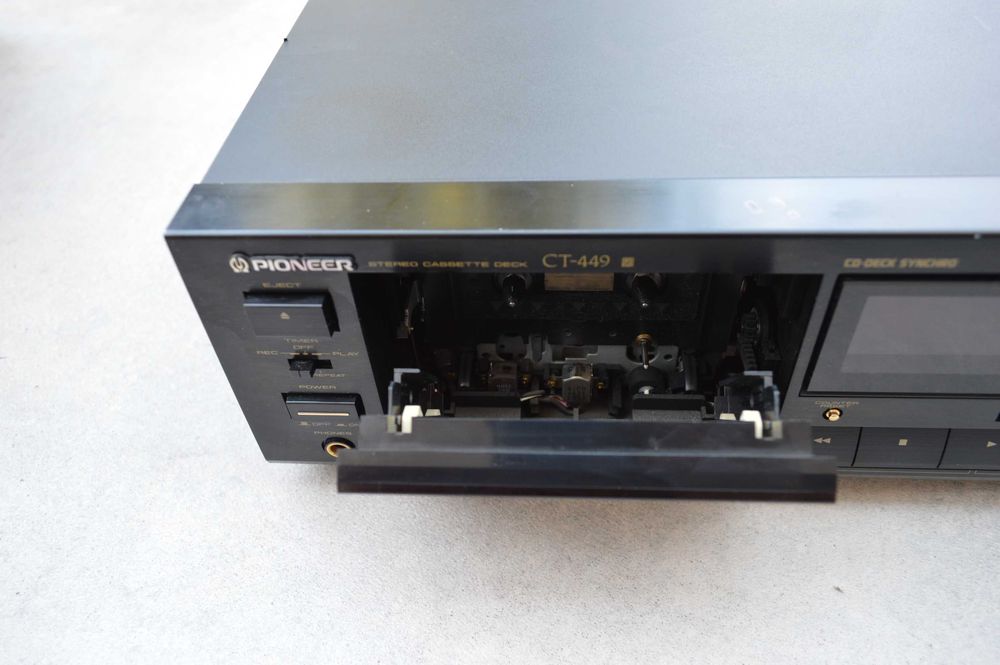

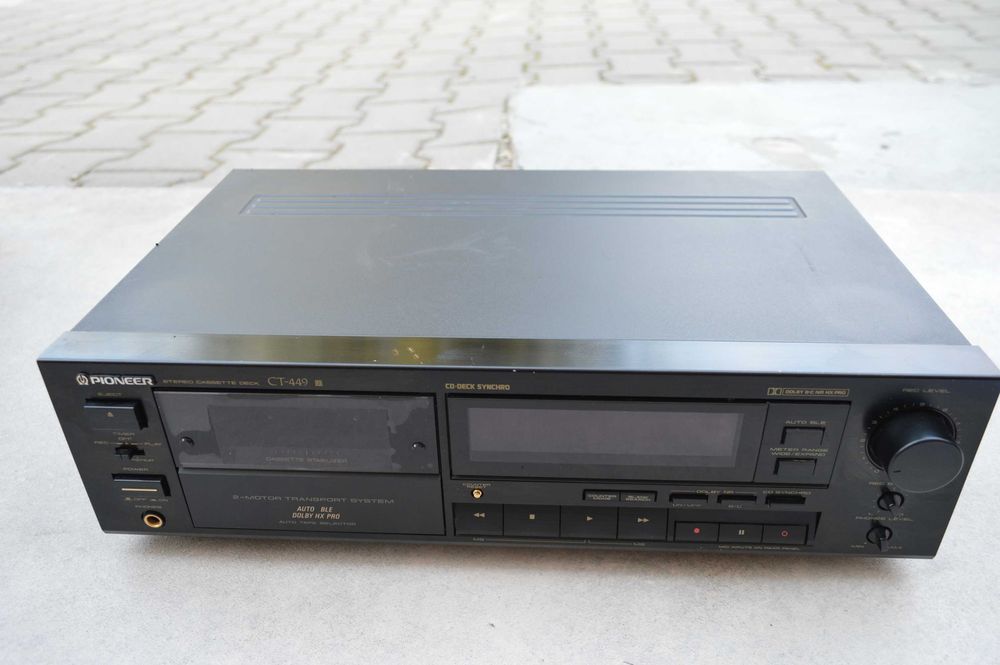

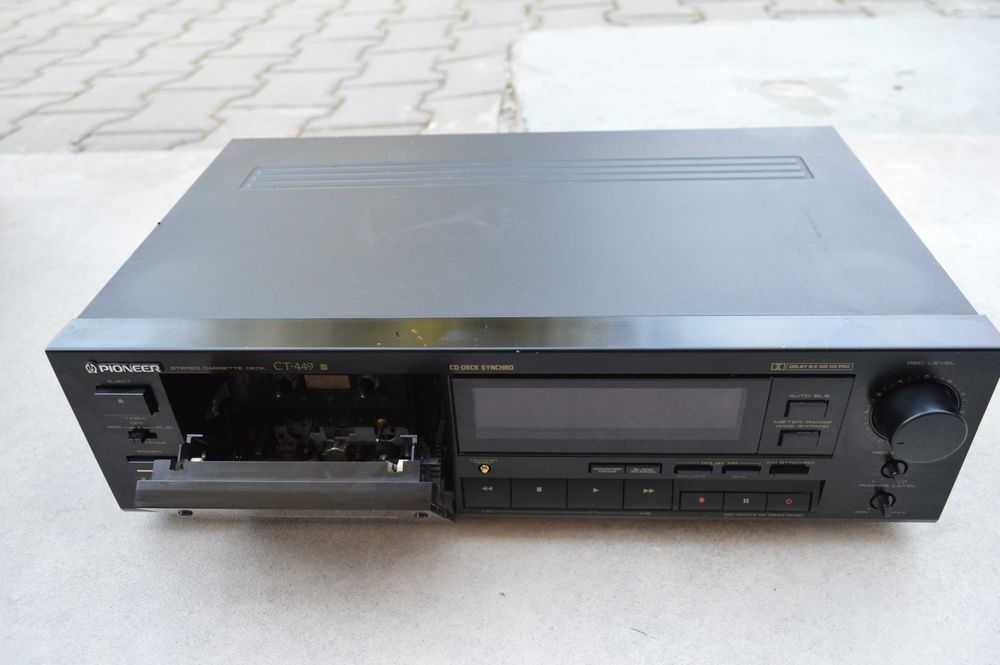

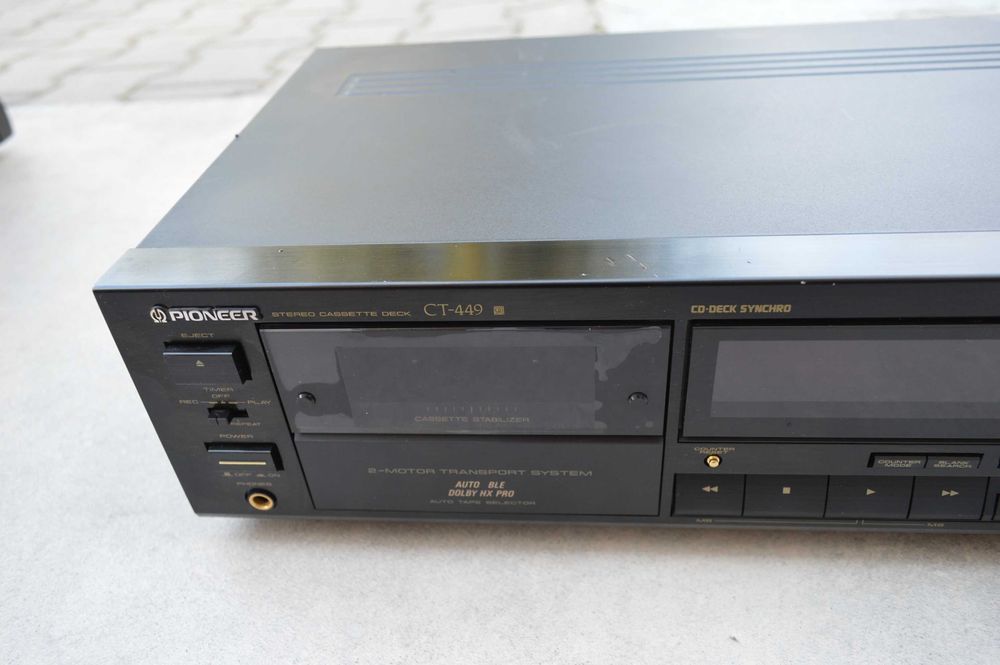

Deck Pioneer CT 449: Made in japan, intrare 2 microfoane, afisaj mare, dolby B,C, HX Pro, 2 motoare, Auto BLE, Dolby HX Pro.

General

Manufacturer: Pioneer
Model: CT-449
Type: Single
Year built: 1991
Made in: Japan
Color: Black
Remote control: via SR System remote control to be purchased separately
Power consumption: 20 W
Dimensions: 420 x 130 x 272 mm (W x H x D)
Weight: 4.3 kg

Original price approx.: 600,- DM

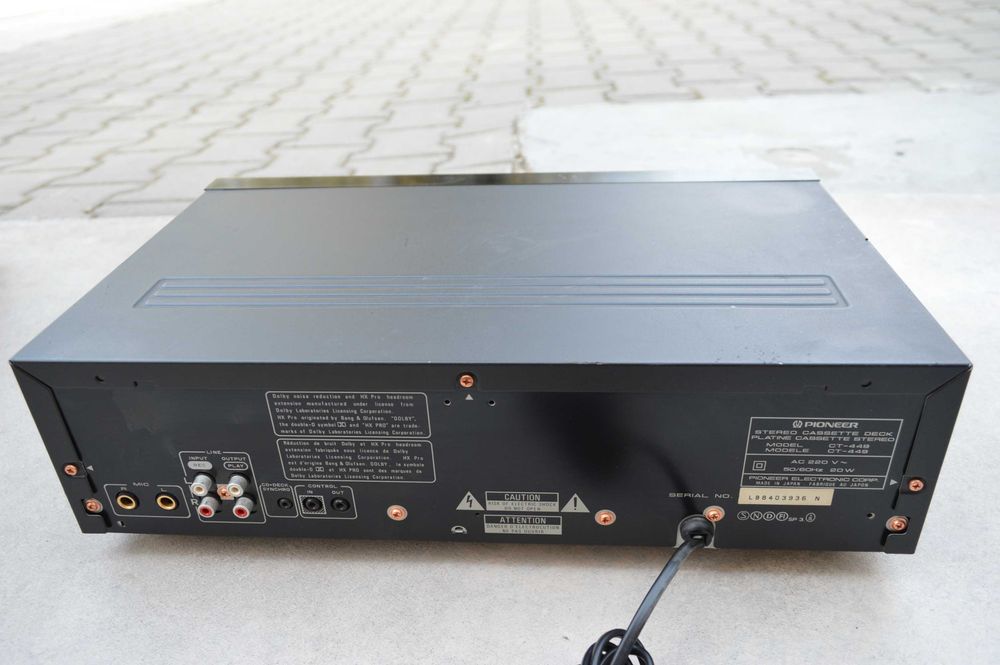

Connections

Number of inputs:
LINE (INPUT) 2 x cinch; 63 mV with 52 kΩ input impedance.
Microphone 2 x 6.3 mm jack socket on the rear; 0.4 mV
Number of outputs:
LINE (OUTPUT) 2 x RCA; 316 mV with 3.3 kΩ output impedance.
Headphone output 6.3 mm jack socket, stereo, on the front panel with volume control; 0.9 mW, load impedance 8 Ω

Specifications

Audio heads: 2 (1 x hard permalloy record/playback head;1 x ferrite erase head).
Motors: 2 (1 x DC servo motor for tone shaft; 1 x DC motor for winding).
Synchronous fluctuation: 0.05%.
Band types: Fe, Cr and Me
Frequency response: (± 6 dB; -20dB recording)
Normal band 20 to 17000 Hz
Chrome band 20 to 17000 Hz
Metal band 20 to 19000 Hz

Distortion factor: 0,7% (0dB)
Signalrauschabstand:
Ohne Rauschuntersrückung >57 dB
With Dolby-B > 67 dB (at 5 kHz)
With Dolby-C > 76 dB (at 5 kHz)
Auto Reverse: No
Title search: up to 15 titles
Dolby: B / C + HX-PRO system
MPX filter: activated when Dolby B or C is active
Fader: No
Pitch control: No
CD synchro recording: Yes
