( Stare excelenta, servisat complet )

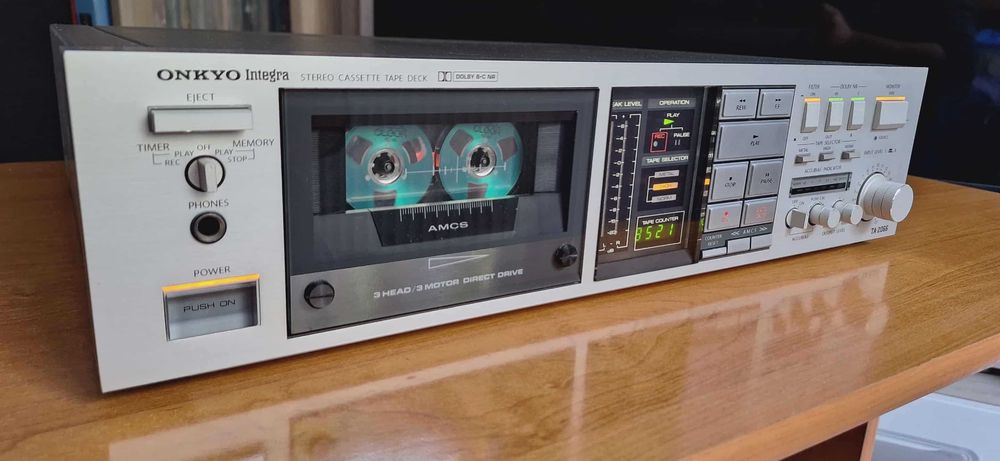

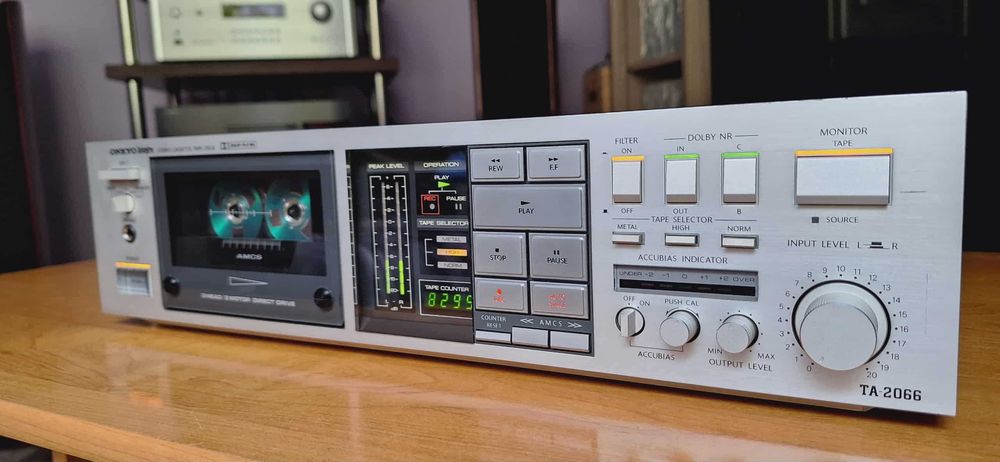

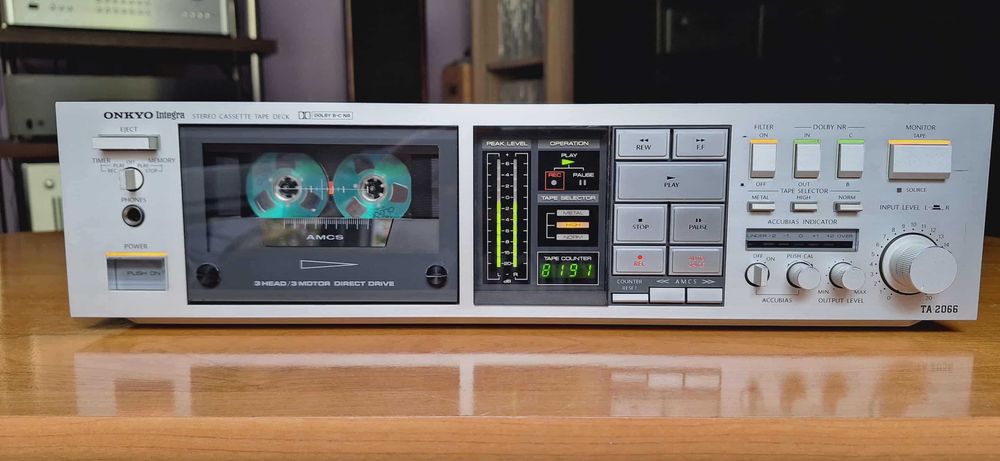

Deck Onkyo TA-2066

General

Manufacturer: Onkyo
Model: TA-2066 - Integra Series
Type: Cassette Tape Deck
Years of manufacture: 1983 - 1985
Made in: Japan
Color: Silver, Black
Remote control:
Power consumption: 40 W
Dimensions: 435 x 112 x 371 mm (WxHxD)
Weight: 6.7 kg
Original price approx.: 1'400 DM

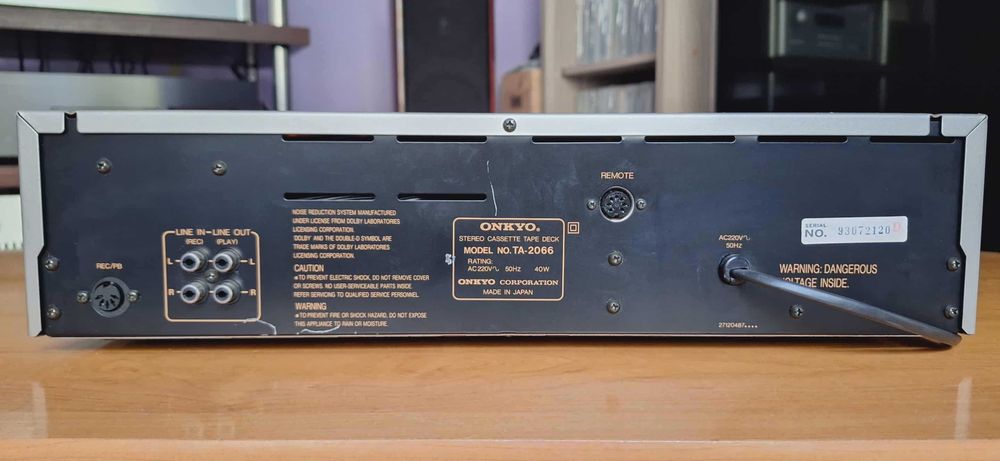

Connections

Number of inputs: 5
2x Line
DIN
2x mono microphone

Number of outputs: 4
2x Line
DIN
Headphone 6.35 mm jack

Technical Data

Audio heads: 1x recording (hard permalloy), 1x playback (hard permalloy), 1x erasing head (ferrite head)
Motors: 1x direct drive motor, 2x DC rotor
Synchronous fluctuation: 0.035% (effective, evaluated).
Belt types: Normal band, Chrome band, Pure iron band.
Frequency response:
20 - 17.000 Hz at normal band
20 - 19,000 Hz for chrome tape 20 - 21,000 Hz for pure iron band

Distortion ratio:
Signal-to-noise ratio:
60 dB (pure iron band, without Dolby).
With Dolby-B enhancement of 10 dB above 5 kHz and 5 dB at 1 kHz

With Dolby-C enhancement of 20 dB at 5 kHz
Auto Reverse: No
Title search: AMCS
Dolby: B/C
MPX Filter: Yes
Fader: No
Pitch control: no
CD synchro recording: no

Special Features

Rear band control
Semi-automatic Accu-Bias adjustment
Timer record & play
Autospace
Memory Stop
4-digit display
Headphone and Line output level controls
