- Stare Perfecta de Functionare,sunet f f bun,totul original la interior,fara reparatii -

General

Manufacturer: Onkyo

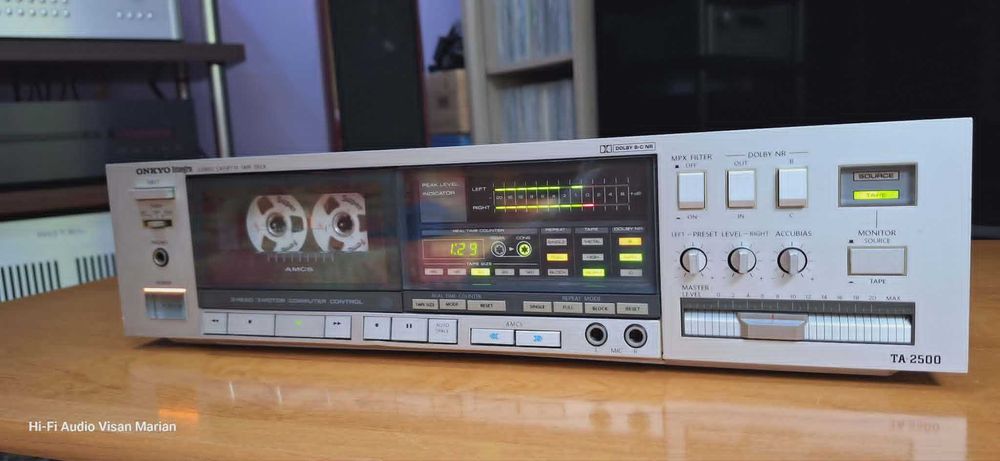

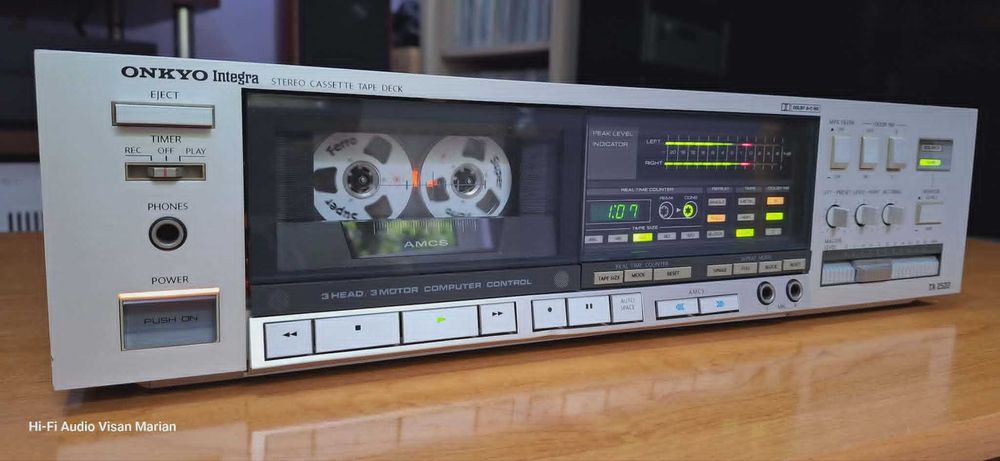

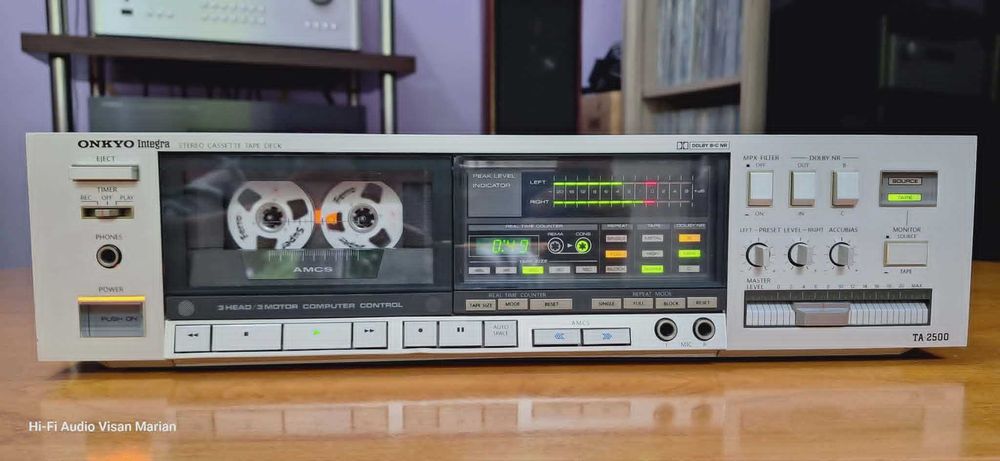

Model: TA-2500 - [Integra Series]
Type: Cassette Tape Deck
Years of manufacture: 1984 to 1986
Made in: Japan
Color: silver / black
Power consumption: 34 watts
Semiconductor: 91 triodes, 27 diodes, 18 ICs, 24 LEDs
Dimensions: 435 x 112 x 371 mm
Accessories: Remote control optional - RC 5T (120,- DM)
Weight: 6.5 Kg
Original price: approx. 1.100,- DM

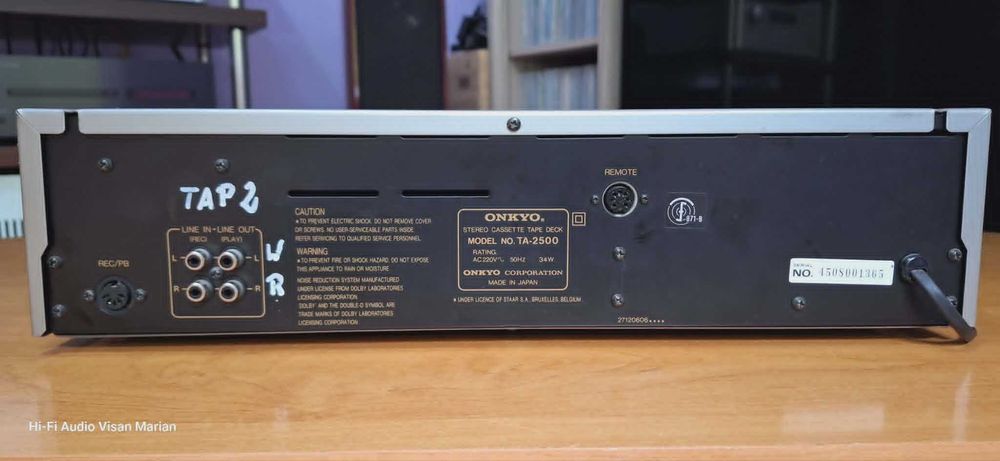

Connections

Number of inputs:
Microphone x 2 - Receive sensitivity: 0.3 mV/ 600 Ohm, Input impedance: 5.6 kOhm.
Line In x 2
DIN socket x 1

Number of outputs:
Line Out x 2
Headphones x 1 - Recommended termination impedance: 8 - 200 Ohm DIN jack x 1

Technical Data

Audio heads: 3 - Double Permalloy 1 x for combined recording and playback/ 1 x delete
Motors: 3 - DC Srevo 1 x / DC 2 x
Tape speed: 4.8 cm / s
Synchronous speed: 0.045 % * Tape types: Type I (standard)
Tape types: type I (standard), type II (high), type IV (metal).
Frequency response:
Normal: 20 - 17,000 Hz
Chrome: 20 - 18,000 Hz

Metal: 20 - 19,000 Hz
Distortion factor:
Signal-to-noise ratio: 60 dB
Auto Reverse: no
Title search: yes (A.M.C.S.)
Dolby: B, C
MPX filter: yes, switchable
Fader: yes
Monitor / Source: yes

Special Features

Rear band control
BIAS controller
Automatic tape type adjustment
Cassette compartment illuminated
AUTO SPACE empty position button (5 sec. mute)
Real-time tape counter with dual sensor
AMCS search system in both tape running directions
3 repeat functions: Single, Full, Block
Display of elapsed playing time (CONS) and remaining playing time (REMA)
Two-colour 12-segment LED level meter with "Peak Hold" function
