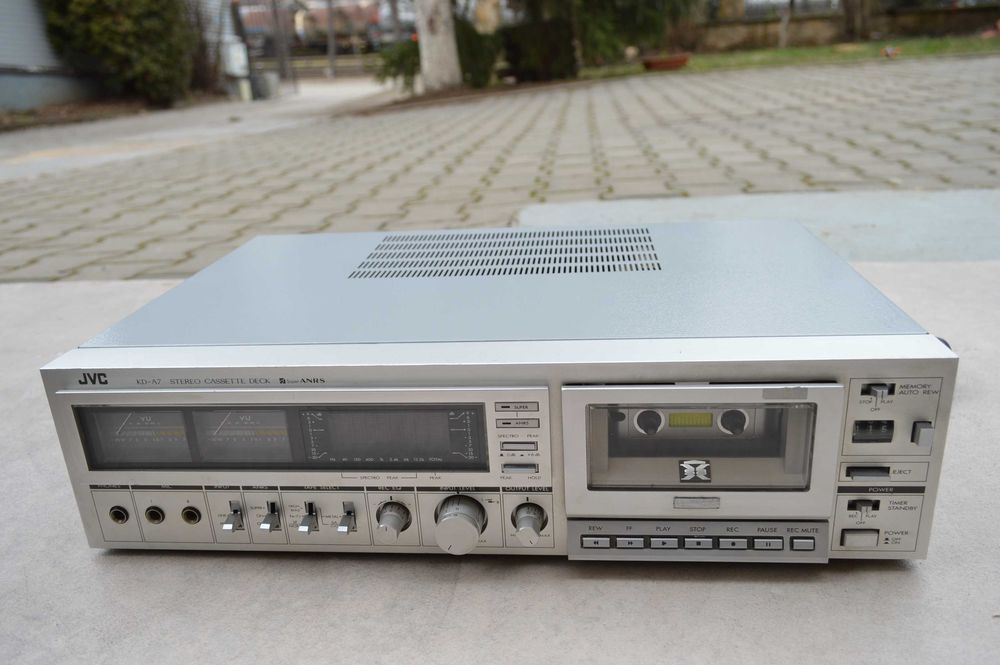

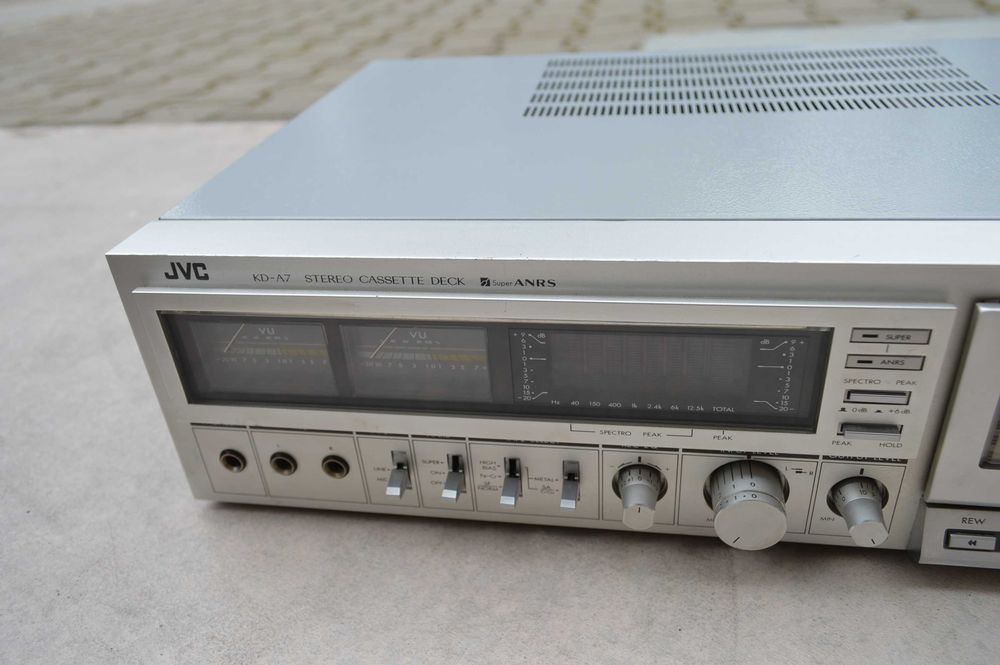

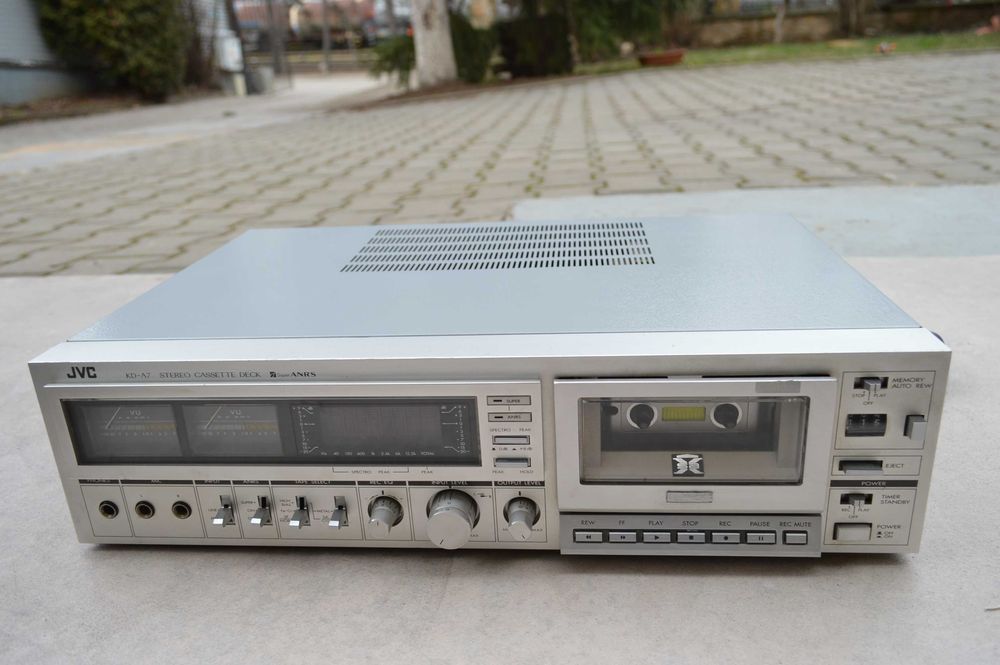

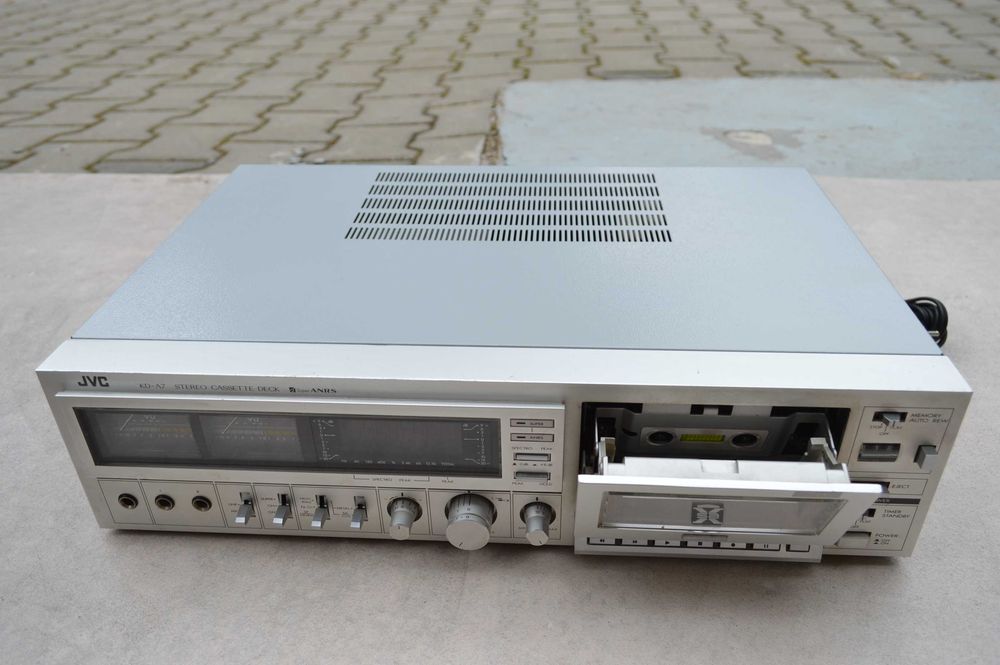

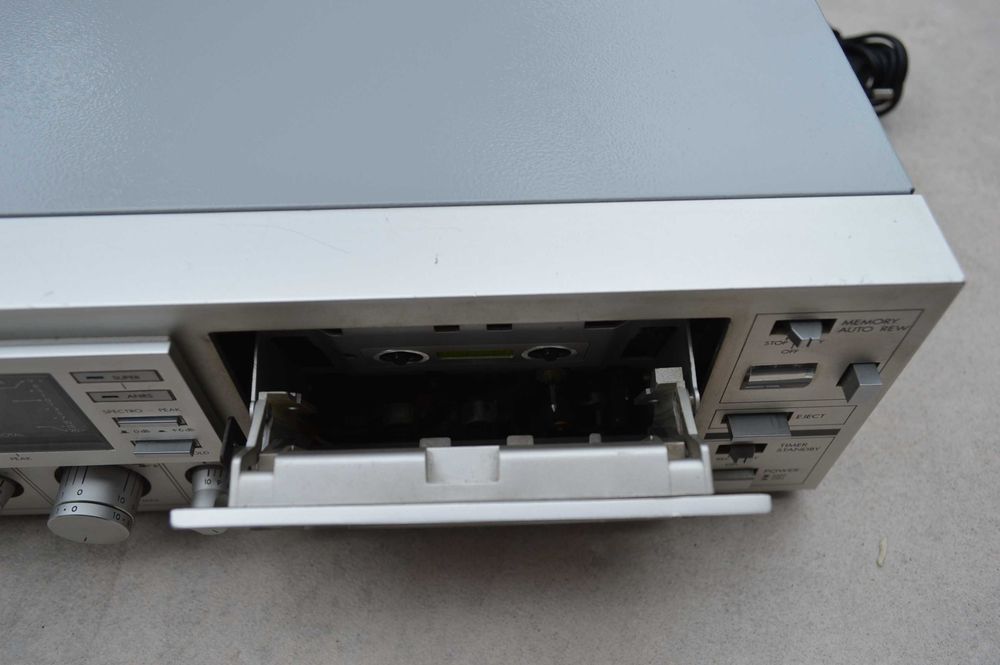

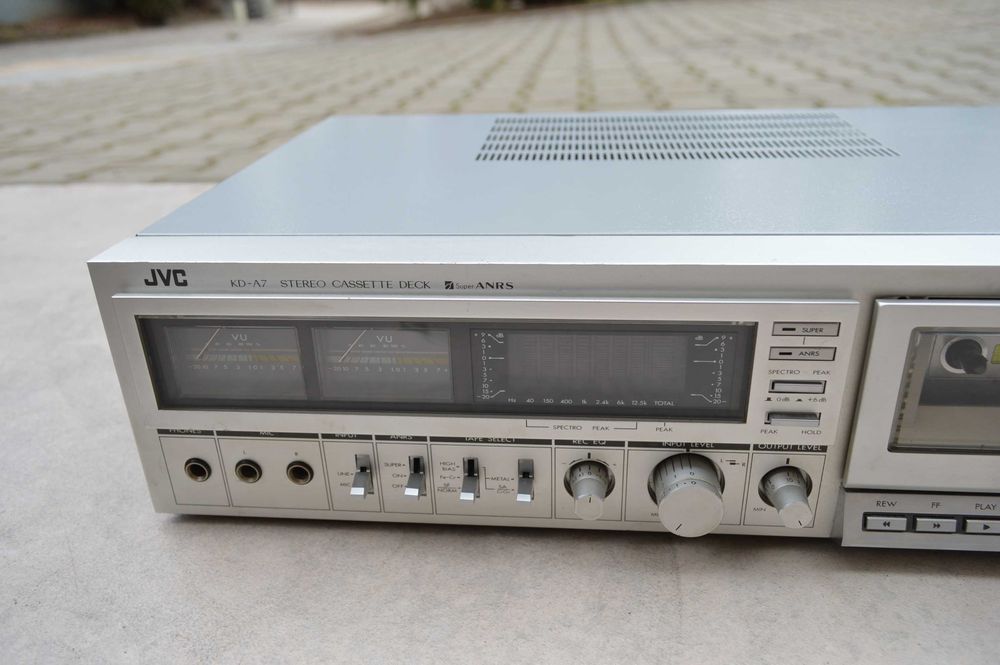

Deck JVC KD A 7: made in Japan, vu metre iluminate, spectrum, ANRS, tape select, output level, SA Head, counter, auto memorii, model foarte rar, poze reale.



General:

Manufacturer: JVC
Model: KD-A 7
Type: Stereo cassette deck
Years of manufacture: 1979 - 1982
Made in: Japan
Color: Silver
Remote control: R-30 E optional)
Power consumption: 40 watts
Dimensions: 450 x 120 x 311 mm (WxHxD)
Weight: 8.3 kg
Original price approx.: 1'150 DM
New price remote control R-30 E: 50 DM

Connections:

Input sockets:
Microphone jack x 2
Max sensitivity / matching impedance: 0.2 mV (-72 dB) / 600 Ω - 10 k Ω
Line In Jack x 2
Minute Input Level / Impedance: 78 mV (-20 dB) / 100 k Ω
Output jacks:
Line-out jack x 2
Output level / impedance: 0 to 300 mV / 3.7 k Ω
Output level / impedance: 0 - 0.5 mW / 8 Ω - 1 k Ω

Technical data:

Audio heads:
1x 2-SA (Sen alloy) heads X-cut head for recording and playback.
1x 2-Gap head for erasing
Motors: 1x FG type DC servo motor for capstan, 1x DC motor for reel.
Assembly:
Semiconductors: 91 transistors;
4-FETs; 53 ICs; 23 LEDs;
97 diodes (11 Zener diodes); 1 Hall element
Belt speed: 4.8 cm/s
Synchronous fluctuations: 0.035 % (WRMS); 0.12 % (DIN 45500)
Tape types: IV, II, I
Frequency response: 0 dB=
Metal band: 40 - 12,500 Hz (± 1 dB)
SA / Chrome band: 40 - 12,500 Hz (± 1 dB)
SF / Normal band: 40 - 12,500 Hz (± 1 dB)
At -20 VU recording:
Metal band: 15 - 18,000 Hz [25 - 17,000 Hz (± 3 dB)]
SA / Chrome band: 15 - 18,000 Hz [25 - 17,000 (± 3 dB)]
SF / Normal band: 15 - 17,000 Hz [25 - 16,000 Hz (± 3 dB)]
THD: K3: 0.4 %; THD: 1.0 % (metal band, 1 kHz)
Signal-to-noise ratio:
ANRS - OFF: 60 dB (weighted, 1 kHz, 3% THD, metal band).
ANRS- ON: Improved by 5 dB at 1 kHz and 10 dB at 5 kHz
Crosstalk attenuation: Channel separation 35 dB (1 kHz)
Bias frequency: 85 kHz
Rewind time (C-60): 85 s
Auto reverse: no
Title search:
Dolby: ANRS- ON: Improved by 5 dB at 1 kHz and 10 dB at 5 kHz.
