FRAME Aluminium Superlite, Gravity Casting Technology,
Efficient Comfort Geometry, Tapered Headtube,
Full Integrated Battery, Integrated Carrier 2.0
SIZE Men: M (54cm),
Trapeze
FORK RockShox Recon Gold RL Air, Tapered,
15x110mm, 100mm, Lockout
HEADSET M,L: ACROS AZF-1038, Top Zero-Stack 1 1/8"
(ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS
56mm) // EE: ACROS AZX-1040, BlockLock 135°,
Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero Stack 1 1/2" (ZS 56mm)
STEM CUBE Comfort Stem Pro, 31.8mm, Adjustable
HANDLEBAR CUBE Comfort Trail Bar, 700mm
GRIPS Natural Fit Comfort

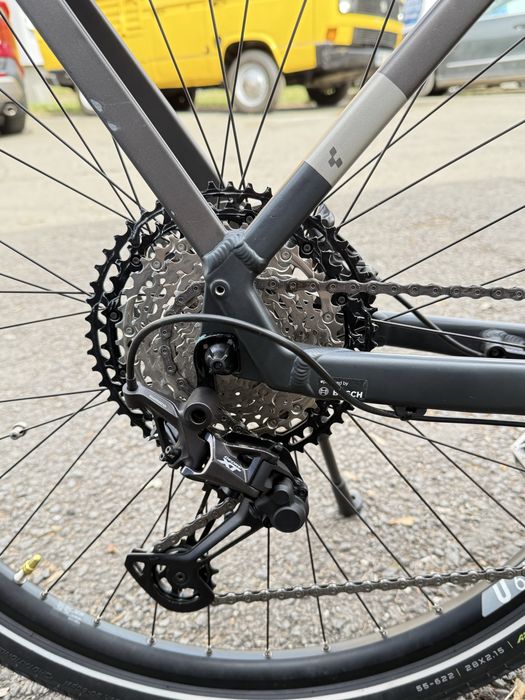

REAR DERAILLEUR Shimano XT RD-M8100-SGS, ShadowPlus, 12-
Speed
SHIFTERS Shimano Deore SL-M6100-I, Direct Attach
BRAKE SYSTEM Shimano XT BR-M8120, Hydr. Disc Brake
(180/180)
CRANKSET ACID E-Crank, 38T (175mm // EE: 170mm)
CHAIN Shimano XT CN-M8100
COLOUR teak´n´iridium
CASSETTE Shimano XT CS-M8100, 10-51T
FRONT HUB Shimano HB-MT400-B, 15mm, Boost, Centerlock
REAR HUB Shimano FH-MT500, QR, Centerlock
RIMS CUBE EX23, 36H, Disc, Tubeless Ready
TYRES Schwalbe Marathon E-Plus, 55-622
PEDALS ACID PP Trekking
SADDLE Natural Fit Sequence+ Comfort
SEAT POST BySchulz G.2 Parallelogram Suspension
Seatpost, 30.9mm
SEATCLAMP CUBE Varioclose, 34.9mm
FRONT LIGHT ACID Front Light PRO-E 110, 5-16V, DC
REAR LIGHT ACID Mudguard Rear Light PRO-E, 12V, DC
KICKSTAND CUBEstand Pro, Adjustable
MUDGUARDS ACID 65
BELL Knog Oi
CARRIER CUBE Integrated Carrier 2.0, CUBE Adapter
Compatible, SnapIt Compatible
BATTERY Bosch PowerTube 625
DRIVE UNIT Bosch Drive Unit Performance CX Generation 4
(85Nm) Cruise (250Watt)

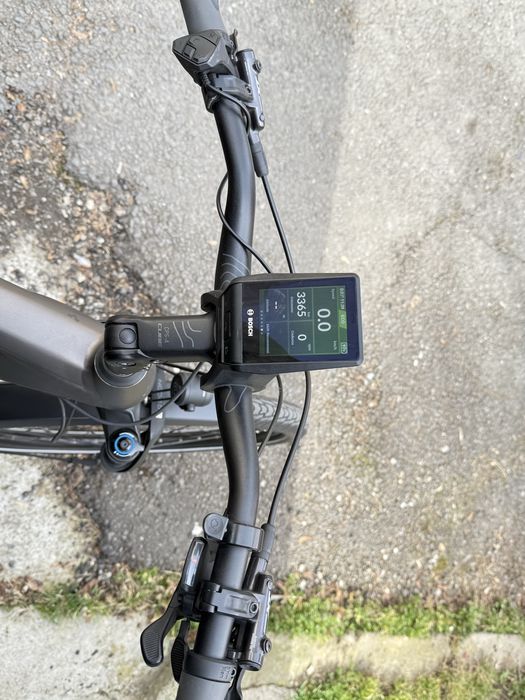

DISPLAY Bosch Nyon
CHARGER Bosch 4A
STRUCTURAL WEIGHT 150 kg
WEIGHT 26,6 kg
ART. NO 431352
