Convertor pentru alimentarea laptopurilor sau telefoanelor prin tehnologiile QC (quick charge) și PD (power delivery).

Tensiunea de intrare trebuie să fie între 10 - 28V prin jack DC5525 sau USB-C PD2.0/3.0 cu un alimentator de putere cât mai mare (puterea de intrare trebuie să fie cu 5% mai mare decât puterea dorită la ieșire. La ieșire se folosește un cablul cu USB-C la ambele capete certificat pentru puterea dorită.

Practic se poate folosi orice încărcător de laptop vechi (la care-i schimbați mufa de intrare cu un jack DC5525) și obțineți la ieșire PD pentru laptop și telefon.

Produsul este nou (rămas de la un proiect realizat altfel).
Trimit prin curier

--
THE ITEM just a converter, not mobile power supply

Usage: notebook DC power supply, PD power supply, display power supply and other common DC high power supply. PD2.0 protocol charging bank charger. Switch to full protocol dual-port 140W fast charge

Super heat dissipation, aluminum alloy housing!

size: 50*26*17mm, ultra high power density 140W!

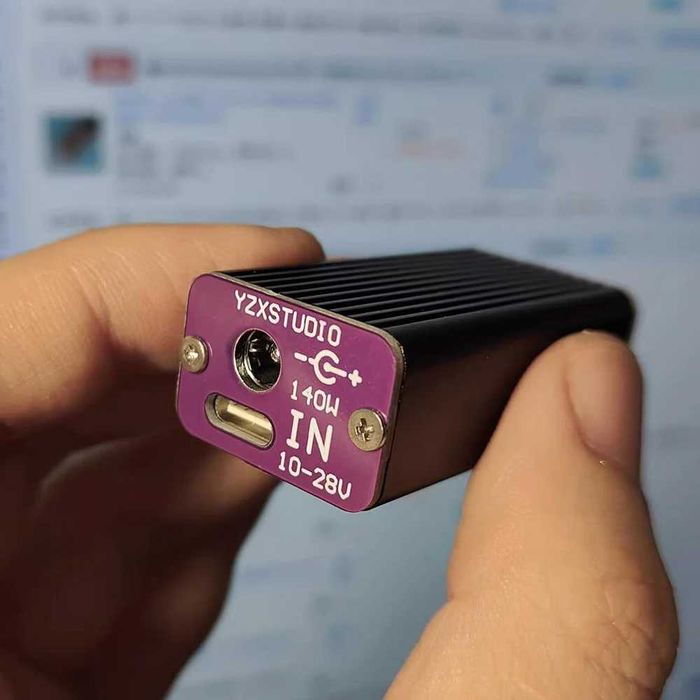

Input voltage 10-28V. Support DC5525 and PD2.0/3.0 input.PD automatically trigger the maximum voltage within 20V

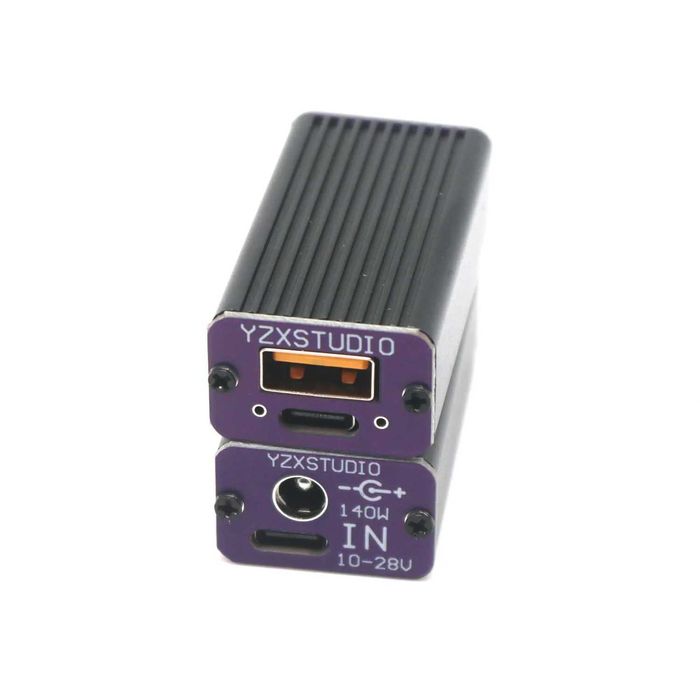

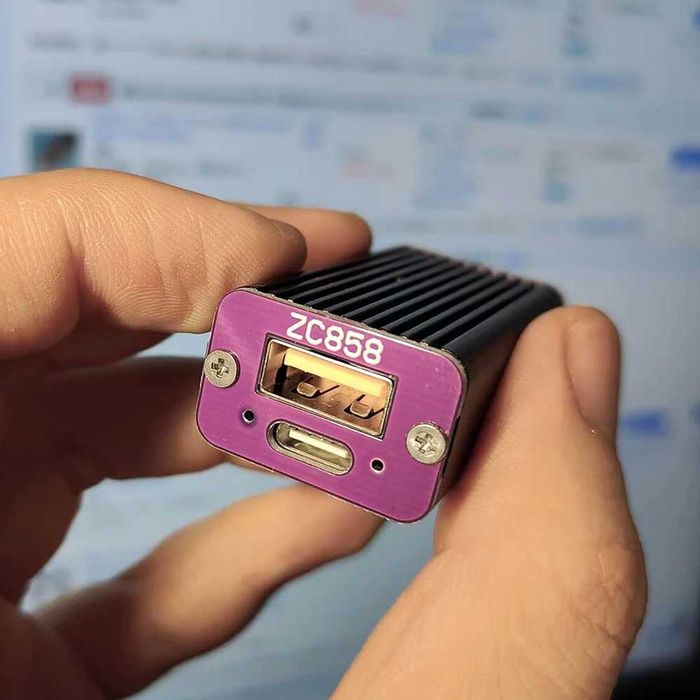

Output USBA port +C port. The output voltage is lower than the input. For example, the output 20V5A100W should be at least 20V5A input

Authorized SuperV00C65W. Measured support for most green factory red factory 50w or above fast charge (must be the original A to C fast charge cable)

USBC port and above protocols also support PD2.0.PD3.0, PPS, QC4+, Lianxiang 140W

PD output is protected.

Double-port output only any 1 mouth is fast charging, 2 mouths together only 5V slow charging, it is recommended to use only 1 of them

Board count

German Wurth inductor, 8*8 large volume large capacity solid state capacitor! Never shrink to 6*6 small solid!

60V imported power tube! 5*6mm large volume full import power tube! Never shrink into 3*3 small power tube!

Motherboard double-sided assembly to make full use of every inch of space! Lots of hand welds! Never shrink into one-sided assembly!

Standard PD decoy! Support PD input! Never double standard with PD garbage material!

KRCONN certified C port, no exposed contacts on the side, greatly reducing the risk of short circuit burning!

Type-C port all built-in! Higher intensity! Never get stuck in the panel to reduce the volume!

Notebook original advanced DC port, the store mobile power supply of the same model, this interface so far no natural damage repair case!

0PP0 Original high quality orange high current USB port! Never shrink into a copycat dime!

Why did you use this converter? My xx device still cannot reach a power of 140w 100w, etc.:

1. The device requests the required power as needed Not all situations require running at full power To run the laptop at full power, you can try charging it and running the baking software to make the CPU run GPU should be fully loaded as much as possible;

2. The increase in internal resistance after the serial detection equipment leads to a large pressure drop The device cannot obtain higher power. To test the power, try to measure the input power or insert 220V power Avoid large voltage drop of output string meters;

3. To output 20V gears such as 140w, 100w, etc At least a voltage of 20V or above needs to be input The module can only reduce voltage, so if the input voltage is 19V, the output voltage is only 15V;

4. The input power must be greater than the output power by more than 5% For example, an actual output of 100w requires an input of 105w or more, otherwise it may cause frequent rest

4. Puterea de intrare trebuie să fie mai mare decât puterea de ieșire cu mai mult de 5%. De exemplu, o ieșire reală de 100w necesită o intrare de 105w sau mai mult, altfel poate cauza întreruperi frecvente.
