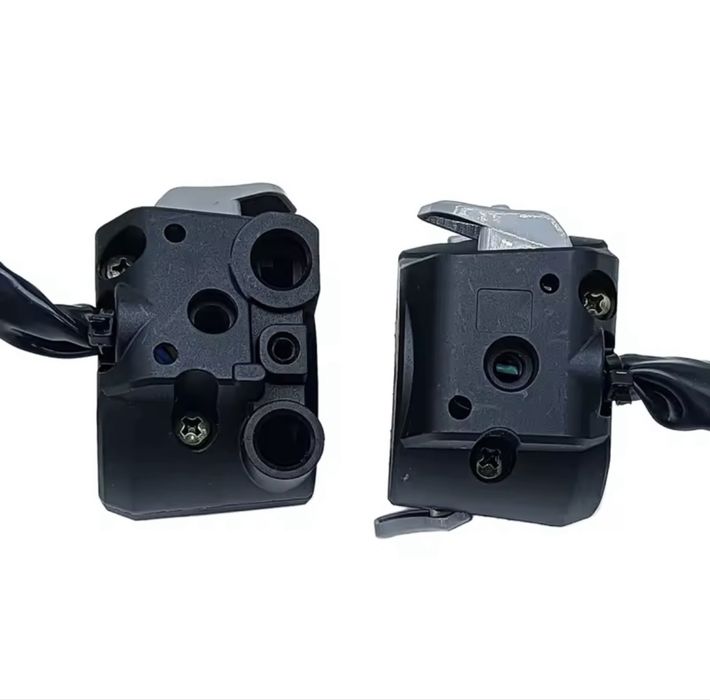

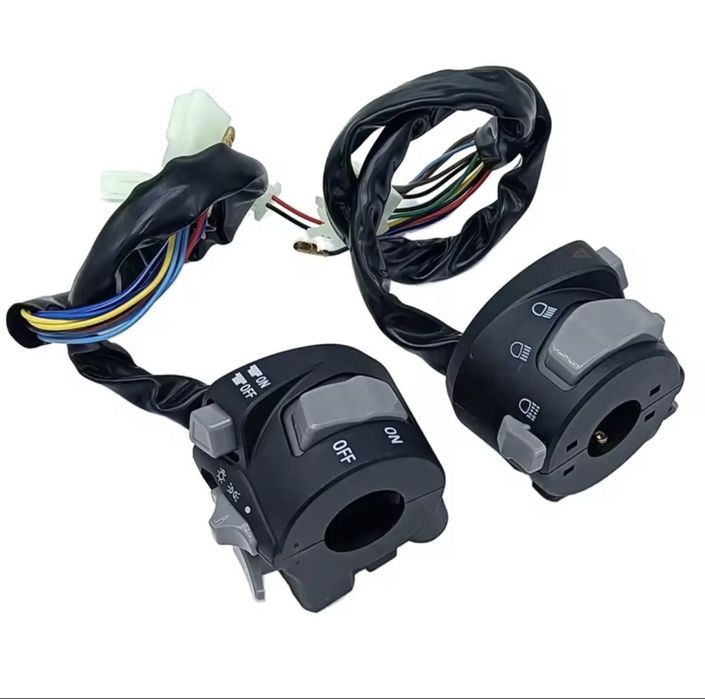

Comutator ghidon multifuncțional.

Este universal pentru motociclete, scutere, ATV, biciclete electrice... cu diametrul ghidonului de 7/8" (22 mm).
(Aveti grija la conectivitati, se pot face reconectari daca va pricepeti , dar ele vin cu varianta din poza).

Nu au fost folosite, le-am achizitionat de noi , nu mi-au picat pe conectivitati la motocicleta si nu ma pricep sa le conectez asa ca am decis sa le vand.

Caracteristici speciale:
-multifuncțional
-LED de culoare Alba
-Waterproof : Ploaie si Stropiri
Greutate articol: 0,41 kg

Pachetul include:

1 x Set comutatoare ghidon (1 buc. stânga + 1 buc. dreapta)

In continuare v-oi introduce fisa tehnica a articolului:

Instructions for Motorcycle Handlebar Combination Switches
1. Product Overview
A set of left & right handlebar switches with cool White LED
backlight, integrating core controls (lights, horn, turn signals, starter,
etc.) for motorcycles. Fits 22mm(7/8") handlebars, easy operation
and high visibility at night.
2. Specs

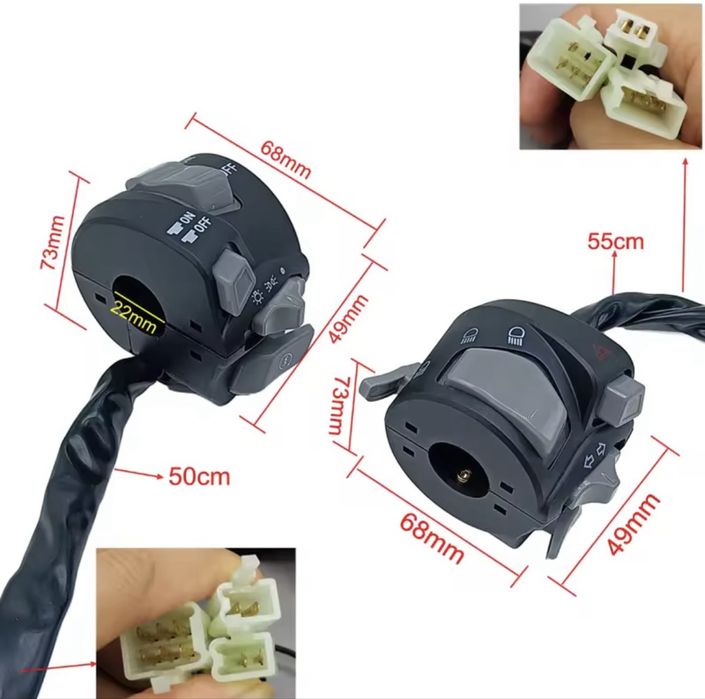

-Fit: 22mm (7/8") handlebars
-Voltage: DC 12V
-Backlight: White LED (lights up when powered)
-Waterproof: Splash/rain proof (no long soaking)

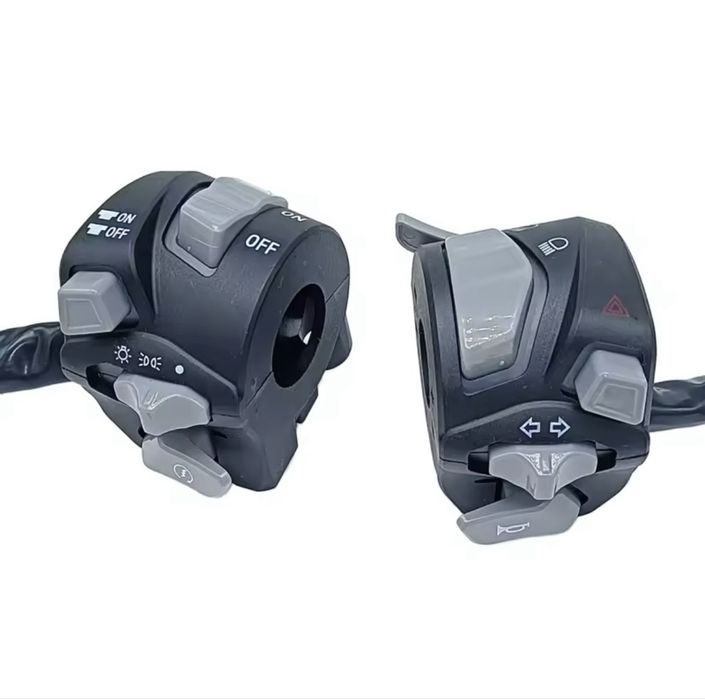

3. Function & Operation
Left Switch
-Top slider (ON/OFF): Main power / headlight master control.
-Light keys: Sun = parking light; double light = headlight/high beam;
dot = extra function (pass/hazard).
-Bottom big key: Mode adjustment.
-Bottom electric key: Press to start engine (neutral/clutch in).
Right Switch
-Top slider: Headlight/pass light control.
-Triangle key: Hazard lights (double flash).
-Turn signals : Left/right arrows for corresponding blinkers.
-Middle big key: Function adjustment.
-Bottom horn key: Press to sound horn.
All keys have blue backlight for night use.
4. Installation (Pro help recommended)
1. Mount both switches on 22mm handlebars, tighten screws.
2. Disconnect battery negative, plug into vehicle wiring, insulate all
terminals.
3. Reconnect battery, test all functions and backlight.
5. Warning
-Safety: Disconnect power before wiring to avoid short circuits.
-Voltage: For 12V DC only, no 24V/220V AC.
-Waterproof: Keep the dust cover closed, no long-term water
immersion.
-Troubleshooting: If functions/backlight fail, check wiring or replace
the switch.
6. Maintenance
-Check mount/wiring regularly, retighten if loose.
-Clean with dry cloth, avoid corrosive cleaners.
-Replace switch if keys stick or backlight dims.
