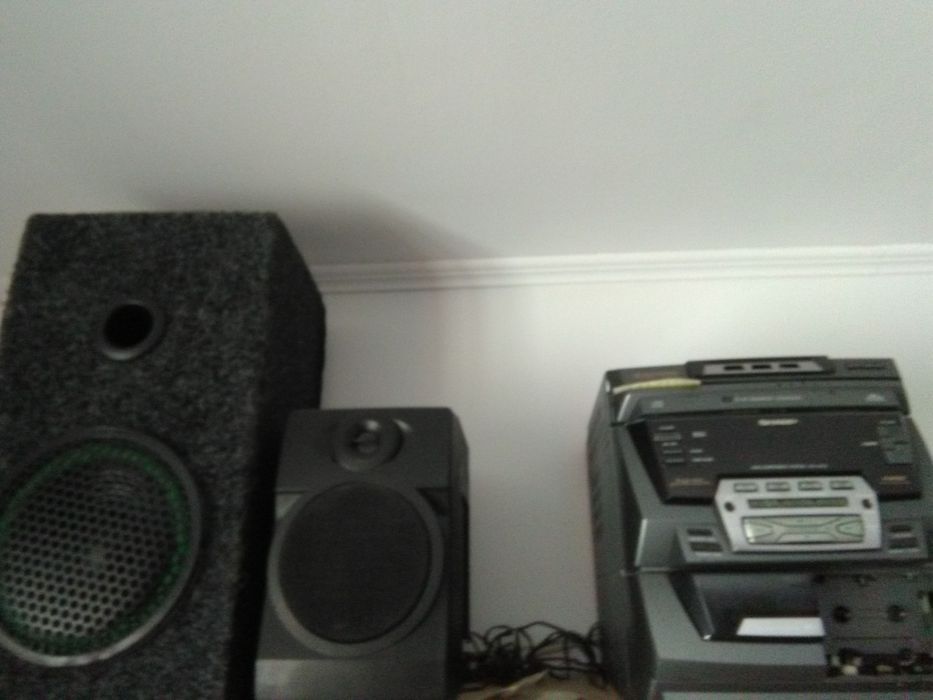

Combina SHARP CD-C470H Dolby Pro Logic 4 boxe insumand 150W reali, sunet impecabil, multiple egalizoare si filtre audio digitale, casetofon functional digital cu toate comenzile pe telecomanda. Este grea, nu o pot expedia, trebuie sa mergeti dupa ea la Straoane, Vrancea.

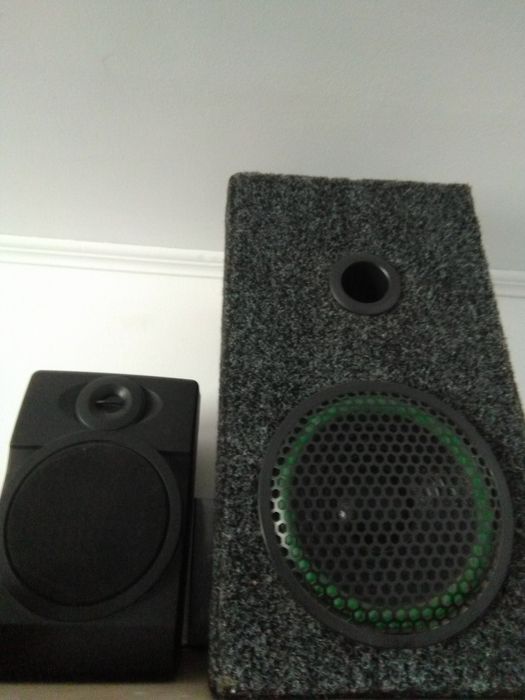

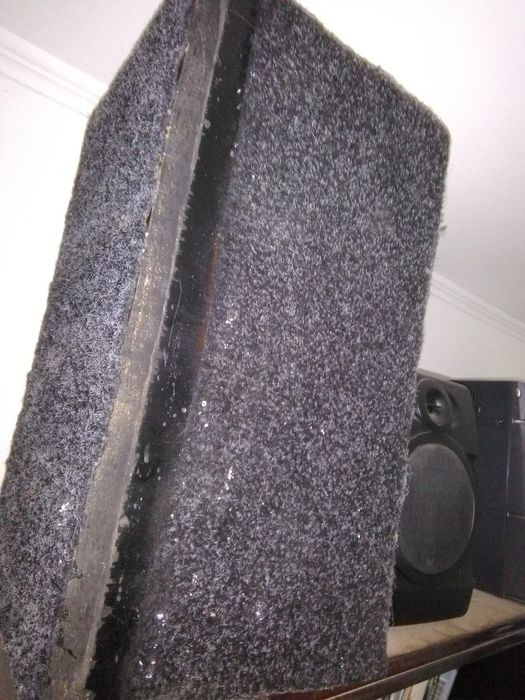

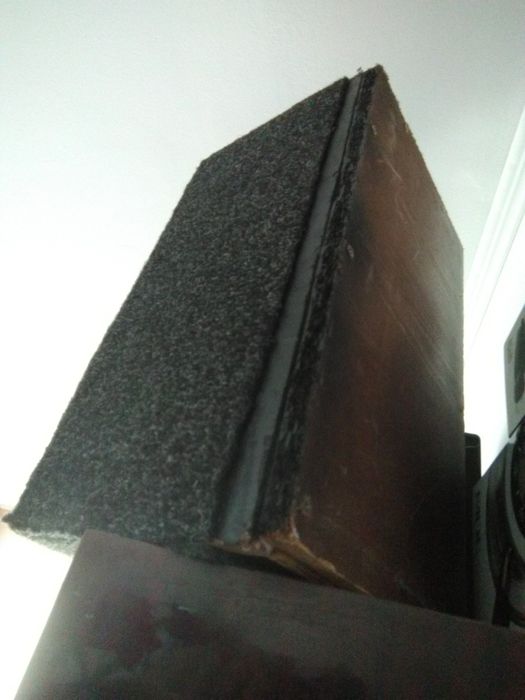

Boxele mici au cam 25x17cm iar cele mari 45x25cm si impedanta 8ohmi. Difuzoarele sunt poloneze, 2x50w.

– 3 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

    Cassette deck section

Type:

Compact cassette tape

Frequency response:

50 - 14,000 Hz (Normal tape)
50 - 15,000 Hz (CrO

2

tape)

Motor:

DC motor with electronic governor x 1

Signal/noise ratio:

55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)

Bias and erasure
system:

AC

Tape speed:

4.76 cm/sec. (1-7/8 ips)

Wow and flutter:

0.2 % (DIN 45 511, playback)

(CD-C470H/C480H)
Wow and flutter:

0.15 % (WRMS)

(CD-C470E)
Heads:

TAPE-1: Playback x 1
TAPE-2: Record/playback x 1

     Erase x 1

Type:

3-way type [130 mm (5-1/8") woofer,
50 mm (2") tweeter and super tweeter]

Maximum input power: 50 W
Impedance:

8 ohms

Dimensions:

Width; 200 mm (7-7/8")
Height; 300 mm (11-13/16")
Depth; 252 mm (9-15/16")

Weight:

2.7 kg (6.0 lbs.)/each

Type:

100 mm (4") full-range speaker

Maximum input power: 20 W
Impedance:

6 ohms

Dimensions:

Width; 262 mm (10-5/16")
Height; 145 mm (5-3/4")
Depth; 201 mm (7-15/16")

Weight:

1.4 kg (3.1 lbs.)/each

Type:

100 mm (4") full-range speaker

Maximum input power: 10 W
Impedance:

12 ohms

Dimensions:

Width; 170 mm (6-3/4")
Height; 122 mm (4-13/16")
Depth; 176 mm (6-15/16")

Weight:

0.7 kg (1.5 lbs.)/each

    General

Power source:

AC 230 V, 50 Hz

Power consumption:

160 W

Dimensions:

Width; 270 mm (10-5/8")
Height; 300 mm (11-13/16")
Depth; 368 mm (14-1/2")

Weight:

6.8 kg (15.0 lbs.)

    Amplifier section

Output power:

PMPO; 300 W (total)

(CD-C470H/C480H)

(Front)
MPO; 110 W (55 W + 55 W) (DIN 45 324)
RMS; 50 W (25 W + 25 W) (DIN 45 324)

 42 W (21 W + 21 W) (DIN 45 500)

(Center)
MPO; 20 W (DIN 45 324)
RMS; 10 W (DIN 45 324)

 7 W (DIN 45 500)

(Surround)
MPO; 20 W (total) (DIN 45 324)
RMS; 10 W (total) (DIN 45 324)

 7 W (total) (DIN 45 500)

(CD-C470E)

(Front)
MPO; 110 W (50 W + 50 W) (10 % T.H.D)
RMS; 50 W (25 W + 25 W) (10 % T.H.D)

 42 W (21 W + 21 W) (0.9 % T.H.D)

(Center)
MPO; 20 W (10 % T.H.D)
RMS; 10 W (10 % T.H.D)

 7 W (0.9 % T.H.D)

(Surround)
MPO; 20 W (total) (10 % T.H.D)
RMS; 10 W (total) (10 % T.H.D)

 7 W (total) (0.9 % T.H.D)

Input terminals:

Video/Auxiliary (audio signal) x 2;
500 mV/47 kohms

Output terminals:

Front speakers; 8 ohms
Center speakers; 6 ohms
Surround Speakers; 12 ohms
CD digital output (optical)
Headphones; 16-50 ohms
(recommended; 32 ohms)

    Compact disc player section

Type:

3-disc multi-play compact disc player

Signal readout:

Non-contact, 3-beam semi-conductor
laser pickup

D/A Converter:

1-bit D/A converter

Frequency response:

20 - 20,000 Hz

Dynamic range:

90 dB (1 kHz)

    Tuner section

Frequency range:

FM; 87.5 - 108 MHz
MW; 522 - 1,620 kHz
LW; 153 - 281 kHz
