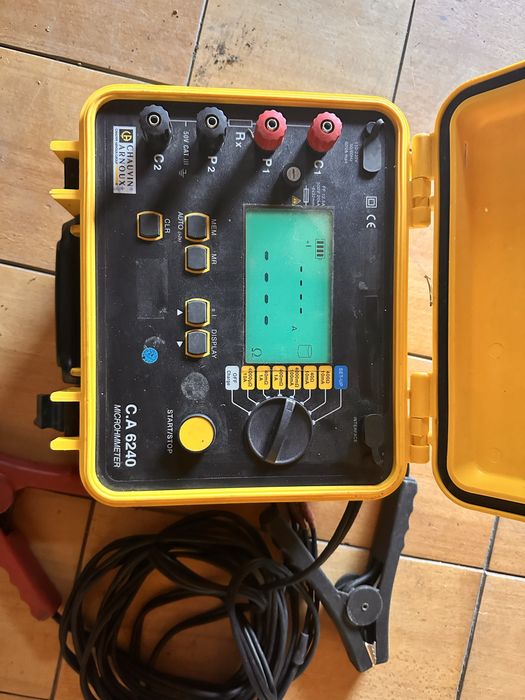

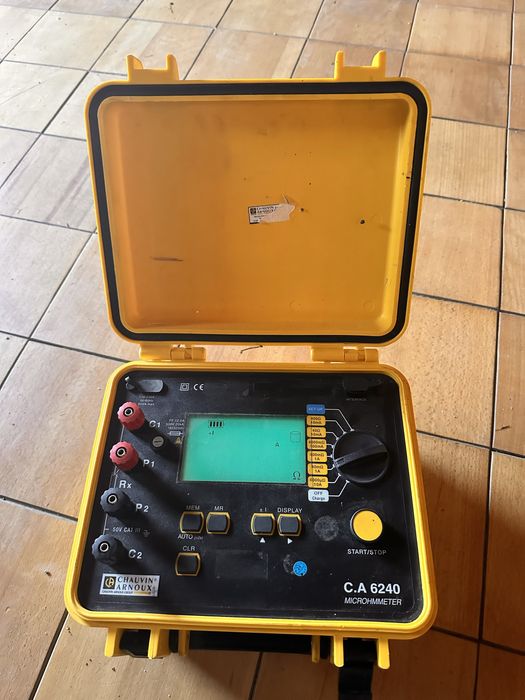

C.A. 6240 micro-ohmmeter provides reliable, accurate measurements due to its test current of up to 10A. This accuracy is ensured through use of the 4-wire method which eliminates the effects of the leads' resistances and the contact resistances and the possibility of reversing the polarity of the measurement current, thus eliminating the effects of possible interference voltages.
Measurement ranges from 400µohm to 400 ohm
Max. resolution 1µohm
Automatic power off
Power supply: NiMH rechargeable battery
Storage: 100 measurements
Communication via USB optical link
Data export software
IP53 protection
Electrical safety: IEC 61010-1 CAT III 50 V
Dimension is 273 x 247 x 280mm
