Fără schimburi sau diferențe
Ofer probă/auditie

Mecanism Philips CD Pro !

EMC 1 UP
The new EMC 1 UP, launched in 2001, improves on this already excellent design by introducing 24-bit/192kHz upsampling technology. Vital to the EMC 1 UP’s performance is a unique cancellation system which effectively cancels acoustic / mechanical vibrations, enabling exceptionally accurate and robust laser pick-up from the spinning disc
The EMC 1UP features a unique cancellation system which cancels acoustic / mechanical vibrations, preventing the laser pick-up from receiving unwanted and sonically degrading signals. The EMC 1UP features our latest, fully balanced symmetrical state-of-the-art circuit design powered by a FTT (Floating Transformer Technology) power supply.
DESIGN CONCEPT AND CONSTRUCTION

The basic design philosophy of the EMC 1UP CD transport is inspired by crucial knowledge ported from the analog turntable. Principally, there is no difference between a record player and a CD player. Both playback systems consist of: a motor, a pick-up and a tone arm. Phenomena such as tone arm resonance found in analog turntables - are just as problematic in typical CD players.
To reduce or remove these phenomena plus other unwanted resonance, Electrocompaniet has developed a proprietary mechanical filter. The mechanical filter has been frequency adjusted by numerous listening tests by our listening panel. The mechanical filter removes internal and external vibration components from entering the laser pick-up assembly, resulting in a superior reproduction with tighter bass, bigger sound stage, precision, high resolution and amazing details.
A NEW CONCEPT BRINGS THE CD MEDIA TO ITS UPMOST.

24 Bit upsampler 192KHz DAC improves the headroom by reducing the noise floor approximately 10dB(3x). All analogue circuits are fully balanced and symmetrical, similar to the design of our amplifiers. Four separate power supplies using Floating Transformer Technology (FTT) are feeding the digital unit, the display, the drive mechanism and the analogue unit.

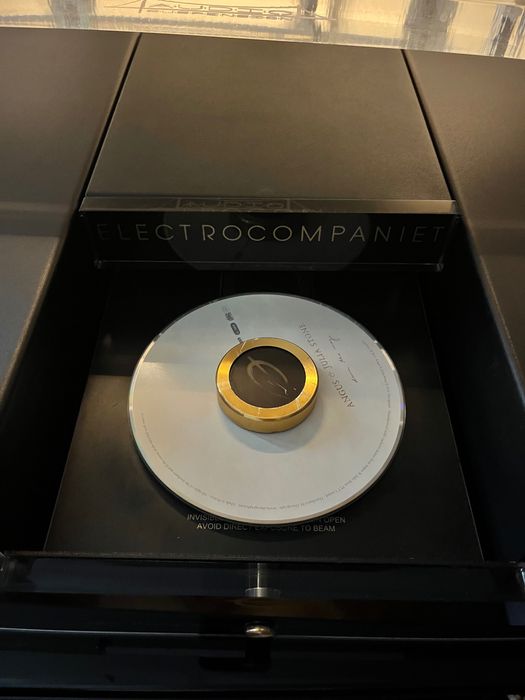

"Enhance the performance of the EMC 1 UP with the Spider Clamp. The spider clamp is developed by Electrocompaniet to make the EMC 1 UP perform even better. In addition to holding the CD down on the spindle the spider also centres the CD on the spindle, this makes the reading of the CD better. The spider is available in three colours: black, blue and silver."

TECHNICAL SPECS:

Line section
Single ended gain 1.6X (4dB)
Balanced gain 3.2X (10dB)
THD (1V out, 1KHz) 0,002%
Maximum output (Balanced) > 14V RMS
Channel separation
(1V out, 1KHz) > 90 dB
Equivalent input noise 4µV

Digital section

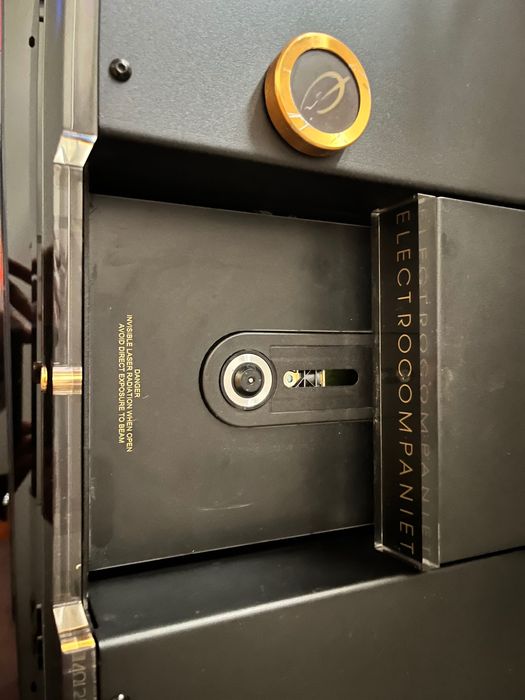

Latest version of Phillips CD PRO Top loading drive unit
24 Bit upsampler 192KHz DAC

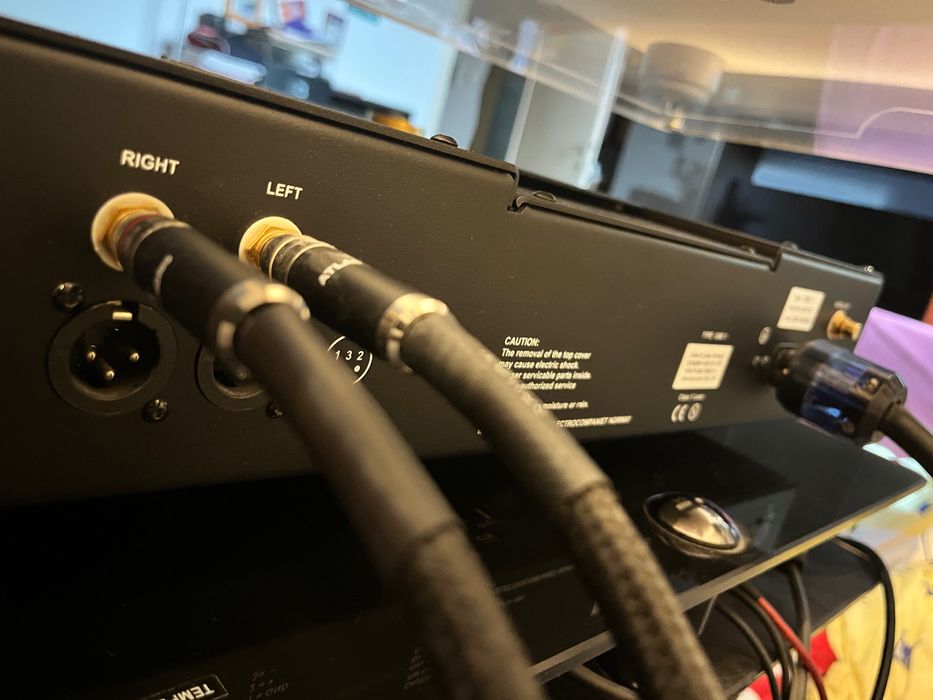

Digital out RCA/XLR

Other
True balanced system
Mechanical filter which cancels acoustic/mechanical vibrations preventing the laser pick-up from receiving unwanted signals
FTT Power supply

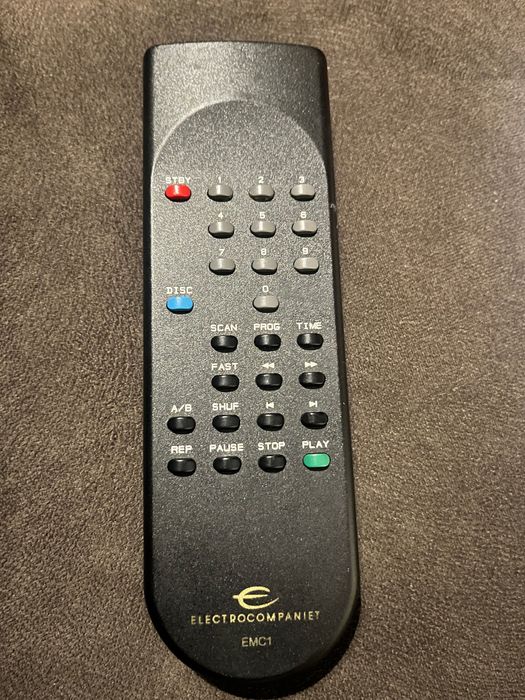

Fully remote (no volume control)

Power consumption
(no load or signal) 23 W

Dimensions
Width 483 mm / 19 inches
Depth 440 mm / 17.3 inches
Height 115mm / 4.5 inches
Weight 20Kg / 44 lbs.
