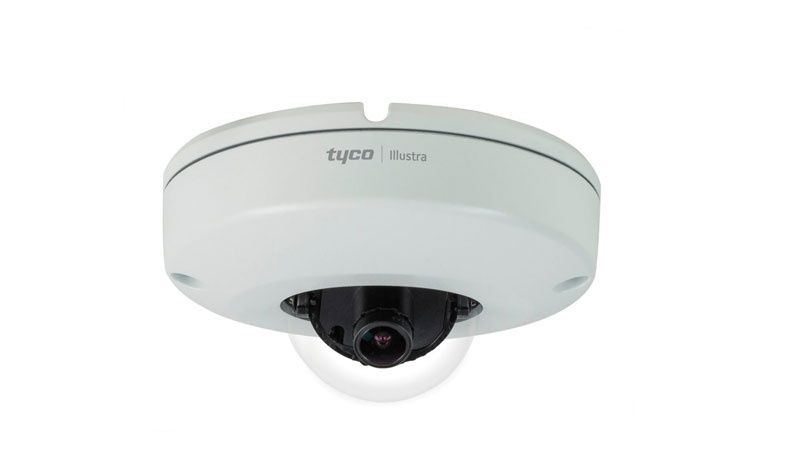

Camera supraveghere American Dynamics Exacq Illustra Flex 3 MP Mini-Dome

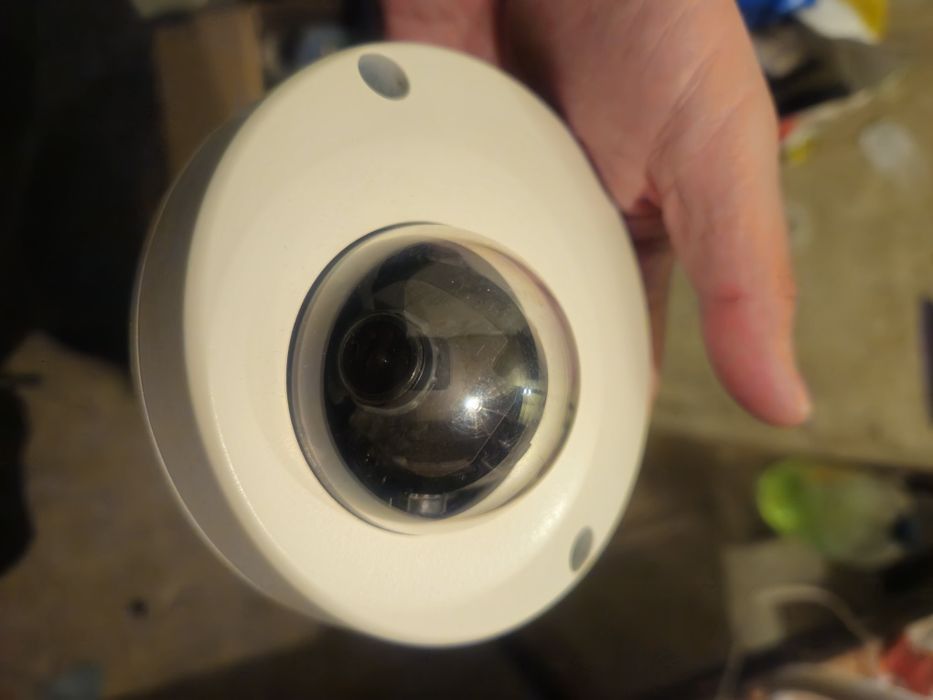

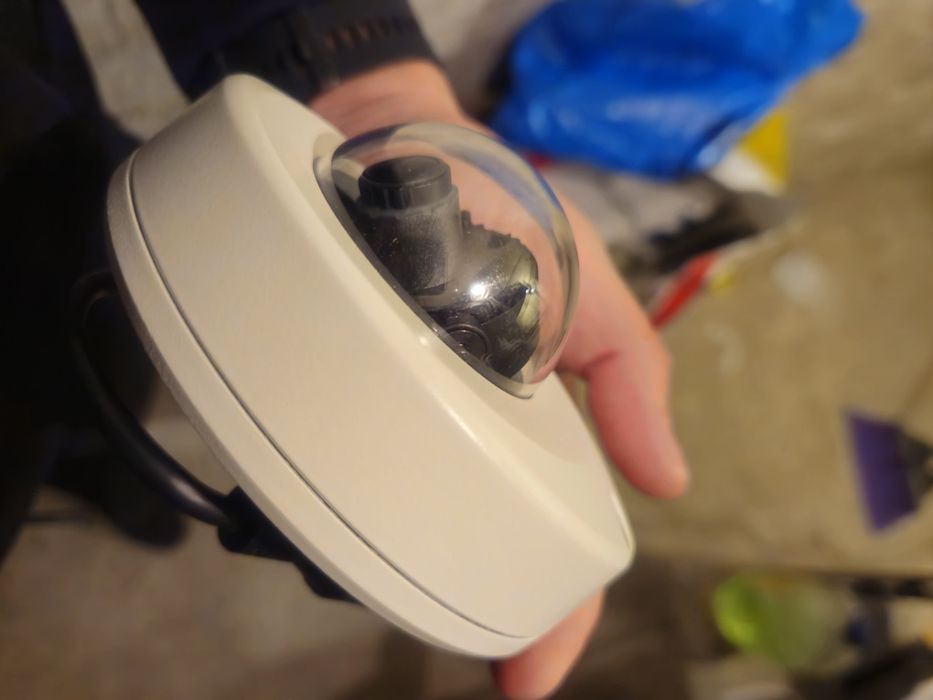

Este in perfecta stare de utilizare

Features That Make a Difference:
• 3MP resolution provides true HD quality
images
• VideoEdge TrickleStor technology for
edge-based failover redundancy
• Day/Night functionality allows quality video
recording in low light conditions
• True Wide Dynamic Range to view areas
with multiple wide ranging light levels
• Illustra® IntelliZip offers powerful video
compression technology for bandwidth
management
• Motion detection instantly alerts operators
to intruders
• IP67-rated enclosure protects against dust
and water damage
• IK10 vandal-resistant rating
• ONVIF compliant
• Included in the Cyber Protection Program

Specifications
Operational
Video Compression H.264 / H.265 / IntelliZip / MJPEG
Max Frame Rate 30ips 3MP, 60ips 1080p
ONVIF Compliant Profile S
Resolution 2048x1536) QXGA 4:3
(1920x1080) 1080p 16:9
(1664x936) 16:9
(1280x720) 720p 16:9
(1024x576) PAL+ 16:9
(640x360) nHD16:9
(480x360) 480 4:3
(384x288) 4:3
Imager 1/2.8" CMOS
Day/Night SDN
TrickleStor Yes
Motion Detection 3 zones
Blur Detection Yes
Privacy Zones 9 zones
Video Streams Triple
Minimum Illumination 0.01 Lux
True Wide Dynamic Range 120 dB
Field of View (H/V) 102°/77°
Lens Type Fixed
Focal Length 2.8mm
Supported Languages Arabic, Czech, Chinese (Simplified), Chinese (Traditional), Danish, Dutch, English (US), French, German, Hungarian, Italian, Japanese, Korean,
Polish, Portuguese (Brazilian), Russian, Spanish, Swedish, Turkish
Network
Ethernet Interface Port 10/100Base-T, RJ-45
Supported Protocols TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP,
SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP
Configuration Management
Web Browser Internet Explorer 8.0 or above, Firefox, Safari, Chrome
Security One-Click Security Hardening, User Access Log, Validate Complex Credentials, Disabling Unused Protocols
IEEE 802.1x including: PEAP, EAP-TLS, EAP
Onboard Storage
Card Support Micro SDXC Up To 128GB
Simultaneous Users
5 Simultaneous Users
Electrical
Power Input PoE IEEE 802.3af class 2
Power Draw 6W
Physical
Dimensions (WxH) 110x52mm
Weight 0.5kg (1.1lbs)
Housing Color White
Operator Temperature -40ºC to 50ºC (-40ºF to 122ºF)
Outdoor Rating IP66/IP67
Vandal Resistant IK10
Regulatory
Emissions FCC Part 15 Class A; EN55032 Class A; AS/NZS CISPR 32 Class A; ICES-003/NMB-003 Class A
Immunity EN55024; EN50130-4
Safety EN60950-1; UL60950-1; IEC 60950-1; CSA 22.2 No. 60950
Environment RoHS; WEEE

Ordering Information
Model Description

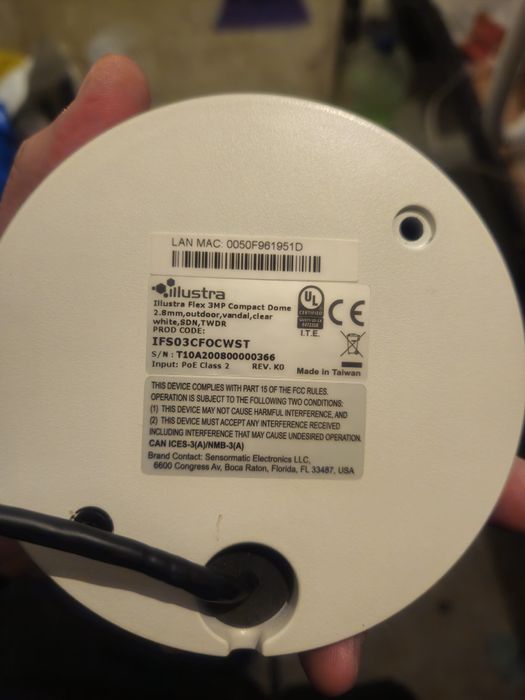

IFS03CFOCWST Illustra Flex 3MP Compact Dome, 2.8mm, outdoor, vandal, clear, white, SDN, TWDR
Accessories
Model Description
ADCI6MPCAPIW Illustra compact mini-dome pendant cap, white, ¾” NPT
ADLOMARM Gooseneck Arm (White)
ADCDMCRNRO Outside Corner Mount Adaptor (White)
ADCDMPOLE Pole Mount Adaptor (White)
ILLUSTRA CAMERa MODEL K
ILLUSTRA SERIES MODEL RESOLUTION FORM FACTOR LENS ENVIRONMENT
HOUSING
BUBBLE COLOR DAY/NIGHT/IR WDR OTHER
I E = Essentials L = Lite 01 = 1MP B = Bullet N = None N = None N = None B = Black C = Color Only N = No A = Ha
Update
F = Flex P = Plus 02 = 2MP C = Compact Dome F = Fixed A = Indoor NonVandal C = Clear W = White I = TDN w/IR T = Multi-
Exposure
(>60 Frames)
1 = 2.6mm
P = Pro S = Standard 03 = 3MP D = Dome 0 = 1.8—3mm B = Outdoor NonVandal S = Smoked S = Soft Day/Night Y = Yes 2 = 2.8mm
Q = Edge 05 = 5MP F = Fisheye 1 = 2.8—12mm I = Indoor Vandal T = TDN 3 = 3.7mm
12 = 12MP H = Micro 2 = 3—9mm O = Outdoor Vandal
M = Mini-Bullet 3 = 9—22mm
P = PTZ 5 = 20x
X = Box 6 = 30x
