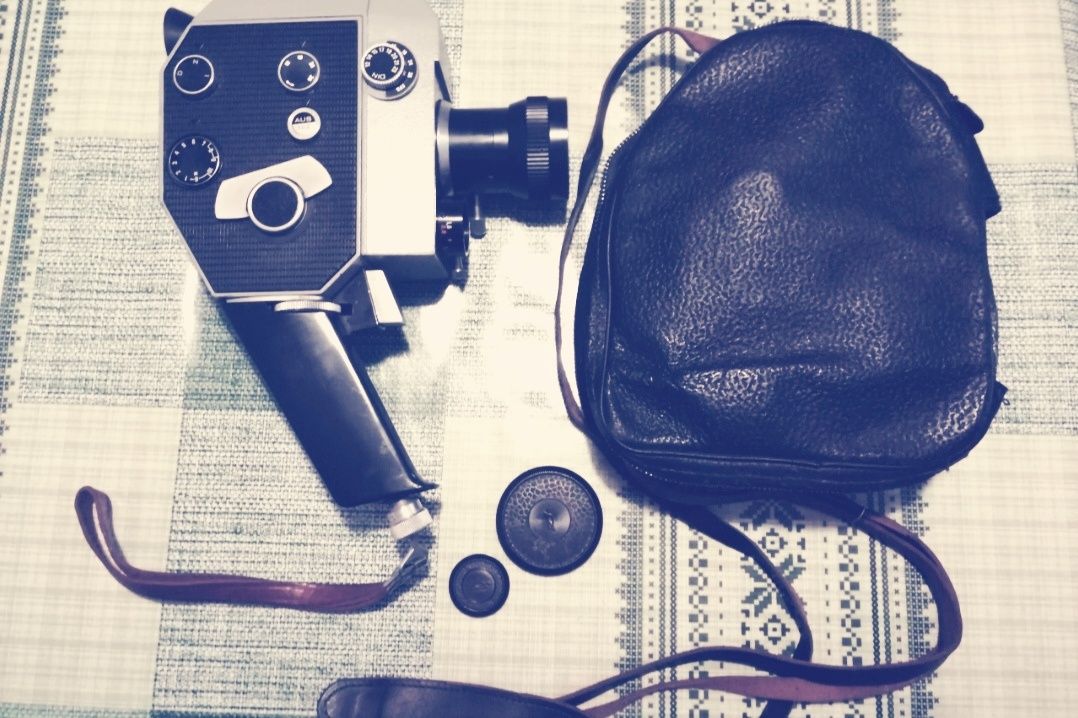

An fabricație între 1971- 1983. Geanta originala.
211,374 u (Кварц 2x8C-3 + Quarz DS8-3)
double super 8 spool, 10.5 m
film 4.22 x 5.69 mm

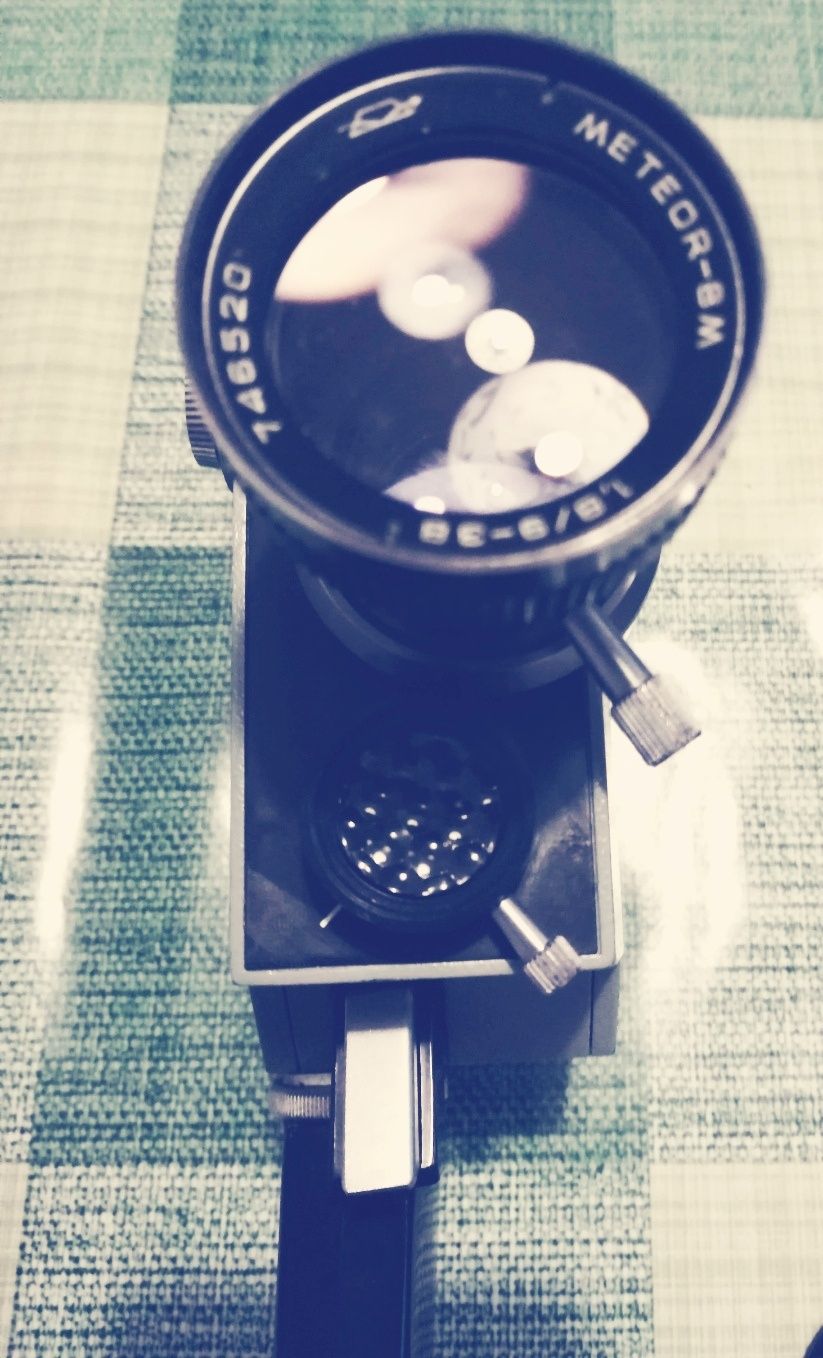

lentile: Meteor 8 M f: 1.8 \ F: 9-38 mm
zoom : 4.2x
focus: manual
zoom-ul : manual
film : manual selection between 12 and 23 DIN (2)
filming speed: 12, 18, 24, 36 fps, single frame
shutter opening angle: 180 degrees
shutter speed: 1/23 sec at 12 fps, 1/20 sec at 18 fps, 1/45 sec at 24 fps, 1/68 sec at 36 fps, 1/20 sec at single frame
film rewind: socket for rewind crank
sound: no
cable release socket: yes
movie light socket: no
film counter: 0-10 m
Greutate: 1600 g
dimensiuni: 68 x 150 x 186 mm
tripod socket: 1/4"
made in Russia by KMZ

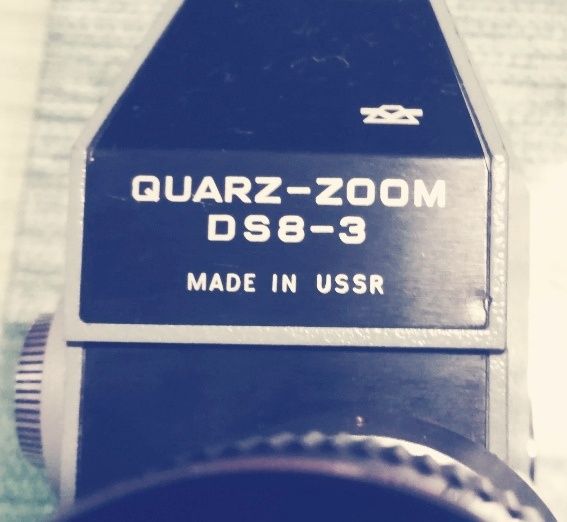

Russian name: Кварц 2x8C-3; exportation name: Quarz Zoom DS8 3.
DIN settings: 12, 14, 15, 17, 18, 20, 21 and 23.
Se photocell: Selenium cell does not need batteries.
