Cablu de microfon sau semnal din cupru OFC (99.99%).

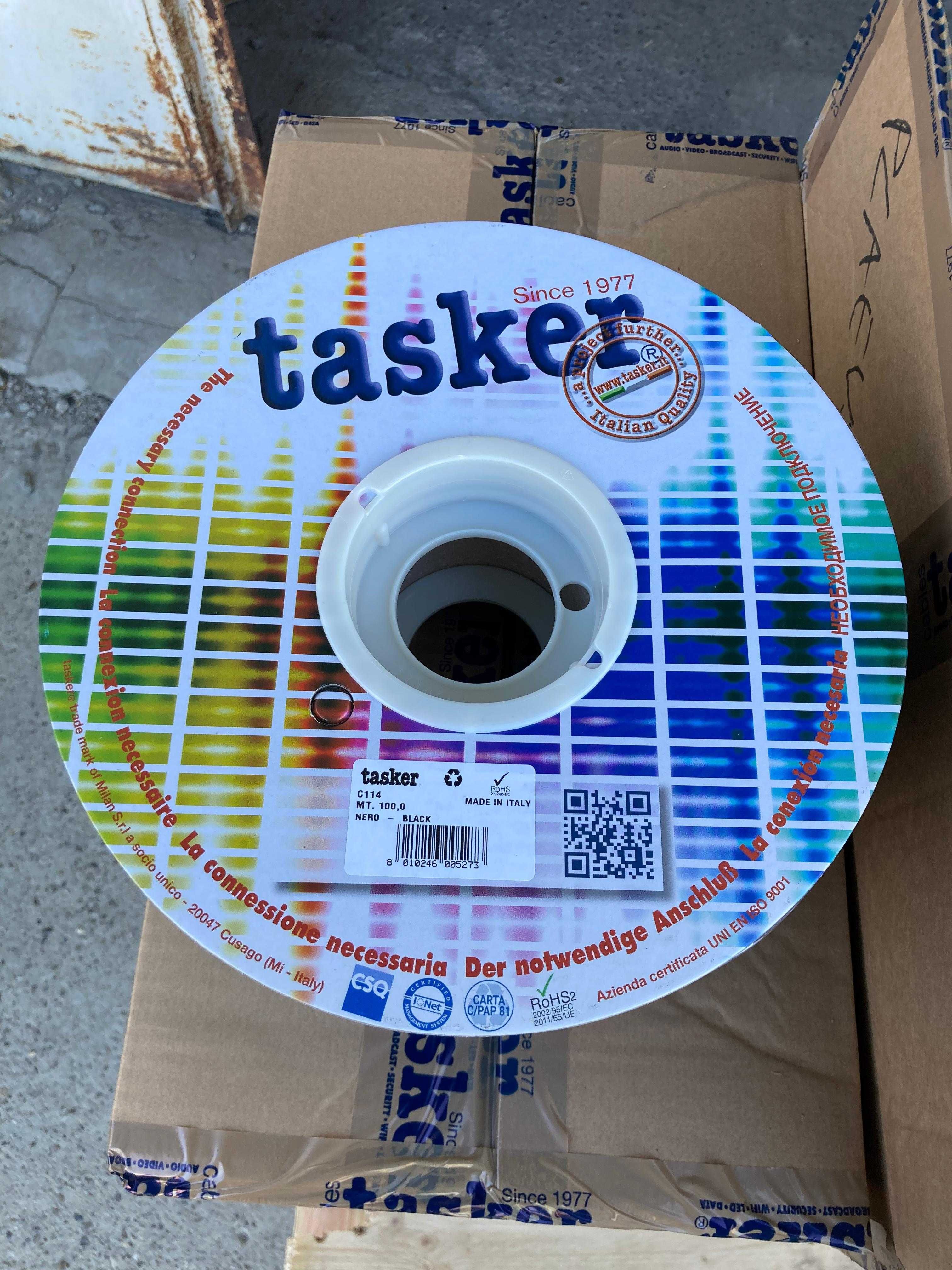

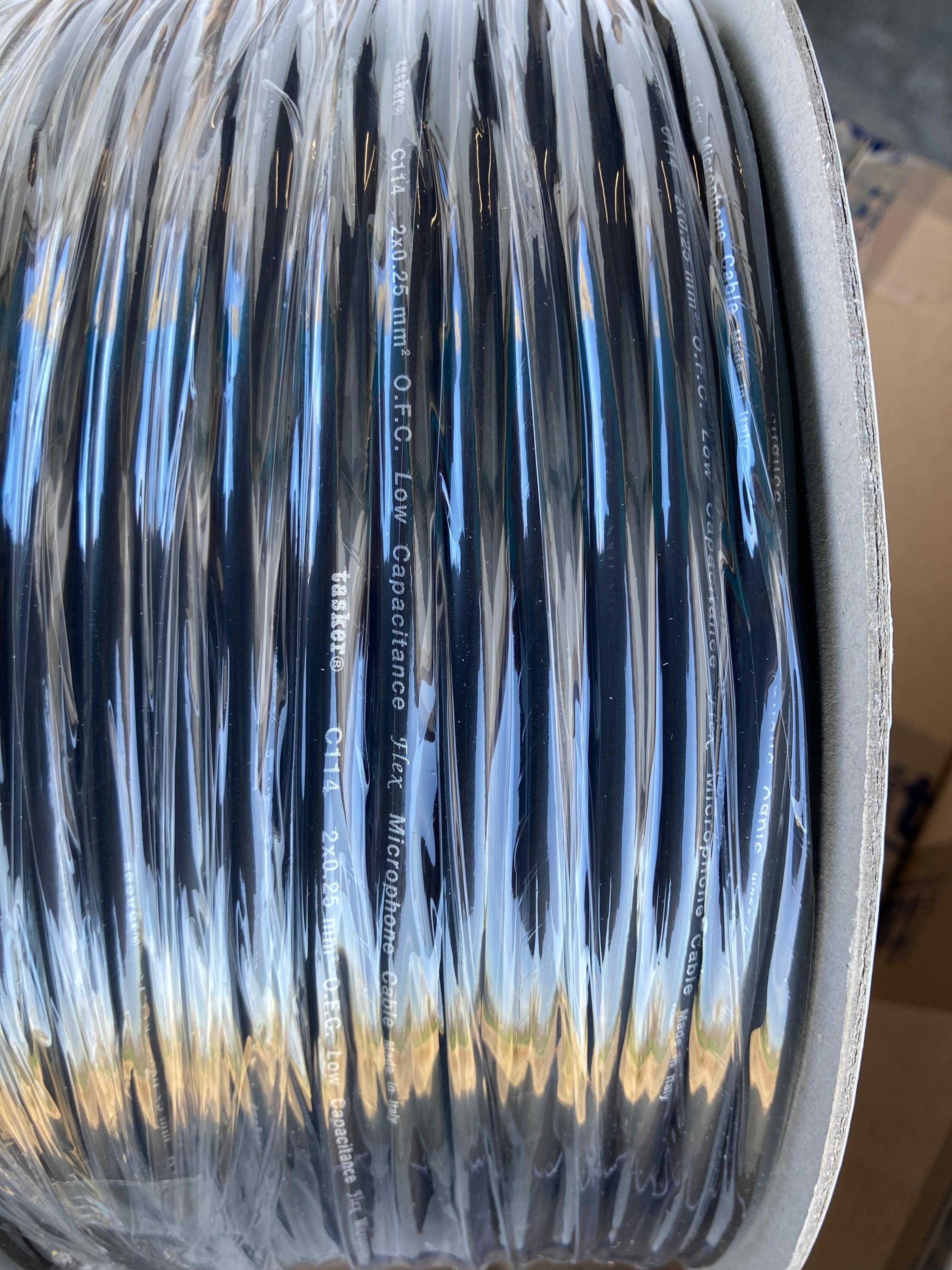

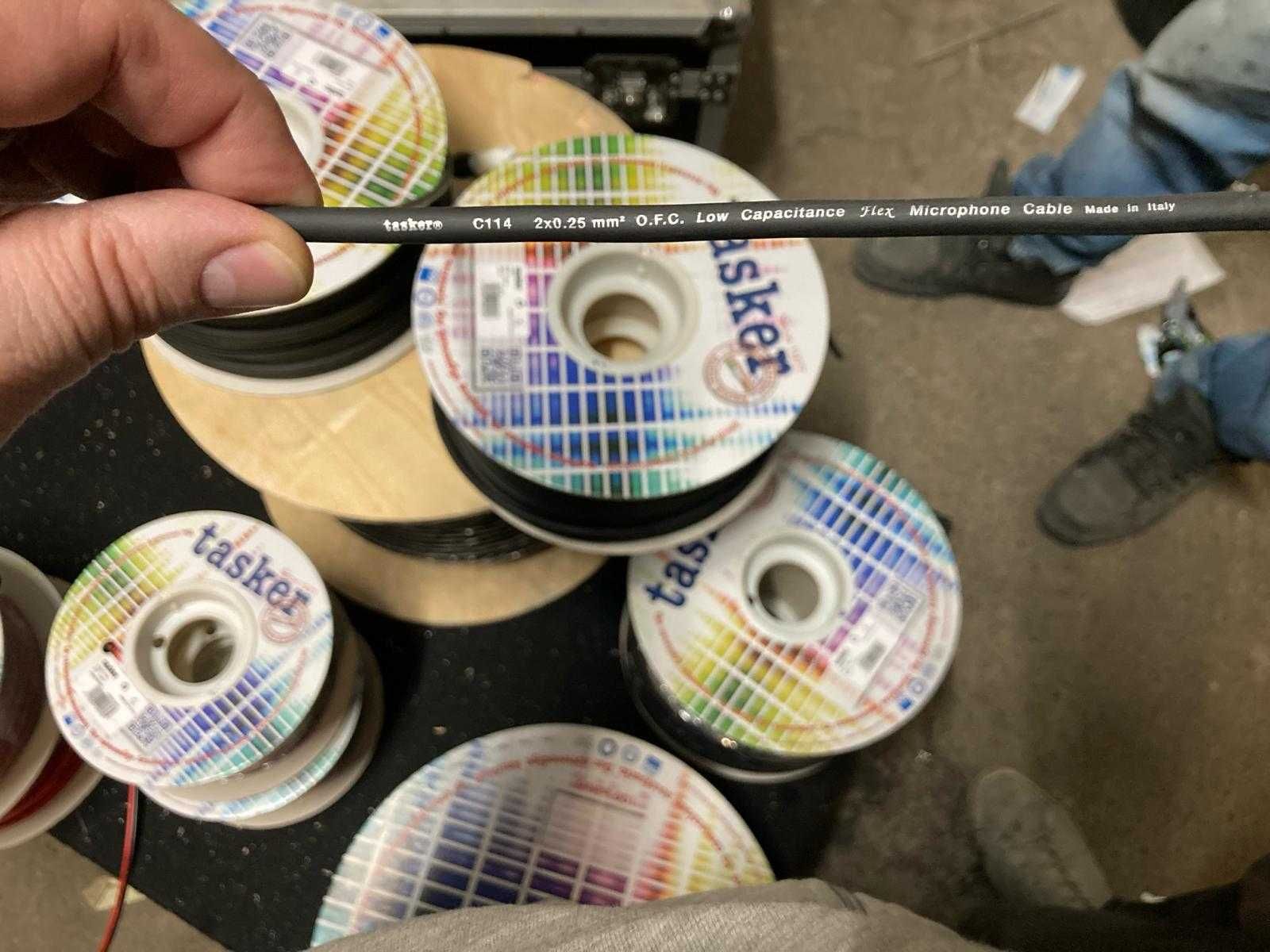

C114 2x0.25mm2: Outer cable Diam. Ø 6,00 (±0,20) mm.
Shielding O.F.C. red copper Spiral covering 100%.
The cores are stranded in a pair with textile waste filler between conductors and wrapped with not woven polyester based tape.
Core Insulation with a compact PE, colored one Orange and one Transparent. Diam. Ø 1,50 (±0,20) mm. O.F.C. red copper, formation 8x0,20 mm. Nom. Cross section 2x0,25 mm².
Conductor Resistance 75 Ω/Km, Capacity Core/Core 55 pF/m, Capacity Core/Shield 90 pF/m, Max Rated Voltage 49 V, Operative Temperature -15/+70°C.

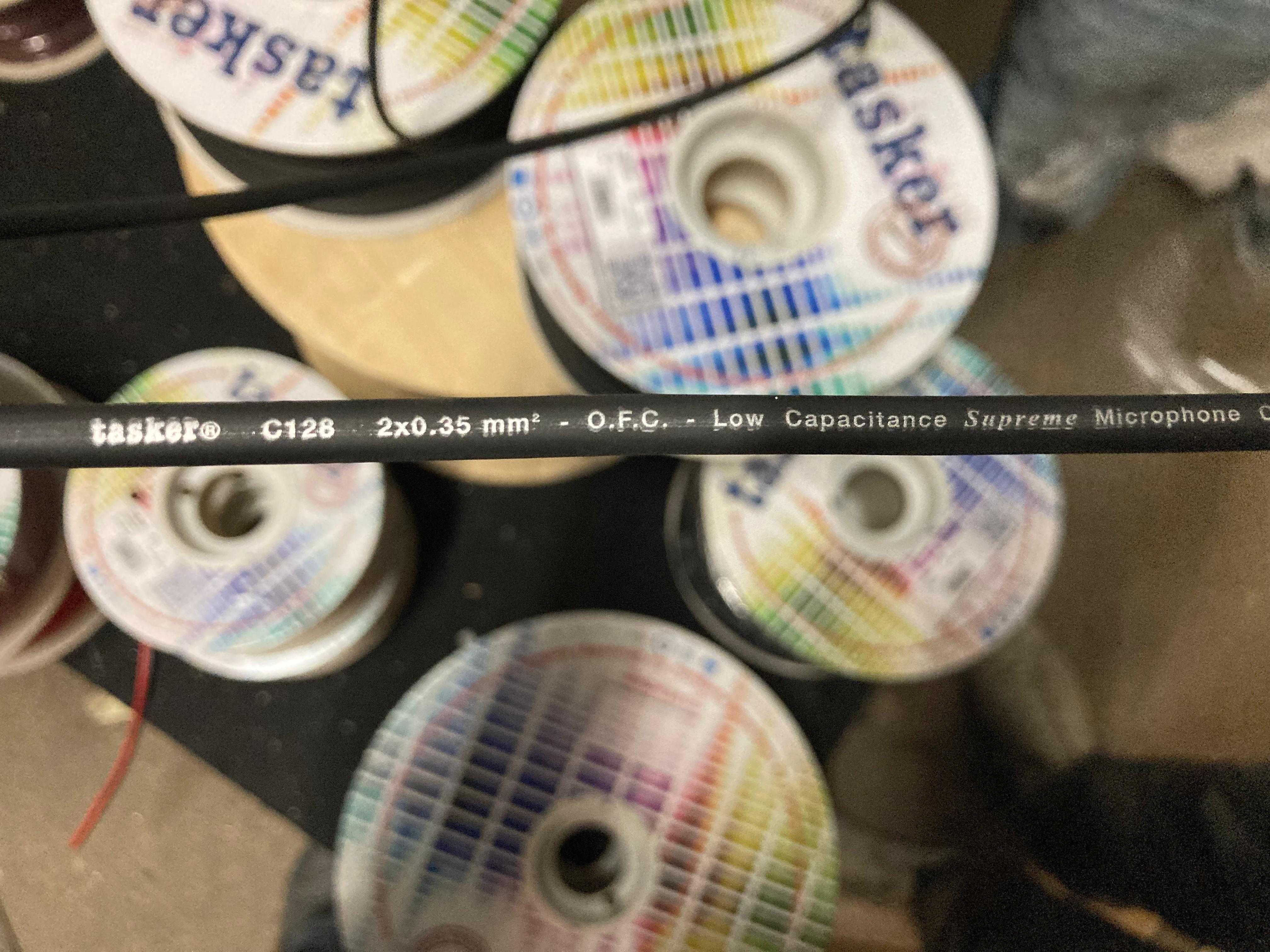

C128 2x0.35mm2: Outer cable Diam. Ø 6,30 (±0,20) mm.
Braided Shielding O.F.C. tinned copper covering 90%.
The cores are stranded in a pair with textile waste filler between conductors and wrapped with not woven polyester based tape.
Transparent Cores Insulation with compact PE. Diam. Ø 1,70 (±0,20) mm.
One conductor in O.F.C. red copper and one in O.F.C. tinned copper formation 11x0,20 mm. Nom. Cross section 2x0,35 mm².
Conductor Resistance 58 Ω/Km, Capacity Core/Core 55 pF/m, Capacity Core/Shield 92 pF/m,
Max Rated Voltage 49 V
Operative Temperature -15/+70°C.
Pret C114 4.8 lei/metru.
Pret C128 5.5 lei metru.

Mai am cablu pentru boxe cu 2 si 4 fire, precum si un cablu combinat alimentare (3x1.5) plus semnal OFC.
Nu fac schimburi.
Ofer factura
