Produs nou, disponibil 1 bucata.

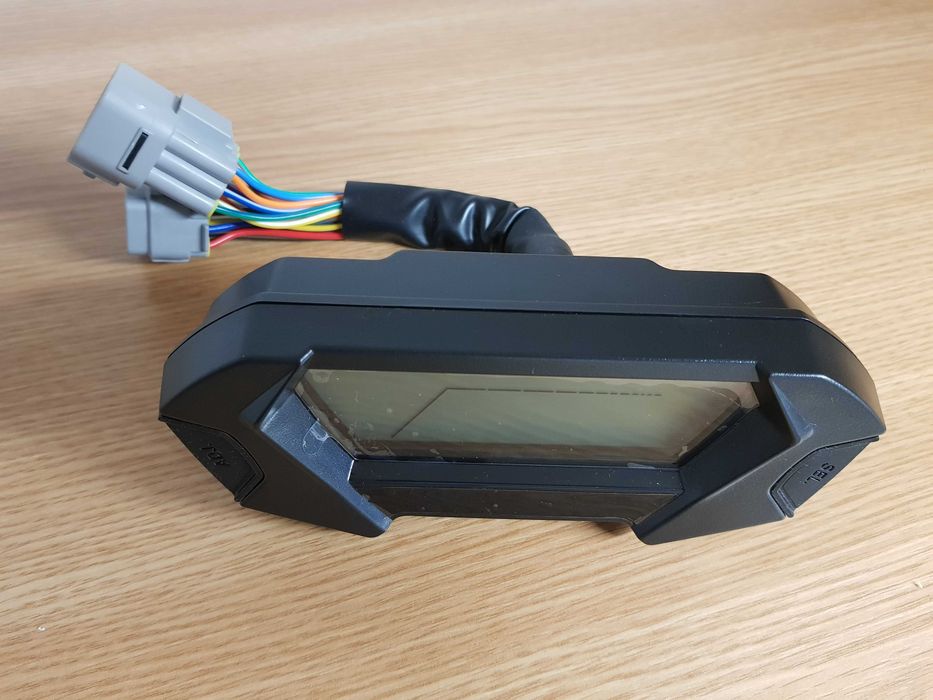

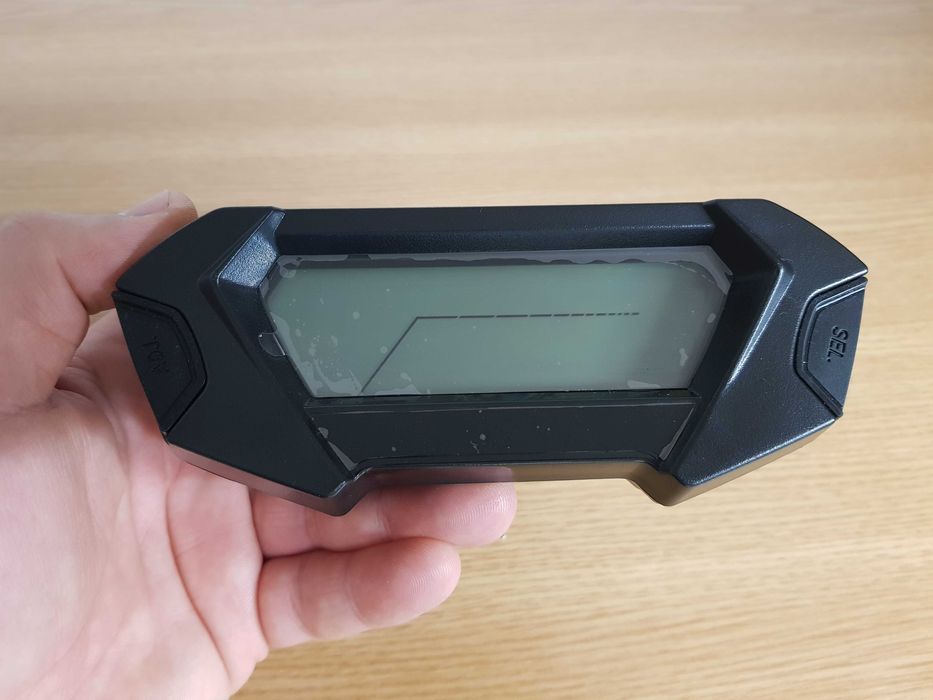

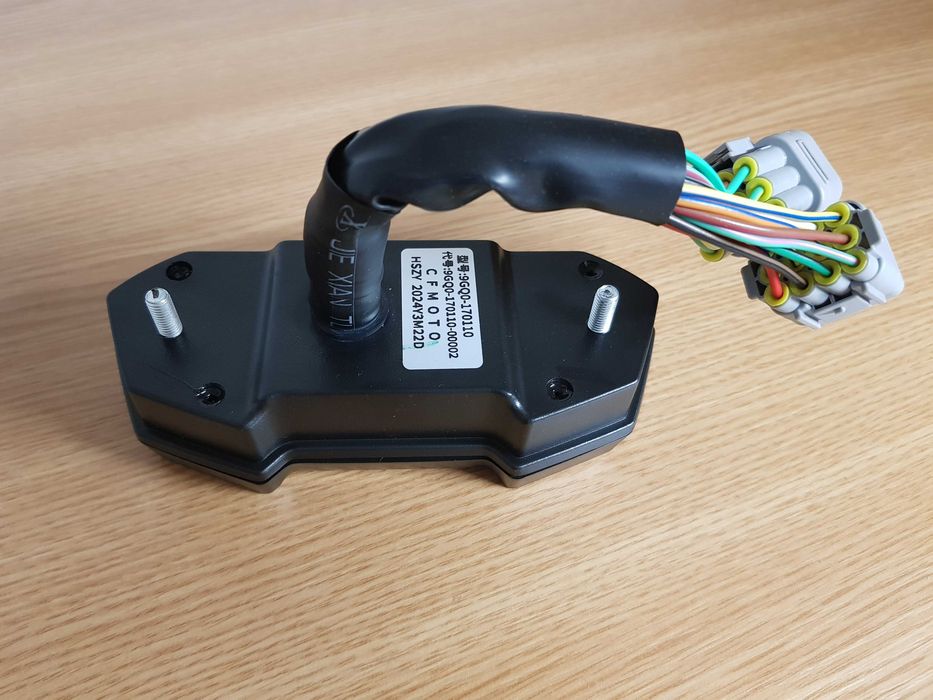

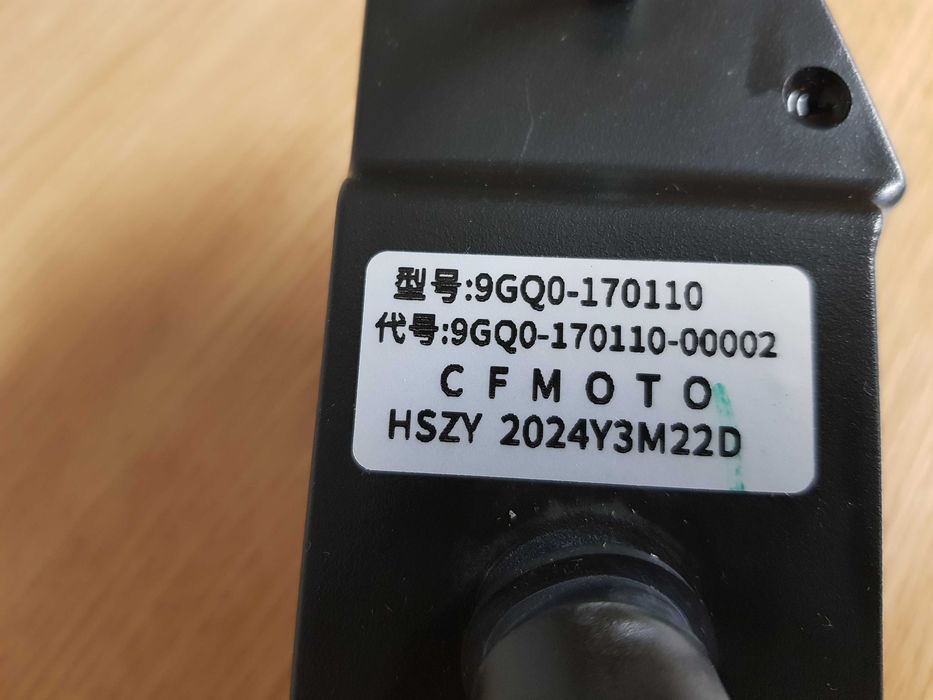

CF Moto listed part number is 9GQ0-170110-00002

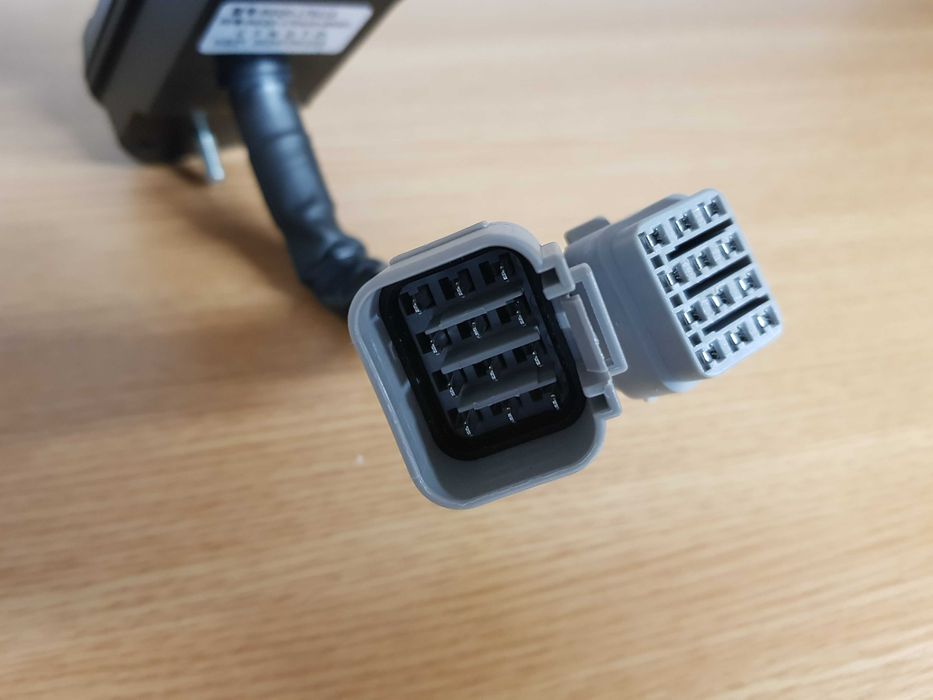

Plug: 12+12
1 - Tail Lamp ON. Illuminates when the headlight switch is in this position.
2 - High Beam ON. Illuminates when the headlight switch is in this position.
3 - Gear selector in Park. Illuminates when the gear selector is shifted to the parking position.
4 - Gear selector in Neutral illuminates when the gear selector is shifted to the NEUTRAL position.
5 - EPS Fault (This ATV is not equipped with EPS).
6 - EFI Fault. This indicator light comes on when a fault occurs in the Electronic Fuel Injection system.
7 - Speed Limit Override. This indicator light comes on when pressing the override switch on the left-hand control. Always exercise caution when using the override button.
8 - Gear Position ‘R-H-L’. This dashboard section displays the following letters that correspond to gear selection: ‘R’= Reverse; ‘H’= High Gear; ‘L’= Low Gear.
9 - Engine Temperature. This dashboard section displays the current coolant temperature, ‘C’ is low temperature, ‘H’ is high temperature, Both over-low and over-high are abnormal. Idle the vehicle to warm the engine when it's too cold, and park the vehicle when it's too hot to prevent the coolant from boiling. Keep the coolant temperature in a normal range.
10 - Fuel Gauge. This dashboard section displays the current gas remaining in the tank. ‘F’ indicates full. ‘E’ indicates stand-by fuel. When the indicator enters the red area, the fuel that remains could last (at slow speed on level ground) for up to 50Km (31 Miles). Fuel must be added as soon as possible.
11 - Odometer / Trip/ Rpm / Volt / Brightness Display. This dashboard section can be toggled using the ‘SEL’ button to display the accumulated distance traveled in miles/kilometers; ‘ODO’ -The accumulated vehicle distance traveled, ‘TRIP’ - The trip distance traveled, ‘RPM’ – The engine speed in Revolutions Per Minute (RPM), ‘V’ – Battery voltage, ‘L-I-g-H—8’ - Dashboard brightness (8 levels).
12 - Speedometer. This dashboard section can be toggled to display the vehicle speed in Kilometers per hour (Km/h) or Miles Per Hour (MPH).
13 - Clock. This dashboard section can be adjusted to the correct time using the ‘ADJ’ button.
14 - Oil Pressure Warning. This dashboard section displays when the engine oil pressure is abnormal, and is off when oil pressure is normal.
15 - 4WD Indicator. This dashboard section corresponds to the drive method chosen on the right-hand control. The front differential contains the synchronizing component that signals the display.

This may fits

ATV 2014 CF400AU CForce 400S/450S
ATV 2015 CF400AU CForce 400S/450S
ATV 2016 CF400AU CForce 400S/450S
ATV 2017 CF400AU CForce 400S/450S
ATV 2018 CF400AU CForce 400S/450S
ATV 2019 CF400AU CForce 400S/450S
ATV 2020 CF400AU CForce 400S/450S
ATV 2021 CF400AU CForce 400S/450S
ATV 2022 CF400AU CForce 400S/450S
ATV 2014 CF400AU-L CForce 400L/450L
ATV 2015 CF400AU-L CForce 400L/450L
ATV 2016 CF400AU-L CForce 400L/450L
ATV 2017 CF400AU-L CForce 400L/450L
ATV 2018 CF400AU-L CForce 400L/450L
ATV 2019 CF400AU-L CForce 400L/450L
ATV 2020 CF400AU-L CForce 400L/450L
ATV 2021 CF400AU-L CForce 400L/450L
ATV 2022 CF400AU-L CForce 400L/450L
ATV 2016 CF500AU-7L CForce 520L
ATV 2017 CF500AU-7L CForce 520L
ATV 2018 CF500AU-7L CForce 520L
ATV 2019 CF500AU-7L CForce 520L
ATV 2020 CF500AU-7L CForce 520L
ATV 2021 CF500AU-7L CForce 520L
ATV 2022 CF500AU-7L CForce 520L
ATV 2016 CF500AU-7S CForce 520S
ATV 2017 CF500AU-7S CForce 520S
ATV 2018 CF500AU-7S CForce 520S
ATV 2019 CF500AU-7S CForce 520S
ATV 2020 CF500AU-7S CForce 520S
ATV 2021 CF500AU-7S CForce 520S
ATV 2022 CF500AU-7S CForce 520S
