Vand DAC / Amplificator casti Audioengine HXL Nou, Cutie, Garantie

De pe pagina producator

General Information
The Audioengine HXL is a 32-bit portable balanced headphone amplifier and hi-fi DAC built to unleash the full potential of your music, no matter where you are. It delivers powerful, high-fidelity sound straight from your phone, tablet, or computer, powered directly through USB-C with no batteries to charge. Equipped with both 3.5mm and 4.4mm outputs, it drives everything from your favorite in-ear monitors to demanding studio-grade headphones. By bypassing built-in sound cards, the HXL delivers a clear, detailed upgrade to your everyday listening. Its balanced output provides extra headroom, tighter bass, and a whisper-quiet noise floor, making it the ideal travel companion or desktop powerhouse for music lovers who want to hear every detail.

DAC type

USB-C

Input

USB-C audio

D/A converter

SA9312 + Dual CS43131

USB transfer mode

Asynchronous dual clock

USB device class

UAC 2.0

Input bit depth

32 bit

Input sample rate

PCM: Up to 32-bit / 384kHz

DSD: DSD64 / DSD128 (DoP), DSD256 (Native)

Output

3.5mm single-ended
4.4mm balanced

Full-scale output level

2.06Vrms at 600Ω (3.5mm)
4.09Vrms at BAL

Output impedance

0.5Ω

Recommended headphone impedance range

10Ω – 600Ω

Headphone amplifier

LME49726

Frequency response

20Hz – 40kHz ±0.1dB

SNR

132dB (BAL), 125dB (3.5mm)

THD+N

0.0002% (112dB)

Crosstalk

-129dB (BAL), -96dB (3.5mm)

Power requirement

Standby: ~75mA
Active: ~120mA (Pink noise at 50%, 32-bit 384kHz)

USB power filtering

2-stage redundant regulation

Product dimensions

1.9” (48mm) ×0.6” (15mm) ×0.375" (10MM)

Shipping weight

1.0lbs (0.5kg)

Environmental

Operating Temperature: 32 to 95 degrees F

Non-operating Temp: -4 to 113 degrees F

Relative Humidity: 5% to 95% non-condensing

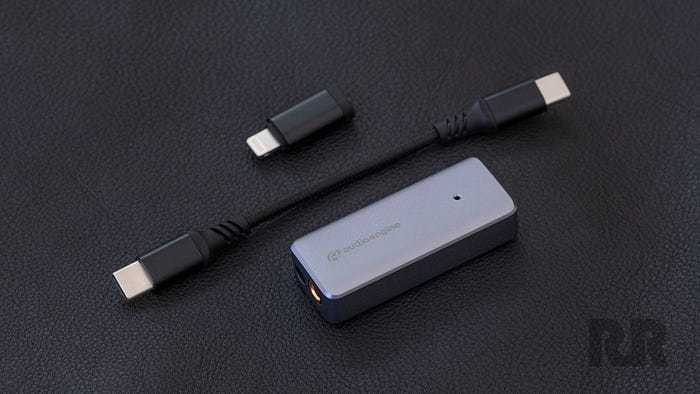

Included accessories

Lightning to USB-C adapter and USB-C to USB-C cable

Setup guide

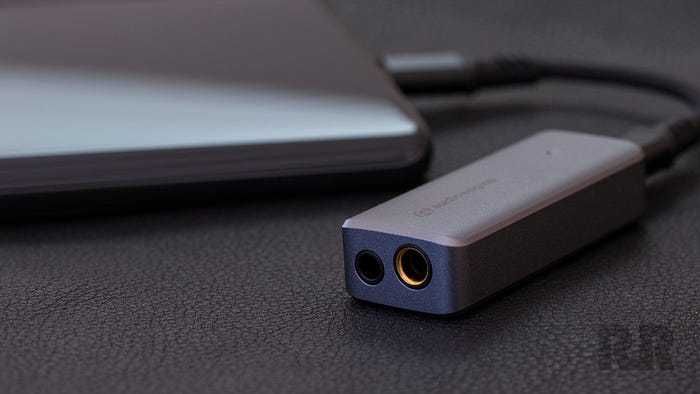

Dual Headphone Outputs

The HXL includes both 3.5mm and 4.4mm balanced outputs, giving you flexibility for everything from sensitive in-ear monitors to demanding studio headphones. Balanced output delivers more headroom, tighter bass, and a quieter noise floor for a true hi-fi listening experience.

Pocket-Sized Power

The compact design of the HXL makes it easy to take anywhere while delivering serious performance. Built from precision-machined aluminum, it’s rugged enough for travel and clean enough for your desktop, proving that portable gear doesn’t have to compromise on quality.

No Batteries, No Charging

Forget about managing extra power cords or waiting for a charge. The HXL draws power directly from your phone, tablet, or computer through a single USB-C connection, keeping your setup clean and ready to play at a moment’s notice.

Upgrade Any Audio Source

Bypassing the built-in sound card of your computer or mobile device, the HXL acts as a high-quality DAC and headphone amplifier in one. Use it to power headphones or connect directly to powered speakers or a Home Music System for a clear, detailed upgrade to any setup.
