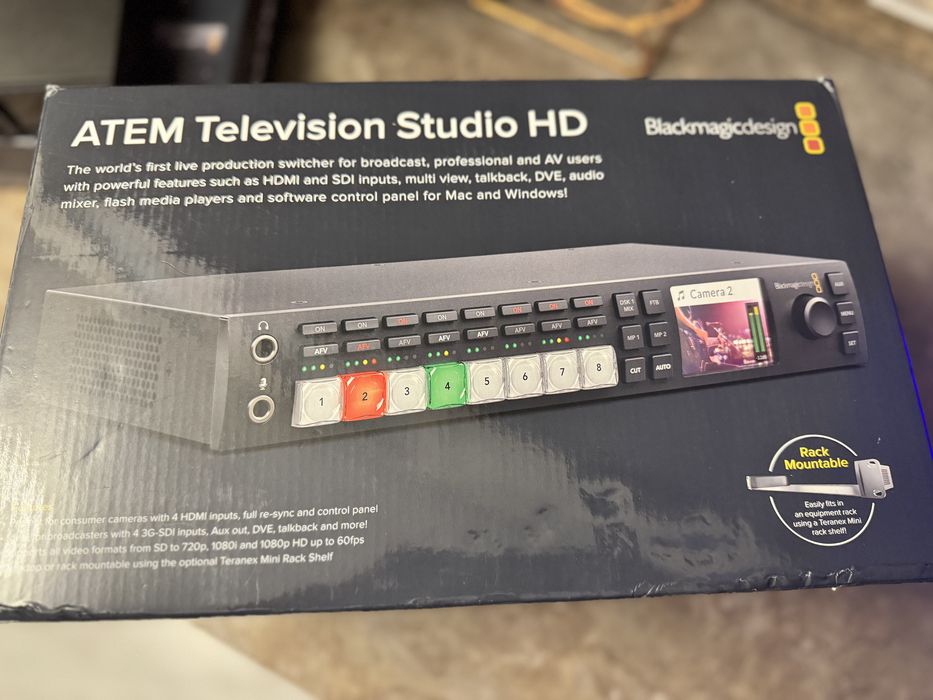

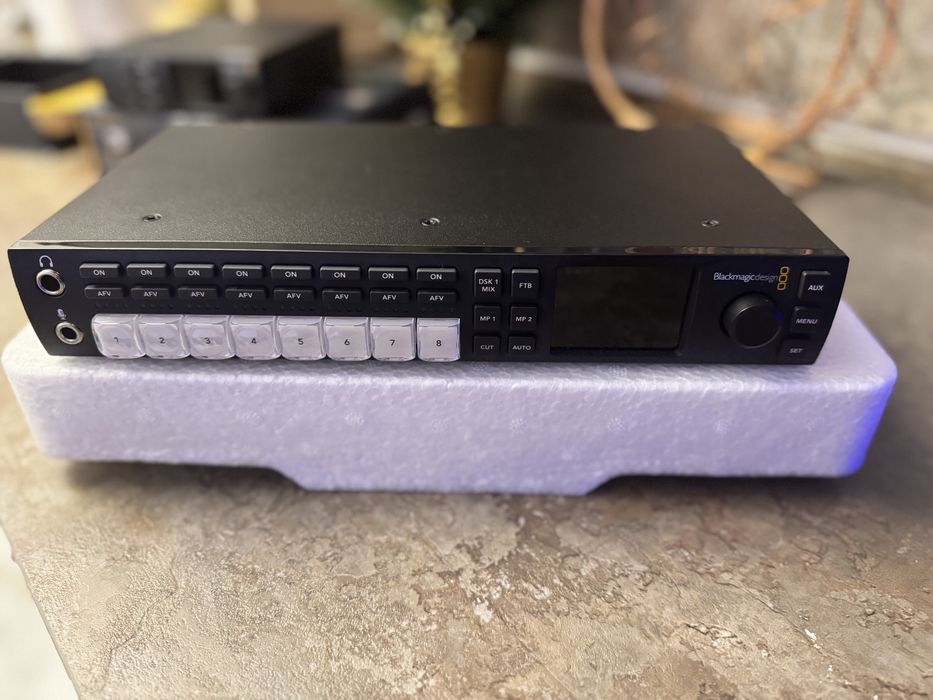

Blackmagic Design ATEM Television Studio HD

Switcher 8 canale SDI/HDMI
NTSC/PAL - HD compatibil cu semnalul de la computer
Mixer digital audio 10 canale

Specificatii Tehnice ATEM Television Studio HD

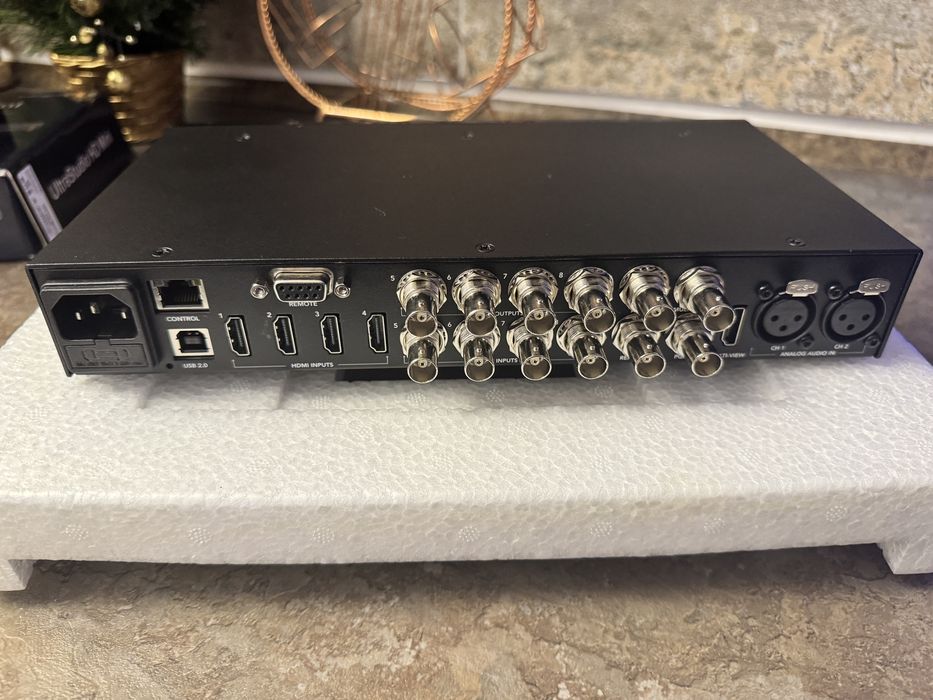

INTRARI / IESIRI
Intrari 4 x BNC, 3G/HD/SD-SDI
4 x HDMI Tip A
2 x XLR analog audio
1 x BNC reference
1 x 1/4 microfon
Iesiri 4 x BNC 3G/HD/SD-SDI, talkback program
1 x BNC 3G/HD/SD-SDI program
1 x BNC 3G/HD/SD-SDI multiview
1 x BNC 3G/HD/SD-SDI auxiliar
1 x HDMI Type A multiview
1 x 1/4 casti stereo
Alte Intrari/Iesiri 1 x D-Sub RS-422
1 x RJ-45 Ethernet
1 x USB 2.0 Type B
STANDARDE
Standarde Video SD 525i 59.94 NTSC 4:3 sau 16:9
625i 50 PAL 4:3 or 16:9
Standarde Video HD 720p50, 720p59.94
1080p23.98 - 1080p24 - 1080p25, 1080p29.97 - 1080p50 - 1080p59.94, 1080i50 - 1080i59.94
Compatibilitate SDI SMPTE 259M 292M si 424M
Video Sampling 4:2:2 10-bit
Precizie culoare 4:2:2 10-bit
Color Space 4:2:2 YUV
Rezolutii intrare HDMI pentru PC-uri 720 x 480i 59.94Hz 720 x 576i 50Hz 1280 x 720p 59.94Hz 50Hz and 1920 x 1080p 23.98 24 25 29.97-94 and 1920 x1080i 50 and 59.94Hz 60Hz
Conversie Colorspace Timp real bazat pe hardware la iesire
Delay la procesare 6 linii
Audio Mixer 10 intrari x mixer 2 canale
On/Off/Audio-Follow-Video selectabil
Level & Peak metering
Master gain control
Control al nivelului de iesire in casti cu mix separat de Program Talkback si Sidetone
GENERAL
Keyers Upstream 1
Downstream 2
Chroma 1
Linear - Luma 3
Transition DVE 1
Numar Total de Layere 5
Generatori de culori 2
Generatori de textura (pattern) 2
Interfata Rezolutie minima monitor 1366 x 768
Rosu pentru program si verde pentru preview
Sisteme de operare Apple MacOS 10.10 sau mai recent
Windows 8.1 sau mai recent
Alimentare 1 x internal 110 – 240 V AC
Consum 40 W
Dimensiuni 28 cm x 4.5 cm x 17.5 cm
