Putere (VA): 3000
Montabile in rack: Nu
Intrari: British BS1363A
Input Connections :
IEC-320 C20
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input voltage adjustable range for mains operation 151 - 302V
Input voltage range for main operations 160 - 285V
Nominal Input Voltage 230V
Schuko CEE 7 / EU1-16P
Iesiri: (1) IEC 320 C19
(2) IEC Jumpers
Max Configurable Power 2700 Watts / 3000 VA
Nominal Output Voltage 230V

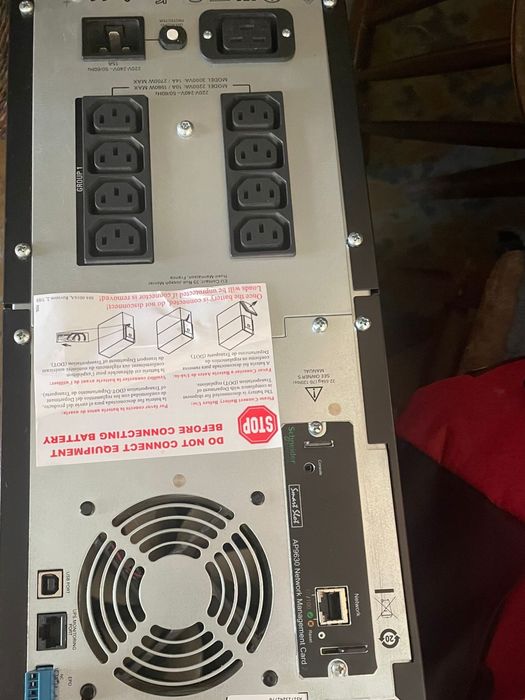

Output Connections : (8) IEC 320 C13
Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Output Power Capacity 2700 Watts / 3000 VA
Output Voltage Distortion Less than 5% at full load
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Waveform Type Sine wave
Interfata: Available SmartSlot Interface Quantity 1
Interface Port(s) SmartSlot,USB
Conectori iesire: IEC
Baterie: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
RBC Quantity 1
Timp reincarcare: 3 ore
Protectie: Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Surge energy rating 365 Joules
Altele: Audible noise at 1 meter from surface of unit 53.00 dBA
Emergency Power Off (EPO)
Online Thermal Dissipation 375.00 BTU/hr
Operating Elevation 0-3000 meters
Operating Environment 0 - 40 grade C
Operating Relative Humidity 0 - 95%
Storage Elevation 0-15000 meters
Storage Relative Humidity 0 - 95%
Storage Temperature -15 - 45 grade C
Culoare: Negru
Alarma: Alarm when on battery : distinctive low battery alarm : configurable delays
Indicatori: Multi-function LCD status and control console
Dimensiuni (W x D x H mm): 435.00 mm x 197.00 mm x 544.00 mm
Greutate (Kg): 52.50 KG
Tensiune de alimentare (V): 230V
