Aparat de reglat antene tv satelit HD și sd mpeg2, mpeg4
Are lista sateliți și frecvente,se pot memora noi frecvente și sateliți.
Key Features :

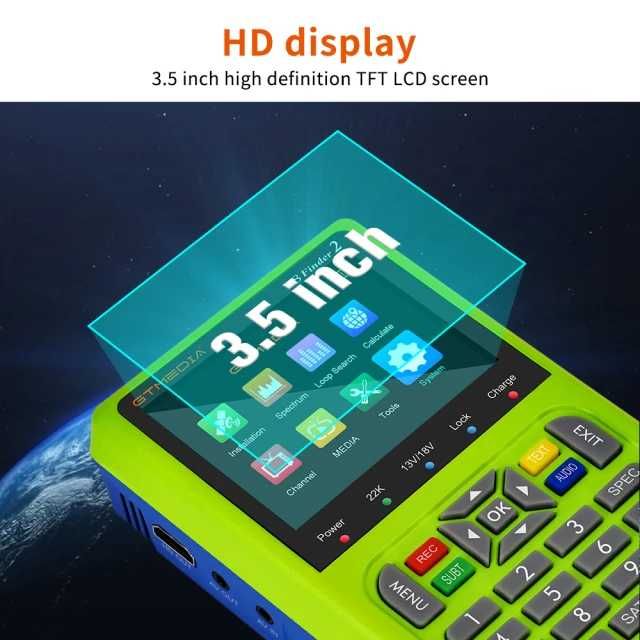

- 3.5 Inch High Definition LCD Screen,
- Fully DVB-S2X/S2/S, MPEG-2/MPEG-4 compliant
- Support H.264 (8 Bit) Hardware decoding
- Digital measuring device for signal strength and quality.Supports presetting all satellite information
- Support Loop Search
- Supports scan of Auto, Blind, Manual or NIT
- Sound for Locking Signal
- Auto Calculate Angle of AZ,EL
- Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
- Speaker Integrated

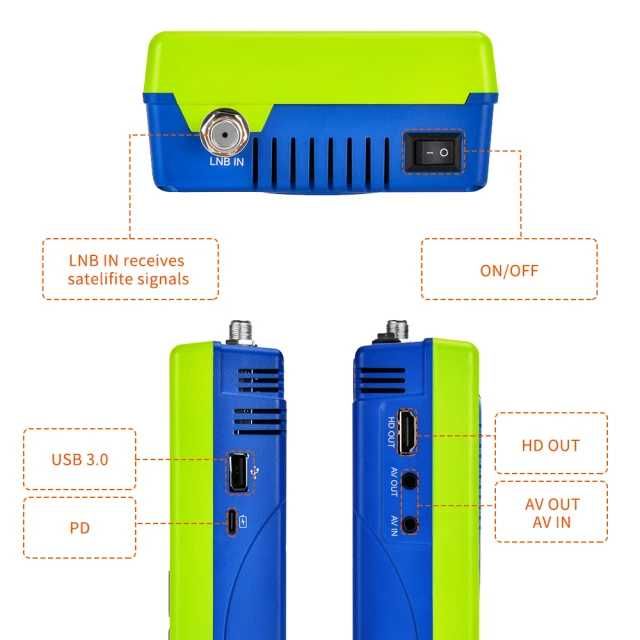

- Support both AV out and AV in
- Support both HDMI out
- Support real-time power display, with low power reminder
- Supports Youtube for USB wifi 2.4G
- LNB short protect
- 3.7V/5000mAh Li-ion Battery Included
- Support Type-C charging interface, support multi-protocol fast charging, max 18W
- Support TypeC reverse charging
- Software upgrade via USB port
- Easy to carry
Specifications :
TRANSMISSION STANDARDS
DVB-S2X/S2/S,MPEG-2,MPEG-4,H.264(8 Bit)
Support CCM,VCM, ACM, multi-stream, T2-MI, Single/Multi-PLP
SATELLITE INPUT/DEMODULATION
Connector Type
F Type
Input Frequency
950 to 2150 MHz
Signal Input Level
‐65 to ‐25 dBm
Band Switch Control
22KHz
LNBSupply
13V/18V, Max 350mA
Demodulation Type
DVB-S2 QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Symbol Rate
245Mband(SCPC/MCPC)
LCD FEATURES
LCD Type
TFT Transmissive
Number of Dots
320 RGB'240
Active area (W*H)
70.08(H)'52.56(V)MM
AV output interface
Connector Type
3.5 mm jack
Video Output
CVBS
Audio Output
Stereo Audio L/R output
HDMI output connecter
Format
HDMI 1.3a
AV input interface
Connector Type
3.5 mm jack
Video Input
CVBS
Audio Input
Stereo Audio L/R input
AUDIO/VIDEO PROCESSING
Video decompression
MPEG-2 MP HL, MPEG-1 Decoding, MPEG-4 ASP l5 HD resolution, H.264 MP&HP L4, HW JPEG decoder
Resolving rate
PAL-25 frame 720*576, NTSC -30 frame 720x480
Singnal compatibility
Support conversion for different video formats
Video Format
4:3, 16:9, By Pan & Scan and Letter Box conversion
Audio Decompression
MPEG-1 Layer I/II, MPEG-2 Layer I/II
Audio Output Mode
Stereo, Mono, R/L
DATA SERVICE PORT
Conector
USB
Data Protocol
USB 2.0 interface
File Management System
NTFS, FAT32, FAT16
File Format
Media:TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
Audio: wma,mp3
Photo: jpg,jpeg,bmp,img
PVR Option
Support recording TS files
WIFIOption
Support networking via USB WIFI
POWER SUPPLY
Li-Lon Battery
3.7V/5000mAh(The machine behind labeling shall prevail)
Adapter (Optional)
Support QC/PD3.0 fast charge, MAX 18W
Power Consumption
Rated 8W (No external equipment)
