Antena fixa 900MHz 2 BUC 150 lei/BUC

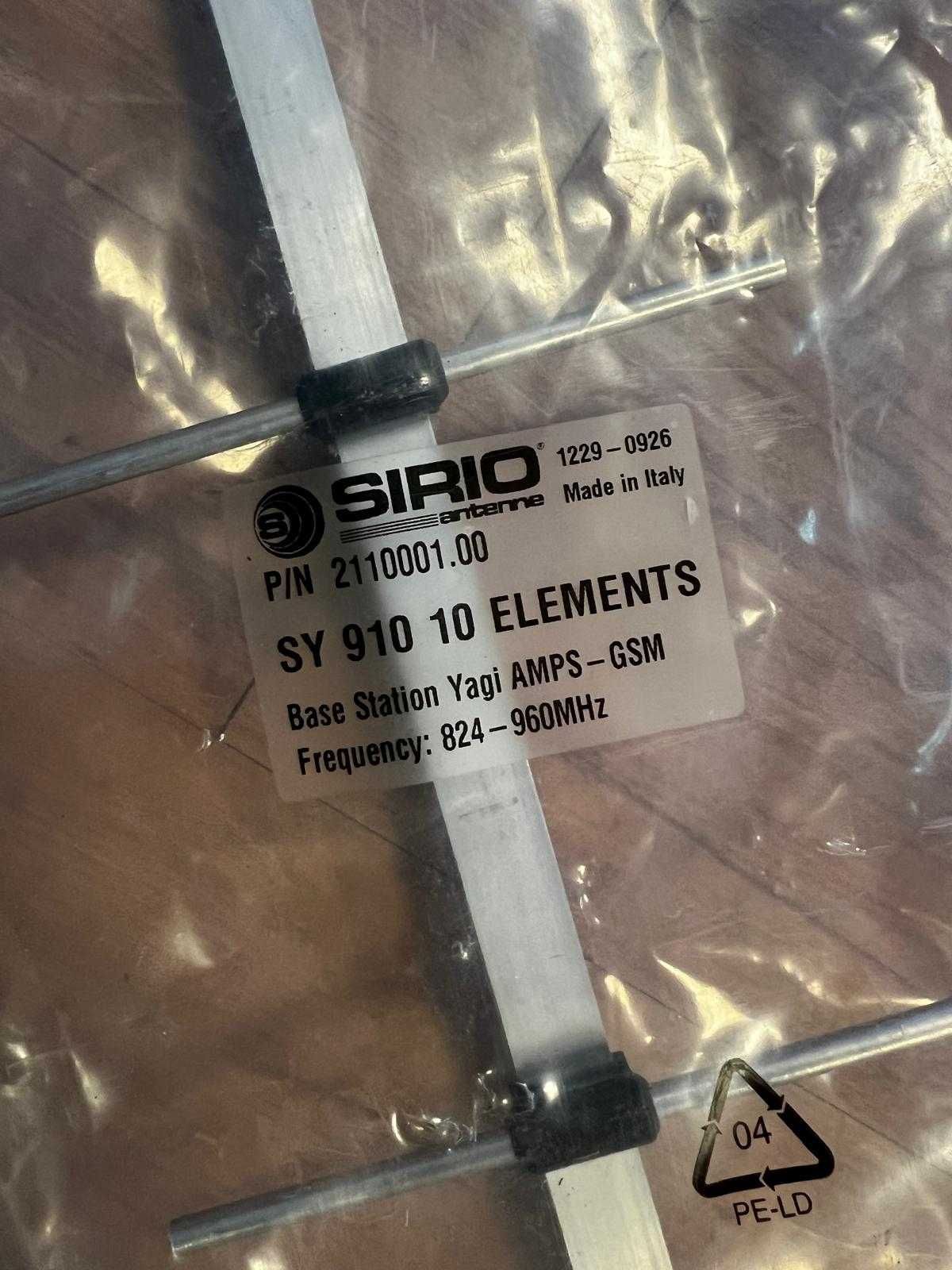

Sirio - SY-910
824-960MHz, YAGI 10 elementi, castig maxim 15dBi, putere maxima 10W, VSWR 1,4

Features
- Base station antenna, Directional
- Mono-band, High-gain
- Protection from static discharges DC-ground
- Made of anodized aluminium alloy
- For AMPS, E-GSM and TACS systems
Electrical data
- 10 element yagi antenna
- Frequency range: 824-960 MHz for AMPS, E-GSM and TACS systems
- Impedance: 50Ω unbalanced
- Radiation (H-plane): beamwidth at -3 dB = 38° at 890 MHz
- Radiation (E-plane): beamwidth at -3 dB = 34° at 890 MHz
- Radiation angle: 0°
- Front to back ratio: = 15 dB
- Polarization: vertical
- Gain: 12.9 dBd - 15 dBi
- V.S.W.R. in bandwidth: = 1.4:1
- Max. power: 10 Watts (CW) at 50° C
- Feed system / position: folded dipole with microstrip balun, DC-ground / center
- Connection: FME-male
Mechanical data
- Housing materials: Aluminium, Nikel Brass, PCB
- Wind load / resistance: 48 N at 150 Km/h / 150 Km/h
- Wind surface: 0.03 m2
- Dimensions (approx.): 190 x 980 x 60 mm
- Weight (approx.): 500 gr
- Tourning radius: 940 mm
- Operating temperature: -20° C to +80° C
- Mounting mast: Ø 25-42 mm
