Antena exterioara wi-fi lte fdd tdd Huawei wltmh-120

La vanzare o antena gsm / wifi exterioara de la huawei model WLTMH-120 de la un router Huawei B2338

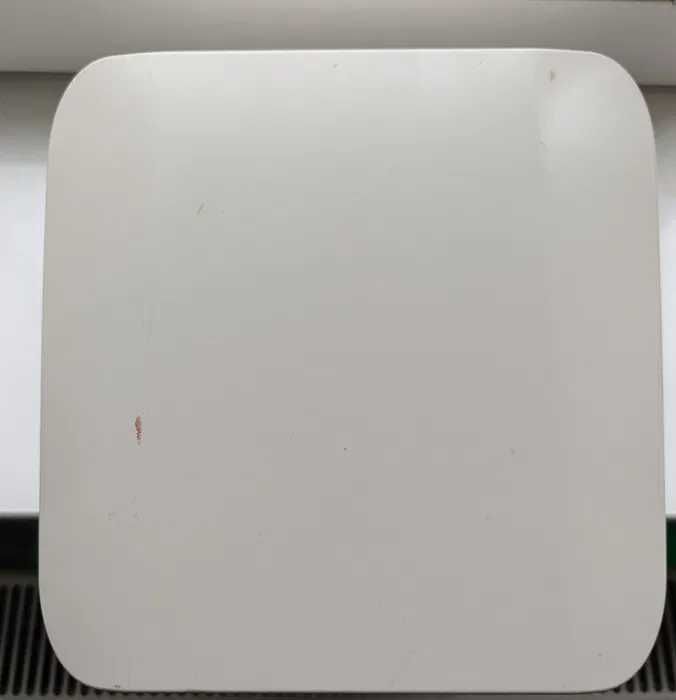

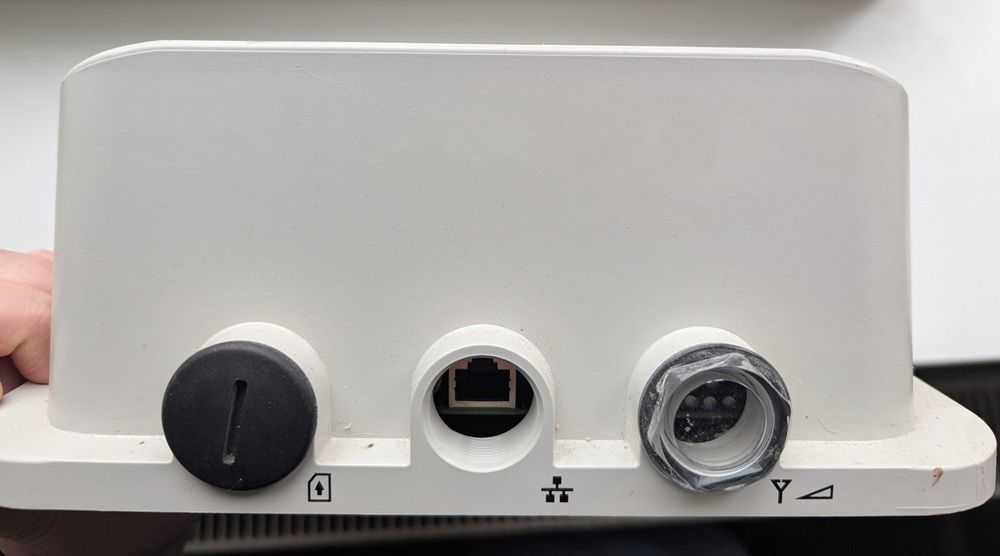

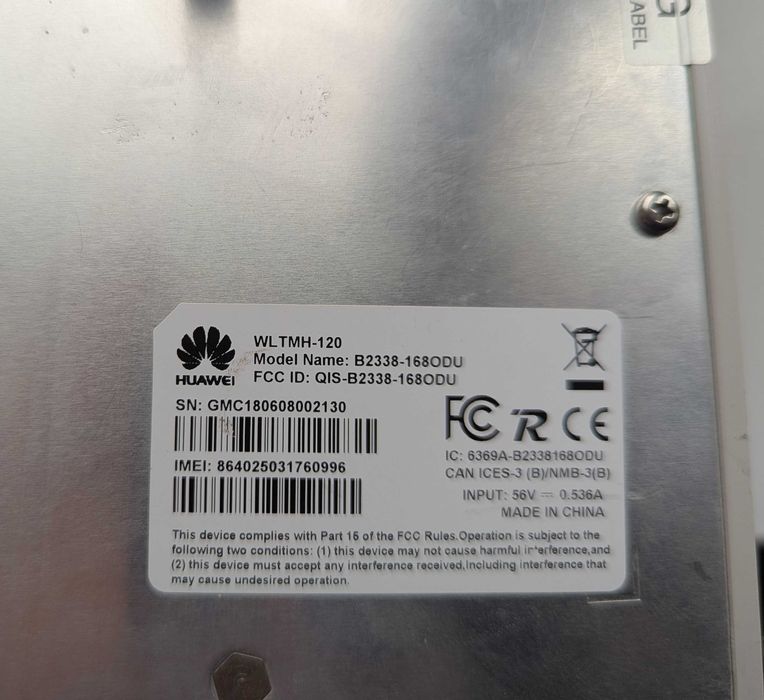

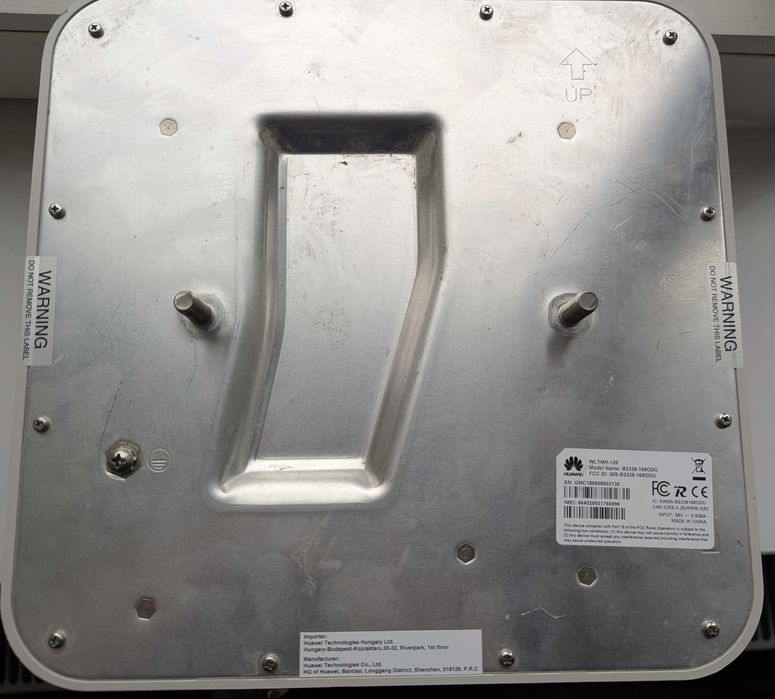

Se vinde doar antena fara routerul LTE adica ce se vede in poze.

Peak Rate: DL 420Mbps, UL 30Mbps

Operating Frequency
- LTE TDD: Band 38/40/41/42/43
- LTE FDD: Band 1/3/7/20

* Carrier Aggregation
- TDD DL 4x4 MIMO + 2CC CA
- TDD UL 2CC CA
- TDD DL 3CC CA
- FDD + TDD 3CC CA

* Modulation
- DL 64QAM, 16QAM, QPSK
- UL 64QAM, 16QAM, QPSK

* Channel Bandwidth: 5 MHz, 10 MHz, 15 MHz, 20 MHz

* TX Power: 23 dBm ± 2 dB

* Antenna
- LTE antenna: 1T4R
- 800-900MHz: 0 dBi
- 1710–2170 MHz: 6–7 dBi
- 2300–2690 MHz: 7–8 dBi
- 3400–3800 MHz: 8–9 dBi

* MIMO DL 2x2/4x4 MIMO

* LTE Transmission Mode
- LTE TDD: TM2, 3, 4, 7, 8, 9;
- DL 4*4 MIMO TM3/4/9
- LTE FDD: TM2, 3
