Un frumos ampificator Sansui, full recap doar cu componente dedicat audio, aspect aproape perfect!

General

Manufacturer: Sansui
Model: 200
Type: Receiver
Years of manufacture: 1969 - 1972
Made in: Japan
Color: Silver / Black / Brown, housing wood
Remote control: -
Power consumption: 45 W
Dimensions: 450 x 130 x 330 mm
Weight: approx. 6 kg
Original price approx.: 795 DM

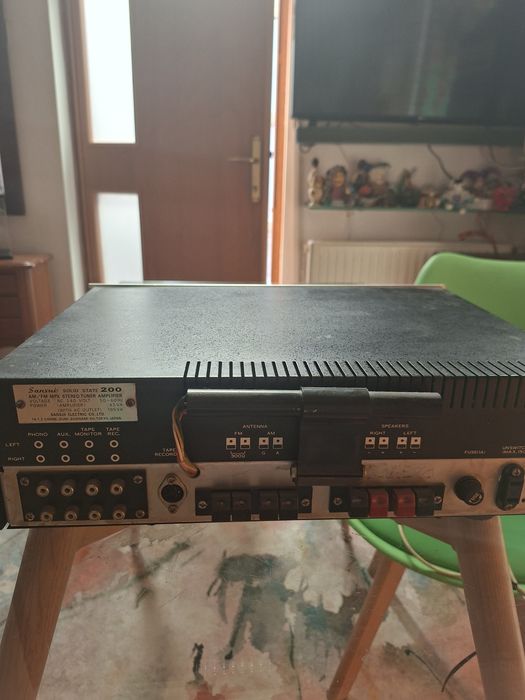

Connections

Number of inputs:
Phono MM: 3 mV / 50 kOhm, 150 mV max.
AUX 1, 2: 180 mV / 100 kOhm
Tape Play: 180 mV / 100 kOhm
Tape Play DIN: 180 mV / 100 kOhm
Antenna MW Antenna VHF 300 Ohm Balanced

Antenna FM 75 Ohm Unbalanced
Number of outputs:
Tape Rec 1, 2: 180 mV
Tape Rec DIN: 30 mV

Headphones (6.3 mm jack, front)
1 pair of loudspeakers

Technical Data

Amplifier

Continuous power
8 Ohm: 2 x 5 W
4 Ohm: 2 x 6,5 W
Dynamic power
8 Ohm: 2 x 7 W
4 Ohm: 2 x 8.5 W
Total harmonic distortion: 1.0%
Attenuation factor: 20 at 8 Ohm
Frequency response: 25 Hz - 30 kHz, ± 2 dB
Signal-to-noise ratio:
Phono MM: 65 dB
High level: 70 dB
Tone control:
Bass: ± 10 dB at 50 Hz
Treble: ± 8 dB at 10 kHz

Loudness: + 8 dB at 50 Hz, + 3 dB at 10 kHz
High Filter: -10 dB at 10 kHz, 6 dB / octave
Low Filter (Subsonic):
Mute:

Tuner

Reception: FM, MW
Frequencies:
FM: 87.5 - 108 MHz
MW: 525 - 1,605 kHz
Frequency response: 30 - 15,000 Hz, + 0.5 dB, - 3 dB
Input sensitivity:
FM: 3 µV (IHF)
MW: 51 µV

Distortion factor:
FM: 1.0 %
Signal-to-noise ratio:
FM: 50 dB (stereo)
Channel separation:
FM: 30 dB (at 1 kHz)
Selectivity:
FM: 34 dB
MW: 20 dB
Equal wave selection:
FM: 3.0 dB
Spurious wave selection:
FM: 65 dB
Image frequency attenuation:
FM: 45 dB
MW: 30 dB
IF attenuation:

FM: 65 dB
MW: 45 dB
AM suppression: 50 dB

Special Features

FM muting
Signal strength indicator

FM Stereo Auto
FM SCA Filter
