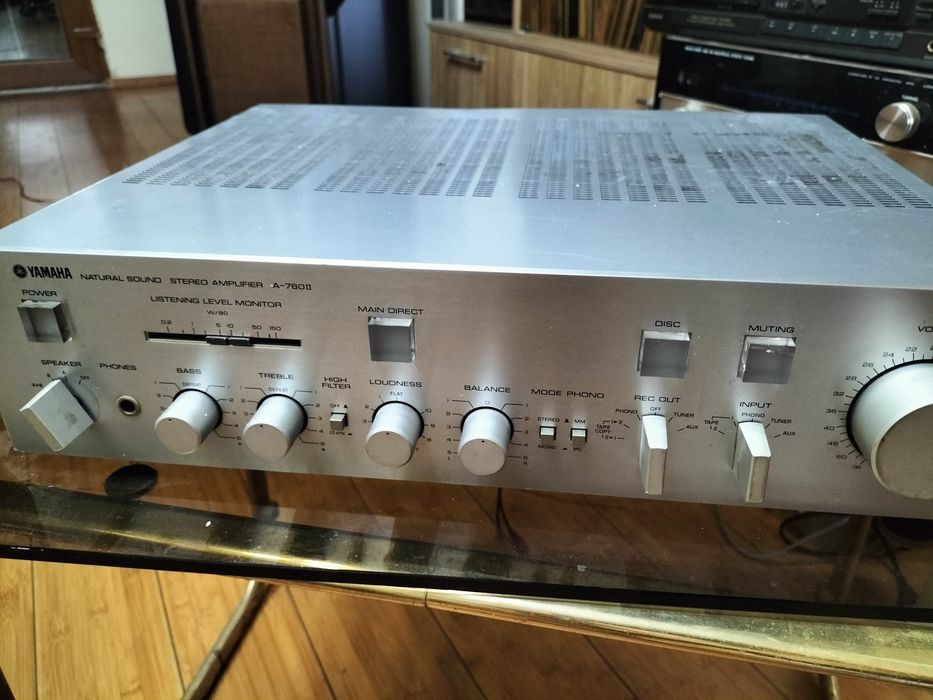

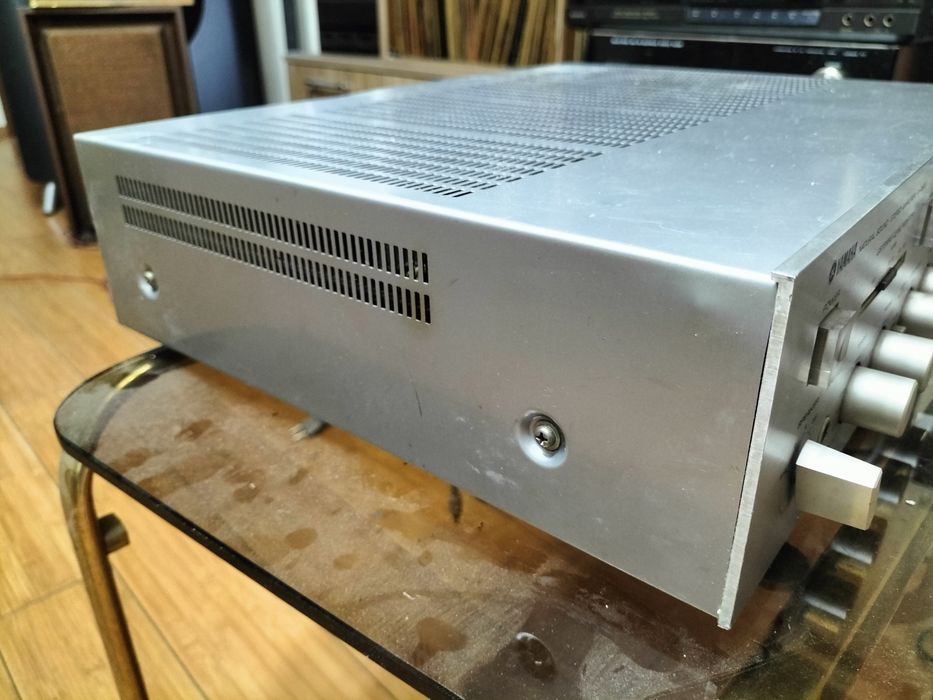

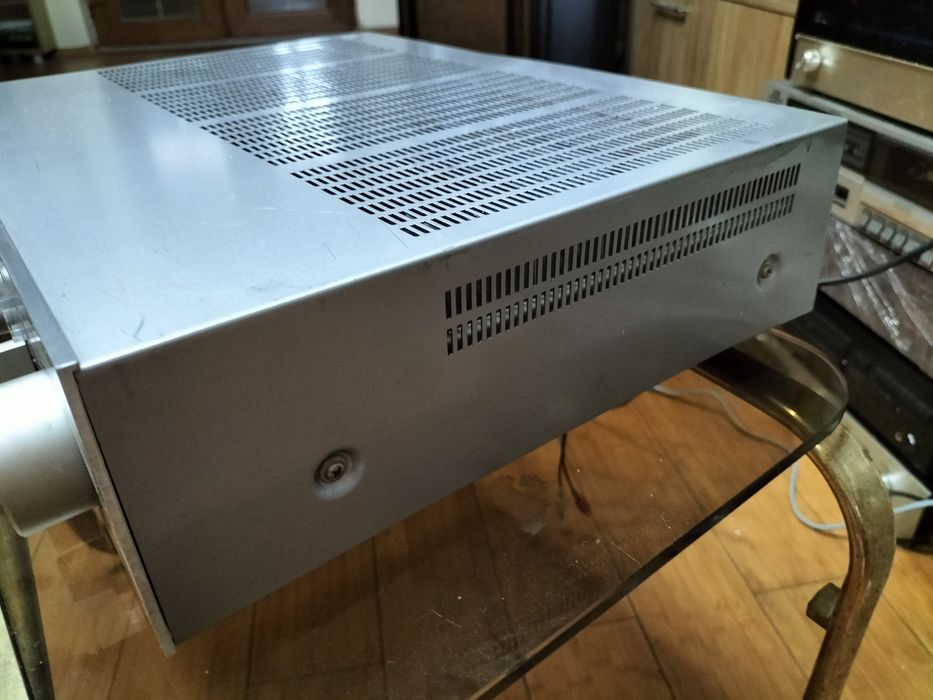

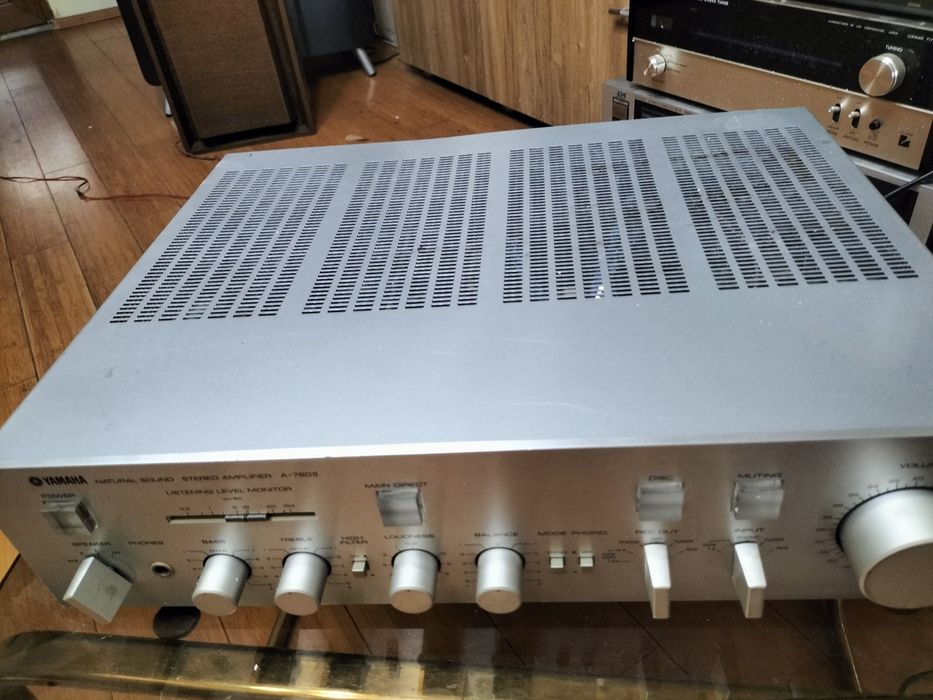

Yamaha A 760 II

Yamaha A-760 II
NamespacesPageDiscussionPage actionsView sourceHistoryMore
Data
General

Manufacturer: Yamaha
Model: A-760 II
Years of manufacture: 1982-1983
Type: Integrated amplifier
Remote control: No
Power consumption: 520 watts (X power supply)
Dimensions: 435 mm × 112 mm × 365 mm (W × H × D)

Weight: 9.1 kg
Color: silver
Original price approx.: 1000 DM

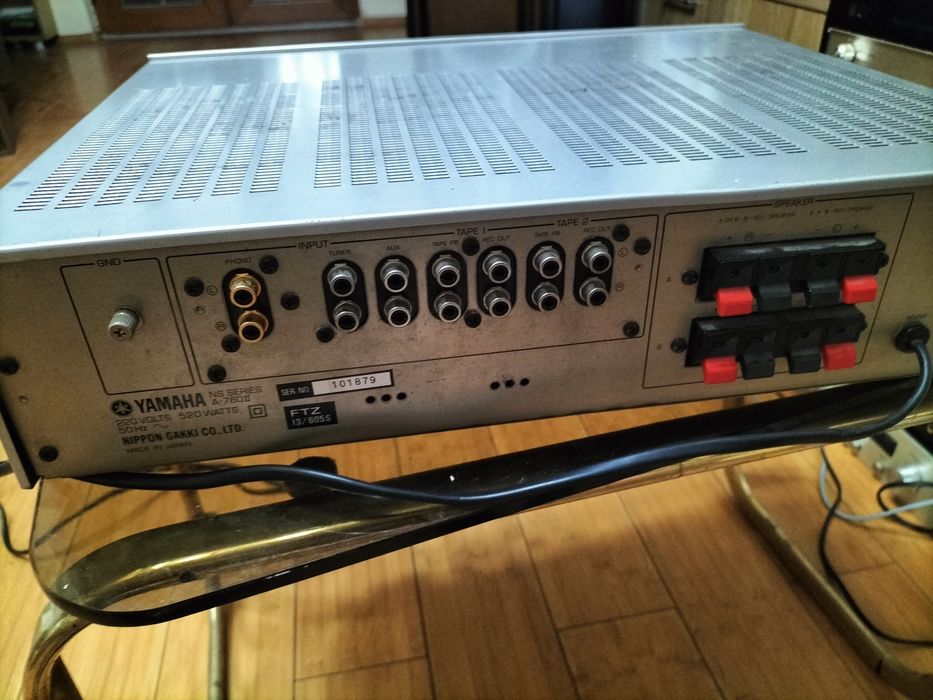

Connections

Number of inputs:
Phono, Tuner, Aux, 2 × Tape
Number of outputs:
2 × speakers, 2 × rec-out, headphones.
Specifications

Continuous power (at distortion factor)
8 Ohm: 2 × 100 Watt
4 ohms: 2 × 150 watts

Dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.003 %
Attenuation factor:
Input (Sensitivity/Impedance).
Phono MM 2.5 mV/47 kOhm, MC 160 µV/100 Ohm
Tape, Tuner, 150 mV/47 kOhm
Output (level/impedance)
Rec-Out 150 mV/270 Ohm

Frequency response: 10-10,0000 Hz
Tone control:
Bass: yes
treble: yes

Loudness: adjustable
Subsonic:
Mute: yes
Direct/Line-Straight: Main-Direct and Disc-Direct
Ripple distance (shorted):
Stereo Channel Separation:
Signal-to-noise ratio: 106 dB

Special Features

Mono/Stereo switchable
High-Filter
Record selector
Listening level monitor
